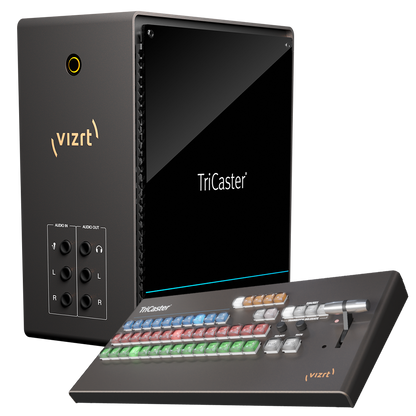

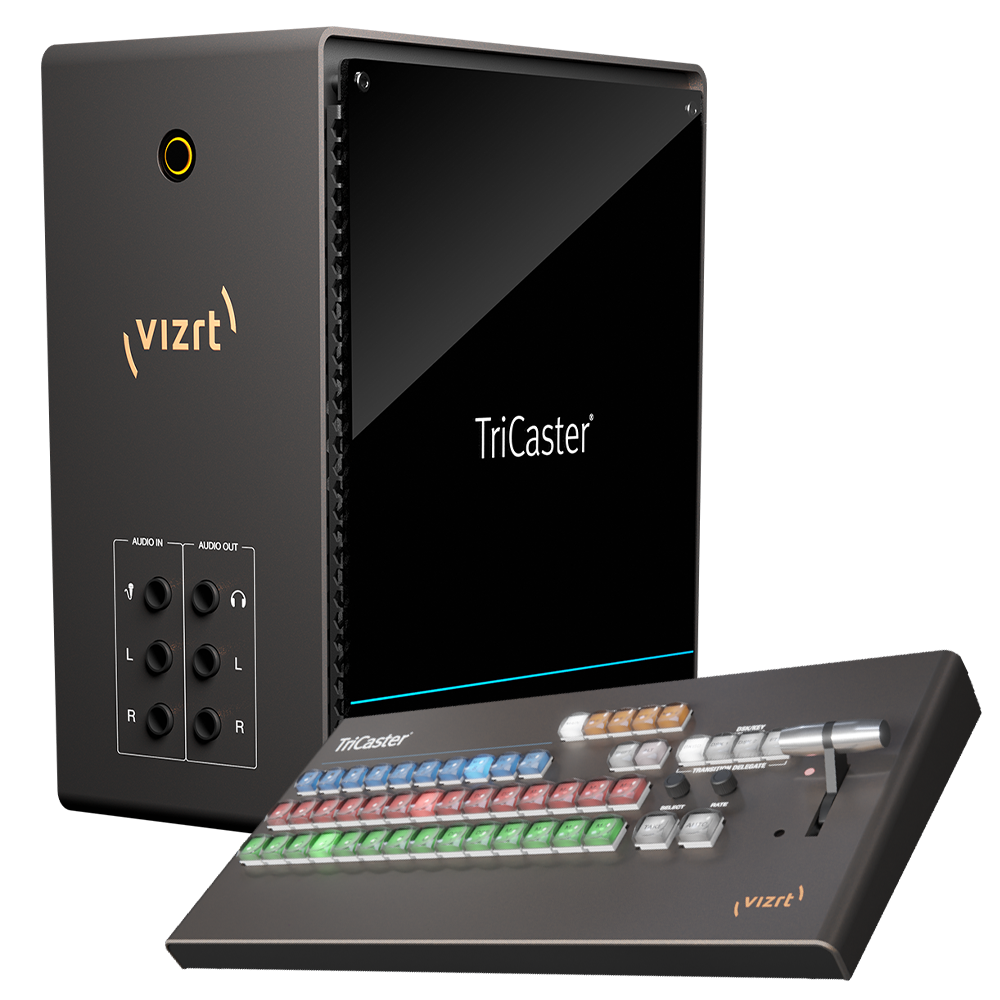

Vizrt TriCaster Mini 4K | NDI Base  Bundle with Control Surface
Vizrt TriCaster Mini 4K | NDI Base  Bundle with Control Surface

Vizrt TriCaster Mini 4K | NDI Base  Bundle with Control Surface

Regular price$11,495.00
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): TCM4KUHDB
MFR Part # (MPN): BDL-000000003

Short Description:

Vizrt TC Mini is an easy to use compact video creation system to let anyone with a story to tell make fun and exciting shows without needing production expertise.

  • Free Shipping & Tech Support

TriCaster Mini 4K | NDI®
The power of visual storytelling is bigger, brighter, better and bolder than ever.

  • Take it anywhere, it’s small and light weight.
  • Set up and get started in 5 minutes. Don’t believe us? Check this out.
  • Plug-n-Play NDI®, no external networks. Add your NDI® device and its live.
  • 2 Spark Plus IO input modules directly connect HDMI devices instantly as NDI® sources.
  • 4 NDI® connections with PoE makes video, audio, tally, power and control as easy as plugging in an ethernet cable.
  • 8 live video inputs, supporting any combination in resolutions up to 4K UHD.
  • Stream to all your favorite social channels with the push of a button.
  • 2 simultaneous live Skype inputs bring guests in from anywhere in the world.
  • Grab a couple of cameras, including your iPhone®, and you’re on your way.

Your Story BIG.
Make your story more than words, more than slides. Make it real TV. More engaging. More informative. More dynamic. More accessible.


Your Story BETTER.
Tell your story with motion graphics, amazing virtual sets, and dynamic effects. Always compelling. Always memorable. Always you.


Your Story BOLD.
Make your statement. Stream to the world. Splash on the big screen. Share across the campus. Compromise nothing.


NDI® in Under 5 Minutes!
Take it anywhere, it’s small and light weight. Set up and get started in 5 minutes. Plug-n-Play NDI, no external networks. Just add your NDI device and its live! Stream to all your favorite social channels with the push of a button.


Live Link for TriCaster®
Live Link allows users to render web pages directly into the TriCaster and pull any web page elements into a production without the need for a 3rd party application. From graphics or images on a web page to videos from your organization’s internal training platforms – Live Link offers the ultimate in production agility and freedom. Available now on all current TriCasters – ensure you have the very latest update to take advantage of this exciting feature.


True Resolution Independence
Present your audience with an immersive viewing experience defined by amazing clarity and incredible detail. Produce programs, performances, events and live sports in the resolution of your choice, all the way up to true 4K UHD (Ultra High Definition)+


Simplified IP Connectivity with NDI®
Say goodbye to the tangled mess of bulky video cables and take advantage of the plug and play simplicity of NDI® IP video protocol. Connect to a wide variety of NDI®-enabled products, along with the world’s largest ecosystem of third-party IP video products using a single network cable for video, audio, key, control, tally, and in some cases power over Ethernet.


Skype TX Integration
Conduct two simultaneous live Skype video calls with any remote guest, anywhere in the world. TriCaster systems are the only video production systems to feature direct Skype TX software integration with broadcast-quality video and balanced audio, allowing you to present production-ready conversations, interviews, reports, and more—regardless of the caller’s device.


Multi-screen Delivery & Streaming
It’s more important than ever to deliver content to ALL of today’s screens. You can output 16×9 video for traditional video applications. Or, change your aspect ratio to square or vertical video with no compromise in production power and stream that content using the built-in dual encoders to multiple destinations simultaneously. Unlike other products, only TriCaster allows you to switch, stream, and record into a wide array of formats, resolutions, aspect ratios, and frame rates.


Social Media Publication
Share real-time updates and on-demand content across your social media accounts, uploading images and video directly to Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube and more—complete with comments and hashtags.


Multichannel Audio Mixing
Set the tone for your production with comprehensive audio integration, including a software-based audio mixer, support for digital, analog, and USB audio devices, audio over IP networking with NDI®, Dante™, and AES67, professional DSPs, fader control, VU metering, Talk Back communication, and 2 x 2 x 2 stereo audio with two audio mixes.*
*Dante™ and AES67 require compatible virtual sound card licenses (sold separately)


Real-Time Monitoring and Multiviewers
See everything happening during your production with fully adjustable single-screen or multi-screen monitoring. With three customizable multiviewers, configurable windows and workspace layouts, operator confidence monitors, visual indicators, scopes, and more, you can easily personalize the environment to your preference.


Revolutionary Automation & Teleprompter from MS Word®
With Live Story Creator, script the entire production in your favorite word processor, including production cues (camera takes, transitions, effects, graphics, clips, and more), and export as a .docx file. Load the file into your TriCaster system and run the teleprompter control to execute the entire production. Virtually anyone can run quality and consistent productions without experience or training.**


Software Control Panels
Create your own software-based control panels and operate your TriCaster system from any compatible desktop or mobile device—anywhere on the network with LivePanel. Easily accessible through any Web browser or operating system, LivePanel includes production-ready control panels for remote video mixing, media playback, audio mixing, and macro automation, plus the LivePanel Builder tool to design your own custom panels geared toward your unique productions and workflows.


World-Class Live Virtual Sets
Save on studio and set expenses without sacrificing production value. With integrated LiveSet™ technology, TriCaster can transport your talent into professionally-designed virtual environments, complete with multiple angles, virtual camera movements, real-time reflections, specular highlights, animated lens flares, and stunning augmented reality effects that blur the line between virtual and reality.


Built-in Video Players
Add your files to the built-in video players for on-demand and automated playback, including auto-advancing playlists, live-edited highlight reels, and much more. With responsive player controls, presets, real-time editing tools, selectable transitions, and playlist effects, you have everything needed to make magic from your stored media.


Unlimited Recording & Replay
Capture all your sources during production in any resolution or frame rate for fixes in post or archiving for later use. You can also trigger replays from the Program or Preview bus on any input without using a separate replay system.*
Based on network bandwidth and storage capacity.

Network Video Input
8 x IP video inputs via NDI®, resolution-independent, NDI inputs supporting video input in any combination of standard formats, resolutions, and frame rates1
  • 2160p 59.94, 50, 29.97, 25
  • 1080p: 59.94, 50, 29.97, 25, 24, 23.976
  • 1080i: 59.94, 50
  • 720p: 59.94, 50, 29.97, 25
  • SD: 59.94, 50, 25
1Available frame rates determined by model and session video standard (NTSC or PAL)
PTZ
Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system
Skype TX
Native support for up to 2 simultaneous Skype® video call inputs via Skype TX software integration, including tally and Talk Back communication
Network Video Output
4 x independent IP video mix outputs via NDI®
Stream Output
2 x streaming video output, independently configurable, with simultaneous stream archive
Monitor Outputs
4 x mini display port with output adapters
3 x of the outputs support multiviewers using standard display resolutions
Mix/Effect Buses (M/E)
  • 4 x M/E buses supporting video re-entry
  • 1 x Mix/Effect channel per bus with support for up to 2 sources
  • 2 x KEY layers per bus
DSK Channels
2 x DSK channels
Media
4 x media players
  • 2 x DDR
  • 1 x GFX
  • 1 x Sound
15 x media buffers
  • 5 x animation buffers
  • 10 x graphic buffers
Keyers
Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses
  • 8 x input keyers
  • 2 x media player keyers
  • 4 x M/E keyers
  • 15 x buffer keyers
COMP
Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer
configurations and DVE-style motion sequences
16 x configurable COMP presets per bus
Virtual Sets
Integrated LiveSet technology with 30+ live virtual sets and box effects included
DataLink
Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more
Macros

Record, store, edit and automate commands and user-configured operation sequences

  • Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys® buttons or GPI triggers
  • Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
  • Supports control via web-based interface
Recording
4 x recording channels from either NDI® inputs or Mix outputs (10 x with Premium Access)
  • Records and retains alpha channel data
  • 4 x QuickTime® archival video recorders (Native NDI Codec for recording)2
2QuickTime Player not required for playback in common NLE applications
Signal Monitoring

Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709

Storage
  • Capacity varies by format, resolution and file specification
  • Supports recording to external storage via USB 3.0
Grab
Grab full-resolution, deinterlaced still images from external video sources and outputs
Export
Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
Audio Mixing
Integrated multi-channel audio mixer with support for stereo audio, and DSP’s
Local Audio Input
1 x 1/4” (6.35 mm) balanced mic
2 x 1/4” (6.35 mm) balanced line
Local Audio Output
2 x 1/4” (6.35 mm) balanced line
1 x 1/4” (6.35 mm) stereo headphones jack
Network Audio
  • Native support for network audio input and output via NDI®
  • Embedded audio supported for all NDI® input and output video signals
  • Integrated support3 for Dante networking protocol from Audinate®
3Requires Dante Virtual Soundcard license from Audinate (sold separately)
5Requires third-party virtual sound card license (sold separately)
Supported Media File Formats
Import, store, and play back multimedia files, with optional transcoding, including:
  • Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
  • Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
  • Audio: AIFF, MP3, WAV, and more
Processing
Video: Floating Point YCbCr +A 4:4:4:4
Audio: Floating Point, 96 kHz
Throughput Latency
~1.0-1.5 frames
Tally
Support for network tally via NDI®
MIDI
Support for standard MIDI protocol enabling third-party device control
NIC
2 x 1 Gigabit NIC
System Physical

System chassis, including adjustable cable retention bracket

  • 4.6 x 9.2 x 7.9 in (11.7 x 23.4 x 20.1 cm)
  • 9 lbs (4.1 kg)

  • TriCaster Mini 4K|NDI
  • TC Mini Control Surface
  • 2 Solo Connect 4K IO Converters
  • Custom Travel Case
