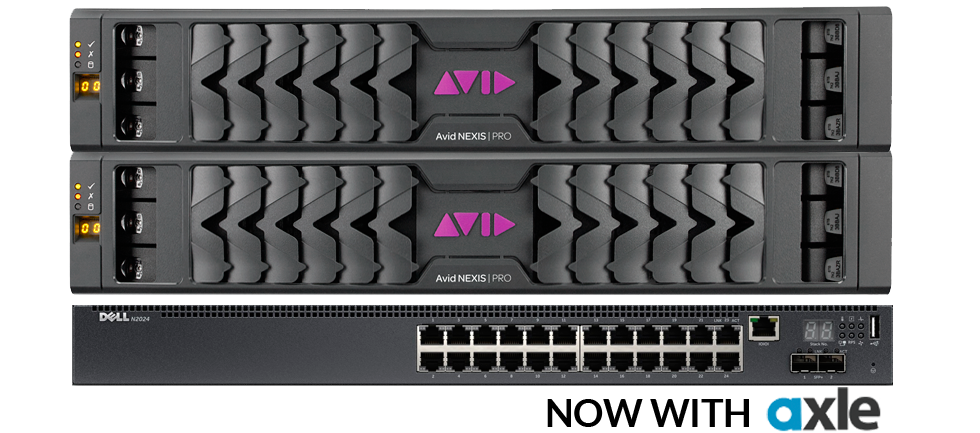

Avid NEXIS | PRO 40TB with Dell N2024
| NEXIS | PRO STORAGE ENGINE | |
| Media Drives | 20 TB of storage capacity with a single Media Pack per engine (20 TB, offering up to 400 MB/s of bandwidth) |
| Scalability | Scalable from 20–80 TB by combining one to four PRO engines together (cannot be mixed with E-class NEXIS engines) |
| Rack | Rackmount-ready; 2U rack height |
| Controller | Field replaceable Storage Controller, power supplies (2), and fans |
| SSDs | Redundant, hot-swappable SSDs for system configuration and metadata management |
| Network Connection | 10GbE network connection for client access; 1GbE network connection for management |
| DIMENSIONS | |
| Width | Width (mounting): 19 in (483 mm); IEC rack compliant |
| Height | Height: 3.5 in (88.9 mm) |
| Depth | Depth: 24.8 in (630 mm) |
| Weight | Max weight (shipping): 57.2 lb (26 kg) with drives |
| NETWORK SWITCHING | |
| Works with the following switches (not included): | NETGEAR XS712T |
| Dell Networking N2024, N3024 | |
| Dell S4810, S4820 | |
| Cisco 4948E | |
| Avid NEXIS | FS FILE SYSTEM | |
| System | 64-bit self-balancing, distributed file system |
| Media Distribution | Intelligent distribution/redistribution of media |
| Editing and Playback | Optimized for media editing and playback |
| Failsafe Protection | Two drive failure protection, with media-aware drive rebuilds |
| Metadata Management | Internal System Director metadata management |
| ADMINISTRATION TOOLS | |
| Workspace | Dynamic workspace set-up and monitoring |
| FlexDrive dynamically adjusts storage workspaces without editing interruption | |
| User workspace access controls | |
| User Administration | View, create, define workgroups, and delete and assign passwords |
| Active Directory | Active Directory (LDAP) integration for user account synchronization with IT systems |
| Error Handling | Error warning and informational logging |
| Monitoring | Monitoring of user status, workspace status, comprehensive event log, read and write bandwidth usage |
| Remote Notification | Remote notification of system events |
| ENVIRONMENTAL | |
| Temperature | Operating temperature: 5°C to 40°C (35ºC max. above 2,000m) |
| Non-operating temperature: -40°C to 60°C | |
| Relative Humidity | Relative humidity (operating): 20% to 80% non-condensing |
| ELECTRICAL | |
| Power Consumption | Maximum power consumption: 764W |
| Average power consumption: 380W | |
| PLATFORM SUPPORT | |
WINDOWS | |
| Client OS | Windows 8 (64-bit), Windows 7 (64-bit) |
| MAC | |
| Client OS | Mac OS X 10.10 Yosemite (64-bit), Mac OS X 10.9 Mavericks (64-bit), Mac OS X 10.8 Mountain Lion (64-bit) |
| Ethernet | Dual Gigabit Ethernet |
| Client Network Connections | 1 Gigabit Ethernet, 10 Gigabit Ethernet |
| COLLABORATION | |
| Files/Folders | 3 million |
| User Accounts | 5,000 |
| User Groups | 1,000 |
| Supported Avid Products | Media Composer |
| Media Composer | Symphony Option | |
| Media Composer | NewsCutter Option | |
| Pro Tools | |
| Supported Third-party Editing | Adobe Premiere Pro CC |
| Apple Final Cut Pro X | |
| Grass Valley EDIUS | |
| Black Magic DaVinci Resolve | |
| AVID ADVANTAGE SUPPORT | |
| Subscriptions | Available through a monthly or annual subscription to Avid Support |
- 2 x Avid NEXIS | PRO 40TB Engine
- Dell Networking N2024 Switch. 24-ports 1Gigabit Ethernet, 2 unpopulated SFP+ 10GbE interfaces, Single Internal Power Supply, Rack Mount kit.
- 2 Dell Direct Attach 10G Cables. Copper 10GbE SFP+ cable, 3 meters each
About Dell N2024 Switch
Non-blocking GbE Layer 3 Standard switches with multi-chassis link aggregation (MLAG) support and 12-unit stacking.
- 24 RJ45 10/100/1000Mb auto-sensing ports
- Two integrated 10GbE SFP+ ports
- Two dedicated rear stacking ports
- One integrated power supply (100W AC)
