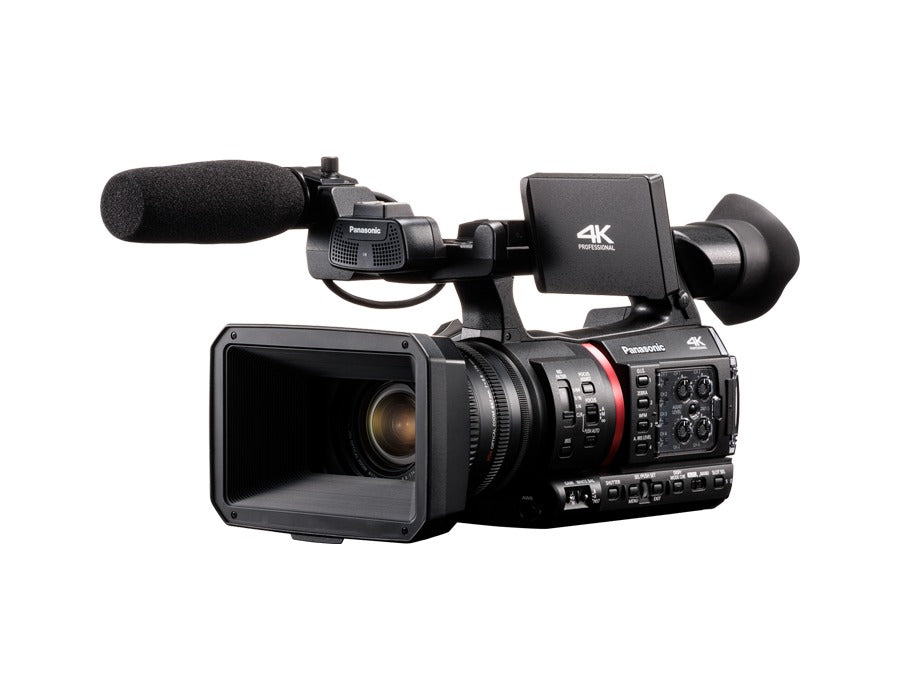

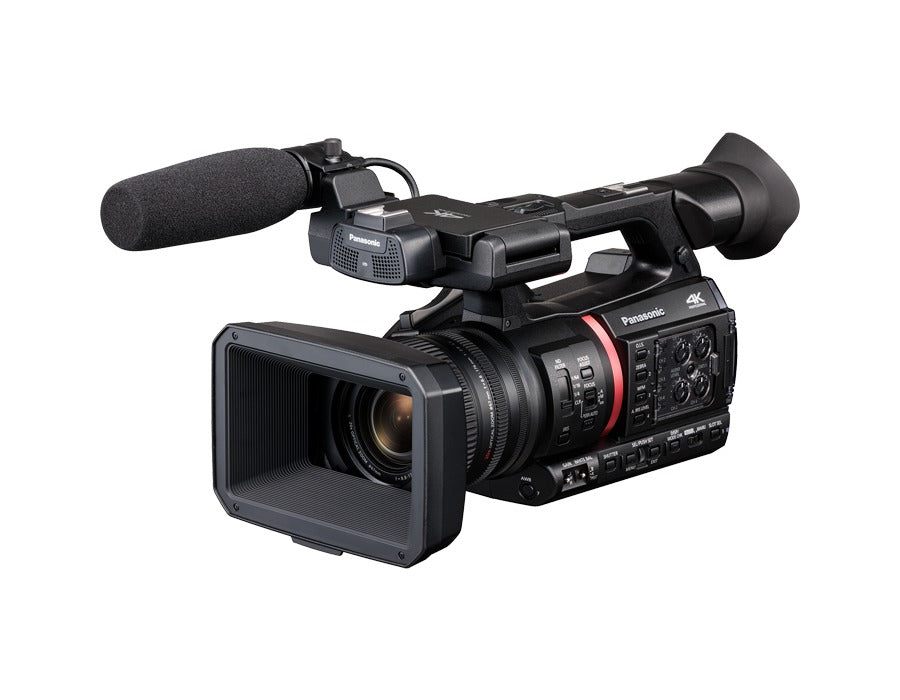

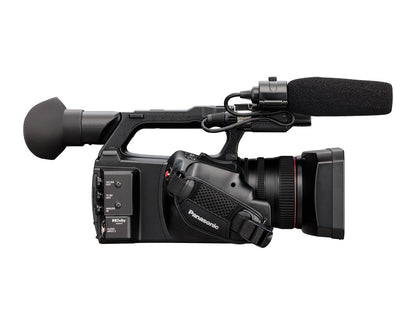

Panaosnic CX370 NDI Camcorder

New CX Series Handheld Camcorder Built for Next-generation Performance, Coupled with Exceptional Image Quality and Operability — Furthermore optimized for Production, Broadcasting and Live Streaming with 4-channel Audio and GENLOCK Inputs and 12G-SDI Output.

The AG-CX370 is a high-end handheld camcorder designed to meet the demands of modern video production. Building on the acclaimed high performance and usability of its predecessor, the AG-CX350, it features 10-bit 4K recording, a wide-angle high-magnification zoom lens, and HDR-compatible V-Log/HLG as well as manual three-ring control for precise operation.
Expanded functionality in the AG-CX370 includes a new 4-channel audio input terminal with independent volume control for simultaneous recording from up to four microphones. It also incorporates a GENLOCK input terminal for broadcast-quality multi-camera synchronized recording. In addition, the SDI output has been upgraded to 12G-SDI for uncompressed 4K video output, and the IP output now supports NDI® HX2,* enhancing its operability for live camera applications.
Despite its lightweight and compact design, the AG-CX370 provides professionals with a powerful solution for production, broadcasting, and streaming.

* NDI® is a video connectivity technology and is registered as a trademark by Vizrt NDI AB in the United States and other countries.
* Recording, streaming and 4K output are not available when using NDI HX2 mode.

Expanded system capabilities with 12G-SDI output and GENLOCK input
The SDI output terminal now supports 12G for high-quality, uncompressed 4K video streaming to the latest video equipment. Additionally, the newly integrated GENLOCK input terminal enables broadcast-grade synchronization in multi-camera systems.

Versatile 4-channel audio input with independent volume controls
Alongside two XLR inputs, a 3.5mm stereo mini-jack input supports up to four external microphones for 4-channel audio recording. Each channel is equipped with a dedicated volume control for precise manual adjustment.

Optimized IP live production with NDI® HX2
Built-in NDI® HX2 compatibility is provided for IP-based transmissions and camera control when connected to NDI®-compatible devices such as switchers and decoders. NDI® HX2 efficiency ensures seamless live production for event broadcasting, online streaming and more.

Effortless vertical video recording
A vertical video flag enables ingest/play/edit as a vertical video by using video editing software.

FEATURES

High Shooting Quality


• Wide-Angle 24.5 mm Optical 20x Zoom, Plus i.Zoom
• High-Definition, High-Sensitivity 1.0-type 15M MOS Sensor
• Intelligent AF and Face Detection/Tracking AE & AF
• Built-in 5-Axis Hybrid Image Stabilizer
• Manual Three Rings and Focus Assist
• HDR-Compliant V-Log/HLG (Hybrid Log-Gamma)
• Broadcast-Grade Picture Quality Adjustment Functions
• Simultaneous Display on High-Brightness, High-Definition LCD and High-Resolution OLED EVF


Multi-Format, Multi-Codec Recording


• HEVC Codec for High-Image-Quality 10-bit 4K/60p Recording at Low Bit Rate
• P2 MXF File Formats Supported with Proxy and Shot Mark
• Clip Metadata Functions
• 10-bit Variable Frame Rate (VFR) without Cropping
• 24-bit PCM Audio 4-Channel Recording
• Freeze Frame (Still Image Capture)
• Double Memory Card Slots Improve Recording Reliability

Connect to Networks and Systems


• Streaming capabilities with 4K quality and SRT protocol support
• Easy IP Connection: NDI® HX2 Supported
• Cabled/Wireless Remote Control Capability
• Professional System Features
• Low Power Consuming, Large-Capacity Battery, Quick Charge

General

Power

• DC 7.28 V (when the battery is used)
• DC 12 V (when the AC adaptor is used)


Power Consumption

• 26W (when the LCD monitor is used)
• 17 W (1080i / 422ALL-I 100M recording, when the LCD monitor is used, no external device connection)


Operating Temperature

• 0 °C to 40 °C (32 °F to 104 °F)


Operating Humidity

• 10 % to 80 % (no condensation)


Weight*1

• Body: approx. 1.9 kg (4.19 lb) (body only, excluding lens hood, battery, and accessories)
• Shooting: approx. 2.3 kg (5.07 lb) (including lens hood, battery, and microphone holder)


Dimensions*1

• 180 mm (W) x 173 mm (H) x 311 mm (D) (7-1/8 inches x 6-13/16 inches x 12-1/4 inches)  (excluding protrusion and eye cup)\

Camera Unit


Pickup Device

• 1.0-type (effective size) MOS solid state image sensor


Effective Pixels

• 15,030,000 pixel


Lens

• Optical image stabilizer lens, optical 20x motorized zoom
•  F value: F2.8 to F4.5
• Focal length: f=8.8 mm to 176 mmm, 35 mm equivalent: 24.5 mm to 490 mm


Filter Diameter

• 67 mm


Optical Filter

• ND Filter: Clear, 1/4, 1/16, 1/64
• IR Filter: Incorporates the ON/OFF control function


Shortest Shooting Distance (M.O.D.)

• Approx. 10 cm (W), 1.0 m (T) from the front lens


Gain Setting

• L/M/H selector switch
• GAIN/ISO mode = dB
•  –3 dB to 18 dB (adjustable in 1 dB steps)
•  24 dB, 30 dB, 36 dB switched   (when assigning [S. GAIN] to the USER button)
• GAIN/ISO mode = ISO
• ISO 400, ISO 500, ISO 640, ISO 800, ISO 1000, ISO 1250, ISO 1600, ISO 2000, ISO 2500,
• ISO 3200, ISO 4000, ISO 5000, ISO 6400, ISO 8000, ISO 10000, ISO 12800


Color Temperature Setting

• ATW, ATW LOCK, A ch, B ch,
• preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)


Shutter Speed

When [SYSTEM MODE] = 59.94 Hz

•  59.94i/59.94p mode
• 29.97p mode
• 23.98p mode


When [SYSTEM MODE] = 50.00 Hz


• 50i/50p mode
•  25p mode


Shutter Speed (Slow Shutter)

When [SYSTEM MODE] = 59.94 Hz


• 59.94i/59.94p mode
• 29.97p mode
•  23.98p mode


When [SYSTEM MODE] = 50.00 Hz

• 50i/50p mode
•   25p mode


Shutter Speed (Synchro Scan)

When [SYSTEM MODE] = 59.94 Hz

• 59.94i/59.94p mode
•  29.97p mode
•  23.98p mode
•  When [SYSTEM MODE] = 50.00 Hz
•   50i/50p mode
•   25p mode


Shutter Open Angle

• 3.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps)


VFR Recording Frame Rate

• When [SYSTEM MODE] = 59.94 Hz
  1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60 (fps)
• When [SYSTEM MODE] = 50.00 Hz
  1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50 (fps)


Super Slow Recording

• When [SYSTEM MODE] = 59.94 Hz
  1920 x 1080 (FHD): shooting frame rate 120 fps
• When [SYSTEM MODE] = 50.00 Hz
   1920 x 1080 (FHD): shooting frame rate 100 fps


Sensitivity

• When [HIGH SENS.] mode
•  F12 (2000 lx, 3200 K, 89.9 % reflect, 2160/59.94p, 1080/59.94i)
•  F13 (2000 lx, 3200 K, 89.9 % reflect, 2160/50p, 1080/50i)

Horizontal Resolution

• 2000 TV or higher (UHD: center)
• 1000 TV or higher (FHD: center)


i.Zoom

• x32 (FHD), x24 (UHD)


Digital Zoom

• x2/ x5/ x10


Lens Hood

• Hood with lens cover

Memory Card Recorder

Recording Media

• SDHC memory card, SDXC memory card
•  UHS-I/UHS-II UHS Speed Class 3 supported,
•  Video Speed Class V90 supported
   Please see the "Available Memory Card" table.


Recording Slot

• SDXC UHS-II card slot x 2*2


Recording Pixels

• 3840 × 2160 (UHD), 1920 × 1080 (FHD), 1280 × 720 (HD)
• (AVC-Intra50: 1440 × 1080, 960 × 720)


System Frequency

• 59.94 Hz/50.00 Hz


Recording File Format

• MOV (AVC), MOV (HEVC), AVCHD, P2 MXF



2 Slot Functions

• Relay Rec, Simultaneous Rec, Background Rec


Special Recording Functions

• Pre Rec, Interval Rec, Time Stamp

Digital Video

Quantization

• MOV
•  AVCHD
• P2


Video Compression Format

• MOV: H.264/MPEG-4 AVC High Profile, H.265/MPEG-H HEVC Main10 Profile
•  P2: AVC-Intra422/AVC-LongG50/AVC-LongG25/AVC-LongG12: MPEG-4 AVC/H.264 High Profile
• P2: AVC-Intra200/AVC-Intra100/AVC-Intra50: MPEG-4 AVC/H.264 Intra Profile

Digital Audio

Recording Audio Signal

• MOV
•  AVCHD
•  P2



Headroom

• 12 dB/18 dB/20 dB switchable (menu)

AVC Proxy


File Format

• MOV


Video Compression Format

• H264/AVC High Profile


Audio Compression Format

• AAC-LC


Recording Time

• Approx. 13 min. per 1 GB of AVC-G6 2CH MOV
    *These are reference values for continuous recording using the Panasonic products. The recording time may differ depending on the scene or the number of clips.

Live Streaming


Video Compression Format

• H.264/MPEG-4 AVC Main Profile,
•  H.264/MPEG-4 AVC High Profile


Video Resolution

• 3640 x 2160 (UHD), 1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 360 x 180


Streaming Method

• Unicast, Multicast


Frame Rate

• System frequency = 59.94 Hz: 24 fps, 30 fps, 60 fps
• System frequency = 50.00 Hz: 25 fps, 50 fps


Bit Rate

• 3640 x 2160 (UHD): 75 Mbps, 50 Mbps, 25 Mbps, 12 Mbps, 8 Mbps
• Other than those above: 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps


Audio Compression Format

• AAC-LC, 48 kHz/16 bit, 2 ch


Network Protocol

• RTSP/RTP/RTMP/RTMPS/SRT

Video Output

SDI OUT

• BNC x 1, SDI REC REMOTE supported
• 4K(12G/6G), HD (3G/1.5G) 0.8 V [p-p], 75 Ω,
•  Output format (4:2:2 10 bit):
      • 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97Psf, 25Psf, 23.98PsF
      • 1280 x 720: 59.94p, 50p


HDMI OUT

1. HDMI x 1, Type A, HDMI REC REMOTE supported, VIERA Link not supported
   Output format (4:2:2 10 bit):
       • 3840 x 2160: 59.94p, 50p, 29.97p, 25p, 23.98p
       • 1920 x 1080: 59.94p, 50p, 59.94i, 50i, 29.97p, 25p, 23.98p
       • 1280 x 720: 59.94p, 50p


VIDEO OUT

• 3.5 mm diameter mini jack, composite 1.0 V [p-p], 75 O

Audio Input/Output


Built-inMicrophone

• Stereo microphone


AUDIO INPUT 1/2

• XLR (3-pin) x 2 (INPUT1, INPUT2)
• Input high impedance, LINE/MIC/MIC+48V (switchable SW)
• MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu)
•  LINE: +4 dBu/0 dBu (switchable menu)


AUDIO INPUT

•  φ3.5 mm stereo mini jack, unbalance
•  MIC: -40 dBV (0 dB=1 V/Pa, 1 kHz)
• Plug-in power compatible, supply voltage:2.5 V±0.5 V
•  Input impedance: Approx. 2kΩ (when plug-in power is ON)
•  Approx.20kΩ (when plug-in power is OFF)


SDI OUT

• Linear PCM 4 ch


HDMI OUT

• Linear PCM 4 ch (switchable menu)


Headphone

• 3.5 mm diameter stereo mini jack x 1


Speaker

• 20 mm diameter, round x 1

Other Input/Output


GENLOCK IN

• BNCx1, 1.0V [p-p], 75Ω


TC IN/OUT

• BNC x 1, Used as the input and output terminals (switchable menu)
•  Input: 1.0 V to 4.0 V [p-p] 10 kΩ
• Output: 2.0 V ± 0.5 V [p-p] low impedance


Remote

• 2.5 mm diameter super mini jack
   *The analog control remote controller used with previousPanasonic models may not be used with this device.


LAN

• RJ-45: 1000BASE-T/100BASE-TX/10BASE-T
• NDI® HX2 supported


USB 2.0 HOST

• Type-A, 4-pin (5 V, 0.5 A) for Wireless Module (option)


USB 3.0 DEVICE

• USB 3.1 GEN1 Type-C, USB Mass storage function
• No USB bus power function


DC IN 12V

• DC 12 V EIAJ Type 4

Monitor/Viewfinder


LCD Montor

• 3.2 type TFT LCD color monitor (3:2), approx. 1,620,000 dots,
• Touch panel video display (16: 9) area: Approx. 1,370,000 dots


Viewfinder

• 0.39 type OLED (organic EL display), approx. 2,360,000 dots,  video display (16: 9) area: approx. 1,770,000 dots

• CX370 NDI Camcorder
• Battery (AG-VBR59)
• Battery charger (AG-BRD50)
• AC adaptor, AC cable
• Microphone holder kit
• Shoulder strap
• Eye cup
• Lens hood*
• Grip belt*
• Operating instructions

*Items come already attached to the camera.
