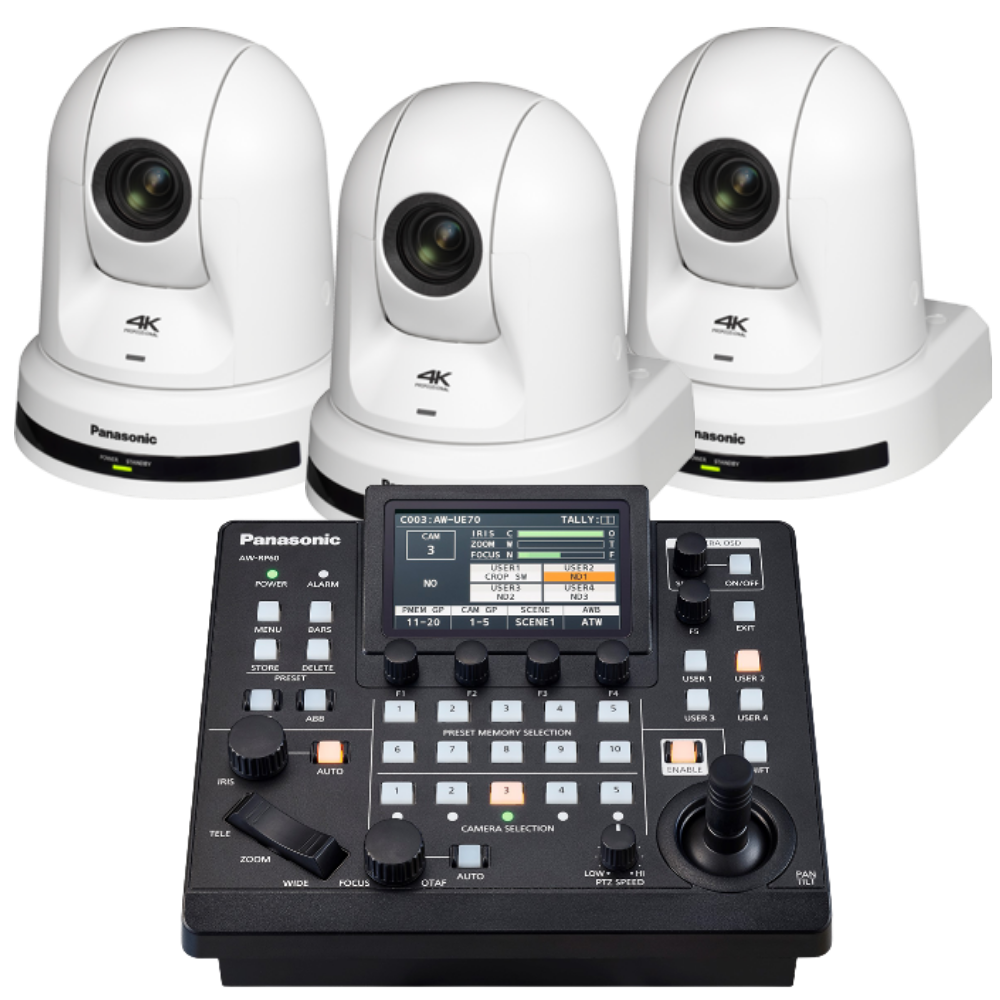

Panasonic 3x AW-UE50 (White) w/ AW-RP60 Controller Bundle

Panasonic 3x AW-UE50KPJ5 w/ AW-RP60 Controller Bundle
Bundling three Panasonic AW-UE50 4K PTZ cameras with the AW-RP60 controller is the smartest way to build a powerful, professional multi-camera system while saving $900. This bundle gives you seamless, centralized control over all three cameras, allowing a single operator to execute smooth, precise pan, tilt, zoom, and preset recalls for polished, broadcast-quality productions. The AW-RP60 unlocks the full performance of the AW-UE50s, making it easy to manage multiple angles, maintain consistent framing, and respond quickly to live action or presenters, all while reducing operator workload and setup complexity. Whether you’re producing corporate events, worship services, classrooms, or livestreams, this bundle delivers a complete, scalable PTZ workflow that improves efficiency, elevates production quality, and delivers exceptional value with significant built-in savings.

Panasonic AW-UE50 24x 4K PTZ Camera
The Panasonic AW-UE50 is a compact, ultra-quiet 4K PTZ camera designed to elevate online streaming, presentations, and live production across education, corporate, and event environments. Delivering crisp 4K 25/30p video with a powerful 24x optical zoom, the AW-UE50 features a new direct drive system for smooth, highly responsive, and virtually silent pan, tilt, and zoom operation. Built-in one-person auto-tracking requires no external PC or server, making it easy to keep presenters perfectly framed with fast, accurate human recognition, while optional software-based tracking supports more complex, multi-person setups. With support for NDI|HX version 2 and SRT, excellent system flexibility for simplified wiring, JPEG still image capture, and seamless integration with popular conferencing and streaming platforms, the AW-UE50 is an ideal all-in-one PTZ solution for users looking to improve the quality and consistency of their video productions with minimal setup and operation effort.

Panasonic RP60 Compact PTZ Controller
Introducing the all-new AW-RP60 Remote Camera Controller. Equipped with a large LCD to display a GUI menu screen with clear visibility and an improved joystick for smoother control, this controller is the ideal companion to Panasonic PRO PTZ camera models. Thanks to the improved GUI, all important information about the cameras, such as iris, zoom and focus can be seen at all times directly on the screen. The AW-RP60 is also capable of supporting up to 200 cameras, manages 100 presets and comes with PoE support allowing for easy integration into your video production workflow.

LENS
Motorized Optical 24x zoom, F1.8 to F4.0[f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]
General
-
MINIMUM ILLUMINATION
3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
Zoom
• Optical zoom: 24x• i.Zoom UHD 28x, FHD 36x
• Digital extender zoom: 1.4 x , 2 x
Horizontal Resolution
UHD: 1,500 Typ (Center area)FHD: 1,000 Typ (Center area)
Input/Output Connector
-
Gain Selection
Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB)
WHITE BALANCE
• ATW : 3200 K, 5600 K (ATW Speed 3-stage variables.)• AWB : AWB-A / AWB-B• VAR (selectable between 2000 K and 15000 K by designating a value)
Storage Temperature
-20 °C to 50 °C (-4 °F to 122 °F)
VIDEO OUTPUT
-
Current consumption
1.8 A (Supplied AC adaptor), 0.6 A (PoE+ power supply)
Power Requirements
12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
Optical Filter
-
Output Format
-
S/N
-
Color separation optical system
1MOS
Focus
Switching between auto and manual
Focus Distance
Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft)
Gamma
HD / Normal / Cinema1 / Cinema2 / Still Like
Scene File
-
Synchronization System
-
Input Connector
DC 12 V IN
Pan/Tilt Operation Speed
Speed range: 0.08°/s to 60°/s (Normal mode)*7
• 3 speed modes installedNormal:60°/s, Fast1:90°/s, Fast2:180°/s
Quietness
NC25 or less
Electronic Shutter Speed
-
Tilting Range
-30°to 90°*8
Imaging Sensors
1/2.5-type 4K MOS x1
Frame Mix
Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
Chroma Amount Variability
OFF, -99 ％ to 99 %
Supported protocol
-
Ambient Operating Humidity
20 ％ to 90 ％ (no condensation)
Finish
AW-UE50W: WhiteAW-UE50K: Black
Other Functions
-
Image Resolution
1920x1080, 1280x720, 640x360, 320x180
Note
*1:Discontinued Model*2:Will be supported in the future*3:Can be set in 1 dB step increments.*4:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.*5:STP (Shielded Twisted Pair) is recommended.*6:To ensure safety, the unit must be secured using the mount bracket supplied.*7:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode.*8:The main unit may appear in the video depending on the pan/tilt position.*9:Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support.*10:NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow.*11:NDI® is a registered trademark of NewTek, Inc. in the United States.*12:In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. In the NDI®|HX mode, 4K video signals cannot be output. AW-UE50/AW-UE40 supports NDI®|HX version 2 and Full HD output.*13:For details, please contact a sales representative of Panasonic. To use NDI®|HX, the driver must be installed and activated.*14:Non-synchronous with SDI-OUT
Panning range
±175°
Camera Unit
-
Mass
Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket)Approx. 2.05 kg (4.51 lbs) (including ceiling mounting bracket)
INPUT
-
OUTPUT
-
INPUT/OUTPUT
-
Installation Method
Stand-alone (Desktop) or suspended (Hanging)*6
Camera/pan-tilt head control
-
Controller Supported
AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1,2, AK-HRP1005*1,2, AK-HRP1015*2, AK-HRP250*2
Ambient Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Dimensions (W x H x D) (mm)
160.0 mm x 192.1 mm x 166.0 mm (Excluding protrusions, cable cover, ceiling mounting bracket)
Dimensions (W x H x D) (inch)
6.299 inches x 7.563 inches x 6.535 inches (Excluding protrusions, cable cover, ceiling mounting bracket)
Conversion Lens
Not supported
Angle of View Range
Horizontal angle of view: 74.1° (wide) to 3.3° (tele)Vertical angle of view: 46.0° (wide) to 1.9° (tele)Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
Syncro Scan
-
IP Streaming
-
Image Streaming Mode
JPEG (MJPEG), H.264, H.265, NDI®|HX version 2*10,11,12,13 (H.264)
Image Transmission setting (JPEG)
Frame rate: Maximum 30fpsImage quality (Fine / Normal)
Image Transmission Setting (H.264)
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps
Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Image Transmission Setting (H.265)
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps
Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Audio Compression Type
AAC-LC, 48 kHz / 16 bit / 2ch
Tally LED
display color red / green
PoE+
IEEE802.3at compliant : DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported)
Pan Tilt Head Unit
-
NDI Support
NDI®|HX version 2: Upgradable
Mic/line input
AAC compatibility (compatible with IP only)
Φ3.5 mm stereo mini jack
• During MIC input
Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz)
Supply voltage: 2.5 V±0.5 V (plug-in power compatible)
"• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)
Approx. 20 kΩ (when plug-in power is turned OFF)"
• During LINE input
Input level: -10 dBV
Input impedance: Approx. 3 kΩ
• Input volume variable range: -36 dB to 12 dB (3 dB step)
• Embedded audio output level: -12 dBFS
• Sampling frequency: 48 kHz
IP connecting cable
• If you have a PoE+ ethernet hub
LAN cable*5 (category 5e or above, straight cable) Max 100 m (328 ft)
• If you don't have a PoE+ ethernet hub
LAN cable*5 (category 5e or above, straight cable) Max 100 m (328 ft)
AW protocol connecting cable
• LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft)
Electronic Shutter Speed | 59.94p/59.94i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 29.97p
1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 50p/50i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 25p
1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Input/Output Connector | LAN
LAN terminal for IP control (RJ-45)
Input/Output Connector | RS-422
CONTROL IN RS422A (RJ-45)
Windows
Windows 10
Windows® Internet Explorer® 11 (32 bit / 64 bit)
Microsoft Edge
Google Chrome
Mac
Mac OS v11.0.1 / Safari 14.01
Mac OS v11.0.1 / Google Chrome
Mac OS v10.15 / Google Chrome
Mac OS v10.14 / Google Chrome
Android
Android OS
Google Chrome
Video Output | HDMI
HDMI 1.4 connector, 4:2:2/10bit
• HDCP is not supported.
• Viera Link is not supported.
Electronic Shutter Speed | 23.98p/24p
1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan | 59.94p/59.94i
60.0 Hz to 7200 Hz
Synchro Scan | 29.97p
30.0 Hz to 7200 Hz
Synchro Scan | 23.98p/24p
24.0 Hz to 7200 Hz
Synchro Scan | 50p/50i
50.0 Hz to 7200 Hz
Synchro Scan | 25p
25.0 Hz to 7200 Hz
Output Format | SDI | HD
1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),
23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just),
23.98p (Native), 720/59.94p, 50p
Output Format | HDMI | 4K
2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native)
Output Format | HDMI | HD
1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),
23.98p (over59.94i), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Video Output | 3G-SDI OUT
SMPTE292M, 424M/ 75 Ω (BNCx1)
• Level-A/Level-B supported
iPhone / iPad
iOS
Safari
iPadOS
Image Stabilization
OIS 2-axis
MENU switching: Select between Off/O.I.S.
Supported protocol | IPv4
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT
Supported protocol | IPv6
TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT
Supported operating systems and web browsers
*9
Image Resolution | NDI®|HX version 2
1920x1080, 1280x720
Audio Compression Type | NDI®|HX version 2
AAC-LC, 48 kHz, 16 bit, 2 ch
F-Number Display
Displayed on the AW-RP150GJ and AW-RP60GJ sides
Menu Display on IP Video
Supported*14
Power LED
ON/OFF control
Tripod Screw Penetration Measures
Possible
Pan/Tilt Mechanical Method
New Direct Drive System
Privacy Mode
The lens surface faces backward when standing by (ON/OFF)
* Default is OFF
Image Transmission Setting (NDI®|HX version 2)
Transmission Type: Streaming method: TCP/UDP, Unicast/Multicast
New Functions
-

• 3x AW-UE50 PTZ Cameras
• 1x AW-RP60 Controller
• Warranty: 1-Year Manufacturer Warranty
