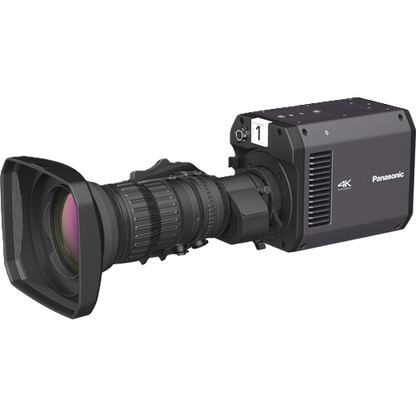

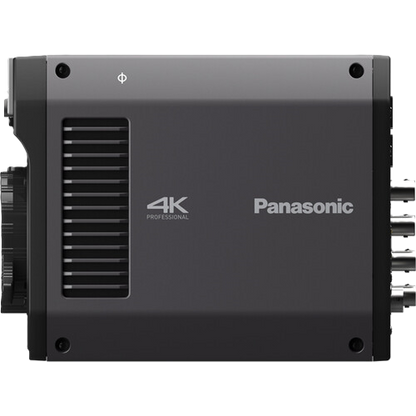

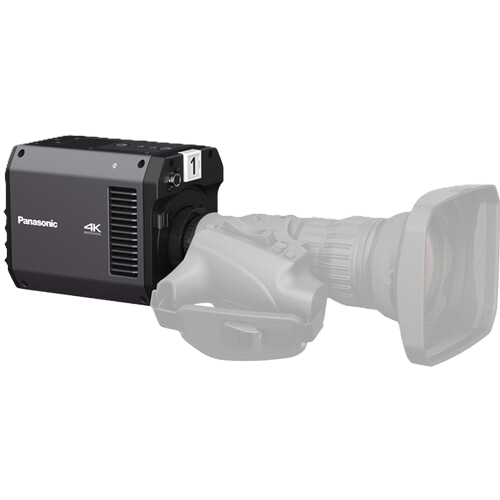

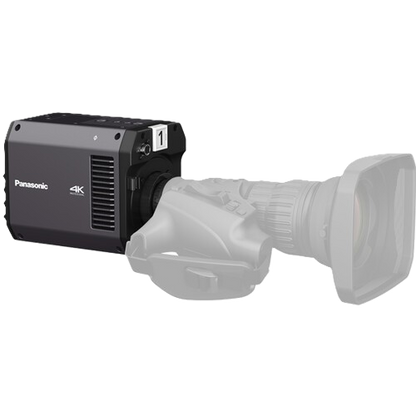

Panasonic AK-UBX100 4K Multi Purpose Camera

Panasonic is Creating the Future of Video Production with More Flexibility.
More Precision. And More True to You. The AK-UBX100 is a box-style 4K multipurpose camera with a 2/3 bayonet lens mount, designed for high-quality shooting not only in studio production and sports broadcasting, but also in live event stage performances. By simplifying color matching with the AK-UCX100 4K studio camera and the AW-UE160 4K PTZ camera, as well as the cross-device operation processes, the AK-UBX100 is expected to deliver smoother, more efficient video production. Furthermore, by supporting the AF functionality*, the AK-UBX100 enhances both image quality and operability in remote productions, contributing to the realization of a more ideal remote production environment.

Features the Same Platform as the AK-UCX100 4K Studio Camera

• Achieves 2,000 TV Lines of Horizontal and Vertical Resolution
• Simultaneous HLG (BT.2020) and SDR (BT.709)
• Shorten Time for Color Matching and On-Site Setup with the Unified GUI
• Seamless Integration with Panasonic's System and PTZ Cameras
• Integrated Control/Tally into a Single LAN Line
• Compatible with Multiple IP Transmission Standards
• 4K Redundant Connections
• Moiré Reduction

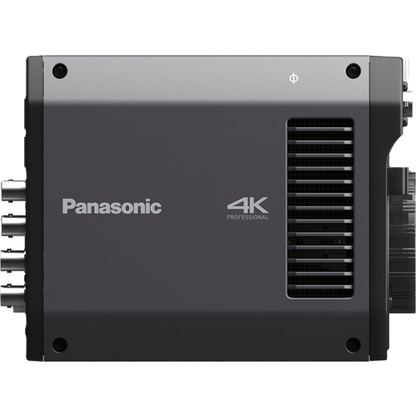

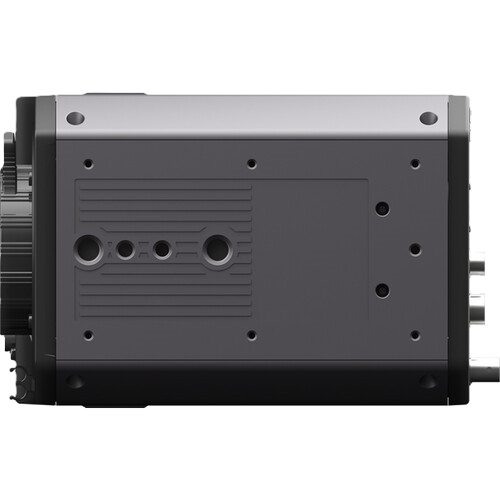

Ultra-Lightweight, Flat Design

• Compact, Lightweight Approx.1.9 kg Body

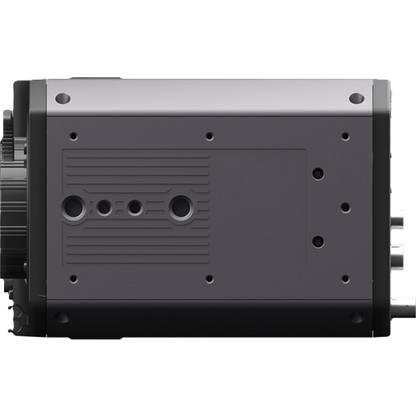

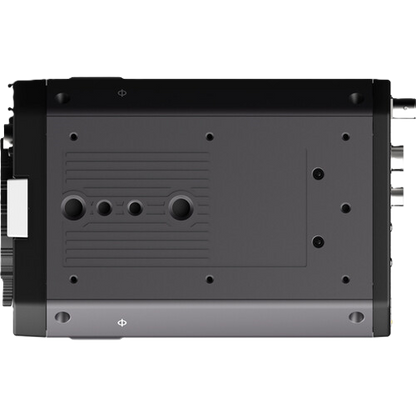

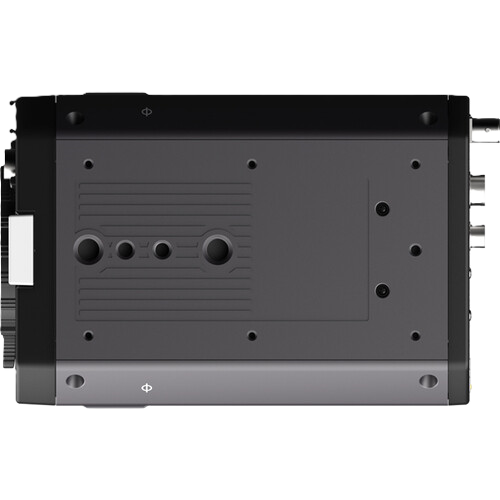

• Facilitates Setup and Changeover for Robot Mounting

Focus Function That Supports High-Level Shooting

• High-Precision Focus Assist Function
• Autofocus Built into the Camera Head

General

• Power Supply: DC 12 V (DC 11 V - 17 V)
• Power Consumption:
  • 40 W (body only, when outputting 12G SDI)
  • 60 W (maximum power when all accessories are connected and each output terminal is outputting at maximum)
• Operating Temperature: –10 °C to 45 °C (14 °F to 113 °F) (Preheating required under a temperature 0°C (32 °F) or below)
• Operating Humidity: 85% or less (relative humidity)
• Storage Temperature: −20 °C to 60 °C (−4 °F to 140 °F)
• Weight: Approx. 1.9 kg (4.19 lbs.) (body only)
• Dimensions (W x H x D): 118 mm x 140 mm x 175 mm

Camera Unit

• Pickup Device: 19.29 million pixels, MOS sensor
• Optical Filter
  • ND
  • CLEAR, 1/4, 1/16, 1/64

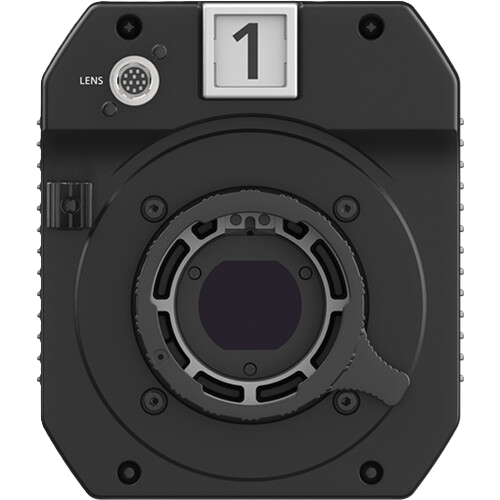

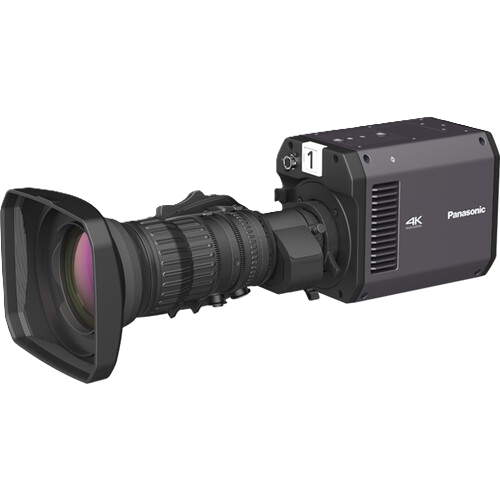

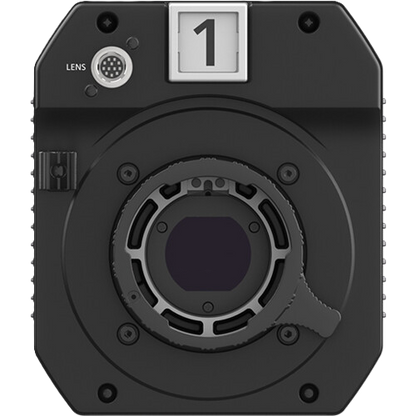

• Lens Mount: 2/3-type bayonet
• Sensitivity
  • [LOW LIGHT]: F10(59.94 Hz)/F11(50 Hz)
  • [NORMAL]: F6(59.94 Hz)/F7(50 Hz)
  • 2000 lx, 3200 K, when white reflectivity is 89.9%
• Horizontal Resolution
  • UHD: 2000 TV lines or above (center)
  • HD: 1000 TV lines or above (center)
• S/N: 62 dB or above
• Gain Switching: -6, -3, 0, 3, 6, 9, 12, 15, 18
• Shutter Speed
  • [59.94i]/[59.94p] mode: 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
  • [50i]/[50p] mode: 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
  • [29.97p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
  • [25p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
  • [23.98p] mode: 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000
• Synchro Scan Shutter
  • [59.94i]/[59.94p] mode: 60.0 Hz to 7200 Hz
  • [50i]/[50p] mode: 50.0 Hz to 7200 Hz
  • [29.97p] mode: 30.0 Hz to 7200 Hz
  • [25p] mode: 25.0 Hz to 7200 Hz
  • [23.98p] mode: 24.0 Hz to 7200 Hz
• System Format
  • 3840x2160/59.94p/50p/29.97p/25p/23.98p
  • 1920x1080/59.94p/50p/29.97p/25p/23.98p

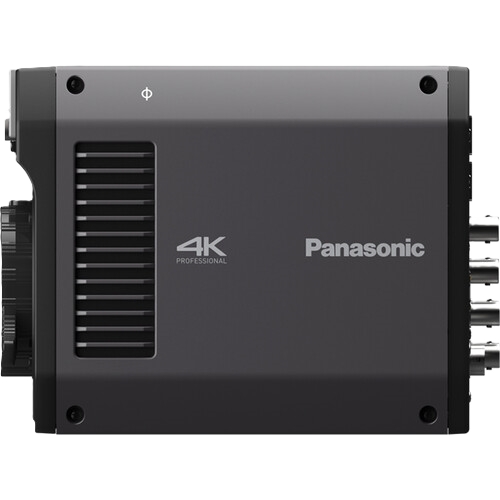

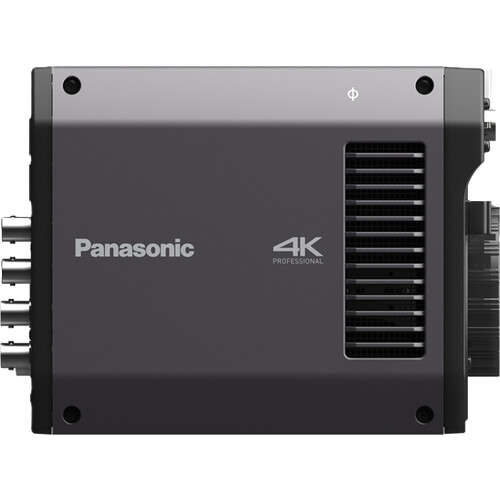

Video Input/Output

• <12G SDI OUT1> Terminal
  • BNC x 1
  • 12G/6G/3G/1.5G-SDI: 0.8 V [p‑p], 75 Ω
• <12G SDI OUT2> Terminal
  • BNC x 1
  • 12G/6G/3G/1.5G-SDI: 0.8 V [p‑p], 75 Ω
• <HD SDI OUT> Terminal
  • BNC x 1
  • 3G/1.5G-SDI: 0.8 V [p‑p], 75 Ω
• <G/L IN> Terminal
  • BNC x 1
  • 1 V [p‑p], 75 Ω

Other Input/Output

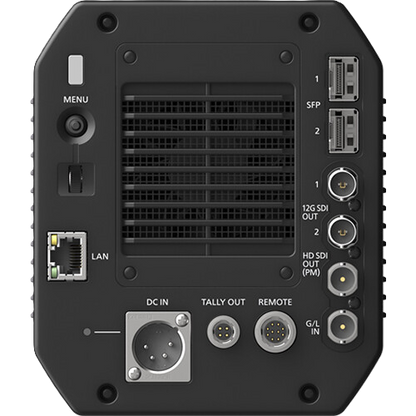

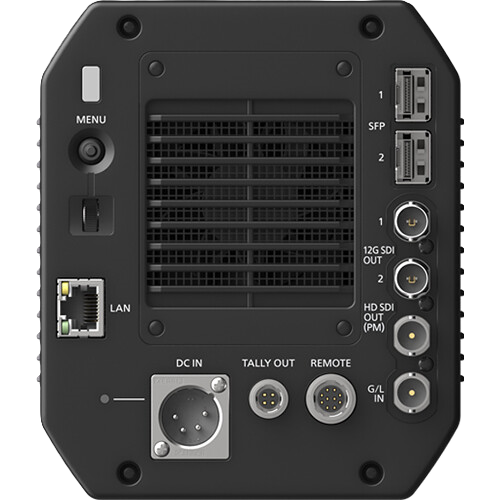

• <SFP 1>Terminal: For SFP+/28 transceiver x 1
• <SFP 2>Terminal: For SFP+/28 transceiver x 1
• <LENS>Terminal: 12-pin x 1
• <DC IN>Terminal: XLR x 1, 4-pin, DC 12 V (DC 11 V - 17 V)
• <REMOTE>Terminal: 10-pin x 1
• <TALLY OUT>Terminal: 4-pin x 1
• <LAN>Terminal: RJ-45 x 1

• Panasonic AK-UBX100 4K Multi-Purpose Camera
• Port Cap
• Limited 1-Year Manufacturer Warranty
• Limited 3-Year Manufacturer Warranty (Image Sensor)
