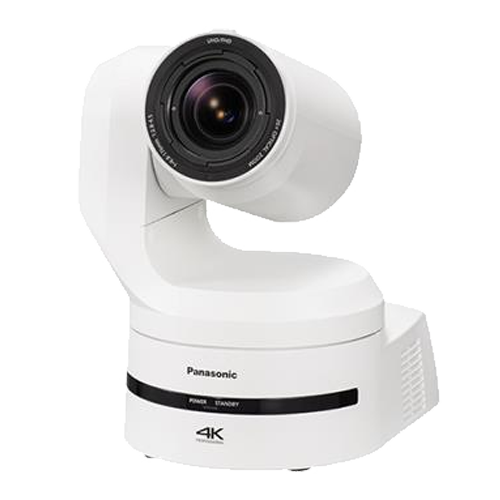

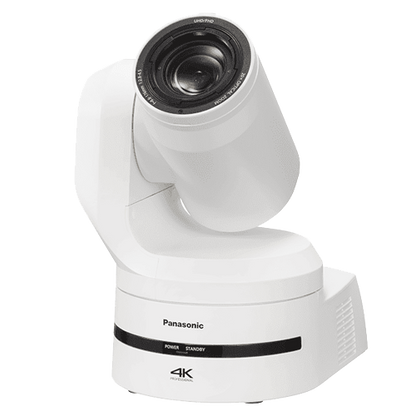

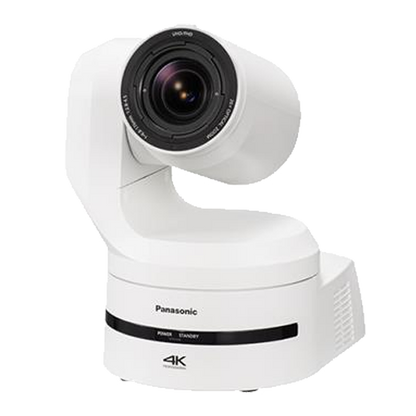

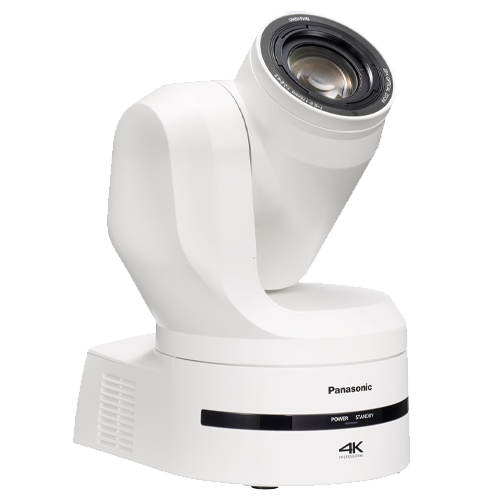

Panasonic AW-UE160 20x NDI 4K PTZ Camera w/ OLPF (White)
Panasonic AW-UE160 20x NDI 4K PTZ Camera w/ OLPF (White)
Panasonic AW-UE160 20x NDI 4K PTZ Camera w/ OLPF (White)
Panasonic AW-UE160 20x NDI 4K PTZ Camera w/ OLPF (White)
Panasonic AW-UE160 20x NDI 4K PTZ Camera w/ OLPF (White)
Panasonic AW-UE160 20x NDI 4K PTZ Camera w/ OLPF (White)

Panasonic AW-UE160 20x NDI 4K PTZ Camera w/ OLPF (White)

Regular price $14,995.00 Sale price$14,495.00
/
Free Shipping & Tech Support.

INSTANT SAVINGS of $500.00!!

Videoguys Part # (SKU): AWUE160WPJ
MFR Part # (MPN): AW-UE160WPJ

Short Description:

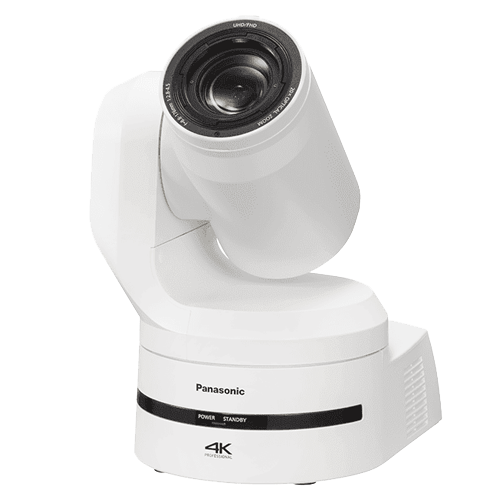

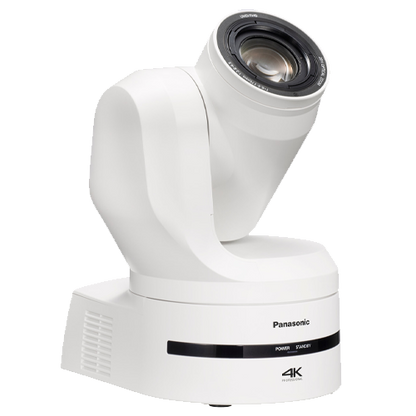

Panasonic AW-UE160 20x NDI 4K PTZ Camera w/ OLPF (White)

  • Free Shipping & Tech Support
The AW-UE160 4K PTZ camera features a newly developed 4K 1” MOS sensor that offers the highest sensitivity of Panasonic’s entire PTZ lineup. Production teams shooting in a concert venue or a church can easily capture clear images even in the most challenging lighting conditions. Meanwhile, the UE160’s new optical low pass filter reduces the effect of moiré for clearer picture quality when shooting against an LED wall, which is especially important for rental and staging or worship environments. Its high-speed frame rate will help sports broadcasters capture slow motion shots in HD for replays, while seamless integration with the robotic camera system brings live broadcast-style movements to the PTZ, resulting in a dynamic and highly engaging video production.

KEY FEATURES
  • Uncompromising shooting performance and operability
  • Optical low-pass filter significantly reduces moiré
  • Newly developed 4K Sensor offering superior sensitivity
  • Significantly improved Autofocus with advanced technology
  • SMPTE 2110 Support with purchase of additional software key
Next Level PTZ Camera Performance
The AW-UE160 PTZ camera supports return input and high-speed shooting, which are indispensable for building a combined system with a system camera and is equipped with a tally lamp on the rear panel and two XLR channels for audio output. It is the first ever remote camera to support the SMPTE ST2110 standard1 and 5G router (USB tethering compatible), the standard for IP transmission in the broadcasting industry. The flexibility of the remote camera to freely set positions and angles and the specifications comparable to those of a system camera allow for the pursuit of unique and new video expression.

Advanced Connectivity

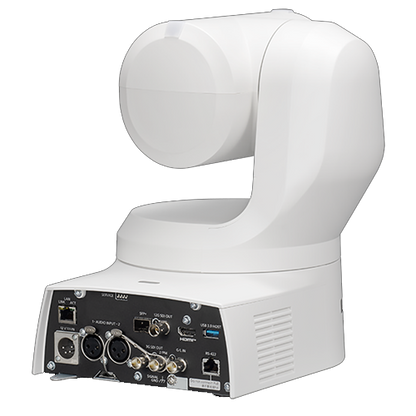

The AW-UE160 supports HDMI, 3G-SDI, and IP output as well as 12G-SDI output and optical fiber output. Also equipped with two XLR channels for audio input. The output method can be selected to suit the operation, making it easy to add to an existing imaging system or build a system tailored to the site.

In addition, there are no restrictions on the video output method, even when outputting from multiple terminals simultaneously, allowing simultaneous operation in 4K. For example, it is possible to set up a system that operates with three main lines (12G-SDI), one for confirmation (3G-SDI OUT1), and one for monitor display (3G-SDI OUT2).

Industry's First SMPTE ST2110 Standard Compatible PTZ Camera
The AW-UE160 is the first PTZ Camera3 to support the SMPTE ST2110 standard for video transmission over IP networks1. By constructing an IP-based studio system in combination with the IT/IP platform “KAIROS” or AK-UC4000/AK-UCU600/AK-NP600, it is possible to improve the efficiency of your video production workflow.

Wide Range of Supported Protocols
High image quality and low latency with high bandwidth NDI® support
  • High bandwidth NDI® and high efficiency low bandwidth NDI®|HX, which encode and transmit high-quality video in real time, are included. High bandwidth NDI® transmits 4K video at a maximum of 250 Mbps and full HD video at a maximum of 125 Mbps, enabling high-quality, low-latency live video transmission.
SRT support for stable video transmission over public lines
  • SRT, a next-generation video transmission protocol with strong security suitable for unstable network environments, is supported.
Direct Broadcast via RTMP/RTMPS
  • RTMP/RTMPS is supported to enable direct upload of video to live-streaming services such as YouTube Live and Facebook Live. This means a live stream can be broadcast directly from the camera.
Next Generation Image Processing Engine
The AW-UE160 PTZ camera uses a new-generation image processing engine, also used in the LUMIX GH6, with improved processing power. High-pixel image data output from the 1-type (1") (effective size) MOS sensor, which offers an excellent balance between adequate depth of field, high image quality and high sensitivity, is processed at high speed to improve the S/N ratio. In terms of autofocus (AF) performance, the subject detection performance has been greatly improved through faster processing of calculations and improved AF algorithms, and highly accurate AF is achieved by discriminating between the subject's movement and characteristics. It also offers high video processing performance and enables more unique video expression with resolution performance, high sensitivity performance, and color reproduction that does not compromise your commitment to video image creation.

Phase Detection Autofocus (PDAF)
The AW-UE160 is equipped with a new AF system that combines phase detection AF (phase detection) with contrast AF (contrast detection). The PTZ camera's fast focusing speed and high focusing accuracy enable it to track subjects and capture in-focus images, whether it is continuously focusing on a moving subject or switching focus on multiple subjects.

AR / VR Positioning with FreeD Protocol
To be able to incorporate realistic VR (virtual reality) or AR (augmented reality) studio sets in your live productions, accurate camera positioning data is imperative. The AW-UE160 features the FreeD protocol, which provides you with the option to output Pan / Tilt / Zoom / Iris information via Serial (RS 422) and IP (UDP) directly from the camera to your tracking system. The FreeD protocol is supported by most popular virtual set systems, including solutions such as Brainstorm, Ross UX XPERIENCE / Xpression, The Future Group Pixotope, Vizrt Viz Virtual Studio, and Zero Density. The UE160's FreeD compliant command enables the integration of robotic camera systems into virtual studios / virtual sets without an encoder.

Moiré Reduction (OLPF)
The Panasonic AW-UE160 has an integrated Optical Low Pass Filter (OLPF). This feature helps address moiré, a huge challenge producers and creators are experiencing with ever-popular LED walls.  Moiré is the noticeable contrast between the light of the image and the darkness of the gap between LEDs. Our OLPF feature is done optically, and prevents the high frequency information from passing and smooths out the total surface area for high-quality video output.

Outstanding Low-Light Performance
The high sensitivity of F14/2000 lx allows for clear, clean images even when shooting moving subjects in dimly lit locations such as stages and live venues. The sensitivity can be set to either Normal mode or Low Light mode, depending on the shooting location and scene.

Optical Image Stabilization (OIS) & Electronic Image Stabilization (EIS)
In addition to the conventional 2-axis in-lens image stabilization (Pitch/Yaw), which is based on fine-tuning of the lens, the camera also features roll correction that uses electronic image processing technology to provide highly effective correction. Stable images with reduced blurring can be shot even in locations where special equipment such as a rail systems or camera arms are used.

Equipped with Front & Rear Tally Lamp
The AW-UE160 features an additional tally lamp on the camera rear (operator side) so that you can see the camera status from any angle. The tally lamp can be linked to the front and rear sides to set the brightness and to turn the tally indicators ON/OFF. The additional yellow tally lamp can be used for any number of applications, such as when there are a large number of cameras, when multiple cameras are used on site, or when simultaneous streaming and recording are required.

Video Return Input Function
The AW-UE160 PTZ camera can be used as a prompter for return images and manuscript displays where the performer checks the video being streamed or broadcast on the spot2, allowing adjustment and shooting to the targeted angle when performing chroma key compositing or when linking with AR/VR systems.

Supports 2x High-Speed Video Output
The AW-UE160 PTZ camera captures smooth and beautiful slow-motion video by performing high-speed shooting at FHD 120 fps so not a single frame of the decisive moment is missed.

Output from HDMI output or 2 SDI OUTs (3G SDI OUT1, 3G SDI OUT2). When outputting using 2 SDI OUTs, a separate slow motion server is required.

Cropping Function
It is possible to crop-zoom and cut out video at the same time as outputting an entire video shot in 4K. The cropping position can be specified from a maximum of three locations and can be easily operated from the AW-RP150 PTZ Camera controller or web browser screen

V-LOG Output Support
Compatible with V-LOG, which is used in Panasonic's high-end VariCam cinema cameras and LUMIX mirrorless cameras. The wide dynamic range and wide color gamut provide images suitable for color grading. When used in conjunction with our camera recorders and studio cameras equipped with V-LOG, video production with consistent image creation is possible. In addition, two settings, V-LOG and V-709, can be selected independently for each output interface. Simultaneously output 4K V-LOG video for color grading while outputting Full HD V-709 video for onsite monitoring.

HDR (HLG) Support
The camera supports HDR (High Dynamic Range) to prevent blown-out highlights and blocked-up shadows and enable picture quality close to that of the naked eye. The color balance is shifted to display according to the BT.2020 color gamut (compliant with HLG/BT.2020).

Simplified Multi-Camera Deployment & Color Matching
With the scene file function, users can save up to eight scene files containing various camera settings and copy them to multiple cameras via a PC. This massively reduces on-location setup time when shooting at events with large numbers of cameras.

Color matrix control allows sensory adjustment of color on the screen, making color matching easier. The workload for image and color matching can be reduced, which reduces the time and effort required to deploy the system and prepare for video productions.

5G Mobile Router Support for Video Transmission
4K video data can be wirelessly transmitted on the spot by connecting a 5G mobile router via USB to the terminal on the rear panel. It is also possible to broadcast events and live streams from locations where cables are not laid or from outdoor event venues.

Full-Featured Dedicated Web App
The AW-UE160 PTZ camera features a built-in web GUI. Camera IP image output, settings, and control can be performed using a web browser on a computer connected via an IP network. In addition to PCs and Macs, iPads, iPhones, Androids and other mobile devices can be used for operation, and this pursuit of easy-to-use interfaces has enabled smooth camera control from remote locations.

Useful Software for Simplified Workflow
Compatible with a wide range of software, including the PTZ Control Center, Visual Preset Plugin, and Auto Tracking Software. This software will simplify the workflow of the PTZ camera shooting and reduces the burden of operation and management.

Flexible Installation & Mounting
The AW-UE160 PTZ camera is lightweight and compact enough for easy permanent or portable installs. It’s equipped with a turn lock mechanism for easy installation and comes standard with a safety cable for extra security and peace of mind.
Blend-in: The camera is exceptionally easy to integrate and is available in two colors (AW-UE160W: pearl white / AW-UE160K: black matte) to suit a wide range of applications.
Ceiling Mount: A twist-lock ceiling mount is included as a standard accessory.
Tripod Mount: The UE160 is also equipped with a 1/4-20 tripod mounting screw receptacle and a safety lanyard for use with many mounting and grip systems.

Horizontal Level Gauge for Camera Installation
A horizontal level gauge has been added to the AW-UE160's on-screen menu / web GUI interface screen so that you can quickly check whether the installed camera is level or not.

Optical Zoom

  • 20x
NDI
  • AW-UE160:High Bandwidth NDI, NDI|HX Ver.2 included as standard

Current consumption
  • 5.0 A (XLR IN connector), 1.5A (PoE++ power supply)
Power Requirements
  • 12VDC±10%(10.8V to 13.2V)
Ambient Operating Temperature
  • 0 °C to +40 °C (32 °F to +104 °F)
PoE++
  • IEEE802.3bt standard :DC 42 V to 57V (Camera Input)*Limited in function when PoE used.(Software authentication (LLDP) is supported))
Storage Temperature
  •  –20 °C to +50 °C (–4 °F to +122 °F)
Ambient Operating Humidity
  • 20 % to 90 % (no condensation)
Mass
  • Approx. 4.6kg (10.14lbs) (excluding mount bracket)
Controller Supported
  • AW-RP150,AW-RP60,AK-HRP1010,AK-HRP1015,AK-HRP250
    *Other ROP will be compatible in the future.
LENS
  • Motorized Optical 20xZoom F2.8 to F4.5(f=8.8 mm to 176.0 mm,35mm equivalent:24.5 mm to 490.0 mm)i.Zoom, D.Extender
Imaging Sensors
  • 1-type (1") 4K MOSx1
  • Effective Pixels: Approx. 9,620,000 pixels
Optical Filter
  • Through、1/4, 1/16, 1/64 *equipped with Low pass filter(Through is used as "night mode")
Focus
  • Switching between auto and manual
Conversion Lens
  • Not Supported
Angle of View Range
  • Horizontal: 75.1°(wide) to 4.0°(tele)
  • Vertical: 46.7°(wide) to 2.3°(tele)
  • Diagonal: 82.8°(wide) to 4.6°(tele)
MINIMUM ILLUMINATION
  • 2lx(F2.8, 59.94p, 50IRE, +42dB, without accumulation)
Focus Distance
  • Entire zooming range: 1000 mm, Wide end: 100 mm
Standard Sensitivity
  • F11/2,000lux (Normal), F14/2,000lux
Color Separation Optical Systems
  • 1MOS
Horizontal Resolution
  • 1,600 TV Typ (center area, UHD Mode, Wide)
Gain Selection
  • Auto, 0dB to 36dB *1 dB step increments can be set.
Frame Mix
  • Auto, 0dB, 6dB, 12dB, 18dB, 24dB*If format is set in 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/25p, it cannot be set.
Electronic Shutter Speed
  • 60p/59.94p/59.94i:
    1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
  • 29.97p:
    1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1, 500, 1/2,000
  • 23.98p/24p:
    1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
  • 50p/50i:
    1/60, 1/100, 1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
  • 25p:
    1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1,500, 1/2,00
  • 59.94p・120fps:
    1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
  • 50p・100fps:
    1/125, 1/250, 1/500, 1/1,000, 1/1,500, 1/2,000
Synchro scan
  • 60p/59.94p/59.94i:60.00Hz to 7,200Hz
  • 29.97p:30.00Hz to 7,200Hz
  • 23.98p:24.00Hz to 7,200Hz
  • 50p/50i:50.00Hz to 7,200Hz
  • 25p:25.00Hz to 7,200Hz
  • 59.94p・120fps:120Hz to 7,200Hz
  • 50p・100fps:100Hz to 7,200Hz
WHITE BALANCE
  •  ATW、3200K, 5600K
  • ATW Speed : Normal / Slow / Fast
  • AWB-A、AWB-B
  • VAR (selectable between 2000 K and 15000 K by designating a value)
Gamma
  • HD/NORMAL/CINEMA1/CINEMA2*HLG is set in other menuMASTER GAMMA (0.15~0.75)R GAMMA (-75~+75)B GAMMA (-75~+75)
Scene File
  • Scene 1 to 8
Chroma Amount Variability
  • OFF, -100% to 40%
Output Format (UHD/FHD SDI)
  • 4K2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native), 2160/24p(Native), 2160/23.98p(Native) HD1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p*1080/119.88p and 1080/100p use two 3G/SDI OUTPUT1/2 channels.*No output from 12G/SDI.
Output Format (HDMI)
4K
  • 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native),
  • 2160/24p(Native), 2160/23.98p(Native)

HD
  • 1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native),
  • 1080/25p(Native), 1080/24p(Native), 1080/23.98p(Native),
  • 720/59.94p, 720/50p)

Output Format (Fiber(Only Video))
4K
  • 2160/59.94p, 2160/50p, 2160/29.97p(Native), 2160/25p(Native),
  • 2160/24p(Native), 2160/23.98p(Native)
HD
  • 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native),
  • 1080/24p(Native), 1080/23.98p(Native), 1080/59.94i, 1080/50i,
  • 720/59.94p, 720/50p
Output Format (ST2110)
HD
  • 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p(Native), 1080/25p(Native),
  • 1080/24p(Native), 1080/23.98p(Native), 720/59.94p, 720/50p
HDMI
  • HDMI 2.0 connector
  • 4:2:2/10bit
  • HDCP is not supported.
  • Viera Link is not supported.
Synchronization System
  • Internal/External synchronization (BBS/Tri-level sync)

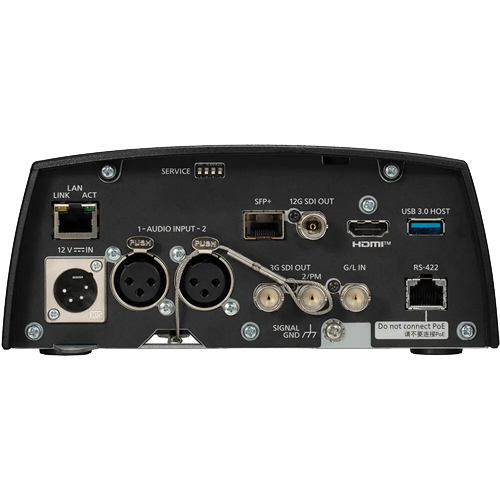

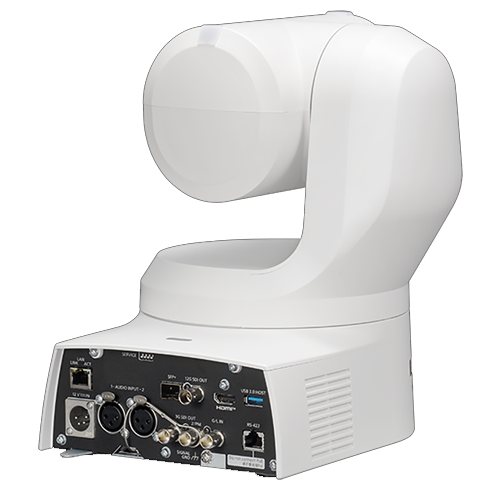

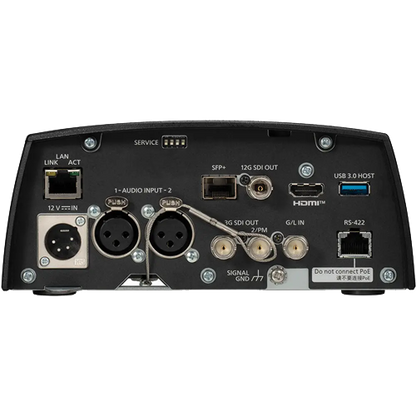

INPUT
  • DC 12 V IN, G/L IN(BNC)
G/L IN
  • BBS (Black Burst Sync), tri-level sync supported)

AUDIO INPUT 1/2
  •  XLR(2ch) or MIC/LINE Input compatibles /HDMI /IP)AAC compatibility (compatible with IP only)XLR3 female balanced input 2chDuring MIC inputInput level: -50dBu or -60dBu/-40dBu(0 dB=1 V/Pa, 1 kHz)Phantom power compatible、Supply voltage:47 V±2 VInput impedance:Approx. 10kΩDuring LINE inputInput level :0 dBu ( or +4dBu/-20dBu)Input impedance:Approx. 10kΩInput volume variable range: -40 dB ~0dB~+20 dB(1 dBstep)Embedded audio output level:-12 dBFS/-18dBFS/-20dBFS Sampling frequency:48 kHz Quantization bit rate : 24 bit(SDI, HDMI), 16bit(IP)
12G SDI OUT
  • SMPTE2082-1, SMPTE424M /SMPTE292M / 75 Ω(BNC×1)
    *Level-A/Level-B supported
3G SDI OUT1
  • SMPTE424M /SMPTE292M / 75 Ω(BNC×1)
    *Level-A/Level-B supported
3G SDI OUT2/PM
  • SMPTE424M /SMPTE292M / 75 Ω(BNC×1)
    *Level-A/Level-B supported
SFP+
  • SFP+ standard (Single Fiber)
    *This unit does not support input by optical signals
LAN
  • LAN connector for IP control (RJ-45)
USB
  • USB3.0 HOST(5G mobile router with USB tethering support)
RS-422
  • CONTROL IN RS422A (RJ-45)
SFP+ (ST2110)
  • ST2110-10/-20/-21/-30
IP connecting cable
  • if you have PoE++ ethernet hub
  • LAN cable *1( category 5e or above、straight cable)Max100 m
  • If you don't have PoE++ ethernet hub
  • LAN cable *1( category 5e or above、straight cable)Max100 m
  • *1 STP(Shielded Twisted Pair) is recommended
  • *2 Category 6 or above is used for 4K video transmission.
SFP+(ST2110)
compatible protocol:
  • -ST2110-10/-20/-21/-30
  • -PTP ST2059-2
  • -NMOS IS-04/IS-05
output number:video
  • x3(Full, Crop, Monitor), Audio x2
Input number:video
  • x1(RETURN)
Video format:
  • FHD *Same as system format
AW protocol connecting cable
  • LAN cable* (category 5e or above, straight cable) Max1000 m
    *STP (Shielded Twisted Pair) is recommended
Pan/Tilt Operation Speed
  • Speed range:0.08 °/s ~1800°/s( Normal mode) *3 speed modes installe
  • Normal:~60°/s,Fast1:~90°/s,Fast2:~180°/s
Quietness
  • NC35 or less *When standing still, NC25 or less
Tilting Range
  •  -30°~ 210
Panning range
  • ±175°
Installation Method
  • Stand-alone (Desktop) or suspended (Hanging)
Windows
  •  Windows®10
  • Microsoft Edge
  • Google Chrome
Image Resolution
  • 3840x2160, 1920x1080, 1280x720, 640x360
Mac
  • macOS 10.13 / Safari 13
  • macOS 10.14 / Safari 13
  • macOS 10.15 / Safari 13
  • macOS 10.15 / Google Chrome
Android
  • Android OS
  • Google Chrome

Image Streaming Mode
  • JPEG(MJPEG), H.264, H.265, NDI|HX Ver2, High Bandwidth NDI
Image Transmission setting (JPEG)
  • Frame rate : Max 30fps
    *No bit rate specified
    *JPEG and H.264, JPEG and H.265 simultaneous operation depends on bit rate
  • Image quality(Fine/Normal)
Image Transmission Setting (H.264)
  • Transmission Type : Unicast port (AUTO)
  • Unicast port (MANUAL)
  • Multicast port
  • Transmission mode :CBR, VBR
  • Frame Rate
  • [60Hz]
  • 5fps/15fps/30fps/60fps (UHD : 30fps,60fps)
  • [50Hz]
  • 5fps/12.5fps/25fps/50fps (UHD : 25fps,50fps)
  • Max to Min Bit Rate
  • 2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/20480kbps/24576kbps/51200kbps/76800kbps
iPhone / iPad / iPod touch
  • iOS, Safari, iPadOS
Image Transmission Setting (H.265)
  • Transmission Type : Unicast port (AUTO)
  • Unicast port (MANUAL)
  • Multicast port
  • Transmission Mode :CBR,VBR
  • Frame Rate
  • [60Hz]
  • 30fps / 60fps
  • [50Hz]
  • 25fps / 25fps
  • Max to Min Bit Rate
  • 2048kbps/4096kbps/8192kbps/10240kbps/12288kbps/14336kbps/20480kbps/24576kbps/51200kbps/76800kbps
Supported protocol
Network Protocol:
  • ICMP, ARP, GARP, MLD
  • Transmission Protocol:
  • TCP/IP, UDP/IP
Application Protocol:
  • IPv4 : HTTP, HTTPS, DNS, NTP, DHCPv6,MDNS, SNMP, 802.1X
  • IPv6 : HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X
Video Streaming Protocol:
  • RTP/RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP,
  • NDI|HX version 2, High bandwidth NDI
  • External Device Cooperation Protocol:FreeD, TSL5.0, SNMP
Audio Compression Type
  • AAC-LC, 48kHz/16bit/2ch
Output Format
  • Video Format(Full x1, MONI x1.Crop x1, all of these same format)1080/60p(Just), 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native)25p(Native), 1080/24p(Just), 1080/23.98p(Native), 720/59.94p, 50pAudio Specification MIC1/2PCM/48khz/24bit/1ch x2
NDI (High Bandwidth NDI,NDI|HX Ver.2)
-

Output Format (High bandwidth NDI)
4K
  • 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p
HD
  • 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p、720/59.94p, 720/50p
Image Resolution (NDI|HX Ver.2)
  • 1920x1080, 1280x720
Image Streaming Setting
  • High Bandwidth NDI
  • Transmisiion Type : TCP /UDP
  • Unicast/Multicast
  • Bit Rate : Max 250Mbps
NDI|HX version.2:
  • Transmission Type : TCP/UDP
  • Unicast/Multicast
  • Frame Rate
  • [60Hz]
  • 5fps/15fps/30fps/60fps
  • [50Hz]
  • 5fps/12.5fps/25fps/50fps
  • Max Bit Rate
  • 512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/
  • 4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/
  • 16384kbps/20480kbps/24576kbps
Audio Compression Type 2
  • High Bandwidth NDI:AAC, 48kHz, 2ch
  • NDI|HX Ver.2:AAC-LC, 48kHz/16bit/2ch
ST2110
 -

Number of Output (TX)
  • Video:3 line (Full x1, MONI x1.Crop x1)
  • Audio:2 line
  • Auxiliary data:No output
Number of Input (RX)
  • Video:1 line(RETURN) *Out from 3G SDI OUT2(Video is changed in the OSD menu)
  • Audio:No input
  • Auxiliary data:No input
Cropping
  • Select from 3 types of images from 3G/SDI_OUTPUT2, Crop_Zoom available
Image Stabilization
  • OIS 2-axis + Hybrid method of roll direction correction
  • MENU switching :select between OFF/OIS/Hybrid(Stable)/Hybrid(Pan/Tilt)
Power LED
  • ON/OFF control
Tripod Screw Penetration Measures
  • Yes
Privacy Mode
  • The lens surface faces downward when standing by (ON/OFF)
Input Format
  • Video Format (Full x1, MONI x1.Crop x1, all of these same format)1080/60p(Just), 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p(Native)25p(Native), 1080/24p(Just), 1080/23.98p(Native), 720/59.94p, 50p
HDR/SDR
  • HLG/BT.2020 compatible, SDR/BT.709 compatible
F Number Display
  • Displayed on the AW-RP150 and AW-RP60 sides

IP menu display
  • supported *Non-synchronous with SDI-OUT
VR (FreeD) (IP/RS422)
  • supported
Yellow Tally
  • supported
PTP
  •  supported
5G/WiFi 6
  •  Compatible with recommended products only
WFM display
  • Output with video superimposed from 3G/SDI_OUTPUT2
Return Video Output
  • Output return video input from ST2110, NDI via SDI_OUT2
Horizontal Level Gauge
  • ON/OFF control  in OSD MENU
Wireless Remote Controller
  • AW-RM50AG(Size "AA" dry battery x 2, obtained separately)
Dimensions (W x H x D)
  •  213.0 mm x 277.0 mm x 240.0 mm(8.39inches x 10.91inches x 9.45inches)
    [excluding protrusions, cable cover, ceiling mount bracket]
Supported Format
  • ST2110:10/20/21/30
  • PTP:ST2059-2
  • NMOS:IS-04/IS-05

  • AW-UE160 Camera Body
  • Ceiling Mount Bracket
  • Cable Cover
  • Safety Wire with Screw


Recently viewed
