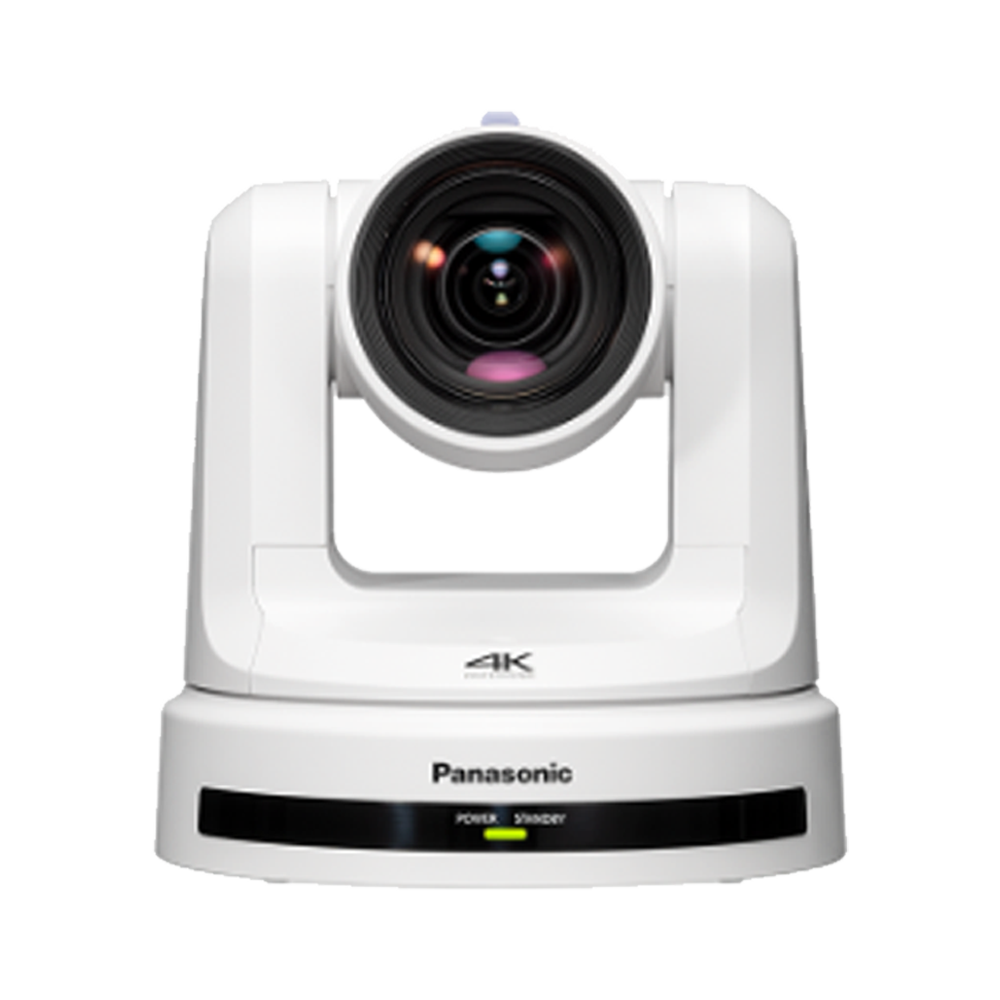

Panasonic AW-UE20 12x 4K PTZ Camera with 3G-SDI, HDMI, IP & USB Output (White)
Panasonic

Panasonic AW-UE20 12x 4K PTZ Camera with 3G-SDI, HDMI, IP & USB Output (White)

$1,395.00
/
Free Shipping & Tech Support.
MFR Part # (MPN): AW-UE20WP
Videoguys Part # (SKU): AWUE20WP
Short Description:

Panasonic AW-UE20 4K PTZ Camera with 3G-SDI, HDMI, IP & USB Output (White)

  • Free Shipping & Tech Support

PTZ cameras play an increasingly important role in teleworking such as online meetings and online classes.The AW-UE20 offers high image quality, wide shooting angle and high-magnification zoom to provide more comfortable communication through high-quality video images and stable transmission.The AW-UE20 is compatible with a wide range of systems such as SDI, HDMI, USB and IP, thus allowing flexible camera setup and operation. The AW-UE20 is a high-quality entry model. The compact unit can be installed in a small place without getting in the way.

KEY FEATURES
  • 4K PTZ Camera
  • Compact size & wide angle
  • Simultaneous 3G-SDI, HDMI & USB output
  • High-Quality Video Streaming for More Comfortable Online Communication
  • Excellent system flexiblility to achieve smart wiring and smooth operation
  • 12x Optical Zoom

Zoom Certified USB Camera
The AW-UE20 supports UVC so it can be used with an existing USB-based system. A single LAN cable can be used to connect multiple camera units to a PC, allowing wire-saving installation and configuration of a simple and compact system. By using the free PTZ Virtual USB Driver software, the AW-UE20 can be used as a web camera linkable to an online conference service via LAN cable even when the USB cable cannot reach the camera installation location such as a ceiling.
With Zoom certification and a dedicated mode (USB: Video Conference), the AW-UE20W/K is ideal for web conferencing.

General
Power Requirements
DC12 V ± 10 % (10.8 V to 13.2 V) (Supplied AC adapter)
PoE+
IEEE802.3 at compliant
LENS
Electric 12 x optical zoom F1.6～F2.8 (f = 3.9 mm ～ 46.8 mm)
MINIMUM ILLUMINATION
TBD
Zoom
Optical zoom: 12 x
Horizontal Resolution
TBD
Input/Output Connector
LAN, RS-422, AUDIO IN, USB, RS-232C IN, RS-232C OUT
VIDEO OUTPUT
HDMI, 3G-SDI OUT
Current consumption
TBD

Output Format
S/N
TBD
Dimensions (H x W x D)
TBD
Quietness
NC40 or less
Tilting Range
-30°～90° *3
Finish
AW-UE20W: White | AW-UE20K: Black
Image Resolution
3840×2160, 1920×1080, 1280×720, 640×360
Panning range
±170°

Camera Unit
Mass
TBD
INPUT
DC 12 V IN


OUTPUT
INPUT/OUTPUT
Installation Method
Stand-alone (Desktop) or suspended (Hanging)*2
Controller Supported
AW-RP150GJ, AW-RP60GJ, AW-RM50AG
Angle of View Range
Horizontal angle of view: 71° (wide) to 6° (tele)Vertical angle of view: 43° (wide) to 3° (tele)Diagonal angle of view: 79° (wide) to 7° (tele)

IP Streaming
Image Sensor
1/2.8-type MOS×1
Pan Tilt Head Unit
_
Image Transmission Setting
_

Note
*1 The main unit may appear in the video depending on the pan/tilt position.
*2 To ensure safety, the unit must be secured using the mount bracket supplied.
*3 The main unit may appear in the video depending on the pan/tilt position.
*4 Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support.

Image Streaming Mode
JPEG(MJPEG), H.264, H.265
Output Format | SDI | HD
1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i,1080/30p, 1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p
Output Format | HDMI | 4K
2160/30p, 2160/29.97p, 2160/25p
Output Format | HDMI | HD
1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p,1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p

Windows
Windows 10
Windows® Internet Explorer® 11（32 bit / 64 bit）
Microsoft Edge
Google Chrome
Mac
Mac OS 10.15
Mac OS 10.14
Mac OS 10.13
Mac OS 10.12
Safari
Google Chrome
Supported operating systems and web browsers
*4

Storage Temperature
-20°C to 50°C (-4 °F to 122 °F)
Ambient Operating Humidity
20 ％ to 90 ％ (no condensation)
Ambient Operating Temperature
0 °C to 40 °C (32℉ to 104℉)
