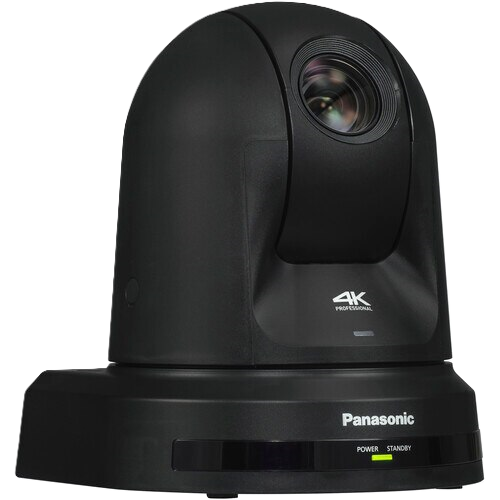

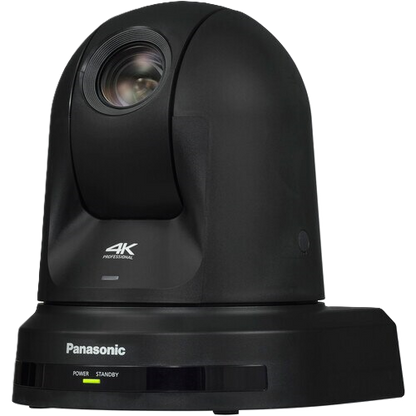

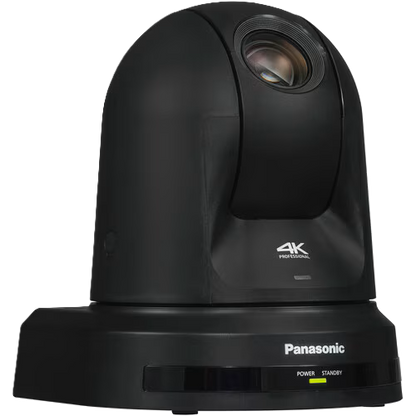

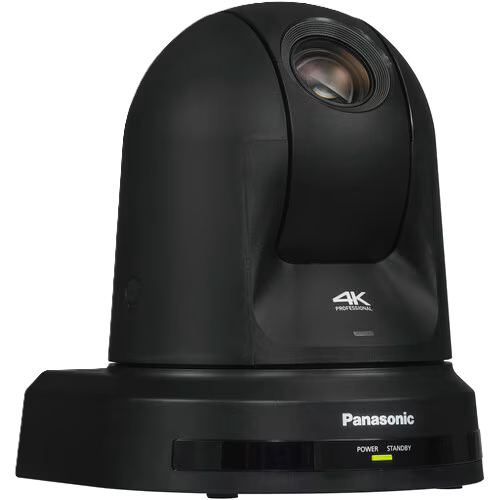

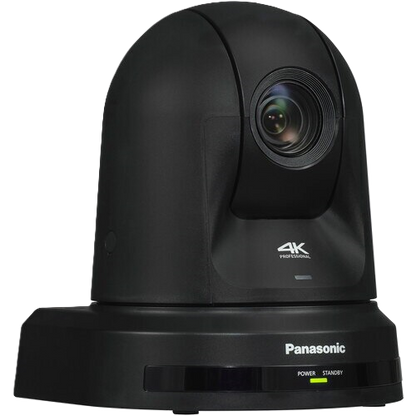

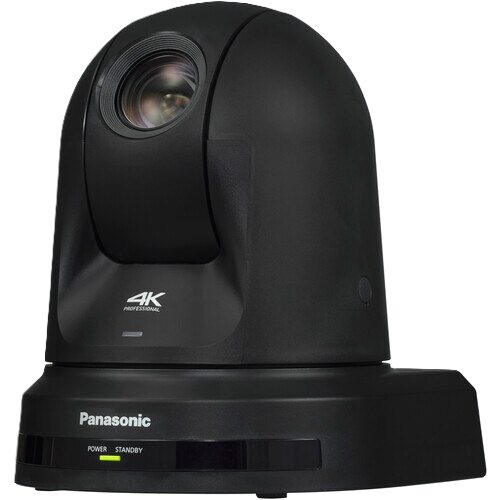

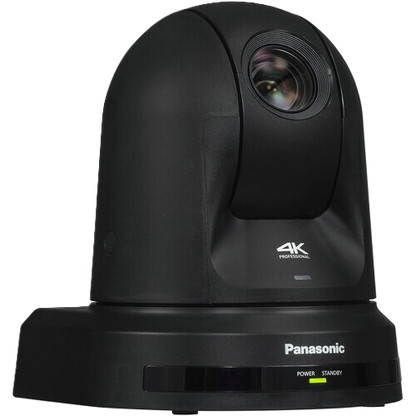

Panasonic AW-UE30 20x 4K PTZ Camera - Black

Zoom

• Optical zoom: 20x
• i.Zoom UHD 28x, FHD 36x
• Digital extender zoom: 1.4 x , 2 x

Power Requirements

• 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)


PoE+

• IEEE802.3at compliant : DC42 to 57 V (Camera Input)
  (Software authentication (LLDP) is supported)


Current Consumption

• 1.8 A (Supplied AC adaptor), 0.6 A (PoE+ power supply)


Ambient Operating Temperature

• 0 °C to 40 °C (32 °F to 104 °F)


Ambient Operating Humidity

• 20 ％ to 90 ％ (no condensation)


Storage Temperature

• -20 °C to 50 °C (-4 °F to 122 °F)

Mass

• Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket)
• Approx. 2.05 kg (4.51 lbs) (including ceiling mounting bracket)

Dimensions (W x H x D) (mm)

• 160.0 mm x 192.1 mm x 166.0 mm (Excluding protrusions, cable cover, ceiling mounting bracket)


Dimensions (W x H x D) (inch)


• 6.299 inches x 7.563 inches x 6.535 inches (Excluding protrusions, cable cover, ceiling mounting bracket)


Controller Supported


• AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1,2, AK-HRP1005*1,2, AK-HRP1015*2, AK-HRP250*2

Imaging Sensors

• 1/2.5-type 4K MOS x1

Lens


• Motorized Optical 24x zoom, F1.8 to F4.0
  [f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);
• 35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]

Conversion Lens

• Not supported


Angle of View Range

• Horizontal angle of view: 74.1° (wide) to 3.3° (tele)
• Vertical angle of view: 46.0° (wide) to 1.9° (tele)
• Diagonal angle of view: 81.8° (wide) to 3.8° (tele)


Focus

• Switching between auto and manual


Focus Distance

• Entire zooming range: 1200 mm (3.9 ft)
• Wide end: 100 mm (0.33 ft)

Color Separation Optical System

• 1MOS


Minimum Illumination

• 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)


Horizontal Resolution

• UHD: 1,500 Typ (Center area)
• FHD: 1,000 Typ (Center area)


Gain Selection

• Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB)


Frame Mix

• Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4


Electronic Shutter Speed | 59.94p/59.94i

• 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000


Electronic Shutter Speed | 29.97p

• 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000


Electronic Shutter Speed | 50p/50i

• 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000


Electronic Shutter Speed | 25p

• 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000


Synchro Scan | 59.94p/59.94i

• 60.0 Hz to 7200 Hz


Synchro Scan | 23.98p/24p

• 24.0 Hz to 7200 Hz


Synchro Scan | 50p/50i

• 50.0 Hz to 7200 Hz


Synchro Scan | 25p

• 25.0 Hz to 7200 Hz


Gamma

• HD / Normal / Cinema1 / Cinema2 / Still Like

White Balance

• ATW : 3200 K, 5600 K (ATW Speed 3-stage variables.)
• AWB : AWB-A / AWB-B
• VAR (selectable between 2000 K and 15000 K by designating a value)

Chroma Amount Variability

• OFF, -99 ％ to 99 %


Output Format | HDMI | 4K

• 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native)


Output Format | HDMI | HD

• 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),
  23.98p (over59.94i), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p


Input Connector

• DC 12 V IN

Video Output

• HDMI 1.4 connector, 4:2:2/10bit
  • HDCP is not supported.
  • Viera Link is not supported.


Input/Output Connector | LAN

• LAN terminal for IP control (RJ-45)


Input/Output Connector | RS-422

• CONTROL IN RS422A (RJ-45)


MIC/LINE Input


• AAC compatibility (compatible with IP only)
• Φ3.5 mm stereo mini jack
  -During MIC input
• Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz)
  Supply voltage: 2.5 V±0.5 V (plug-in power compatible)
  -Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)
  Approx. 20 kΩ (when plug-in power is turned OFF)"
  -During LINE input
• Input level: -10 dBV
• Input impedance: Approx. 3 kΩ
  - Input volume variable range: -36 dB to 12 dB (3 dB step)
  -Embedded audio output level: -12 dBFS
  -Sampling frequency: 48 kHz

IP connecting cable

• If you have a PoE+ ethernet hub: LAN cable*5 (category 5e or above, straight cable) Max 100 m (328 ft)
• If you don't have a PoE+ ethernet hub: LAN cable*5 (category 5e or above, straight cable) Max 100 m (328 ft)


AW protocol connecting cable

• LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft)


Installation Method

• Stand-alone (Desktop) or suspended (Hanging)*6

Pan/Tilt Operation Speed


• Speed range: 0.08°/s to 60°/s (Normal mode)*7
  -3 speed modes installed
• Normal:60°/s, Fast1:90°/s, Fast2:180°/s


Panning Range

• ±175°


Tilting Range

• -30°to 90°*8


Quietness


• NC25 or less


Supported operating systems and web browsers

• Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support.


Windows

• Windows 10
• Windows® Internet Explorer® 11 (32 bit / 64 bit)
• Microsoft Edge
• Google Chrome


Mac

• Mac OS v11.0.1 / Safari 14.01
• Mac OS v11.0.1 / Google Chrome
• Mac OS v10.15 / Google Chrome
• Mac OS v10.14 / Google Chrome

iPhone / iPad

• iOS
• Safari
• iPadOS

Android

• Android OS
• Google Chrome


Image Streaming Mode

• JPEG (MJPEG), H.264, H.265, NDI®|HX version 2*10,11,12,13 (H.264)


Image Resolution

• 1920x1080, 1280x720, 640x360, 320x180nt


Image Transmission setting (JPEG)\

• Frame rate: Maximum 30fps
• Image quality (Fine / Normal)

Image Transmission Setting (H.264)


• Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
• Transmission Priority: Constant bit rate, Frame rate, Best effort
• Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps
• Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /
• 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps

Image Transmission Setting (H.265)


• Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
• Transmission Priority: Constant bit rate, Frame rate, Best effort
• Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps
• Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /
• 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps


Audio Compression Type

• AAC-LC, 48 kHz / 16 bit / 2ch


Supported protocol | IPv6

• TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT


Supported protocol | IPv4

• TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT


NDI Support

• NDI®|HX version 2 : Upgradable


Image Resolution | NDI®|HX version 2

• 1920x1080, 1280x720


Image Transmission Setting (NDI®|HX version 2)

• Transmission Type: TCP/UDP, Unicast/Multicast


Audio Compression Type | NDI®|HX version 2

• AAC-LC, 48 kHz, 16 bit, 2 ch


F-Number Display

• Displayed on the AW-RP150GJ and AW-RP60GJ sides


Menu Display on IP Video


• Supported*14


Power LED

• ON/OFF control


Tripod Screw Penetration Measures

• Possible


Pan/Tilt Mechanical Method

• New Direct Drive System


Image Stabilization

• OIS 2-axis
• MENU switching: Select between Off/O.I.S.


Privacy Mode

• The lens surface faces backward when standing by (ON/OFF)
  * Default is OFF


Tally LED display color

• red / green

*1: Discontinued Model
*2: Will be supported in the future
*3: Can be set in 1 dB step increments.
*4: Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.
*5: STP (Shielded Twisted Pair) is recommended.
*6: To ensure safety, the unit must be secured using the mount bracket supplied.
*7: Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode.
*8: The main unit may appear in the video depending on the pan/tilt position.
*9: Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support.
*10: NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow.
*11: NDI® is a registered trademark of NewTek, Inc. in the United States.
*12: In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. In the NDI®|HX mode, 4K video signals cannot be output. AW-UE50/AW-UE40 supports NDI®|HX version 2 and Full HD output.
*13: For details, please contact a sales representative of Panasonic. To use NDI®|HX, the driver must be installed and activated.
