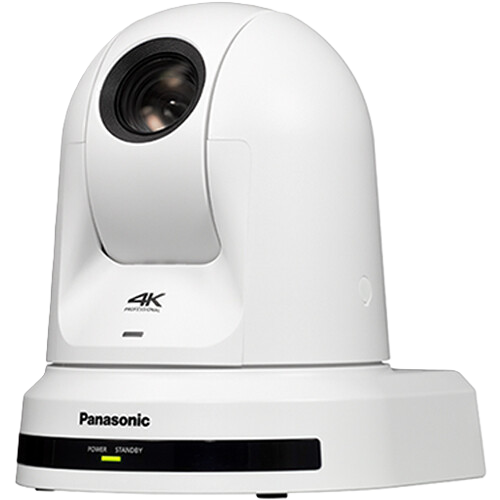

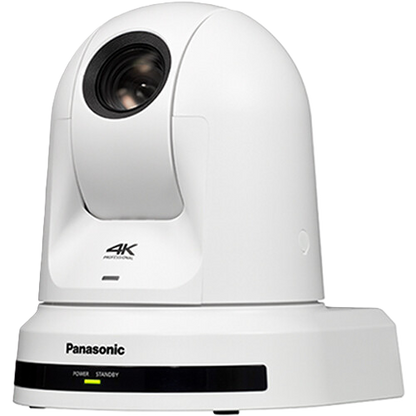

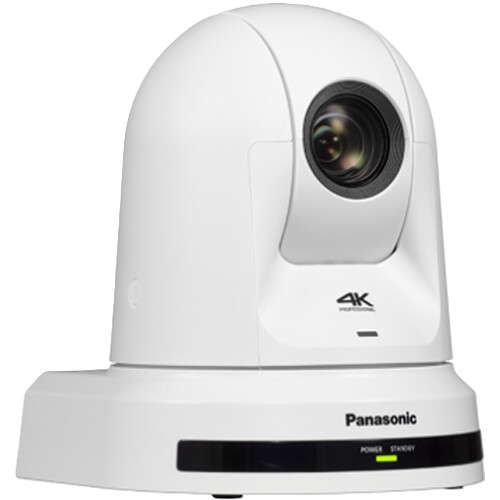

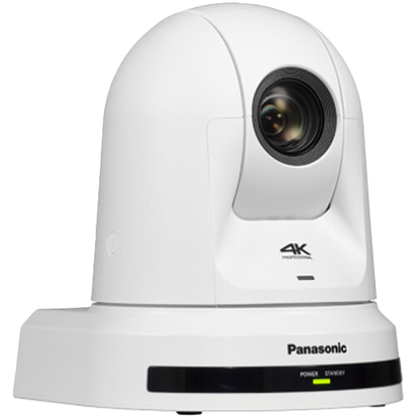

Panasonic AW-UE40 24x 4K PTZ Camera (White)

AW-UE40 4K/30P Ultra Quiet PTZ Camera
Remote cameras enhance visual communication in a variety of applications ranging from online classes to online seminars. The AW-UE50/UE40 supports a compact design to blend in with the surroundings and operates very quietly to permit flexible use in any video shooting locations or conditions. The AW-UE50/UE40 offers high security and it is easy to install and operate for capturing stable images, so even people unfamiliar with video shooting or camera operation can utilize it. The excellent flexibility of the product simplifies wiring and operation. Linkage with online conference software or online application is possible, so online video streaming is easy to initiate. The AW-UE50/UE40 is a standard model perfect for people who want to utilize online video streaming more frequently or enhance the quality of online video streaming.

Built-in Auto-Tracking
The AW-UE40 now has the ability to track one-person at a time, within frame, without an external PC or server. This auto-tracking feature has quick response times and accurate human body recognition – perfect for corporations, colleges/universities, and other facilities that rely on presentation spaces. Panasonic Connect also offers external, software-based auto-tracking ideal for presentations with multiple people and cameras.

Key Features

• 24x Optical Zoom
• Supports NDI|HX version 2 and SRT*1 protocol
• IT Certifications
• New Direct Drive System for improved responsiveness and quietness
• Excellent system flexibility to achieve smart wiring and smooth operation
• Still image JPEG capability

LENS
Motorized Optical 24x zoom, F1.8 to F4.0[f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]
MINIMUM ILLUMINATION
3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
Zoom
• Optical zoom: 24x• i.Zoom UHD 28x, FHD 36x
• Digital extender zoom: 1.4 x , 2 x
Horizontal Resolution
UHD: 1,500 Typ (Center area)FHD: 1,000 Typ (Center area)
Input/Output Connector
-
Gain Selection
Auto, 0 dB to 36 dB*3 (Super Gain function equ
pped : 37 dB to 42 dB)
WHITE BALANCE
• ATW : 3200 K, 5600 K (ATW Speed 3-stage variables.)• AWB : AWB-A / AWB-B• VAR (selectable between 2000 K and 15000 K by designating a value)
Storage Temperature
-20 °C to 50 °C (-4 °F to 122 °F)
VIDEO OUTPUT
Current consumption
1.8 A (Supplied AC adaptor), 0.6 A (PoE+ power supply)
Power Requirements
12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
Optical Filter
-
Output Format
-
Color separation optical system
1MOS
Focus
Switching between auto and manual
Focus Distance
Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft)
Gamma
HD / Normal / Cinema1 / Cinema2 / Still Like
Scene File
-
Input Connector
DC 12 V IN
Pan/Tilt Operation Speed
Speed range: 0.08°/s to 60°/s (Normal mode)*7
• 3 speed modes installedNormal:60°/s, Fast1:90°/s, Fast2:180°/s
Quietness
NC25 or less
Electronic Shutter Speed
-
Tilting Range
-30°to 90°*8
Imaging Sensors
1/2.5-type 4K MOS x1
Frame Mix
Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4
Chroma Amount Variability
OFF, -99 ％ to 99 %
Supported protocol
-
Ambient Operating Humidity
20 ％ to 90 ％ (no condensation)
Finish
AW-UE40W: WhiteAW-UE40K: Black
Other Functions
-
Image Resolution
1920x1080, 1280x720, 640x360, 320x180
Note
*1:Discontinued Model*2:Will be supported in the future*3:Can be set in 1 dB step increments.*4:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.*5:STP (Shielded Twisted Pair) is recommended.*6:To ensure safety, the unit must be secured using the mount bracket supplied.*7:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode.*8:The main unit may appear in the video depending on the pan/tilt position.*9:Supported OS indicated are for browsers current as of September 2021. See “Service and Support / PASS” for the latest information on browser support.*10:NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow.*11:NDI® is a registered trademark of NewTek, Inc. in the United States.*12:In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. In the NDI®|HX mode, 4K video signals cannot be output. AW-UE50/AW-UE40 supports NDI®|HX version 2 and Full HD output.*13:For details, please contact a sales representative of Panasonic. To use NDI®|HX, the driver must be installed and activated.*14:Non-synchronous with SDI-OUT
Panning range
±175°
Camera Unit
-
Mass
Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket)Approx. 2.05 kg (4.51 lbs) (including ceiling mounting bracket)
INPUT
-
OUTPUT
-
INPUT/OUTPUT
-
Installation Method
Stand-alone (Desktop) or suspended (Hanging)*6
Camera/pan-tilt head control
-
Controller Supported
AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1,2, AK-HRP1005*1,2, AK-HRP1015*2, AK-HRP250*2
Ambient Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Dimensions (W x H x D) (mm)
160.0 mm x 192.1 mm x 166.0 mm (Excluding protrusions, cable cover, ceiling mounting bracket)
Dimensions (W x H x D) (inch)
6.299 inches x 7.563 inches x 6.535 inches (Excluding protrusions, cable cover, ceiling mounting bracket)
Conversion Lens
Not supported
Angle of View Range
Horizontal angle of view: 74.1° (wide) to 3.3° (tele)Vertical angle of view: 46.0° (wide) to 1.9° (tele)Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
Syncro Scan
-
Supported operating systems and web browsers
*9
IP Streaming
-
Image Streaming Mode
JPEG (MJPEG), H.264, H.265, NDI®|HX version 2*10,11,12,13 (H.264)
Image Transmission setting (JPEG)
Frame rate: Maximum 30fpsImage quality (Fine / Normal)
Image Transmission Setting (H.264)
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps
Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Image Transmission Setting (H.265)
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Priority: Constant bit rate, Frame rate, Best effort
Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps
Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps /12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Audio Compression Type
AAC-LC, 48 kHz / 16 bit / 2ch
Tally LED display color
red / green
PoE+
IEEE802.3at compliant : DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported)
Pan Tilt Head Unit
-
NDI Support
NDI®|HX version 2 :  Upgradable
Electronic Shutter Speed | 59.94p/59.94i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 29.97p
1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 50p/50i
1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Electronic Shutter Speed | 25p
1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Synchro Scan | 59.94p/59.94i
60.0 Hz to 7200 Hz
Synchro Scan | 23.98p/24p
24.0 Hz to 7200 Hz
Synchro Scan | 50p/50i
50.0 Hz to 7200 Hz
Synchro Scan | 25p
25.0 Hz to 7200 Hz
Mic/line input
AAC compatibility (compatible with IP only)
Φ3.5 mm stereo mini jack
• During MIC input
Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz)
Supply voltage: 2.5 V±0.5 V (plug-in power compatible)
"• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)
Approx. 20 kΩ (when plug-in power is turned OFF)"
• During LINE input
Input level: -10 dBV
Input impedance: Approx. 3 kΩ
• Input volume variable range: -36 dB to 12 dB (3 dB step)
• Embedded audio output level: -12 dBFS
• Sampling frequency: 48 kHz
IP connecting cable
• If you have a PoE+ ethernet hub
LAN cable*5 (category 5e or above, straight cable) Max 100 m (328 ft)
• If you don't have a PoE+ ethernet hub
LAN cable*5 (category 5e or above, straight cable) Max 100 m (328 ft)
AW protocol connecting cable
• LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft)

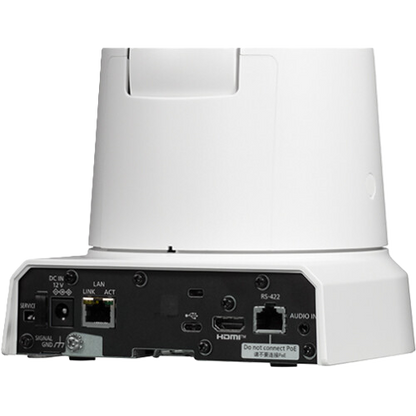

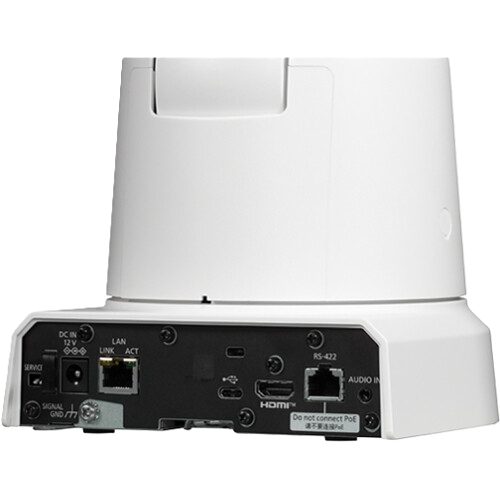

Input/Output Connector | LAN
LAN terminal for IP control (RJ-45)
Input/Output Connector | RS-422
CONTROL IN RS422A (RJ-45)
Video Output | HDMI
HDMI 1.4 connector, 4:2:2/10bit
• HDCP is not supported.
• Viera Link is not supported.
Output Format | HDMI | 4K
2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native)
Output Format | HDMI | HD
1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),
23.98p (over59.94i), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Windows
Windows 10
Windows® Internet Explorer® 11 (32 bit / 64 bit)
Microsoft Edge
Google Chrome
Mac
Mac OS v11.0.1 / Safari 14.01
Mac OS v11.0.1 / Google Chrome
Mac OS v10.15 / Google Chrome
Mac OS v10.14 / Google Chrome
Android
Android OS
Google Chrome
iPhone / iPad
iOS
Safari
iPadOS
Image Stabilization
OIS 2-axis
MENU switching: Select between Off/O.I.S.
Supported protocol | IPv4
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT
Supported protocol | IPv6
TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT
New Functions
-
Image Resolution | NDI®|HX version 2
1920x1080, 1280x720
Audio Compression Type | NDI®|HX version 2
AAC-LC, 48 kHz, 16 bit, 2 ch
F-Number Display
Displayed on the AW-RP150GJ and AW-RP60GJ sides
Menu Display on IP Video
Supported*14
Power LED
ON/OFF control
Tripod Screw Penetration Measures
Possible
Pan/Tilt Mechanical Method
New Direct Drive System
Privacy Mode
The lens surface faces backward when standing by (ON/OFF)
* Default is OFF
Image Transmission Setting (NDI®|HX version 2)
Transmission Type: TCP/UDP, Unicast/Multicast
