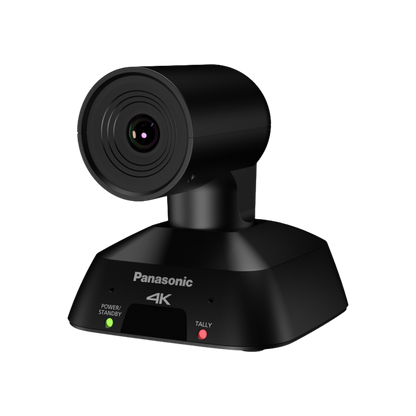

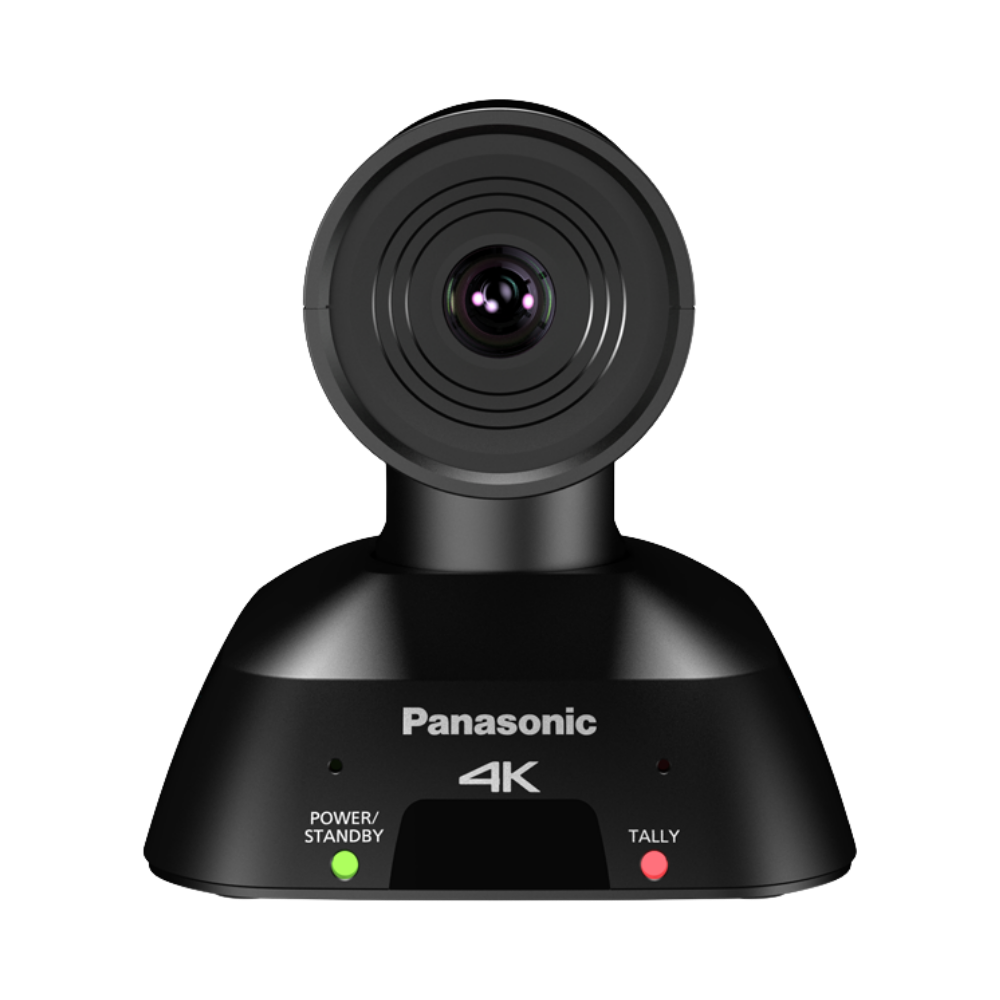

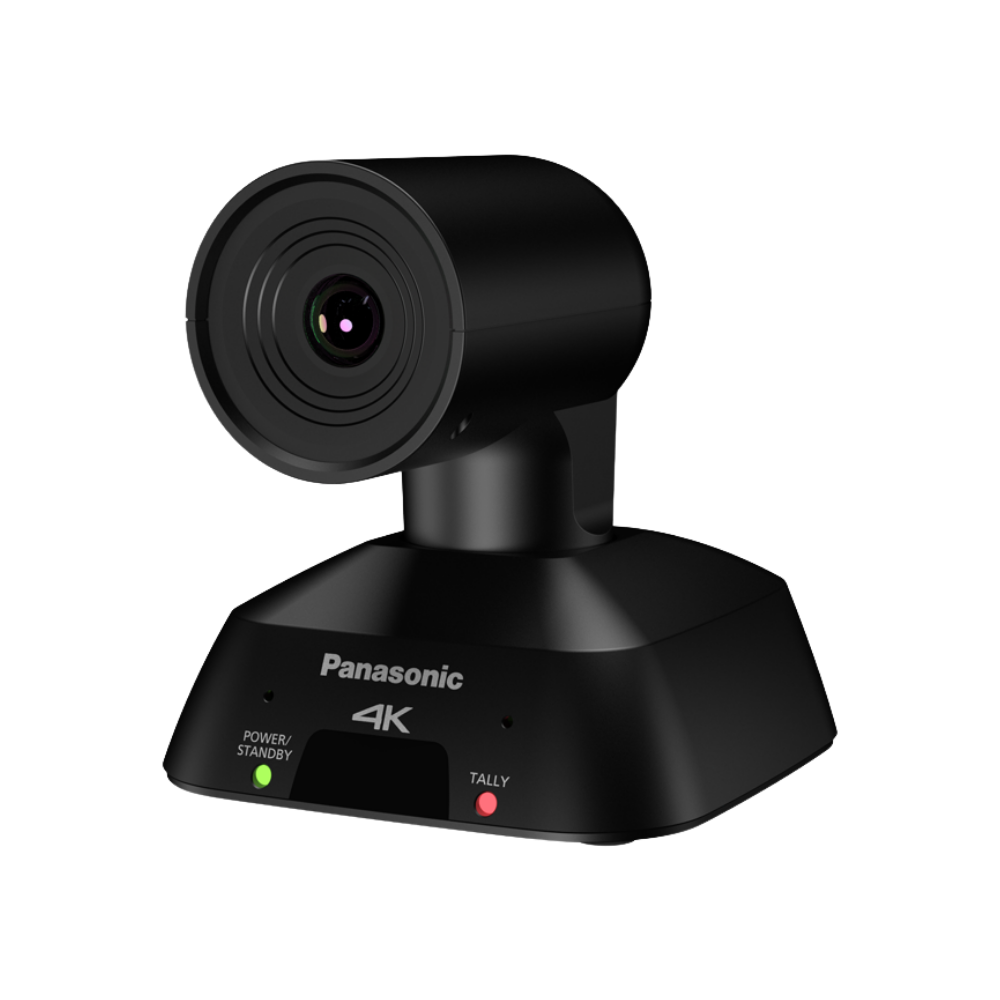

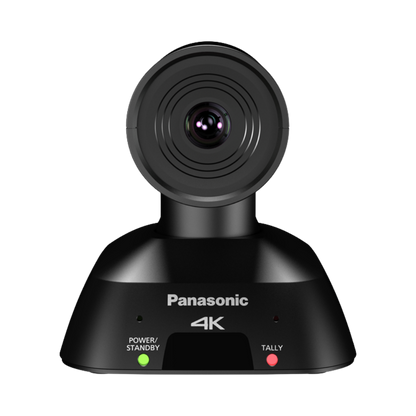

Panasonic AW-UE5 4K Smart EPTZ with NDI (Black)

Compact 4K Camera with AI Auto Framing
A compact 4K integrated camera equipped with an ultra-wide 121° horizontal field of view, designed to capture wide scenes in full.
With the new Group Framing function utilizing AI, the field of view is automatically adjusted according to the situation, enabling automated camera work. In addition to PoE power supply, it supports NDI® HX for IP transmission of high-quality video. Suitable for recording in corporate and educational environments, remote classes, event streaming, and multi-camera video production, enabling operation with minimal staff and improving production efficiency.

FEATURES

• Ultra-wide 4K capture with AI-driven Auto Framing and seamless IP connectivity
• Group Framing Utilizing AI
• Single Cable Solution
• Ultra-wide-angle Lens with a 121° Field of View
• Smooth 4K/60p Video Output
• Digital Pan, Tilt and Zoom
• RTMP/RTMPS
• Expanded Flexibility with NDI®
• Compatible with free Panasonic software

General

• Power Requirements: DC 5 V±5 % (4.75 V to 5.25 V), DC37 V to 57 V (camera, PoE power supply)
• Current Consumption: 3.0A (USB input), 0.3A (PoE power supply)
• Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Allowable Humidity Ranges: 20 % to 90 % (no condensation)
• Storage Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
• Mass: Approx. 0.5 kg (1.1 lb) (excluding mount bracket)
• Dimensions (W x H x D): 123 mm x 131 mm x 139 mm (4-53/64 inches x 5-5/32 inches x 5-29/64 inches) (excluding protrusions, mount bracket)
• Controller Supported: AW-RP200GJ*1, AW-RP150GJ*1, AW-RP60GJ*1, AW-RM50AG

Camera Unit

• Imaging Sensors: 1/2.8-type MOS
• Lens: F2.4 (f=1.64 mm, 35 mm conversion: 11.1 mm)
• Digital Zoom: Up to 5x
• Field of View Range: LDC*2 Off: Horizontal field of view 121°, vertical field of view 86.5°, diagonal field of view 129°
• Focus: Single focus
• Focus Distance: 700 mm
• Horizontal Resolution:
• HDMI output: 4K format: 1,400 TV typ (center area)
• HDMI output: HD format: 900 TV typ (central area)
• Gain Selection: Auto, 0 to 42 dB *Can be set in 3 dB increments
• Electronic Shutter Speed:
  • Full Auto Mode with Slow Shutter On / Shutter Priority Mode / Manual Mode
  • 1/1, 1/2, 1/5, 1/10, 1/20, 1/30, 1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 (60 Hz/59.94 Hz)
  • 1/1, 1/2, 1/5, 1/10, 1/20, 1/25, 1/50, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 (50 Hz)
  • Full Auto Mode with Slow Shutter Off
  • 1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 (60 Hz/59.94 Hz)
  • 1/50, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 (50 Hz)
• White Balance: ATW, AWB A, AWB B, 3200 K, 5600 K
• Chroma Amount Variability: 11 steps (0 to 10)

Internal Mic

• Internal Mic: Stereo microphone
• Audio On/Off: Available (mute function)
• ALC Function: Available

Output

• HDMI*3*4: HDMI connector

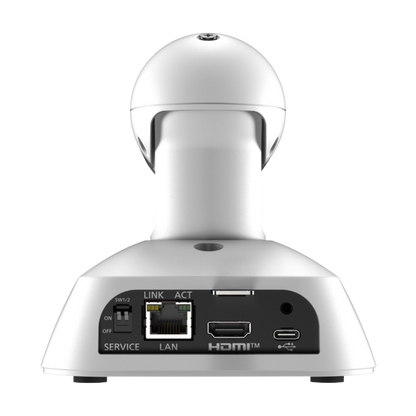

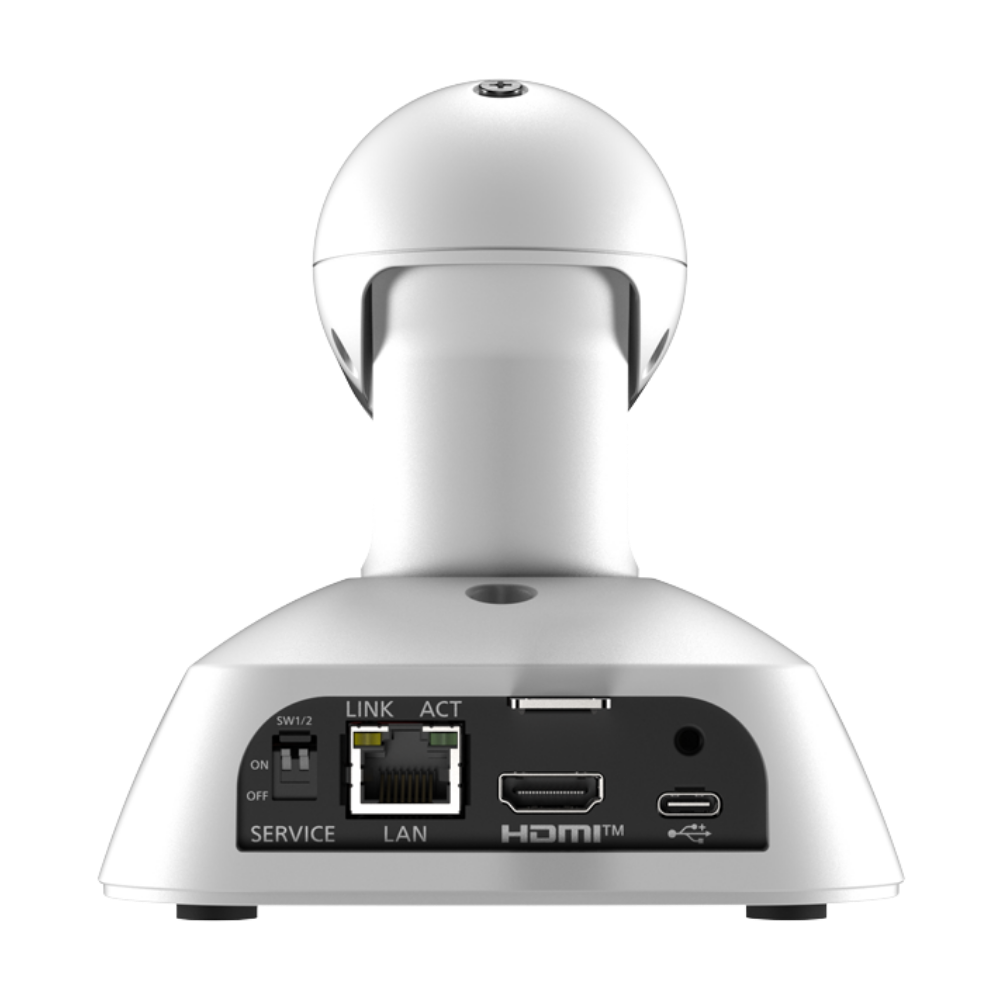

Input/Output

• LAN: LAN terminal for IP control (RJ-45)
• USB: Type-C terminal

USB Web Camera Unit

• Video Output: USB Video Class Ver1.1
• Video Compression Format: YUV, MJPEG
• Resolution
  • YUV: 1280 x 720, 640 x 360
  • MJPEG: 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360
• Audio Output: USB Audio Class Ver1.0
• Audio Compression Format: Linear PCM, 48 kHz, 16-bit, 2 ch

IP Streaming

• Video Compression Format: MJPEG (HTTP), H.264 (RTSP/RTMP/RTMPS), H.265 (RTSP), NDI® HX2, NDI® HX3*5
• Resolution:
  • MJPEG: 1280 x 720
  • H.264/H.265: 3840 x 2160, 1920 x 1080, 1280 x 720
• Frame Rate:
  • MJPEG: [60 Hz/59.94 Hz] Max. 30fps & [50 Hz] Max. 25fps
  • H.264: [60 Hz/59.94 Hz] 30fps / 60fps & [50 Hz] 25fps / 50fps
  • H.265: [60 Hz/59.94 Hz] 30fps / 60fps & [50 Hz] 25fps / 50fps
• Audio Compression Format: AAC-LC, 48 kHz, 16 bit, 2 ch

Pan-tilt Unit

• Installation Method: Stand-alone (Desktop) or suspended (Hanging)*6
• Panning Range: ±110° (manual)
• Tilting Range: ±25° (manual)

Cameral Control

• IP Connecting Cable:
• When a PoE ethernet hub is used: LAN cable*7(category 5e or above), max. 100 m (328 ft)
• When a PoE ethernet hub is not used: LAN cable*7(category 5 or above), max.100 m (328 ft)
