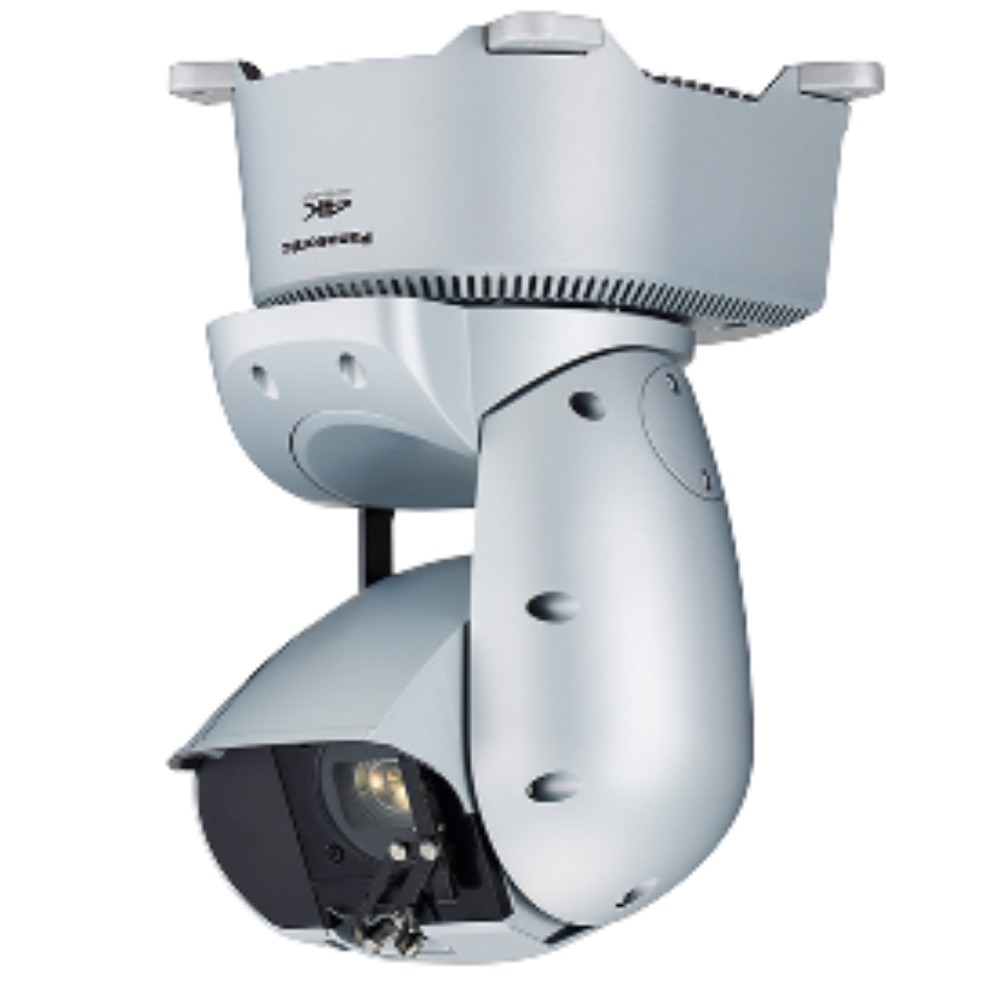

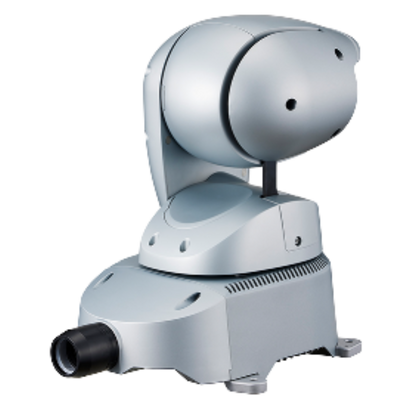

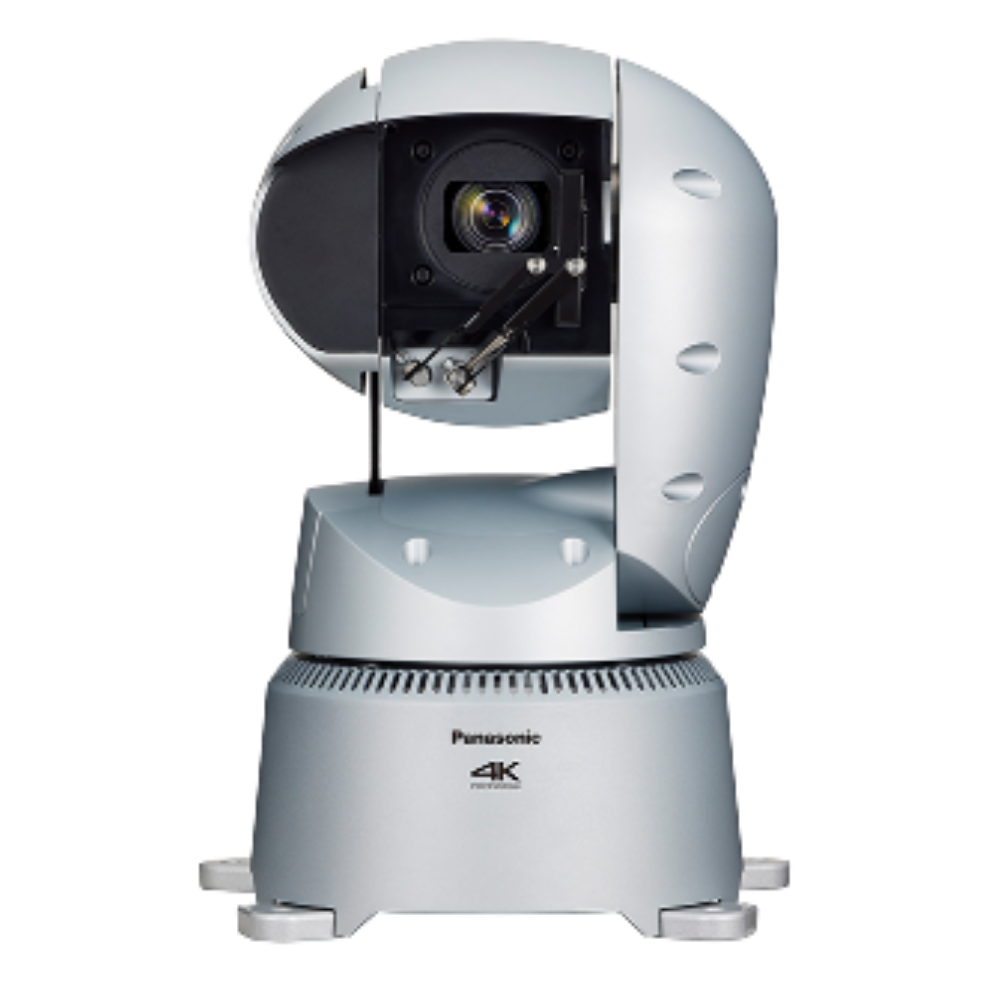

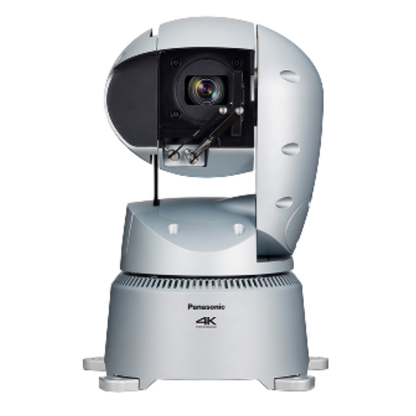

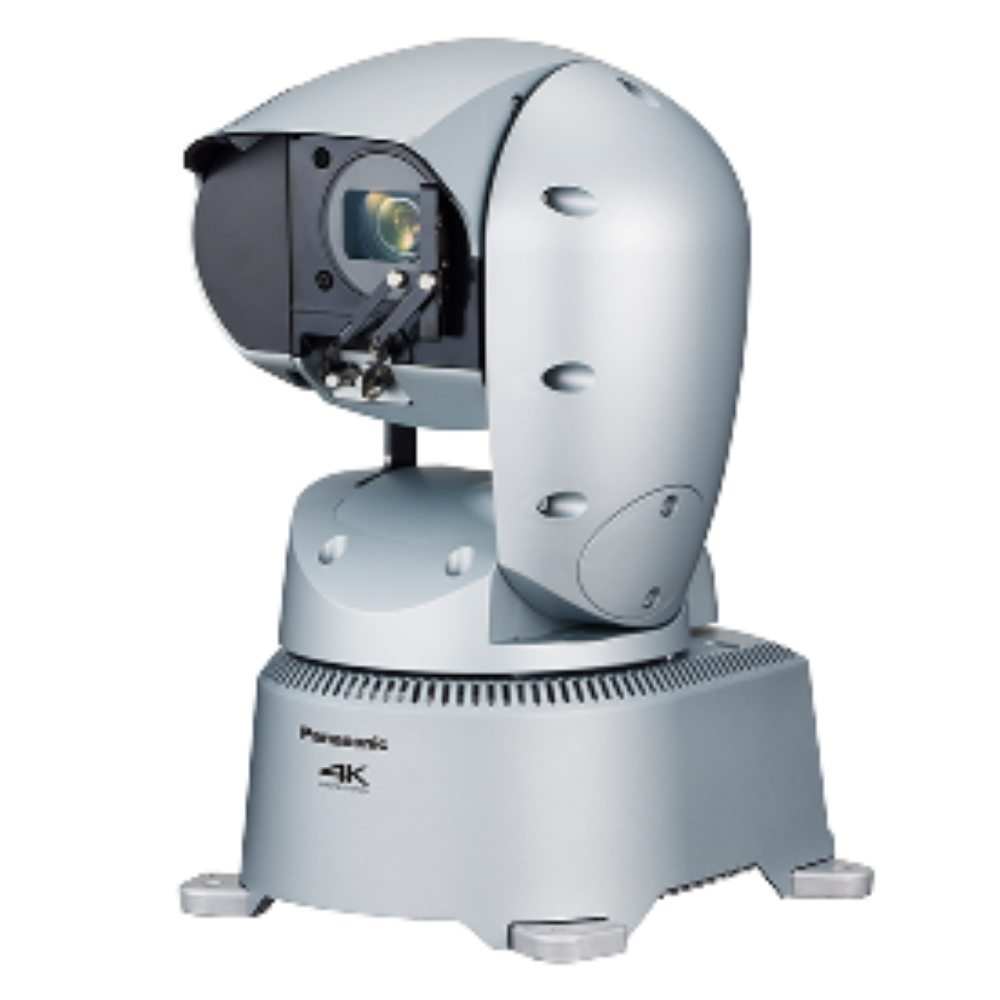

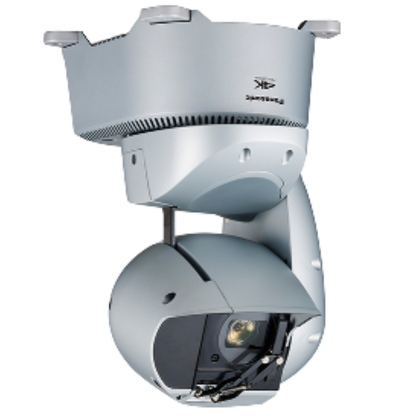

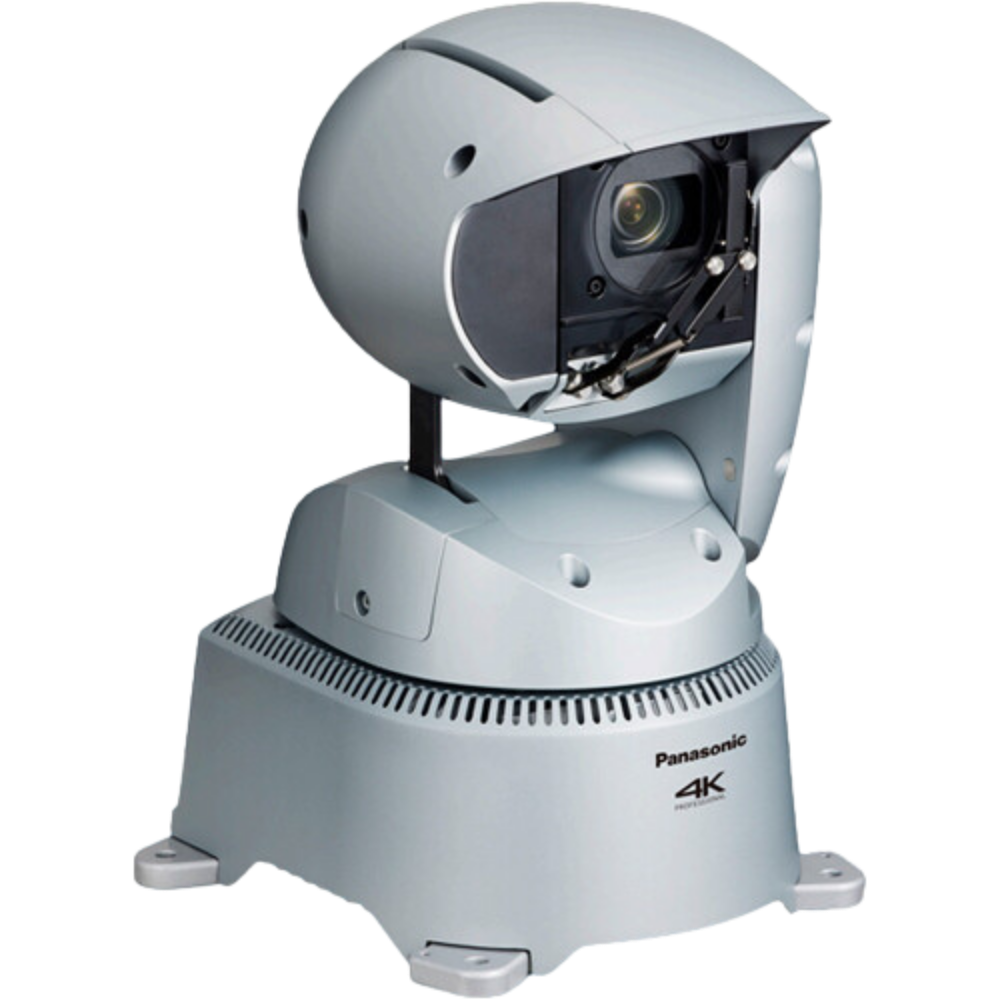

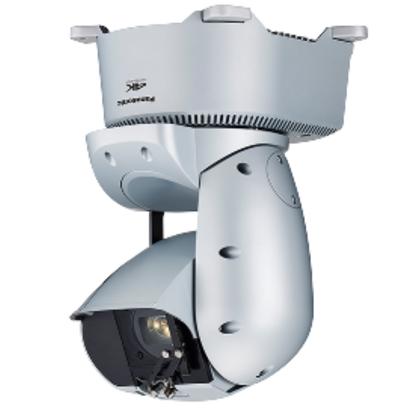

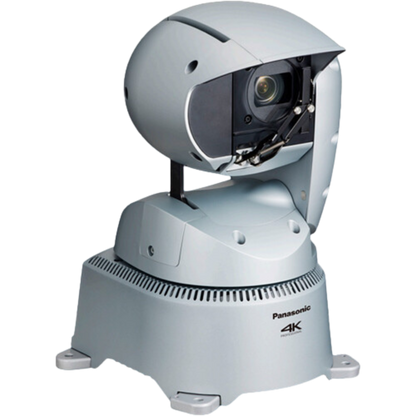

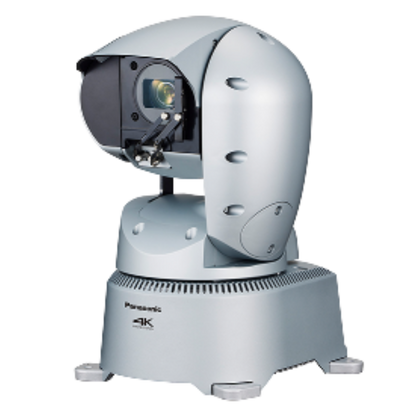

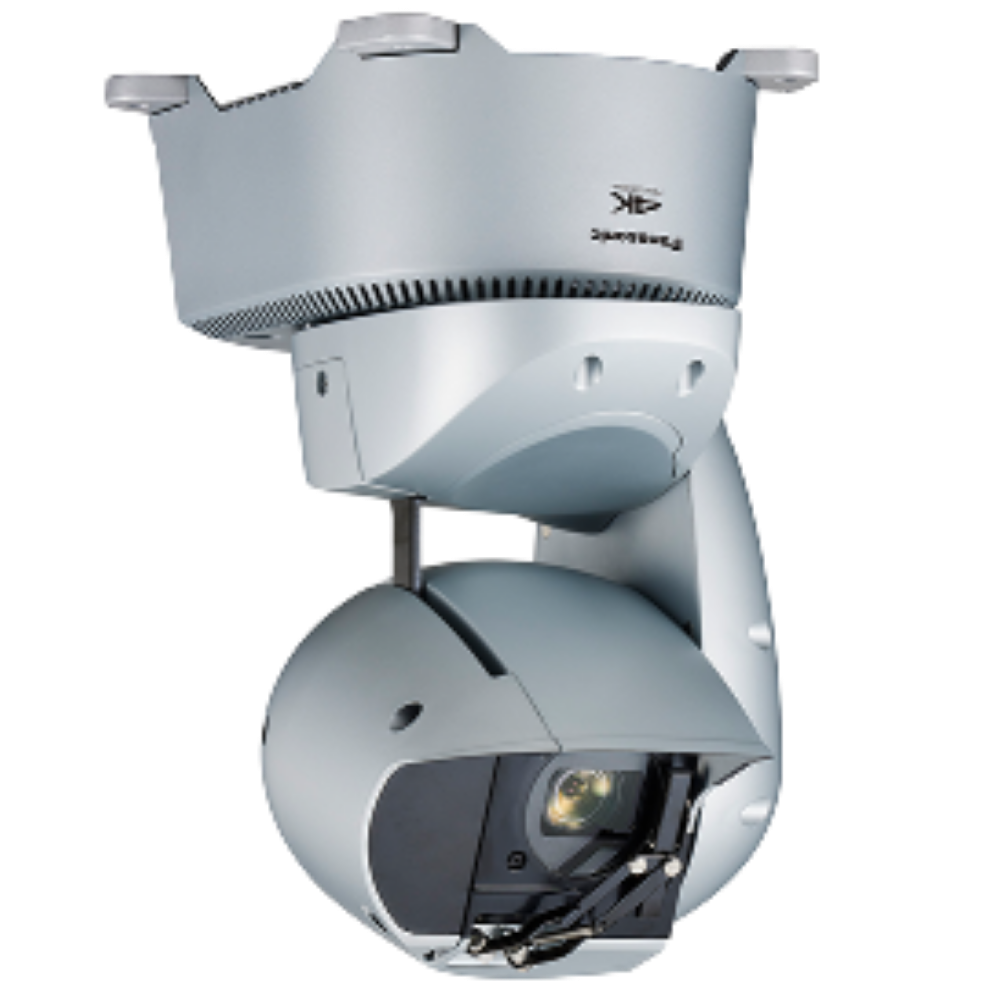

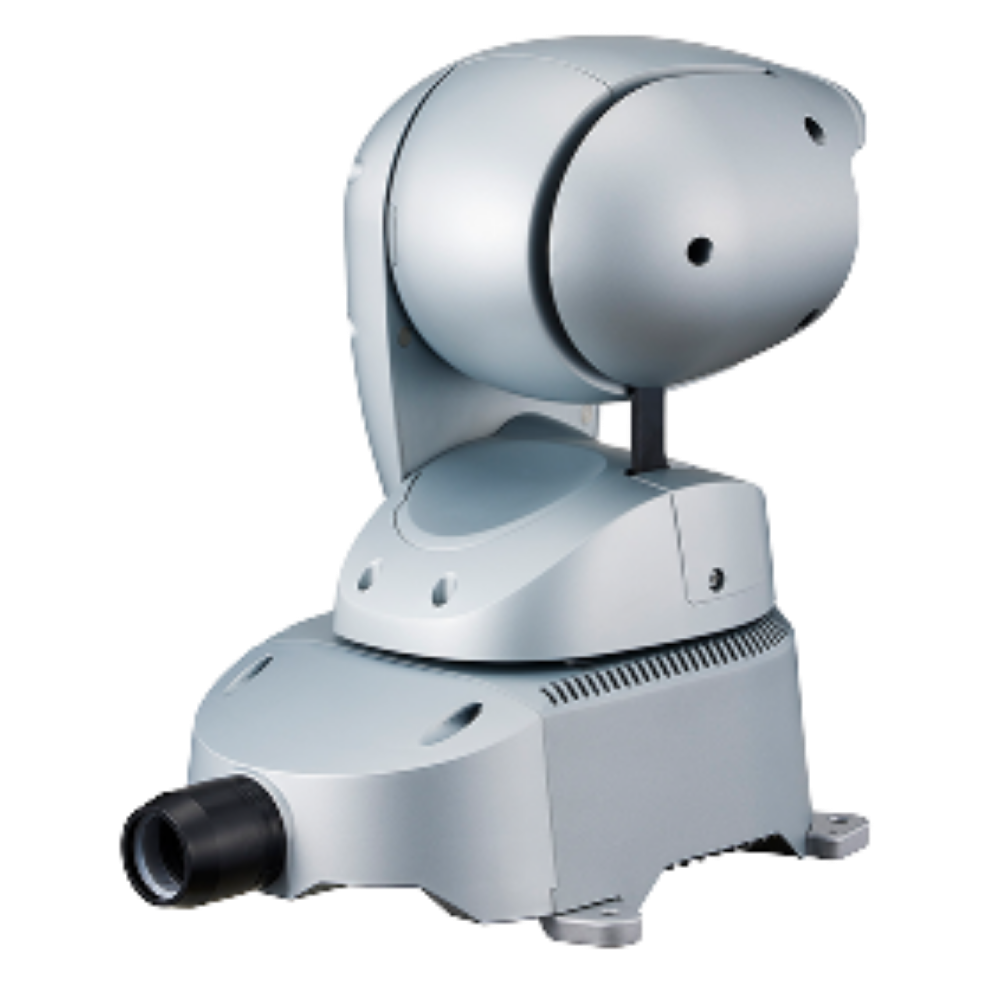

Panasonic AW-UR100 4K Outdoor Professional PTZ Camera

Panasonic AW-UR100 4K Outdoor Professional PTZ Camera
It is the first outdoor remote camera that supports 4K60p. Even in scenes with intense motion, natural smoothness and color can be recorded in high definition and high image quality. Enables shooting and operation in any outdoor environment. An outdoor 4K integrated remote camera for capturing the decisive moment

Key Features

• Compatible with 4K/60p shooting
• Built-in cropping function
• 24x optical zoom/74.1° horizontal
• Three types of image stabilization, OIS, EIS, and D.I.S.S.
• Durability to withstand the harshest of environments
• Still image JPEG capability

High-Precision Video Recording That Does Not Miss Any Key Scenes, Even In Large Venues
Thanks to a significant update from the AW-HR140, the wide-angle lens 4K/60p support, 24x optical zoom, and 10x digital zoom. The camera supports 4K/60p, 24x optical zoom, and 10x digital zoom.Three types of image stabilization, OIS, EIS, and D.I.S.S. (Dynamic Image Stabilizing System), suppress even low-frequency large-amplitude shaking. High-precision video recording is possible regardless of the installation environment, allowing the camera to capture a bird's-eye view of large stadiums and other venues while firmly targeting highlight scenes.

Durability To Withstand The Harshest Of Environments
The camera can withstand environments susceptible to salt damage, such as shooting news footage at an airport, broadcasting video in a warehouse district by the sea, and shooting footage from a large ship, as well as shooting live broadcast video that is susceptible to rain, wind, snow, and ultraviolet rays, and it is sealed to prevent yellow sand and flying sand and durable enough to withstand seismic vibration. The reliable durability recognized by the HR140 has been preserved while the shooting performance has been improved, enabling high-quality video recording in harsh environments where it is difficult for staff to shoot.

Flexibility In Constructing Systems With A Wide Variety Of Ifs
In response to the diversification of outdoor shooting, the AW-UR100 is now equipped with a video transmission IF that can support major baseband transmissions such as 3G-SDI, 12G-SDI, Fiber, etc. It is also compatible with a variety of IP protocols such as NDI and SRT. The camera also offers flexibility to match the shooting environment and existing video production system, and can be used for recording, editing, streaming, and a wide range of other purposes to suit the installation environment and purpose, further expanding the range of expression and use of video shot outdoors.

Compatible 4K60p Shooting
It is the first outdoor remote camera* that supports 4K60p. Even in scenes with intense motion, natural smoothness and color can be recorded in high definition and high image quality.

Built-In Cropping Function
It is possible to crop a portion of the video shot in 4K. One of up to three cropping positions can be specified, and the AW-UR100 can be easily accessed and operated from the remote camera controller AW-RP150GJ/RP60GJ or a PC.

24x Optical Zoom / 74.1° Horizontal
The wide-angle lens provides a wide shooting range, allowing this single unit to capture a wide range of angles of view.

Three Types of Image Stabilization, OIS, EIS, and D.I.S.S.
The camera is equipped with three types of image stabilization, optical image stabilization (OIS), electronic image stabilization (EIS), and Dynamic Image Stabilizing System (D.I.S.S.) to ensure image capture regardless of the installation environment.

Durability to Withstand the Harshest of Environments
Paint and resin that are resistant to heavy salt, corrosion, water, and ultraviolet rays are used to ensure sealing that complies with IP65 standards, and the camera offers rigidity that will not break even in wind speeds of 50 m/sec, providing durability that is unaffected by external factors

Robust to Withstand Harsh Environments
Equipped with video transmission IFs that can support major baseband transmissions such as 3G-SDI, 12G-SDI, and Fiber. Major IP transmissions such as NDI, SRT, and RTMP are also supported, allowing utilization in existing system environments.

Imaging

• Image Sensor: 1/2.5"-Type CMOS
• Horizontal Resolution (TV Lines): 1500 TV Lines
• Effective Sensor Resolution: 8.49 Megapixel (3864 x 2196)
• Focus Control: Autofocus and Manual Focus

Exposure

• Shutter Speed: 1/10000 to 1/25 Second in Video Mode
• Minimum Illumination: 3 Lux at f/1.8 Aperture
• Flip / Mirror Support: Image Flip, Mirror (Vertical)
• White Balance
  • Range: 2000 to 15,000K
  • Presets: ATW, AWB, Daylight, Tungsten

Lens

• Focal Length: 4.12 to 98.9mm (35mm Equivalent: 25 to 600mm)
• Max Optical Zoom: 24x
• Max Digital Zoom: 10x
• Field of View
  • Horizontal: 74.1 to 3.3°
  • Vertical: 46 to 1.9°
  • Diagonal: 81.8 to 3.8°
• Maximum Aperture: f/1.8 to 4
• Minimum Focus Distance: 3.9" / 100 mm (Wide) to 47244.1" / 1200 m (Tele)

Video Capture

• Video Output via RJ45
  • 3840 x 2160p
  • 3840 x 2160p at 23.98/24.00/25/29.97/30.00/50/59.94 fps
  • 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94 fps
  • 1280 x 720 at 50/59.94 fps
• Video Output via SDI/BNC
  • 3840 x 2160p
  • 3840 x 2160p at 23.98/24.00/25/29.97/30.00/50/59.94 fps
  • 1920 x 1080p at 23.98/24.00/25/29.97/30.00/50/59.94 fps
  • 1920 x 1080i at 50/59.94 fps
  • 1920 x 1080PsF at 23.98/24.00/25/29.97 fps
  • 1280 x 720 at 50/59.94 fps
• Embedded Audio: IP/LAN (RJ45)/NDI/SDI Output: 2-Channel
• Internal Recording: No
• Audio Recording: Yes
• Broadcast Output: NTSC/PAL
• Supported Protocols:
  • Camera Control
  • FreeD/IP/NDI/NDI|HX2/RS-422
  • Video Streaming
  • DNS/HTTP/HTTPS/mDNS/NDI/NDI|HX2/NTP/RTMP/RTMPS/RTP/RTSP/SNMP v1/v2c/v3 (MIB-II)/SRT/TCP/UDP
• IP Streaming:
  • H.264/H.265/MJPEG via H.245/NDI/NDI HX2/RTMP/RTMPS/SRT/UDP
  • 1280 x 720 to 3840 x 1260 at 5.00p, 15p, 24p, 25p, 30p, 50p, 60p (250.00 Mb/s)

Control

• Presets: 100 via IP, RS-422
• Pan/Tilt
  • Pan: 350° (-175 to 175°) at 0.08 to 60°/s
  • Tilt: 240° (-30 to 210°) at 0.08 to 60°/s
• Tally Light: Yes

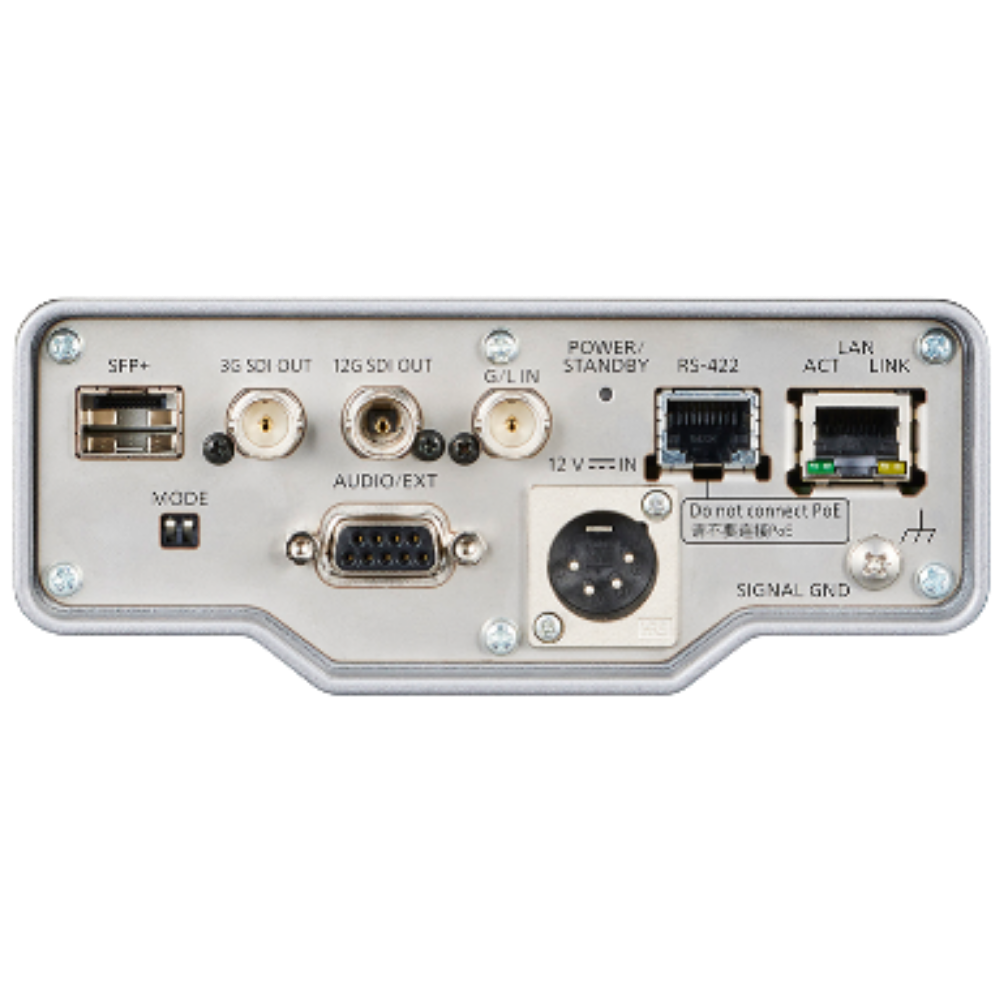

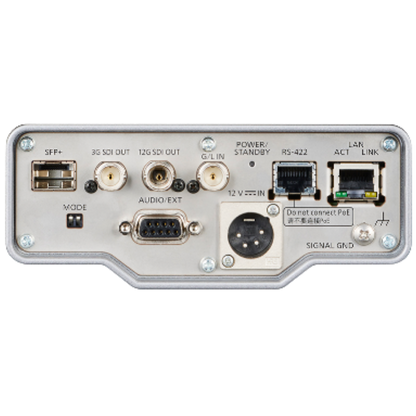

Interface

• Video I/O
  • 1x BNC (12G-SDI) Output
  • 1x BNC (3G-SDI) Output
  • 1x RJ45 (NDI) Input/Output
• Other I/O
  • 1x BNC (Genlock)
  • 1x RJ45 (RS-422)
  • 1x D-Sub 9-Pin (Camera Interface)
• Expansion Slots: 1x SFP+ Slot
• Built-In Microphone: No

Power

• PoE Support: Yes: PoE++ 802.3bt
• Power I/O: 1x XLR 4-Pin (12 to 21.8VDC) Input
• Power Consumption: PoE: 42 to 57

Environmental

• Operating Conditions: 5 to 113°F / -15 to 45°C at 10 to 100% Humidity
• Storage Conditions: -4 to 131°F / -20 to 55°C
• Impact Resistance: Vibration-Resistant (Unrated)
• Environmental Resistance: Corrosion/Salt/Weather/Water-Resistant (IP65)

General

• OS Compatibility
  • Computer: macOS / Windows
  • Mobile: Android/iOSWeb-Based (Runs in Your Browser)
• Dimensions (W x H x D): 15.4 x 14.4 x 10.2" / 392 x 367 x 258 mm
• Weight: 19.8 lb / 9 kg (Body Only)

• Panasonic AW-UR100 4K Outdoor PTZ Camera with Fiber, SRT, NDI Output
• 4 x M8 Bolt
• 4 x M8 Washer
• 4 x M8 Washer
• Cable Cover
• Washer Nozzle Mount Bracket
• Safety Wire
• Warranty: Limited 1-Year Manufacturer Warranty
