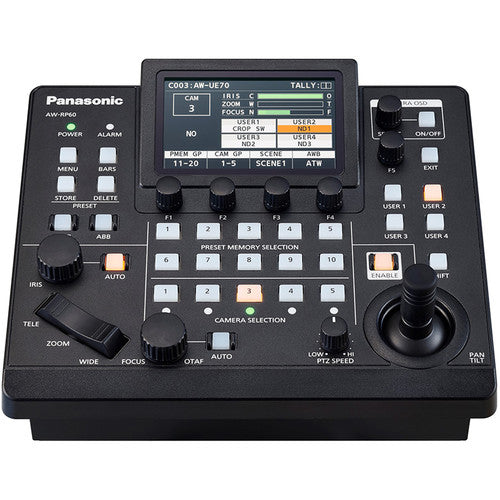

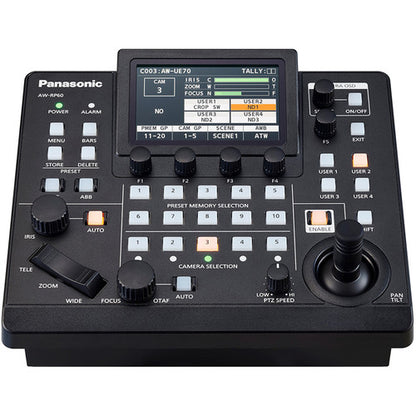

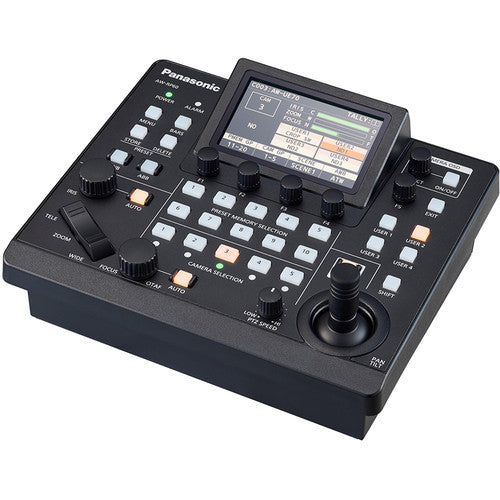

Panasonic RP60 Compact PTZ Controller
Panasonic RP60 Compact PTZ Controller
Panasonic RP60 Compact PTZ Controller
Panasonic RP60 Compact PTZ Controller

Panasonic RP60 Compact PTZ Controller

Regular price $2,495.00 Sale price$2,410.00
/
Free Shipping & Tech Support.

INSTANT SAVINGS of $85.00!!

Videoguys Part # (SKU): AWRP60GJ5
MFR Part # (MPN): AW-RP60GJ5

Short Description:
  • Free Shipping & Tech Support
Introducing the all-new AW-RP60 Remote Camera Controller. Equipped with a large LCD to display a GUI menu screen with clear visibility and an improved joystick for smoother control, this controller is the ideal companion to Panasonic PRO PTZ camera models. Thanks to the improved GUI, all important information about the cameras, such as iris, zoom and focus can be seen at all times directly on the screen. The AW-RP60 is also capable of supporting up to 200 cameras, manages 100 presets and comes with PoE support allowing for easy integration into your video production workflow.

KEY FEATURES
  • Control of up to 200 remote robotic network cameras
  • Intuitive joystick for smooth and responsive PTZ camera control
  • 3.5" LCD screen displays menu and key camera information such as iris, zoom and focus
  • Easy management of up to 100 PTZ camera presets
  • Supports PoE power

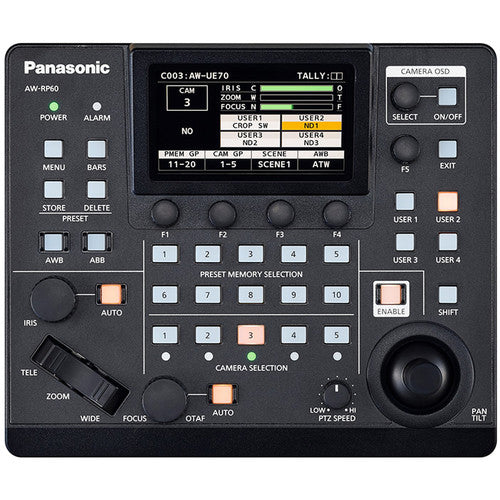

3.5" LCD Screen
The AW-RP60 controller is equipped with a 3.5" LCD screen to deliver a GUI menu where the information you need is provided at a glance for intuitive and quick camera control.

Flexible Customization
The controller is equipped with 4 user assignable buttons to which up to eight functions of your choice can be assigned. Each preset name can also be customized with a PC tool. The flexible features of the controller make it perfect for use in a wide range of environments, from lectures and corporate seminars to live streaming and broadcasting at sporting events.

Advanced Joystick
The new joystick supports smooth pan and tilt operations and ensures accurate capture of your target image. The grip of joystick is approximately 1.5x larger than the previous model, AW-RP50, allowing for an even more stable PRO PTZ camera operation.

PoE Support
PoE (Power over ethernet) support enables power and camera control to be delivered via a single ethernet cable. In addition to camera control operation, gamma, white balance and other color adjustment functions can be performed, making advanced camera adjustments possible.

PRO PTZ Camera Compatibility
The AW-RP60 is compatible with the following Panasonic professional PTZ cameras. There will be a firmware update available in 2020 for the listed cameras that are not compatible with the RP60 at this time
  • AW-UE150 Compatible (NEW)
  • AW-HE130 Compatible (NEW)
  • AW-UE70 Compatible
  • AW-HE42 Compatible
  • AW-HE40 Compatible
  • AW-HE38 Compatible
  • AW-UE4 Compatible (NEW)
  • AW-HR140 Compatible (NEW)

Panasonic AW-RP50 Specs

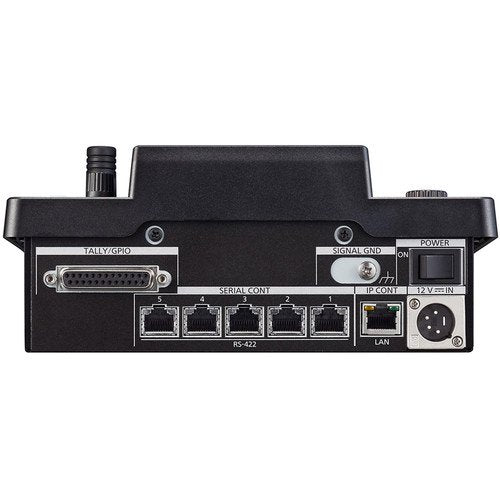

Protocol
IPv4, RS-422 (Panasonic AW Series Protocol)


LAN
10BASE-T/100BASE-TX: 1 x RJ45 (For IP Control)

Presets
100 Maximum

Pan/Tilt Control
RS-422: 5 x RJ45 (Serial Control)

Switcher Control
Connection: 1 x IP
Switcher Supported: AW-HS50N
Linkage: Camera Information Display
Tally Information Imported
Bus Material Selection (AUX/PVW/PiP/KEY-F)
Parameter Changes (Pan/Tilt Lever, Zoom Button)

Tally / GPIO
Connector: 1 x 15-Pin VGA (Female)
Tally Input: 5 x Channels
GPI Input: 4 x Channels
GPI Output :4 x channels
