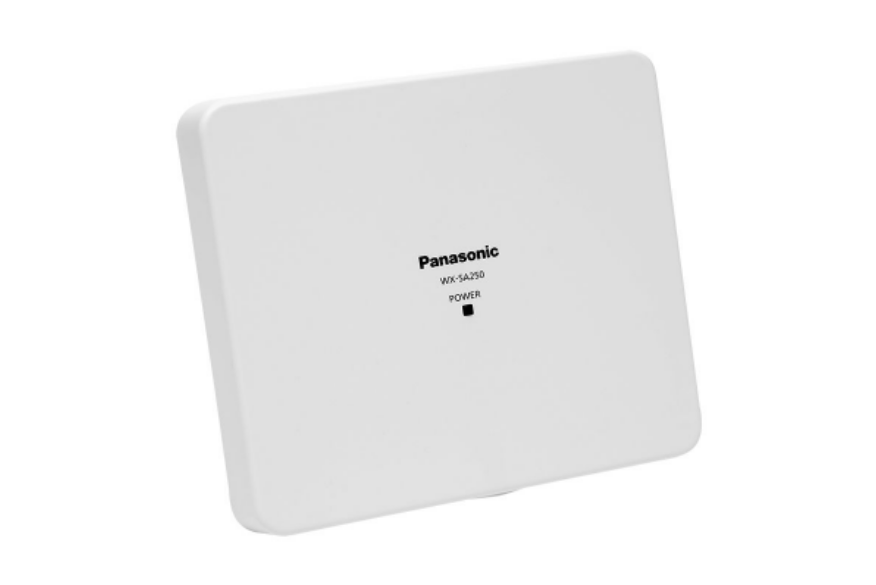

Panasonic WX-SA250 Wireless Antenna

Panasonic WX-SA250 Wireless Antenna

Regular price$249.99
Free Shipping & Tech Support.
Videoguys Part # (SKU): WXSA250
MFR Part # (MPN): WX-SA250

Short Description:

Panasonic WX-SA250 Wireless Antenna

  • Free Shipping & Tech Support
The WX-SA250 wireless antenna is an integral part of Panasonic's SR200 1.9 GHz Digital Wireless Microphone system, providing line of sight communication with Panasonic’s ST200 wireless microphones and routes the signal flawlessly back to the WX-SR202 digital wireless receiver via CAT5 / 6 connection. Multiple antennas can be placed in a room to accommodate for room size or multiple 2-channel microphone systems.  Each antenna has a maximum range of 131 feet (40-meters) and is easily adjustable to 3 lower steps so you can easily accommodate room size and minimize interference with other Panasonic wireless microphone systems installed in adjacent rooms. The WX-SA250 can easily be mounted on a wall, ceiling, or even on a microphone stand for mobile installations using the bracket included. Leveraging Panasonic's 20-year experience in DECT wireless audio communications, the WX-SR200P 1.9 GHz digital wireless microphone system is the best-in-class solution for classroom or corporate presentations providing low latency (23ms) for hybrid in-room/virtual presentations.  Panasonic's digital wireless microphone system is easy to set up, easy to integrate with third-party control systems (such as Crestron and Extron) and easy to use.  Setup is a breeze - the WX-SR202 digital wireless receiver easily pairs with Panasonic’s WX-ST200 and WX-ST400 microphones and assigns channels automatically, eliminating the need for manual channel assignment. The system can be expandable to suit a variety of spaces, from small classrooms, medium sized classrooms / conference rooms, to large auditoriums. Up to 8 separate antennas (per receiver) can be mounted to the wall or the ceiling in the room and connected via CAT5 back to the receiver locked away in a cabinet or closet and multiple 2-channel receivers can be installed to add wireless microphone channels to the room.

  • Provides in-room line of sight connection with Panasonic's WX-ST wireless microphones; enabling the wireless receiver to be locked away in a cabinet or rack.
  • Easy to install and configure with flexible mounting options (on wall, on ceiling or to a microphone stand); mounting plate included
  • Connects via CAT5/6 cable back to WX-SR202 digital wireless receiver (up to 8 can be connected to one receiver)
  • Selectable range to accomodate room size and minimize interference with multiple systems installed in adjacent rooms.
  • Multiple antennas can be installed in one zone for maximum coverage.

Wireless Frequency

  • 1920 MHz to 1930 Mhz (internal antenna)
Antenna Field Selection
  • Three-step switching (set at WX-SR202 receiver)
    operation support software of PC connected to receiver
LED Indicators
  •  Power
Power source
  • CAT5 / CAT5e / CAT6 straight cable terminated with RJ45 connector run to WX-SR202 digital wireless reciever
Operating Ambient Temperature
  • 14 deg. F to 122 deg. F (-10 deg. C to 50 deg. C)
  • On Ceiling, On Wall, or On Microphone stand
Water Resistance
  • IPX4 equivalent
  •  7-9/32 in. W x 6-19/64 in. H x 1-17/64 in. D (185mm W x 160mm H x 32mm D) / 0.88 lbs (400g)
  • sail white (color approximate to Munsell N9.3)
  • 3 Years
