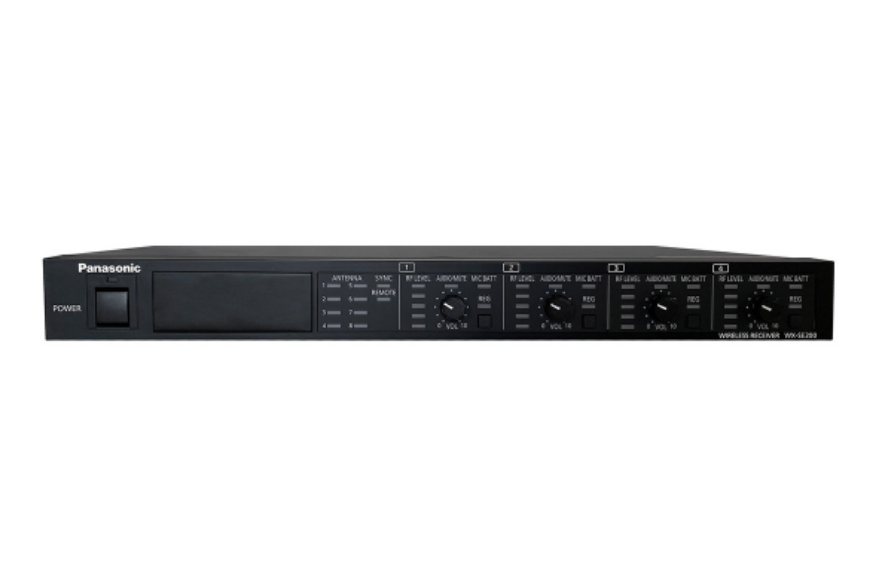

Panasonic WX-SE200 Expansion Receiver

Panasonic WX-SE200 Expansion Receiver

Regular price $1,275.00 Sale price$1,020.00
Free Shipping & Tech Support.

INSTANT SAVINGS of $255.00!!

Videoguys Part # (SKU): WXSE200
MFR Part # (MPN): WX-SE200

Short Description:

Panasonic WX-SE200 Expansion Receiver

  • Free Shipping & Tech Support
Designed to be used with Panasonic’s WX-SR204 4-channel wireless receiver, the WX-SE200 expansion receiver allows you to add up to 4 additional wireless microphone channels an existing Panasonic 4-channel system without the need to add an additional antenna to the system*. Choose between Panasonic’s WX-ST200 handheld mics and/or WX-ST400 lavalier mic + wireless bodypacks) for microphone options. Perfect for classrooms, conference rooms, auditoriums, museums, or even bars/ restaurants, the WX-SE200 features a RJ45 (CAT5 / CAT5e / CAT6) connection to the Panasonic WX-SR204 4-channel wireless receiver, and secure Euroblock connectors for independent channel outputs, external audio input and a mix output. LEDs on the front panel show the system status during startup & microphone pairing, antenna status during operation, and an LED indicator of when the receiver is being controlled remotely. Ships with rack ears for easy rack mount installation.*Depends on room side and desired coverage.

  • Add up to 4 additional wireless mic channels to an existing 4-channel system (WX-SR204 required) without the need to install additional antennas. *
  • Supports external audio input and mixing with mic channels.
  • Easy to setup – no need for planning / allocation of wireless channels; Secure pairing with Panasonic microphones
  • Rack mountable (1u high, rack ears included)


  • 6.17 lbs. (2.8 kg)
  • 3 years
Power consumption
  • AC 120 V 60 Hz / 39 Watts
Display Information
  • Power, Sync, Main, Remote, RF Level (5-level display), Audio level / mute, Mic battery, Register
Dimensions (W x H x D) (mm)
  • 420mm x 44mm x 250mm
Dimensions (W x H x D) (inch)
  • 16-17/32 x 1-47/64 x 9-27/32
Channel Output Circuits
  • 4
Channel Output Connectors
  • EuroBlock
Channel Output Characteristics
  • -10dBV balanced 600 Ohms
Channel Output Signal to Noise Ratio
  •  70 dB or greater
Channel Output Distortion
  • Less than 3%
Audio Input Characteristics
  • -10 dBV balanced 600 Ohms
Audio Input Frequency Response
  • 50 Hz to 15 kHz
Audio Input Distortion
  • Less than 3%
Mix Output Connectors
  • EuroBlock
Mix Output Characteristics
  • -10 dBV Balanced 600 Ohms
Mix Output Signal to Noise Ratio
  • 64 dB or greater
Mix Output Frequency Response
  • 50 Hz to 15 kHz
Mix Output Distortion
  • Less than 3%
Accessories (included)
  • Rack Ears
Extension Connector
  • 1 x RJ45 (WX-SR204 4-channel receiver required and sold separately)
