Panasonic WX-SR202DN 2-Channel Dante Digital Wireless Mic Receiver

Panasonic WX-SR202DN 2-Channel Dante Digital Wireless Mic Receiver

Regular price $2,263.00 Sale price$1,810.00
/
Free Shipping & Tech Support.

INSTANT SAVINGS of $453.00!!

Videoguys Part # (SKU): WXSR202DN
MFR Part # (MPN): WX-SR202DN

Short Description:

Panasonic WX-SR202DN 2-Channel Dante Digital Wireless Mic Receiver

  • Free Shipping & Tech Support

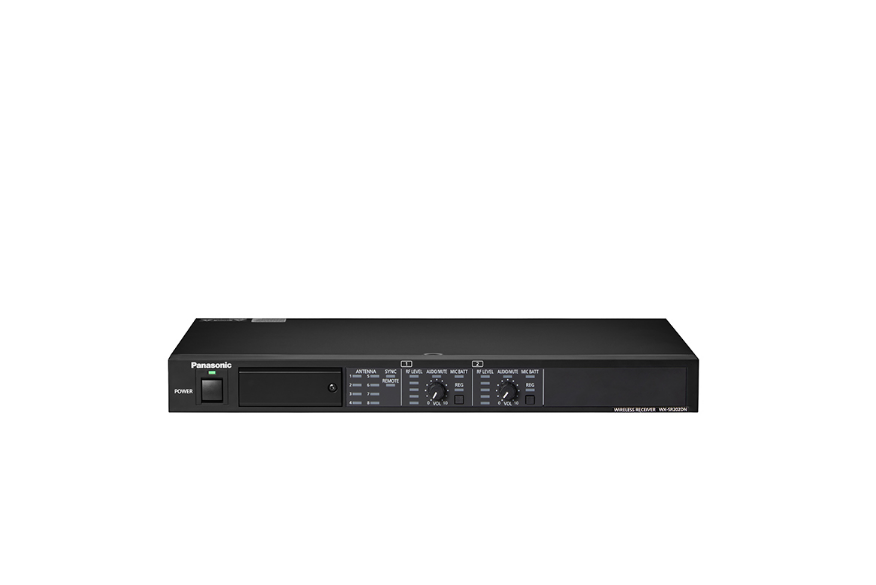

The WX-SR202DN digital wireless receiver supports two wireless microphone channels (choose between Panasonic’s WX-ST200 handheld mics and/or WX-ST400 lavalier mic + wireless bodypacks).  Perfect for classrooms, conference rooms, auditoriums, museums, retail and bars / restaurants, the WX-SR202DN features RJ45 (CAT5 / CAT5e / CAT6) connections for 2 Dante® connections (primary and secondary), for up to eight (8) external antennas (WX-SA250) and an ethernet network connection for easy integration with third party control systems such as Crestron, Extron, or QSC’s Q-Sys. The WX-SR202DN is also Dante Domain Manager Ready. LEDs on the front panel show the system status during startup & microphone pairing, antenna status during operation, and an LED indicator of when the receiver is being controlled remotely. Secure Europlug connectors for an external audio input and a mix output provide peace of mind that they will not detach easily in any type of installation. Multiple WX-SR202’s can be installed to support up to 8 microphone channels in a single room. Ships with rack ears for easy rack mount installation.

KEY FEATURES
  • Two channel DECT digital wireless mic receiver
  • Dante® digital audio connections (2 x RJ45, 1 primary & 1 secondary) with AES67 mode.  Dante Doman Manager Ready!
  • Easy to setup – no need for planning / allocation of channels; Secure pairing with Panasonic microphones; LAN port with open API for easy integration with 3rd party control systems (Crestron, Extron, & Q-SYS modules available).
  • Secure & Confidential signal transmission via DECT pairing with DECT Microphone(s)
  • Supports nearly any room size; up to 8 antennas can be connected and rack mountable (1u high, rack ears included)

Channel Output Circuits

  • 2
Channel Output Connectors
  • Dante (RJ45), Euroblock (for mix output only)
Channel Output Characteristics
  •  Dante Primary & Secondary: CH1/Ch2/MIXEuroblock connector: MIX only @ -10dBV balanced 600 Ohms
Channel Output Signal to Noise Ratio
  • 70 dB or greater
Channel Output Frequency Response
  • 50 Hz to 15 kHz
Weight
  • 6.39 lbs. (2.9 kg)
Dimensions (W x H x D)
  • 16-17/32 x 1-47/64 x 9-27/32 inches
    (420mm x 44mm x 250mm)
Power
  • AC 120 V 60 Hz
Warranty-Parts/Labor
  • 3 years
Power consumption
  •  39 Watts
Display
  • Power, Antenna 1-8, Sync, Main, Remote, RF Level (5-level display), Audio level / mute, Mic battery, Register
Audio Inputs
  • 1.9 GHz DECT, EuroBlock (for external)
Operating Ambient Temperature
  • 32° F to 113°F (0°C to 45°C)
Audio Input Characteristics
  • -10 dBV balanced 600 Ohms
Audio Input Frequency Response
  • 50 Hz to 15 kHz
Audio Input Distortion
  • less than 3%
Mix Output Connectors
  • Dante Primary & Secondary or Euroblock
Mix Output Characteristics
  • Dante Primary & Secondary or Euroblock -10 dBV Balanced 600 Ohms
Mix Output Signal to Noise Ratio
  •  64 dB or greater
Mix Output Frequency Response
  • 50 Hz to 15 kHz
Mix Output Distortion
  • less than 3%
Antenna Connectors
  •  8 x RJ45
    (compatible cables: CAT5 / CAT5e / CAT6 straight)
  • Wiring distance up to 656 feet (200 m)
Antenna Field Selection
  • 4 ranges selectable via Dip Switches (front panel) or via Panasonic's Operations Support software

Accessories (included)

  • rack ears
