Description

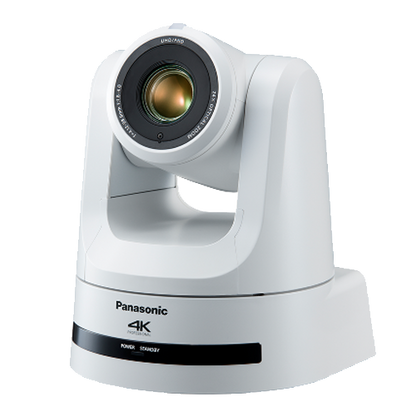

First 4K 60p/50p PTZ Camera supporting NDI and SRT in the world
Supports high bandwidth NDI for low latency transmission of high-quality 4K 60p/50p video, and SRT for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.
Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
High bandwidth NDI that can transmit 4K video at speeds of up to 250 Mbps and full HD video up to 100 Mbps is included to provide high-quality low latency live video transmission with a single LAN cable. High efficiency low bandwidth NDI|HX is also included to enable video transmission at low bitrates. SRT is also supported to maintain stability while transmitting high-quality video, even in unstable network environments. RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera.
Supports 4K 60p/50p shooting and 12G-SDI output
Supports 4K 60p/50p video at 3840 x 2160 to provide smooth and high-quality shooting of moving images, and a wide variety of output interfaces such as 12G-SDI, 3G-SDI, HDMI, and IP.
Includes a wide-angle lens with a 74.1 Degree field of view and 24x optical zoom
A wide angle lens with a horizontal angle of view of 74.1 degrees enables a wide area to be shot from a limited installation space, and 24x optical zoom maintains high image quality at high zoom ratios. This allows shooting in large indoor spaces.
Supports FreeD for building AR/VR systems
FreeD command output enables connection with AR/VR systems. This allows the camera tracking information (pan/tilt/zoom/focus/iris) to be output together with a synchronization signal to easily build systems without an encoder.
Adopts new mechanical pan/tilt for improved responsiveness and quietness
The inclusion of a Direct Drive mechanism improves the responsiveness of pan/tilt and quietness during pan/tilt operations. In addition to Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS) has been added for the roll direction. This provides stable video shooting even at locations utilizing robotics and rail systems, etc.
Panasonic AW-UE100 Features
Supports high bandwidth NDI for low latency transmission of high-quality 4K 60p/50p video, and SRT for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.
Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
High bandwidth NDI that can transmit 4K video at speeds of up to 250 Mbps and full HD video up to 100 Mbps is included to provide high-quality low latency live video transmission with a single LAN cable. High efficiency low bandwidth NDI|HX is also included to enable video transmission at low bitrates. SRT is also supported to maintain stability while transmitting high-quality video, even in unstable network environments. RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera.
Supports 4K 60p/50p shooting and 12G-SDI output
Supports 4K 60p/50p video at 3840 x 2160 to provide smooth and high-quality shooting of moving images, and a wide variety of output interfaces such as 12G-SDI, 3G-SDI, HDMI, and IP.
Includes a wide-angle lens with a 74.1 Degree field of view and 24x optical zoom
A wide angle lens with a horizontal angle of view of 74.1 degrees enables a wide area to be shot from a limited installation space, and 24x optical zoom maintains high image quality at high zoom ratios. This allows shooting in large indoor spaces.
Supports FreeD for building AR/VR systems
FreeD command output enables connection with AR/VR systems. This allows the camera tracking information (pan/tilt/zoom/focus/iris) to be output together with a synchronization signal to easily build systems without an encoder.
Adopts new mechanical pan/tilt for improved responsiveness and quietness
The inclusion of a Direct Drive mechanism improves the responsiveness of pan/tilt and quietness during pan/tilt operations. In addition to Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS) has been added for the roll direction. This provides stable video shooting even at locations utilizing robotics and rail systems, etc.
Panasonic AW-UE100 Features
- First 4K 60p/50p PTZ Camera supporting NDI and SRT in the world
- Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
- Supports 4K 60p/50p shooting and 12G-SDI output
- Includes a wide-angle lens with a 74.1 Degree field of view and 24x optical zoom
- Supports FreeD for building AR/VR systems
- Adopts new mechanical pan/tilt for improved responsiveness and quietness
Specifications
Video Output
HDMI 2.0 connector 4:2:2/10bit
- HDCP is not supported.
- Viera Link is not supported
• Optical zoom : 24x
• i.Zoom: UHD 28x, FHD 36x
• Digital extender zoom: 1.4x, 2x
Image Resolution: 3840x2160, 1920x1080, 1280x720, 640x360, 320x180
General
Power Requirements
- 12 V DC (10.8 V to 13.2 V) (Supplied AC adaptor)
- 42 V to 57 V DC (PoE++ power supply)
- IEEE802.3bt standard: DC 42 V to 57 V (Camera Input)
- (Software authentication (LLDP) is supported)
Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity: 20 % to 90 % (no condensation)
Storage Temperature: –20 °C to 50 °C (–4 °F to 122 °F)
Mass
- Approx. 2.2 kg (4.84 lb) (excluding cable cover, mount bracket)
- Approx. 2.3 kg (5.06 lb) (including cable cover, excluding mount bracket)
- 169.2 mm x 204.6 mm x 170.6 mm
- (6-21/32 inches x 8-1/16 inches x 6-23/32 inches)
- (excluding protrusions, cable cover, mount bracket)
- AW‑UE100WP/AW‑UE100WPC/AW‑UE100WE/AW‑UE100WED: Pearl white
- AW‑UE100KP/AW‑UE100KPC/AW‑UE100KE/AW‑UE100KED: Black
Camera Unit
Imaging Sensors: 1/2.5-type 4K MOS x 1
Lens
- Motorized Optical 24x zoom, F1.8 to F4.0
- [f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches); 35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]
Angle of View Range
- Horizontal angle of view: 74.1°(wide) to 3.3°(tele)
- Vertical angle of view: 46.0°(wide) to 1.9°(tele)
- Diagonal angle of view: 81.8°(wide) to 3.8°(tele)
- Through, 1/4, 1/16, 1/64, IR through
- (IR through is used as “Night mode”)
Focus Distance
- Entire zooming range: 1200 mm (3.9 ft)
- Wide end: 100 mm (0.33 ft)
Standard Sensitivity
- F4/2000 lx (When [Shooting Mode] is [Normal])
- F5.6/2000 lx (When [Shooting Mode] is [High Sens.])
S/N: 60dB(typ) (When [Shooting Mode] is [Normal])
Horizontal Resolution: 1500 TV lines Typ (Center area)
Gain Selection
- Auto, 0 dB to 36 dB*1
- Super Gain function installed: 37 dB to 42 dB
Electronic Shutter Speed
- 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000,1/10000
- 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
- 59.94p/59.94i: 60.00 Hz to 7200 Hz
- 29.97p: 30.00 Hz to 7200 Hz
- 23.98p/24p: 24.00 Hz to 7200 Hz
- 50p/50i: 50.00 Hz to 7200 Hz
- 25p: 25.00 Hz to 7200 Hz
White Balance
- ATW, 3200K, 5600K
- AWB: AWB-A/AWB-B
- VAR (selectable between 2000K and 15000K by designating a value)
Scene File: Scene1, Scene2, Scene3, Scene4
Output Format
- SDI Output 4K: 2160/59.94p, 2160/50p, 2160/29.97p*3, 2160/25p*3, 2160/24p*3, 2160/23.98p*3
- SDI Output HD: 1080/59.94p, 1080/50p, 1080/29.97p*3, 1080/29.97PsF, 1080/25p*3, 1080/25PsF, 1080/23.98p*4, 1080/24p*3, 1080/23.98p*3, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
- HDMI Output 4K: 2160/59.94p, 2160/50p, 2160/29.97p*3, 2160/25p*3, 2160/24p*3, 2160/23.98p*3
- HDMI Output HD: 1080/59.94p, 1080/50p, 1080/29.97p*3, 1080/25p*3, 1080/23.98p*10, 1080/24p*3, 1080/23.98p*3, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p

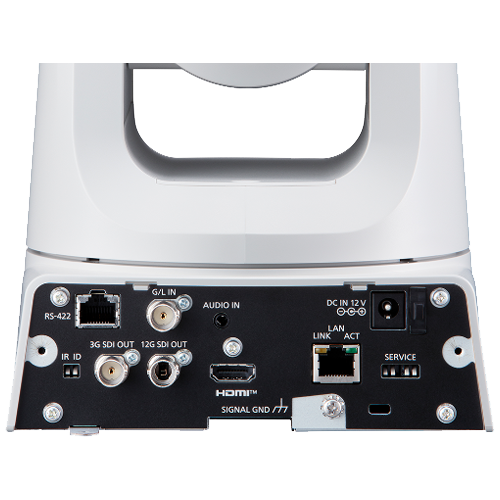

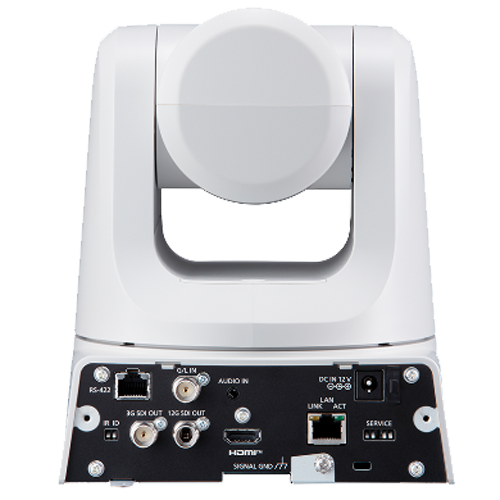

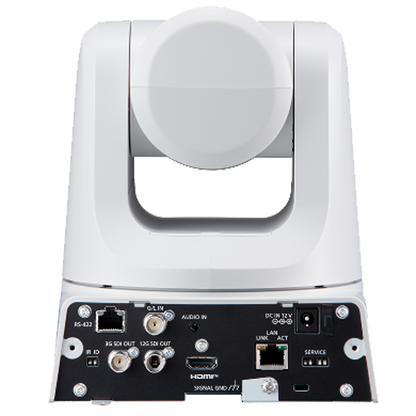

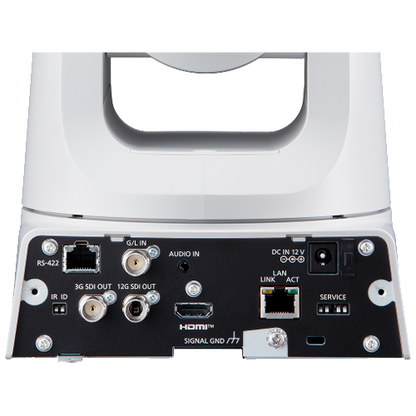

INPUT
Input Connector
- DC IN 12 V
- G/L IN
- BBS (Black Burst Sync), tri-level sync supported 75 Ω terminal (BNCx1)
- AUDIO IN
- MIC/LINE input Compatible (SDI/HDMI/IP) AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: Approx. 10 kΩ (unbalanced)
- During MIC input Input level: –40 dBV (0 dB=1 V/Pa, 1 kHz) Plug-in power compatible, supply voltage: 2.5 V ± 0.5 V
- During LINE input Input level: –10 dBV
- Input volume variable range: –36 dB to 12 dB (3 dB step)
- Embedded audio output level: –12 dBFS
- Sampling frequency: 48 kHz
- Quantization bit rate: 24bit (SDI, HDMI), 16bit (IP)
Input/ Output Connector
- LAN
- RJ‑45
- LAN terminal for IP control and video transmission
- PoE++ power terminal (IEEE802.3bt compliant)
- RS-422
- CONTROL IN RS-422A (RJ‑45)
Camera/Pan-tilt Head Control
- IP connecting cable
- When connecting through a PoE++ hub LAN cable*5 (category 5e or above, straight cable), max. 100 m (328 ft)
- When a PoE++ hub is not used LAN cable*5 (category 5e or above, straight cable), max. 100 m (328 ft)
- AW protocol connecting cable
- LAN cable*5 (category 5e or above, straight cable), max. 1000 m (3280 ft)
Pan/tilt Operation Speed
- Speed range: 0.08°/s to 60°/s (Normal mode)
- 3 speed modes installed
- Normal: 60°/s, Fast1: 90°/s*7, Fast2: 180°/s*7
Tilting range: –30° to 210°*8
Quietness: NC30 or less
Supported operating systems and web browsers
- Windows
- Microsoft® Windows® 10
- Windows® Internet Explorer® 11 (64bit/32bit)
- Microsoft Edge
- Google Chrome
- Mac
- macOS 10.13/Safari 13
- macOS 10.14/Safari 13
- macOS 10.15/Safari 13
- macOS 10.15/Google Chrome
- iPhone / iPad iOS
- Safari
- iPadOS
- Android
- Android OS
- Google Chrome
Image Streaming Mode: JPEG(MJPEG), H.264, H.265, NDI®|HX, High Bandwidth NDI®
Image Transmission setting (JPEG)
- Frame Rate: Maximum 30 fps
- Image quality (Fine / Normal)
- Transmission Type
- Unicast port (AUTO)
- Unicast port (MANUAL)
- Multicast port
- Transmission Priority
- Constant bit rate
- Frame rate
- Best effort
- Frame Rate
- [60Hz] 5fps/15fps/30fps/60fps (UHD: 30fps, 60fps)
- [50Hz] 5fps/12.5fps/25fps/50fps (UHD: 25fps, 50fps)
- Max Bit Rate
- 512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps/16384kbps/20480kbps/24576kbps/32768kbps/40960kbps/51200kbps/76800kbps
- Transmission Type
- Unicast port (AUTO)
- Unicast port (MANUAL)
- Multicast port
- Frame Rate
- [60Hz]30fps
- [50Hz]25fps
- Max Bit Rate
- 8192kbps/12288kbps/25600kbps/51200kbps/76800kbps
Supported Protocol
- IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT
- IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT
NDI support
- NDI® | HX: Included as standard
- High Bandwidth NDI®: Included as standard
What's Included
- AW-UE100 Camera (White)
- Ceiling Mount
- Integrated NDI
