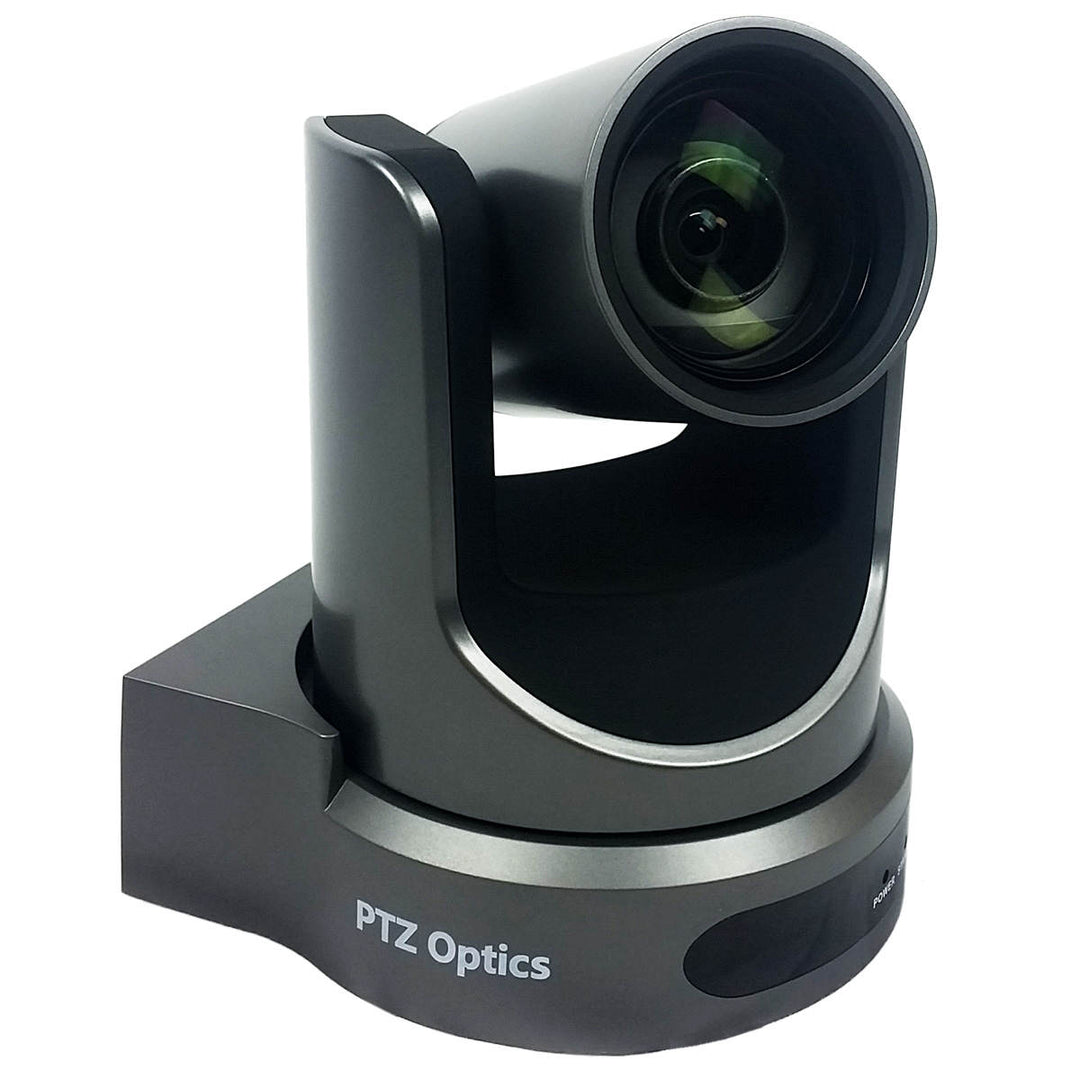

PTZOptics 12X-SDI Video Conferencing Camera (Gray) with NDI Firmware Update
PTZOptics 12X-SDI Video Conferencing Camera (Gray) with NDI Firmware UpdatePTZOptics 12X-SDI Video Conferencing Camera (Gray) with NDI Firmware UpdatePTZOptics 12X-SDI Video Conferencing Camera (Gray) with NDI Firmware Update


Unfortunately this product has been discontinued but I'm sure we had a new and better option.   Search above or contact us via email or chat.

VideoGuys Part # (SKU): PT12XSDIGYG2NDI
12X Optical Zoom | HD-SDI, HDMI, IP Streaming, CVBS | 1920 x 1080p | 72.5 degree FOV (Gray)
  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews

Video Conferencing Camera

The PTZ Optics 12X-SDI is a 1080p camera with 12X optical zoom for capturing both wide angles and long shots. With support for HD-SDI, HDMI, and IP Streaming (H.264) this camera is ideal for broadcasting high definition video signals for broadcast, recording or video conferencing applications.

• 72.5 degree wide-angle lens.
• Wide Dynamic Range
• High performance in low illumination situations.
• Full 1920x1080p HD Resolutions up to 30 frames per second.
• 2D and 3D noise reduction with our latest “low noise CMOS sensor”.
• RJ-45 H.264 Streaming port (Control Software is open source)
• HDMI, HD-SDI, IP Streaming (All Simultaneuos)

Camera & Lens

  • Video CMOS Sensor 1/3” CMOS, 2.12 Mega Pixels

  • Frame Rate 1080p/30, 1080p/25, 720p/60,

  • 720p/50, NTCS, PAL

  • Lens 12x, F3.5mm-42.3mm, F1.8-F2.8

  • Lens Zoom 12x, 16x Digital Zoom

  • Field of View 72.5°

  • Min Lux 0.5 Lux at F1.8, AGC ON

  • Shutter Speed 1/30s - 1/10000s

  • SNR ≥55dB

  • Vertical Flip & Mirror Supported

  • Horizontal Angle of View 6.9° (tele) to 72.5° (wide)

  • Vertical Angle of View 3.9° (tele) to 44.8°(wide)

  • Working Envciornment Indoor

Pan & Tilt Movement

  • Pan Movement ±170°

  • Tilt Rotation Up: 90°, Down: 30°

  • Presets 64 Presets (245 Presets via RS-232)

Rear Board Connectors

  • Video Output Interface HDMI, HD-SDI, IP Streaming, CVBS

  • Network Interface RJ45

  • Audio Interface Line In, 3.5mm (IP Stream Only)

  • Communication Interface RS-232, RS485

  • Baud Rate 2400/4800/9600 bits

  • Power Supply Interface JEITA type Power Adapter (DC IN 12V)

  • USB Interface USB 2.0 (for firmware updates only)

Physical Specications

  • Dimension (in.) 5.56W x 6.88H x 5.88D (8“ H w/ Tilt up)

  • Dimensions (mm) 142W x 175H x 150D (204H w/ Tilt up)

  • Box Dimensions 9”x9”x10” | 229mmx254mmx229mm

  • Camera Weight 3.05 lbs. (1.38 kg)

  • Boxed Weight 5.4 lbs. (2.45 kg)

Electrical Index

  • Power Supply 12W 24W (Max)

  • Input Voltage 12V DC (10.8 - 13.0V DC)



  • 12X Zoom HD-SDI Camera

  • Firmware Upgrade

  • Power Adapter + Cord

  • IR Remote Control

  • RS-232C Cable

  • User Manual
