PTZOptics Camera Wall Mounts
These modern PTZ camera wall mounts will exceed your expectations and deliver a reliable mounting solution you can count on.
The universal design includes an industry-standard quarter-twenty (1/4-20) camera attachment that works with most small based SONY, Panasonic, DataVideo, Vaddio, and PTZOptics cameras. The mount is available in both white and black for seamless design aesthetics. These Camera Wall Mounts are designed to mount directly to most walls or standard U.S. double-gang boxes with the supplied hardware included with each product.
Professional PTZ Wall Mounts
Reference the included manual for detailed installation instructions. All the necessary hardware for Masonry, Drywall, and electrical box installation is included.

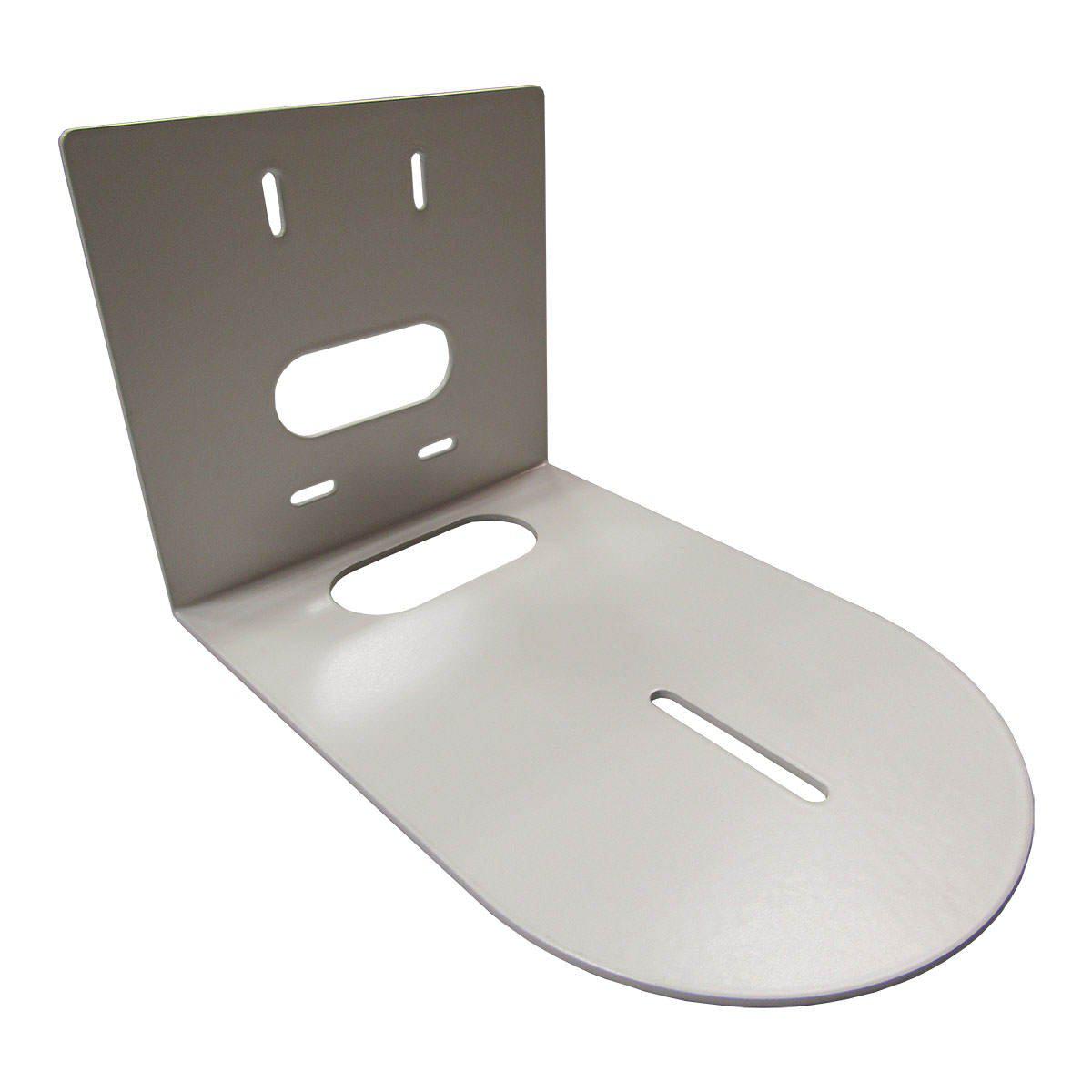

This camera wall mount features a 5 11/16″ metal tray custom-designed for PTZOptics cameras. Four mounting holes on the back of the camera wall mount are drilled into heavy-gauge steel with horizontal and lateral leveling slots. Experienced audiovisual installers will quickly see how easy it is to reliably mount PTZ cameras level and secure with this product.
Wall Mounted PTZ Cameras Done Right
Convenient cable access holes have been prefabricated for camera installations. Cable access holes available under the mount flow cabling through the wall for a “clean” installation look. With a ten-year warranty on every mount, we stand behind the quality of these camera mounts.
Please note: Cameras wider than 5 11/16″ should consider the HCM-2 large camera mount.
Size & Weight
- Dimensions (in.): 5-11/16W x 8-5/16D x 5-1/16H
- Dimensions (mm.) 145W x 212D x 129H
- Weight (lbs.) 1.9
- Weight (kg.) 0.84
- Qty 1 – Small Wall Mount
- Qty 1 – 1/4 20 x 3/8”
- Qty 2 – 1/4” washer
- Qty 4 – #10 x 1 1/4” screws
- Qty 4 – #10-12 x 1” conical plastic anchors
- Qty 4 – #6 washers
