Regular price $714.00 Sale price$649.00
Free Shipping & Tech Support.


Videoguys Part # (SKU): PTJOYG4
MFR Part # (MPN): PT-JOY-G4

Short Description:

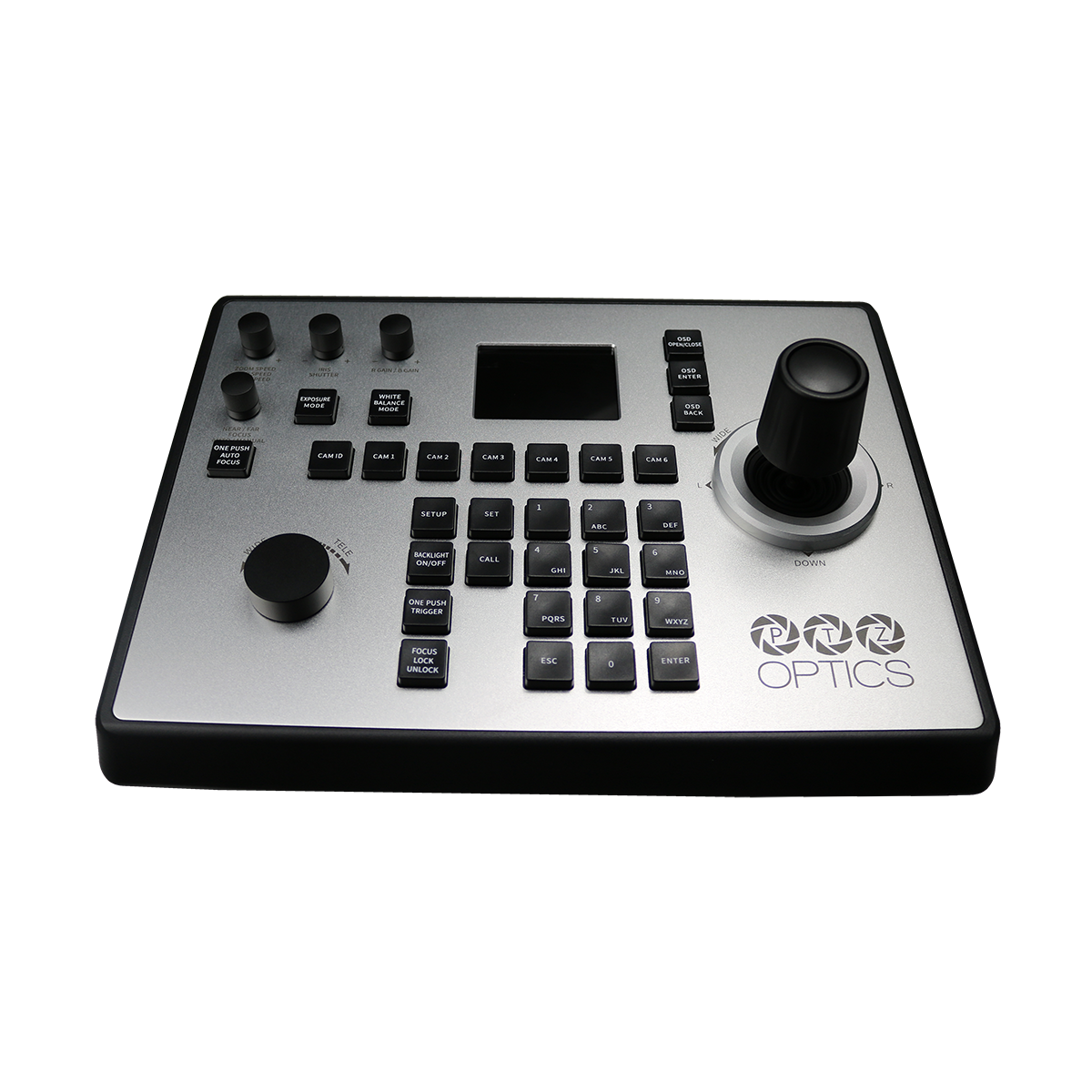

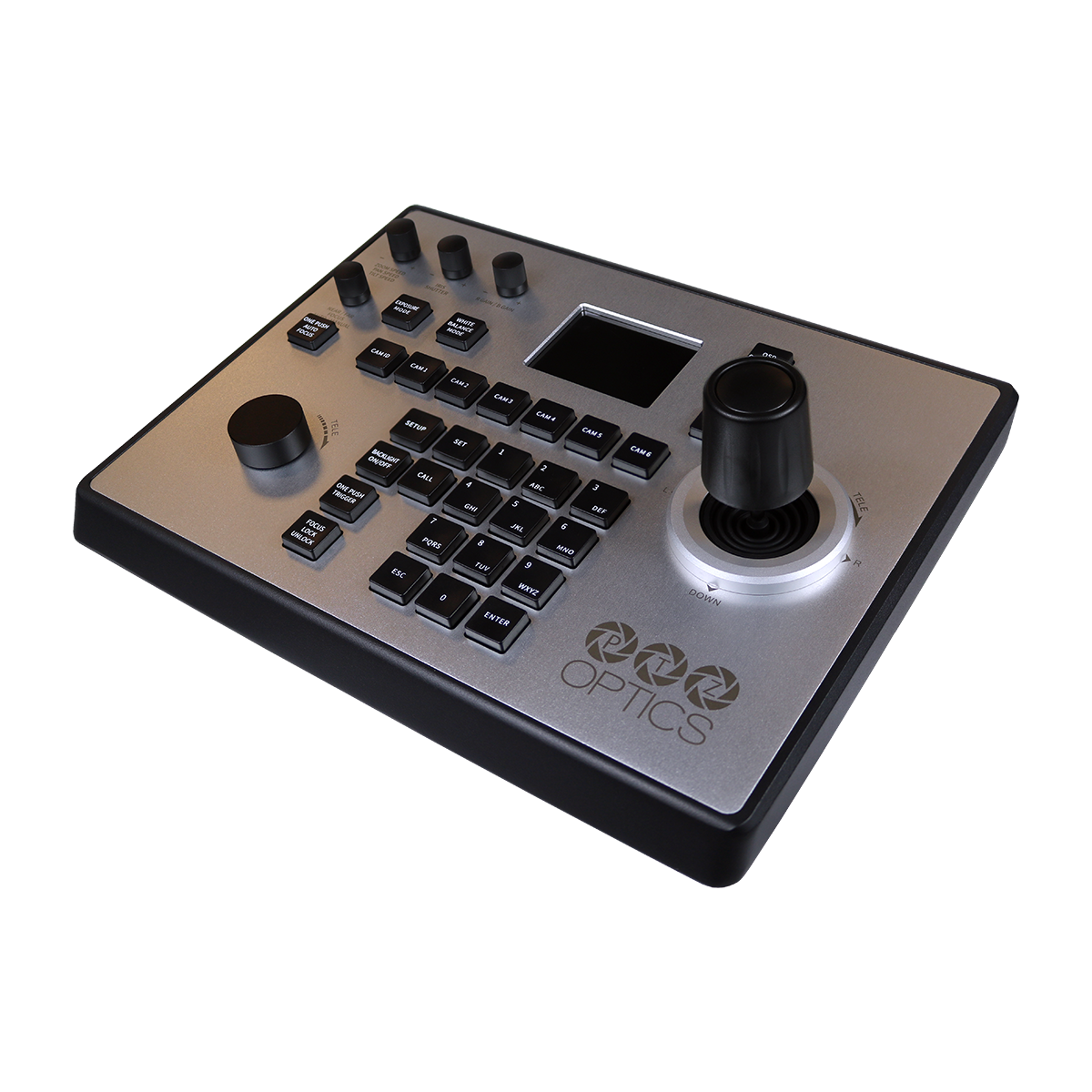

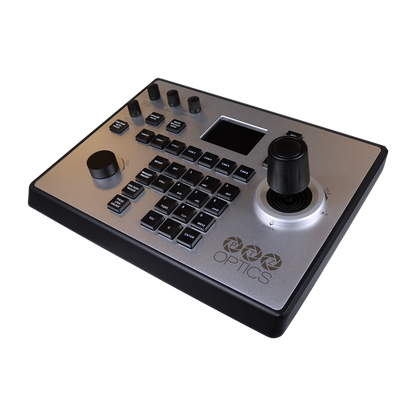

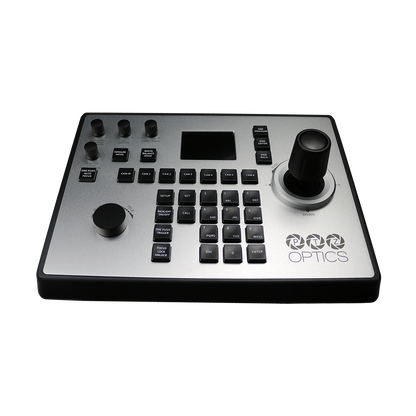

PTZOptics Joystick Keyboard Gen 4

  • Free Shipping & Tech Support
A 4th-Generation joystick supporting Network or Serial Camera Control. Experience the full capabilities by pairing it with PTZOptics or HuddleCamHD cameras.

A Controller for All Production Setups
Introducing the PTZOptics 4th Generation IP Joystick Controller. Compatible with most PTZ cameras operating serial or IP protocol, including Sony, the PT-JOY-G4 is a legacy-friendly controller designed to easily integrate into a wide array of existing production systems, and even allows users to switch between protocols with the touch of a button.


Enhanced Setup Management
A newly added web user interface will decrease your set up time, allowing you to get multiple cameras up and running in as little as five minutes! If you’re using the PT-JOY-G4 for different productions or sets, we’ve got you covered. Import and export settings for specific use cases or production environments.

For network setup, the PT-JOY-G4 will dynamically obtain an IP address upon connection to your LAN. If your network is not able to supply DHCP addresses, you can assign a static IP address to the controller

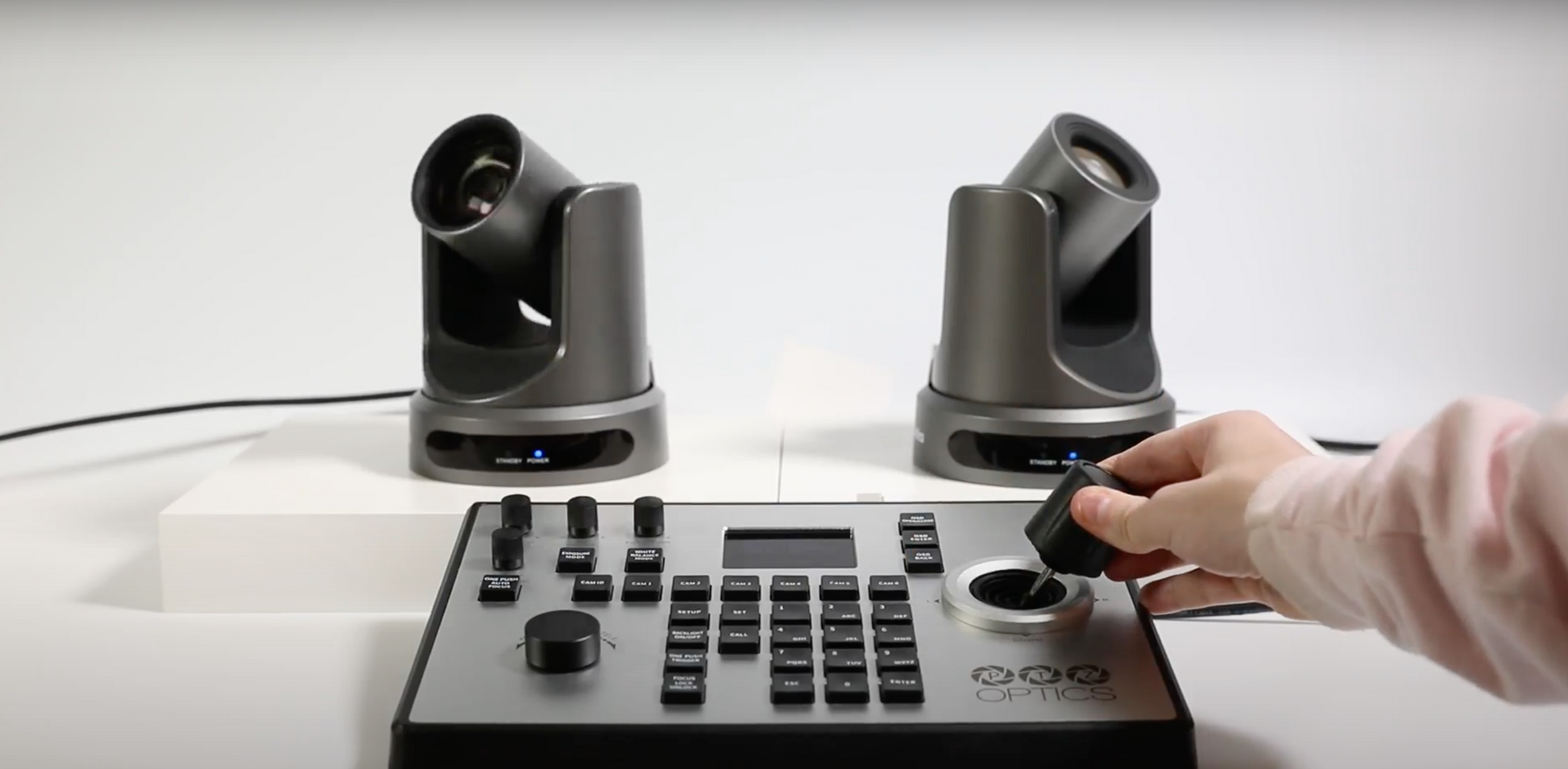

Streamlined Production at Your Fingertips
With an expanded LCD screen and a wide range of knobs for fine tuning, a single camera operator can easily:

Operate cameras in basic, matrix and normal modes Access cameras and quickly recall preset locations
Control white balance, red and blue gain, shutter speed and more!
Use web-based and smartphone app control for added flexibility

A Smart Acquisition for Any Production
Backed by PTZOptics’ 2-year warranty, plus full support from PTZOptics’ technical team, the PT-JOY-G4 is an ideal choice for video production in schools, houses of worship and other broadcast and live streaming scenarios.

The unit comes with a 12V 2A DC International Power Supply and an 8-foot RS-232C cable.

Main Features
  • Durable metal housing
  • VISCA over IP & Serial control
  • PTZOptics Camera On Screen Display
  • control
  • Full Pan / Tilt / Zoom camera control
  • P/T/Z Speed adjustment on the fly
  • Direct exposure & white balance control
  • 255 total cameras via network
  • 255 camera presets, 9 Quick presets
  • Fine tune zoom control knob
  • Fine tune focus control knob
  • PTZOptics Focus lock & unlock
  • Large LCD screen with controller status
  • Import / Export settings via network
  • 2-Year warranty

Technical Specifications

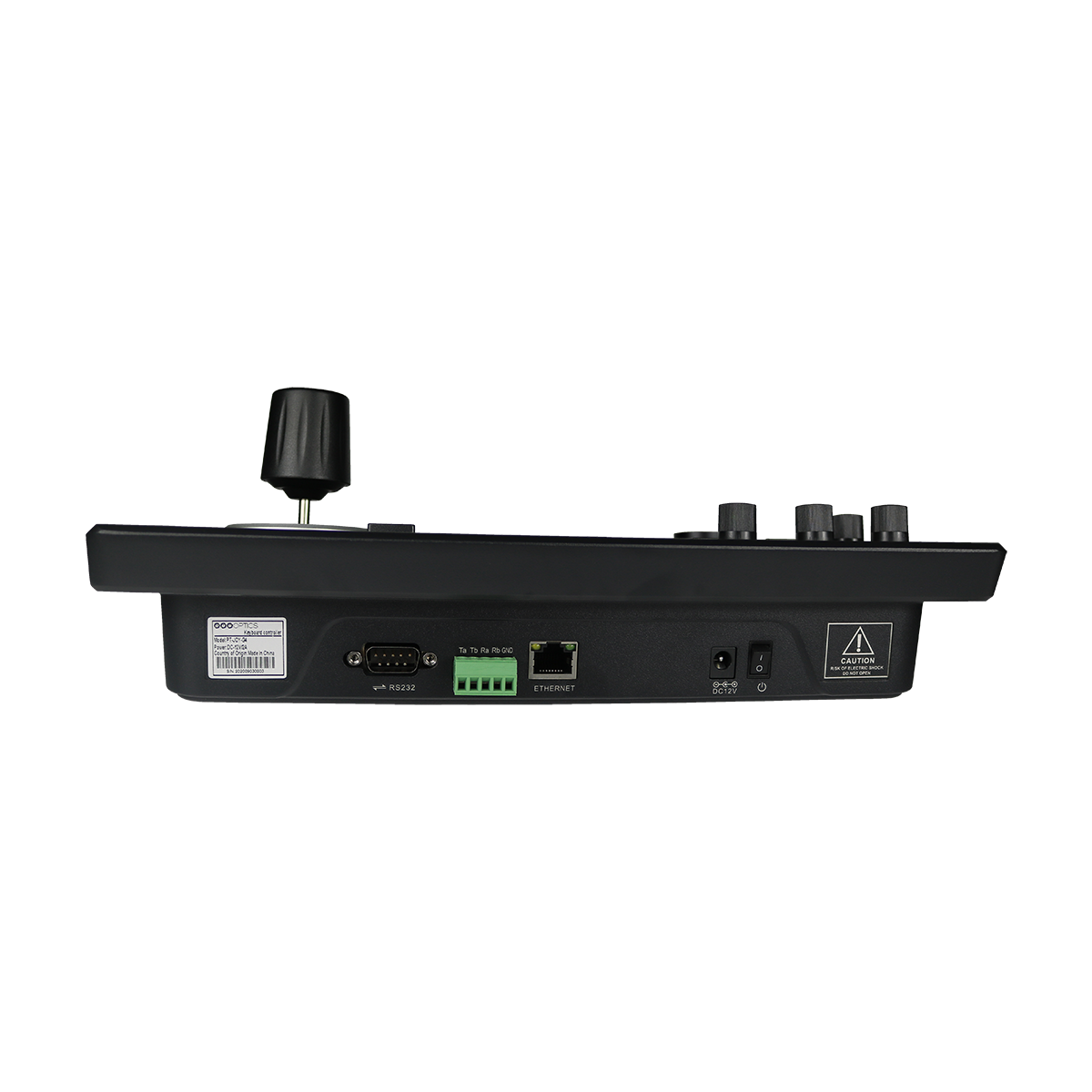

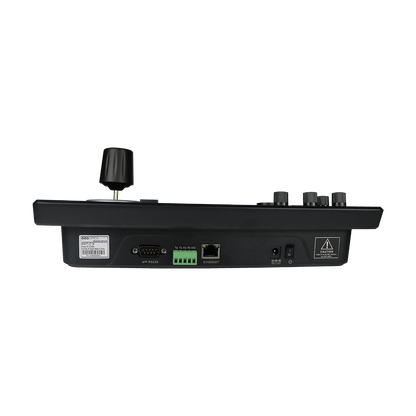

  • Connections: RS-232, RS-485, RS-422, RJ-45
  • Max Cameras:
    255 cameras via network
    7 cameras via serial VISCA
  • Recommended Max Distance:
    RS-232 / RS-422: 50 ft (15m)
    RS-485: 3,937 ft (1200m)
    Ethernet: 328 ft (100m)
  • Baud rate: 1200 ~ 19200 bps
Operation Specifications

  • Power: 6W (12VDC) / PoE (802.3af)
  • Working Temp: 14° F ~ 122° F (-10° C ~ +50° C)
  • Working Humidity: 10% ~ 90% (non-condensation)
  • Weight: 4.45 lbs (2.02 kg)
  • Dimensions (in.): 11.938 W x 9.25 D x 4.25 H
  • Dimensions (mm.): 303.23 W x 234.95 D x 107.95 H

  • PT-JOY-G4 Joystick Controller
  • 12V 2A DC International Power Supply
  • RS-232C cable 8ft (2.4m)
  • PT-JOY-G4 Quick Start Guide
