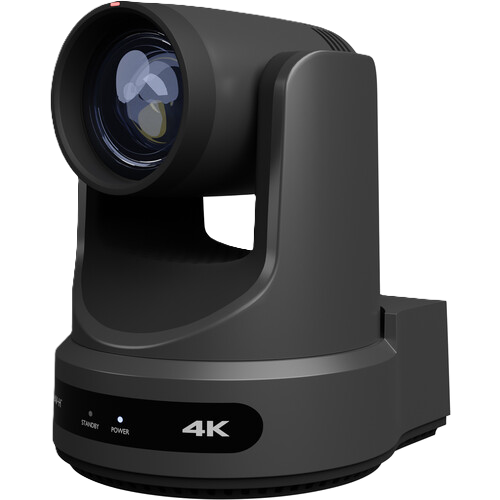

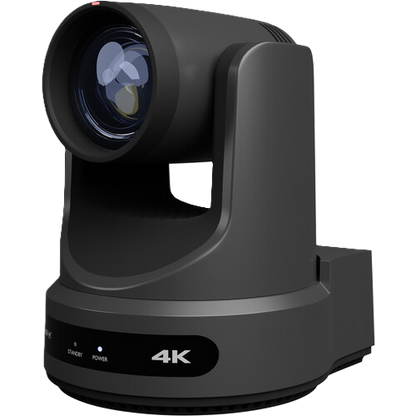

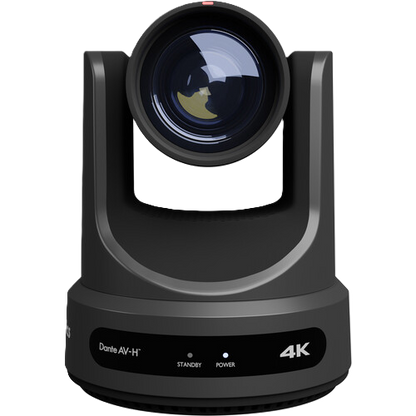

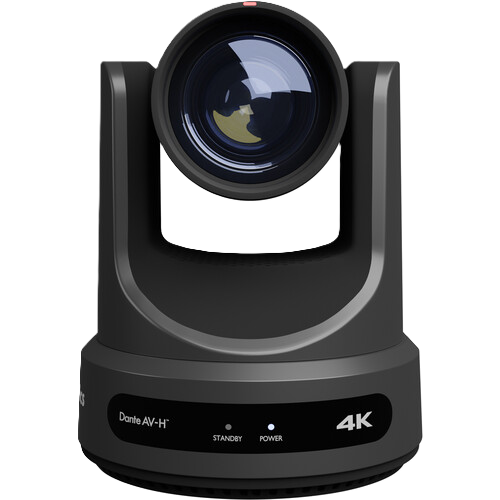

PTZOptics Link 4K 12X PTZ Camera TAA Compliant (Gray)

PTZOptics Link 4K 12X PTZ Camera – TAA Compliant

The PTZOptics Link 4K 12X is a professional 4K PTZ camera designed for studios, classrooms, conference rooms, Pro AV systems, and Dante-based production environments. It combines 4K video up to 60 fps, 12X optical zoom, built-in Presenter-Lock™ auto-tracking, Horizon camera control, and native Dante AV-H in one flexible camera platform.

With a wide field of view and auto-tracking up to 202 feet, the Link 4K 12X provides reliable coverage for smaller and medium-sized spaces. It also supports SDI, HDMI, USB, and IP streaming, making it easy to use in both networked Pro AV and professional video production workflows.

Key Features

• Up to 4K video at 60 fps
• 12X optical zoom with auto-tracking up to 202 feet
• Native Dante AV-H for synchronized audio and video over IP
• Native NDI® HX3
• SDI, HDMI, USB, and IP streaming
• Presenter-Lock™ auto-tracking
• Horizon camera control and automation included standard
• PoE+ support for flexible network deployment
• Browser-based camera control and visual presets
• Strong compatibility with professional production and Pro AV workflows
• TAA compliant

Professional 4K PTZ Camera with 12X Optical Zoom

The Link 4K 12X delivers professional 4K video at up to 60 fps with a 12X optical zoom. Its wide field of view provides flexible coverage for classrooms, conference rooms, studios, and other small to medium-sized spaces.

At the same time, the 12X optical zoom provides the reach needed to capture presenters and subjects clearly from a distance. As a result, the Link 4K 12X can adapt to a variety of camera positions and room layouts.

Native Dante AV-H Connectivity

The Link 4K 12X brings professional video into Dante-based AV environments with native Dante AV-H connectivity. This allows video to work within established Dante networks for streamlined discovery, routing, synchronization, configuration, and device management.

Therefore, organizations using Dante for professional AV can add networked video while maintaining a familiar workflow.

Presenter-Lock™ Auto-Tracking

Built-in Presenter-Lock™ auto-tracking automatically keeps designated subjects framed, reducing the need for constant manual camera operation. The Link 4K 12X supports tracking distances up to 202 feet, making it well suited for classrooms, conference spaces, studios, and presentations.

With automated framing, smaller production teams can maintain consistent video while reducing operator demands.

Horizon Camera Control and Automation

Every Link 4K includes Horizon camera control and automation as standard. The browser-based interface provides intuitive control over camera movement, visual presets, tracking automation, and image adjustments.

Consequently, operators can manage camera functions from a convenient web interface without requiring additional control software.

NDI HX3, SDI, HDMI, USB, and IP Streaming

The Link 4K 12X provides a broad selection of professional video connections, including native NDI® HX3, SDI, HDMI, USB, and IP streaming.

This flexible connectivity allows the camera to fit into existing production systems, streaming workflows, conferencing environments, and network-based Pro AV installations.

Flexible Deployment for Pro AV and Production

The Link 4K 12X is designed to support changing production and AV requirements. PoE+, multiple video outputs, network connectivity, and flexible control options simplify deployment while providing room to expand your workflow.

Whether used as an NDI camera, Dante AV-H video source, streaming camera, or traditional SDI/HDMI PTZ camera, the Link 4K 12X provides multiple ways to build a professional video system.

More Production with Fewer Operators

By combining automated tracking, 4K60 video, flexible connectivity, and Horizon control, the Link 4K 12X helps smaller teams produce consistent professional video with less hands-on camera operation.

This makes it a practical choice for organizations that need reliable video production without adding unnecessary technical complexity.

Ideal Applications

The PTZOptics Link 4K 12X is well suited for:

• Classrooms and education
• Conference rooms
• Studios
• Corporate presentations
• Live streaming
• Video production
• Professional AV installations
• Houses of worship
• Dante AV-H environments
• NDI® video workflows
• Hybrid meetings and events
• Small and medium-sized production spaces

For organizations looking for a 4K PTZ camera with Dante AV-H, NDI HX3, 12X optical zoom, 202-foot auto-tracking, and flexible SDI, HDMI, USB, and IP connectivity, the PTZOptics Link 4K 12X provides a powerful and adaptable solution for modern Pro AV and video production workflows.

Camera & Lens

• Resolution & Frame Rate HDMI
  • 3840x2160p - 60/59.94/50/30/29.97/25
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94
  • 1024x576
  • 720x480
  • 720x408
  • 640x480
  • 640x360 - 60/59.94/50/30/29.97/25
• Resolution & Frame Rate 3G-SDI
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94
  • 1024x576
  • 720x480
  • 720x408
  • 640x480
  • 640x360 - 60/59.94/50/30/29.97/25
• Resolution & Frame Rate USB
  • 3840x2160p - 30/25/24/20/15/10/7.5/5
  • 1920x1080p - 30/25/24/20/15/10/7.5/5
  • 1280x720p - 30/25/24/20/15/10/7.5/5
  • 1024x576 - 30/25/24/20/15/10/7.5/5
  • 720x480 - 30/25/24/20/15/10/7.5/5
  • 720x408 - 30/25/24/20/15/10/7.5/5
  • 640x480 - 30/25/24/20/15/10/7.5/5
  • 640x360 - 30/25/24/20/15/10/7.5/5
• Resolution & Frame Rate Dante AV-H Stream 1: 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, & 640x360. ALL capable of 1 ~ 60 FPS
• Resolution & Frame Rate Dante AV-H Stream 2: 720x480, 720x408, 640x480, 640x360, 480x320, 320x240. ALL capable of 1 ~ 60 FPS
• Lens
  • (12X) Sony 1/2.5 inch, CMOS
  • (20X) Sony 1/1.8 inch, CMOS
  • (30X) Sony 1/1.8 inch, CMOS
• Image Sensor
  • (12X) 8.51MP, Effective Pixels: 8.29M
  • (20X) 8.42MP, Effective Pixels: 8.29M
  • (30X) 8.42MP, Effective Pixels: 8.29M
• Optical Lens Focal Length (Zoom)
  • (12X) f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
  • (20X) f = 6.25mm ~ 125mm, F1.58 ~ F3.95
  • (30X) f = 7.1mm ~ 210mm, F1.61 ~ F5.19
• Maximum Tracking Distance
  • (12X) 202' (61.57m)
  • (20X) 264' (80.47m)
  • (30X) 334' (101.80m)
• Optical Lens Field of View Horizontal & Vertical
  • (12X) H 6.9° ~ 72.5° V 3.9° ~ 44.8°
  • (20X) H 3.5° ~ 60.7° V 1.9° ~ 34.1°
  • (30X) H 2.5° ~ 59.2° V 1.4° ~ 34.6°
• Display Field of View
  • (12X) 82.8°
  • (20X) 66.6°
  • (30X) 66.7°
• Min Lux: 0.5 Lux @ (F1.8, AGC ON)
• Shutter: 1/30s ~ 1/10000s
• Pan Movement Range: ±170°
• Tilt Movement Range: -30° ~ +90°
• Pan Speed: 0.7°/s ~ 100°/s
• Tilt Speed: 0.7°/s ~ 69.9°/s
• Presets: 255 Presets
• Preset Accuracy: 0.1⁰
• Image Flip, Mirror, and Freeze: Supported

Physical Specifications

• Dimensions(L x W x H)
  • (12X) 6.65” L x 5.57” W x 7.91” H / 169mm L x 141.5mm W x 201mm H
  • (20X) 6.65” L x 5.57” W x 7.91” H / 169mm L x 141.5mm W x 201mm H
  • (30X) 7.12” L x 6.69” W x 8.98” H / 181mm L x 170mm W x 228mm H
• Weight
  • (12X) 3.25 lbs (1.47 kg)
  • (20X) 3.25 lbs (1.47 kg)
  • (30X) 4.41lbs (2.0 kg)
• Working Environment: Indoor
• Humidity Range: 10% - 80%
• Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C )
• Storage Temperature: -40°F ~ 140°F (-40°C ~ 60°C)

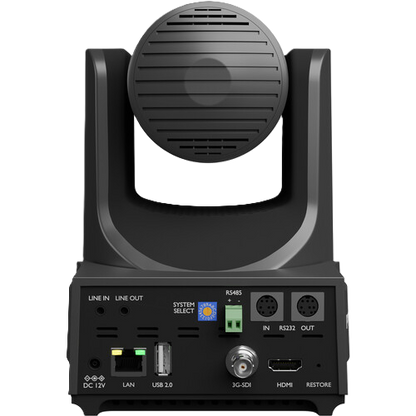

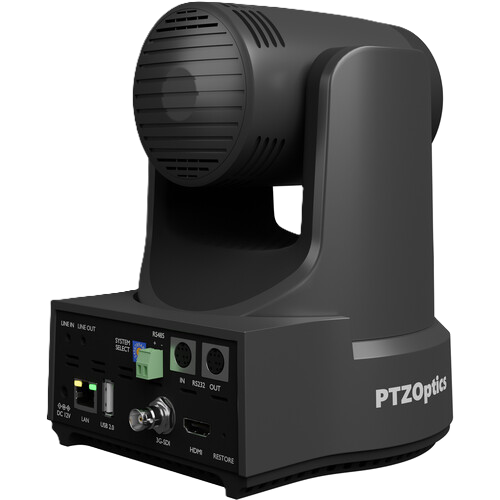

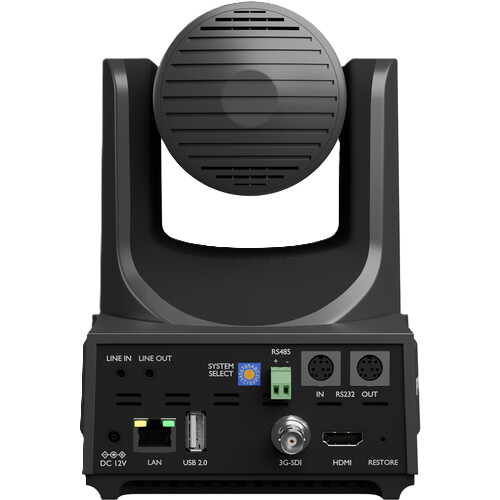

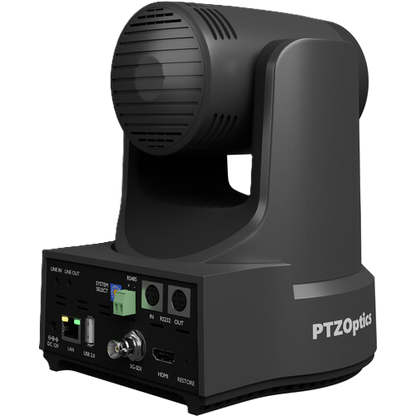

Connections

• RJ45: 10/100/1000M Adaptive Ethernet Port
• HDMI: Version 2.0
• 3G-SDI: BNC Type, 800mVP-p, 75Ω, Along to SMPTE 424M,standard
• USB 2.0: Type A
• Compression Standards: YUY2 / MJPEG / H.264 / H.265
• Audio Interface: 3.5mm Line level Input & Output
• RS232 Input: 8-pin Mini DIN RS232 Input, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P
• RS232 Output: 8-pin Mini DIN RS232 Output, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P
• RS485 Input / Output: 2-pin Phoenix port RS485 Input / Output, Max distance: 3,937ft / 1200m, Protocol: VISCA / Pelco-D / Pelco-P
• IR: 4x IR Addresses, Max distance 30ft / 9m
• Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
• Current Consumption: Max 1.0A

Certifications

• BIS
• CE-EMC
• CE-LVD
• FCC
• REACH
• RoHS
• UKCA

Software Certifications

• ONVIF-S

Compliance

• NDAA Compliant camera
• TAA Compliant

• PTZOptics Link 4K PTZ Camera
• 12 VDC Power Adapter
• IR Remote Control
• USB-A to USB-A Cable
• RS-232 Cable
• 2 x AA Battery
• Warranty: Limited 5-Year Manufacturer Warranty
