PTZOptics Link 4K 20X PTZ Camera TAA Compliant (White)

PTZOptics Link 4K 20X PTZ Camera – TAA Compliant

The PTZOptics Link 4K 20X is a professional 4K PTZ camera designed for auditoriums, lecture halls, houses of worship and Dante-based production systems. It combines 4K video up to 60 fps, native Dante AV-H, 20X optical zoom, Presenter-Lock™ auto-tracking and Horizon camera control in one flexible PTZ camera platform.

With a tracking range of up to 264 feet, the Link 4K 20X provides the reach needed to capture presenters, speakers and subjects from longer distances while maintaining detailed, professional-quality video.

Key Features

• 4K video up to 60 fps with support for HD and Full HD workflows
• 20X optical zoom for detailed long-distance shots
• Presenter-Lock™ auto-tracking up to 264 feet
• Native Dante AV-H for synchronized audio and video over IP
• NDI® HX3, SDI, HDMI, USB and IP streaming
• Horizon camera control and intelligent automation included standard
• PoE+ for simplified network deployment
• TAA compliant for eligible government and professional applications

Professional 4K PTZ Camera with 20X Optical Zoom

The Link 4K 20X delivers professional 4K PTZ camera performance with 20X optical zoom, making it well suited for larger rooms and spaces where subjects may be positioned farther from the camera. As a result, you can capture presenters, speakers and other subjects with greater detail without sacrificing flexible room coverage.

Native Dante AV-H Connectivity

The Link 4K combines professional video with native Dante AV-H connectivity for Dante-based Pro AV environments. This allows video and audio to work within networked production workflows while supporting streamlined discovery, routing, synchronization and device management.

Presenter-Lock™ Auto-Tracking

With Presenter-Lock™ auto-tracking, the Link 4K 20X can automatically keep designated subjects framed during presentations and productions. Tracking distances reach up to 264 feet, helping reduce the amount of manual camera operation required.

This makes the camera particularly useful for lecture halls, auditoriums, houses of worship and other spaces where presenters move throughout a large area.

Advanced Control with Horizon

Horizon camera control and automation are included standard with every Link 4K. Through the browser-based interface, operators can control camera movement, create visual presets, automate tracking and adjust image settings.

Therefore, production teams can manage camera operation efficiently while maintaining consistent framing and image quality.

Flexible Connectivity for Pro AV and Production

The Link 4K 20X provides a wide range of professional connectivity options, including NDI HX3, SDI, HDMI, USB and IP streaming. PoE+ also simplifies installation by allowing the camera to receive power through the network.

With this combination of connectivity and control, the Link 4K 20X can support traditional video production, network-based workflows, live streaming, hybrid events and remote production applications.

Ideal Applications

The PTZOptics Link 4K 20X is well suited for:

• Auditoriums and lecture halls
• Houses of worship
• Classrooms and education
• Corporate presentations and events
• Live streaming and video production
• Dante-based Pro AV systems
• Hybrid meetings and events
• Remote production (REMI)
• IP-based video workflows

Professional PTZ Video with Intelligent Automation

The PTZOptics Link 4K 20X brings 4K60 video, 20X optical zoom, native Dante AV-H, NDI HX3, professional video outputs and long-distance auto-tracking together in a single PTZ camera. With Horizon control included standard and tracking up to 264 feet, it provides the flexibility and automation needed for professional video production and Pro AV environments.

Camera & Lens

• Resolution & Frame Rate HDMI
  • 3840x2160p - 60/59.94/50/30/29.97/25
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94
  • 1024x576
  • 720x480
  • 720x408
  • 640x480
  • 640x360 - 60/59.94/50/30/29.97/25
• Resolution & Frame Rate 3G-SDI
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94
  • 1024x576
  • 720x480
  • 720x408
  • 640x480
  • 640x360 - 60/59.94/50/30/29.97/25
• Resolution & Frame Rate USB
  • 3840x2160p - 30/25/24/20/15/10/7.5/5
  • 1920x1080p - 30/25/24/20/15/10/7.5/5
  • 1280x720p - 30/25/24/20/15/10/7.5/5
  • 1024x576 - 30/25/24/20/15/10/7.5/5
  • 720x480 - 30/25/24/20/15/10/7.5/5
  • 720x408 - 30/25/24/20/15/10/7.5/5
  • 640x480 - 30/25/24/20/15/10/7.5/5
  • 640x360 - 30/25/24/20/15/10/7.5/5
• Resolution & Frame Rate Dante AV-H Stream 1: 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, & 640x360. ALL capable of 1 ~ 60 FPS
• Resolution & Frame Rate Dante AV-H Stream 2: 720x480, 720x408, 640x480, 640x360, 480x320, 320x240. ALL capable of 1 ~ 60 FPS
• Lens
  • (12X) Sony 1/2.5 inch, CMOS
  • (20X) Sony 1/1.8 inch, CMOS
  • (30X) Sony 1/1.8 inch, CMOS
• Image Sensor
  • (12X) 8.51MP, Effective Pixels: 8.29M
  • (20X) 8.42MP, Effective Pixels: 8.29M
  • (30X) 8.42MP, Effective Pixels: 8.29M
• Optical Lens Focal Length (Zoom)
  • (12X) f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
  • (20X) f = 6.25mm ~ 125mm, F1.58 ~ F3.95
  • (30X) f = 7.1mm ~ 210mm, F1.61 ~ F5.19
• Maximum Tracking Distance
  • (12X) 202' (61.57m)
  • (20X) 264' (80.47m)
  • (30X) 334' (101.80m)
• Optical Lens Field of View Horizontal & Vertical
  • (12X) H 6.9° ~ 72.5° V 3.9° ~ 44.8°
  • (20X) H 3.5° ~ 60.7° V 1.9° ~ 34.1°
  • (30X) H 2.5° ~ 59.2° V 1.4° ~ 34.6°
• Display Field of View
  • (12X) 82.8°
  • (20X) 66.6°
  • (30X) 66.7°
• Min Lux: 0.5 Lux @ (F1.8, AGC ON)
• Shutter: 1/30s ~ 1/10000s
• Pan Movement Range: ±170°
• Tilt Movement Range: -30° ~ +90°
• Pan Speed: 0.7°/s ~ 100°/s
• Tilt Speed: 0.7°/s ~ 69.9°/s
• Presets: 255 Presets
• Preset Accuracy: 0.1⁰
• Image Flip, Mirror, and Freeze: Supported

Physical Specifications

• Dimensions(L x W x H)
  • (12X) 6.65” L x 5.57” W x 7.91” H / 169mm L x 141.5mm W x 201mm H
  • (20X) 6.65” L x 5.57” W x 7.91” H / 169mm L x 141.5mm W x 201mm H
  • (30X) 7.12” L x 6.69” W x 8.98” H / 181mm L x 170mm W x 228mm H
• Weight
  • (12X) 3.25 lbs (1.47 kg)
  • (20X) 3.25 lbs (1.47 kg)
  • (30X) 4.41lbs (2.0 kg)
• Working Environment: Indoor
• Humidity Range: 10% - 80%
• Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C )
• Storage Temperature: -40°F ~ 140°F (-40°C ~ 60°C)

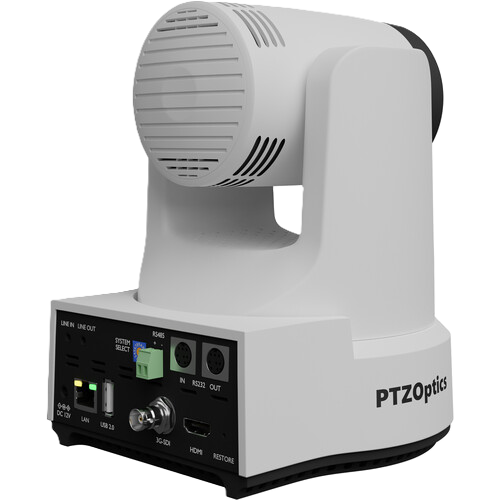

Connections

• RJ45: 10/100/1000M Adaptive Ethernet Port
• HDMI: Version 2.0
• 3G-SDI: BNC Type, 800mVP-p, 75Ω, Along to SMPTE 424M,standard
• USB 2.0: Type A
• Compression Standards: YUY2 / MJPEG / H.264 / H.265
• Audio Interface: 3.5mm Line level Input & Output
• RS232 Input: 8-pin Mini DIN RS232 Input, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P
• RS232 Output: 8-pin Mini DIN RS232 Output, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P
• RS485 Input / Output: 2-pin Phoenix port RS485 Input / Output, Max distance: 3,937ft / 1200m, Protocol: VISCA / Pelco-D / Pelco-P
• IR: 4x IR Addresses, Max distance 30ft / 9m
• Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
• Current Consumption: Max 1.0A

Certifications

• BIS
• CE-EMC
• CE-LVD
• FCC
• REACH
• RoHS
• UKCA

Software Certifications

• ONVIF-S

Compliance

• NDAA Compliant camera
• TAA Compliant

• PTZOptics Link 4K PTZ Camera
• 12 VDC Power Adapter
• IR Remote Control
• USB-A to USB-A Cable
• RS-232 Cable
• 2 x AA Battery
• Warranty: Limited 5-Year Manufacturer Warranty
