PTZOptics Link 4K 30X PTZ Camera TAA Compliant (White)

PTZOptics Link 4K 30X PTZ Camera – TAA Compliant

The PTZOptics Link 4K 30X is a professional 4K PTZ camera designed for long-distance video capture in large auditoriums, sports venues, performance spaces, houses of worship and expansive Pro AV environments. With 4K video up to 60 fps, 30X optical zoom, native Dante AV-H, NDI HX3, built-in auto-tracking and Horizon camera control, it delivers detailed video coverage with less operator involvement.

Key Features

• 4K video up to 60 fps with support for HD and Full HD workflows
• 30X optical zoom for long-distance detail and coverage
• Presenter-Lock™ auto-tracking with tracking distances up to 334 feet
• Native Dante AV-H for synchronized audio and video over IP
• NDI HX3, SDI, HDMI, USB and IP streaming connectivity
• Horizon camera control and intelligent automation included standard
• PoE+ for simplified network deployment
• TAA compliant for qualifying government and professional applications

Professional 4K PTZ Camera with 30X Optical Zoom

The Link 4K 30X combines professional image quality with extended zoom and tracking capabilities. As a result, it is well suited for large spaces where cameras need to capture presenters, speakers, performers or other subjects from a distance.

The camera delivers 4K video at up to 60 fps, while the 30X optical zoom provides the reach needed for large auditoriums, sports venues, stages and other expansive environments.

Native Dante AV-H Connectivity

The Link 4K features native Dante AV-H, allowing professional video to be added to established Dante-based AV networks. This provides streamlined discovery, routing, synchronization and centralized device management through the Dante ecosystem.

Additionally, automatic clock synchronization helps maintain precise audio and video timing across the network.

Presenter-Lock™ Auto-Tracking

With Presenter-Lock™ auto-tracking, the Link 4K 30X can automatically keep designated subjects framed while they move through the production space. With tracking distances up to 334 feet, it is designed for applications that require extended subject coverage.

Therefore, production teams can maintain consistent framing while reducing the amount of manual camera operation required.

Advanced Camera Control with Horizon

Horizon camera control and intelligent automation are included standard with every Link 4K. Through an intuitive browser-based interface, operators can control camera movement, create visual presets, automate tracking and fine-tune image settings.

This combination of automation and remote control makes the Link 4K 30X well suited for both staffed and smaller production environments.

Flexible Connectivity for Pro AV and Production

The Link 4K 30X provides a wide range of connectivity options, including NDI HX3, SDI, HDMI, USB and IP streaming. Consequently, the camera can support traditional video production as well as modern IP-based workflows.

PoE+ further simplifies installation by allowing compatible network infrastructure to provide power and connectivity through a single network connection.

Flexible, Future-Ready Deployment

With long-range 30X optical zoom, professional video outputs, IP connectivity, PoE+ and ongoing firmware enhancements, the Link 4K 30X can adapt to changing production requirements.

It is also well suited for remote production (REMI), IP camera control, cloud-based workflows and direct streaming applications.

Ideal Applications

• Large auditoriums and lecture halls
• Sports venues and athletic facilities
• Performance spaces and stages
• Houses of worship
• Education and higher education
• Corporate presentations and events
• Live streaming and video production
• Dante-based Pro AV environments
• Hybrid meetings and events
• Remote production (REMI)
• NDI and IP video workflows

The PTZOptics Link 4K 30X combines 4K60 video, 30X optical zoom, 334-foot auto-tracking, native Dante AV-H and flexible NDI, SDI, HDMI, USB and IP connectivity in a professional PTZ camera built for large-scale video production and Pro AV applications.

Camera & Lens

• Resolution & Frame Rate HDMI
  • 3840x2160p - 60/59.94/50/30/29.97/25
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94
  • 1024x576
  • 720x480
  • 720x408
  • 640x480
  • 640x360 - 60/59.94/50/30/29.97/25
• Resolution & Frame Rate 3G-SDI
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94
  • 1024x576
  • 720x480
  • 720x408
  • 640x480
  • 640x360 - 60/59.94/50/30/29.97/25
• Resolution & Frame Rate USB
  • 3840x2160p - 30/25/24/20/15/10/7.5/5
  • 1920x1080p - 30/25/24/20/15/10/7.5/5
  • 1280x720p - 30/25/24/20/15/10/7.5/5
  • 1024x576 - 30/25/24/20/15/10/7.5/5
  • 720x480 - 30/25/24/20/15/10/7.5/5
  • 720x408 - 30/25/24/20/15/10/7.5/5
  • 640x480 - 30/25/24/20/15/10/7.5/5
  • 640x360 - 30/25/24/20/15/10/7.5/5
• Resolution & Frame Rate Dante AV-H Stream 1: 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, & 640x360. ALL capable of 1 ~ 60 FPS
• Resolution & Frame Rate Dante AV-H Stream 2: 720x480, 720x408, 640x480, 640x360, 480x320, 320x240. ALL capable of 1 ~ 60 FPS
• Lens
  • (12X) Sony 1/2.5 inch, CMOS
  • (20X) Sony 1/1.8 inch, CMOS
  • (30X) Sony 1/1.8 inch, CMOS
• Image Sensor
  • (12X) 8.51MP, Effective Pixels: 8.29M
  • (20X) 8.42MP, Effective Pixels: 8.29M
  • (30X) 8.42MP, Effective Pixels: 8.29M
• Optical Lens Focal Length (Zoom)
  • (12X) f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
  • (20X) f = 6.25mm ~ 125mm, F1.58 ~ F3.95
  • (30X) f = 7.1mm ~ 210mm, F1.61 ~ F5.19
• Maximum Tracking Distance
  • (12X) 202' (61.57m)
  • (20X) 264' (80.47m)
  • (30X) 334' (101.80m)
• Optical Lens Field of View Horizontal & Vertical
  • (12X) H 6.9° ~ 72.5° V 3.9° ~ 44.8°
  • (20X) H 3.5° ~ 60.7° V 1.9° ~ 34.1°
  • (30X) H 2.5° ~ 59.2° V 1.4° ~ 34.6°
• Display Field of View
  • (12X) 82.8°
  • (20X) 66.6°
  • (30X) 66.7°
• Min Lux: 0.5 Lux @ (F1.8, AGC ON)
• Shutter: 1/30s ~ 1/10000s
• Pan Movement Range: ±170°
• Tilt Movement Range: -30° ~ +90°
• Pan Speed: 0.7°/s ~ 100°/s
• Tilt Speed: 0.7°/s ~ 69.9°/s
• Presets: 255 Presets
• Preset Accuracy: 0.1⁰
• Image Flip, Mirror, and Freeze: Supported

Physical Specifications

• Dimensions(L x W x H)
  • (12X) 6.65” L x 5.57” W x 7.91” H / 169mm L x 141.5mm W x 201mm H
  • (20X) 6.65” L x 5.57” W x 7.91” H / 169mm L x 141.5mm W x 201mm H
  • (30X) 7.12” L x 6.69” W x 8.98” H / 181mm L x 170mm W x 228mm H
• Weight
  • (12X) 3.25 lbs (1.47 kg)
  • (20X) 3.25 lbs (1.47 kg)
  • (30X) 4.41lbs (2.0 kg)
• Working Environment: Indoor
• Humidity Range: 10% - 80%
• Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C )
• Storage Temperature: -40°F ~ 140°F (-40°C ~ 60°C)

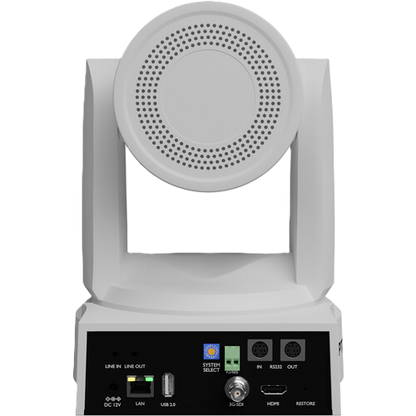

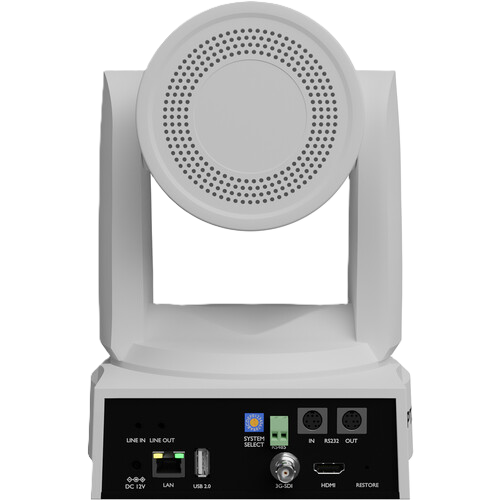

Connections

• RJ45: 10/100/1000M Adaptive Ethernet Port
• HDMI: Version 2.0
• 3G-SDI: BNC Type, 800mVP-p, 75Ω, Along to SMPTE 424M,standard
• USB 2.0: Type A
• Compression Standards: YUY2 / MJPEG / H.264 / H.265
• Audio Interface: 3.5mm Line level Input & Output
• RS232 Input: 8-pin Mini DIN RS232 Input, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P
• RS232 Output: 8-pin Mini DIN RS232 Output, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P
• RS485 Input / Output: 2-pin Phoenix port RS485 Input / Output, Max distance: 3,937ft / 1200m, Protocol: VISCA / Pelco-D / Pelco-P
• IR: 4x IR Addresses, Max distance 30ft / 9m
• Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
• Current Consumption: Max 1.0A

Certifications

• BIS
• CE-EMC
• CE-LVD
• FCC
• REACH
• RoHS
• UKCA

Software Certifications

• ONVIF-S

Compliance

• NDAA Compliant camera
• TAA Compliant

• PTZOptics Link 4K PTZ Camera
• 12 VDC Power Adapter
• IR Remote Control
• USB-A to USB-A Cable
• RS-232 Cable
• 2 x AA Battery
• Warranty: Limited 5-Year Manufacturer Warranty
