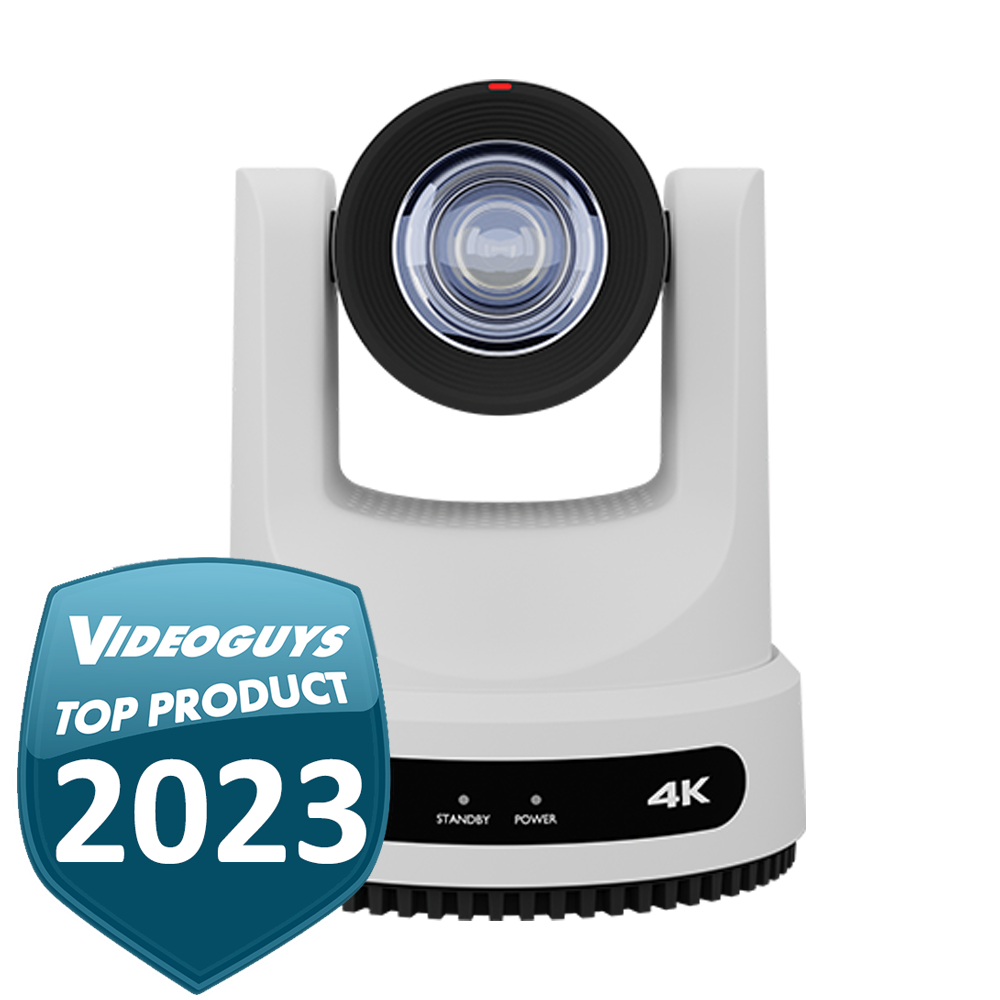

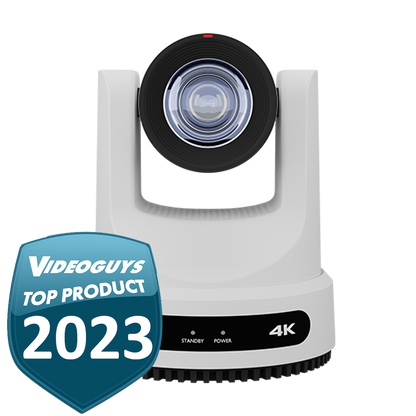

Name: PTZOptics Move 4K 12X NDI|HX PTZ Camera- White
Brand: PTZOPTICS
SKU: PT12X4KWHG3
Price: 1999.00 USD
Availability: InStock

Description

PTZOptics Move 4K 12X PTZ Camera

The PTZOptics Move 4K 12X is a professional 4K PTZ camera designed for studios, classrooms, meeting rooms, houses of worship, live events and other small-to-midsize spaces. It combines 4K video at up to 60 fps, intelligent auto-tracking, flexible connectivity and smooth PTZ movement in a single camera.

With 12X optical zoom, 2X digital SuperZoom and up to 24X total zoom, the Move 4K 12X provides wide coverage while maintaining detailed images. Its Presenter-Lock™ auto-tracking can automatically keep designated subjects framed, while included Horizon camera control and automation software provides browser-based camera control, presets and image adjustments.

Key Features

4K video at up to 60 fps for professional live production and streaming
12X optical zoom plus 2X digital SuperZoom for up to 24X total zoom
Up to 200-foot auto-tracking distance for small-to-midsize spaces
Presenter-Lock™ auto-tracking automatically keeps designated subjects framed
Native NDI® HX3 for IP-based video production and AV workflows
SDI, HDMI and USB connectivity for flexible camera integration
IP streaming for network-based production and remote workflows
Horizon control and intelligent automation included standard
Browser-based camera control with visual presets and advanced image adjustments
PoE+ support for simplified networked installation
Designed for studios, classrooms, meeting rooms, houses of worship and live production

Professional 4K PTZ Camera with Auto-Tracking

The Move 4K 12X delivers professional-quality 4K video with intelligent automation designed to reduce the amount of manual camera operation required. Presenter-Lock™ auto-tracking keeps a designated presenter or subject in the frame, helping smaller production teams create consistent video without a dedicated camera operator.

With support for 4K at 60 fps, HD and Full HD workflows, the Move 4K 12X can adapt to a variety of live production, streaming and Pro AV applications.

Native NDI HX3, SDI, HDMI and USB Connectivity

The Move 4K 12X provides flexible connectivity for both traditional and IP-based video production. Native NDI® HX3 enables networked video workflows, while SDI, HDMI and USB provide compatibility with production switchers, computers, displays and other video equipment.

IP streaming and network control also make the camera well suited for remote production (REMI), live streaming and distributed video systems.

12X Optical Zoom with 24X Total Zoom

The 12X optical zoom lens provides a wide field of view for capturing presenters, instructors and speakers in smaller spaces. 2X digital SuperZoom extends the camera's total zoom capability to 24X, providing additional framing flexibility when subjects are farther from the camera.

The Move 4K platform is also available in 20X and 30X optical zoom configurations for applications requiring greater reach.

Up to 200-Foot Tracking Distance

The Move 4K 12X is designed to provide reliable subject tracking across small-to-midsize production spaces, with up to 200 feet of tracking distance. This makes it suitable for classrooms, meeting rooms, studios, lecture spaces and other environments where presenters may move around during a production.

Horizon Camera Control and Automation

Horizon control and intelligent automation are included standard with the Move 4K. Through a browser-based interface, operators can control camera movement, create visual presets, manage tracking and adjust image settings.

This provides centralized control while reducing the complexity of operating multiple PTZ cameras in a production environment.

Flexible PTZ Camera for Production and Pro AV

The Move 4K 12X combines professional video, automated tracking and multiple connectivity options in a flexible PTZ camera platform. PoE+ support, IP control, NDI HX3, SDI, HDMI and USB allow the camera to fit into a wide range of existing and future production systems.

It is well suited for:

Live streaming and webcasting
Sports and event production
Classrooms and education
Corporate meeting rooms
Houses of worship
Studios and broadcast environments
Remote production and REMI workflows
Video conferencing and Pro AV

More Production with Fewer Operators

By combining Presenter-Lock™ auto-tracking with PTZ camera control and automation, the Move 4K 12X helps production teams capture professional-looking video with less hands-on camera operation. This can be especially useful for organizations that need to produce multiple events or presentations with limited production staff.

Specifications

Camera & Lens

Resolution & Frame Rate HDMI
- 3840x2160p - 60/59.94/50/30/29.97/25
- 1920x1080p - 60/59.94/50/30/29.97/25
- 1920x1080i - 60/59.94/50
- 1280x720p - 60/59.94
- 1024x576
- 720x480
- 720x408
- 640x480
- 640x360 - 60/59.94/50/30/29.97/25
Resolution & Frame Rate 3G-SDI
- 1920x1080p - 60/59.94/50/30/29.97/25
- 1920x1080i - 60/59.94/50
- 1280x720p - 60/59.94
- 1024x576
- 720x480
- 720x408
- 640x480
- 640x360 - 60/59.94/50/30/29.97/25
Resolution & Frame Rate USB
- 3840x2160p - 30/25/24/20/15/10/7.5/5
- 1920x1080p - 30/25/24/20/15/10/7.5/5
- 1280x720p - 30/25/24/20/15/10/7.5/5
- 1024x576 - 30/25/24/20/15/10/7.5/5
- 720x480 - 30/25/24/20/15/10/7.5/5
- 720x408 - 30/25/24/20/15/10/7.5/5
- 640x480 - 30/25/24/20/15/10/7.5/5
- 640x360 - 30/25/24/20/15/10/7.5/5
Resolution & Frame Rate NDI Stream 1: 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, & 640x360. ALL capable of 1 ~ 60 FPS
Resolution & Frame Rate NDI Stream 2: 720x480, 720x408, 640x480, 640x360, 480x320, 320x240. ALL capable of 1 ~ 60 FPS
Lens
- (12X) Sony 1/2.5 inch, CMOS
- (20X) Sony 1/1.8 inch, CMOS
- (30X) Sony 1/1.8 inch, CMOS
Image Sensor
- (12X) 8.51MP, Effective Pixels: 8.29M
- (20X) 8.42MP, Effective Pixels: 8.29M
- (30X) 8.42MP, Effective Pixels: 8.29M
Optical Lens Focal Length (Zoom)
- (12X) f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
- (20X) f = 6.25mm ~ 125mm, F1.58 ~ F3.95
- (30X) f = 7.1mm ~ 210mm, F1.61 ~ F5.19
Maximum Tracking Distance
- (12X) 202' (61.57m)
- (20X) 264' (80.47m)
- (30X) 334' (101.80m)
Optical Lens Field of View Horizontal & Vertical
- (12X) H 6.9° ~ 72.5° V 3.9° ~ 44.8°
- (20X) H 3.5° ~ 60.7° V 1.9° ~ 34.1°
- (30X) H 2.5° ~ 59.2° V 1.4° ~ 34.6°
Display Field of View
- (12X) 82.8°
- (20X) 66.6°
- (30X) 66.7°
Min Lux: 0.5 Lux @ (F1.8, AGC ON)
Shutter: 1/30s ~ 1/10000s
Pan Movement Range: ±170°
Tilt Movement Range: -30° ~ +90°
Pan Speed: 0.7°/s ~ 100°/s
Tilt Speed: 0.7°/s ~ 69.9°/s
Presets: 255 Presets
Preset Accuracy: 0.1⁰
Image: Flip, Mirror, and Freeze Supported

Physical Specifications

Dimensions (L x W x H)
- (12X) 6.65” L x 5.57” W x 7.91” H / 169mm L x 141.5mm W x 201mm H
- (20X) 6.65” L x 5.57” W x 7.91” H / 169mm L x 141.5mm W x 201mm H
- (30X) 7.12” L x 6.69” W x 8.98” H / 181mm L x 170mm W x 228mm H
Weight
- (12X) 3.25 lbs (1.47 kg)
- (20X) 3.25 lbs (1.47 kg)
- (30X) 4.41lbs (2.0 kg)
Working Environment: Indoor
Humidity Range: 10% - 80%
Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C )
Storage Temperature: -40°F ~ 140°F (-40°C ~ 60°C)

Connections

RJ45: 10/100/1000M Adaptive Ethernet Port, NDI HX enabled
HDMI: Version 2.0
3G-SDI: BNC Type, 800mVP-p, 75Ω, Along to SMPTE 424M,standard
USB 2.0: Type A
Compression Standards: YUY2 / MJPEG / H.264 / H.265
Audio Interface: 3.5mm Line level Input & Output
RS232 Input: 8-pin Mini DIN RS232 Input, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P
RS232 Output: 8-pin Mini DIN RS232 Output, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P
RS485 Input / Output: 2-pin Phoenix port RS485 Input / Output, Max distance: 3,937ft / 1200m, Protocol: VISCA / Pelco-D / Pelco-P
IR: 4x IR Addresses, Max distance 30ft / 9m
Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
Current Consumption: Max 1.0A

Certifications
