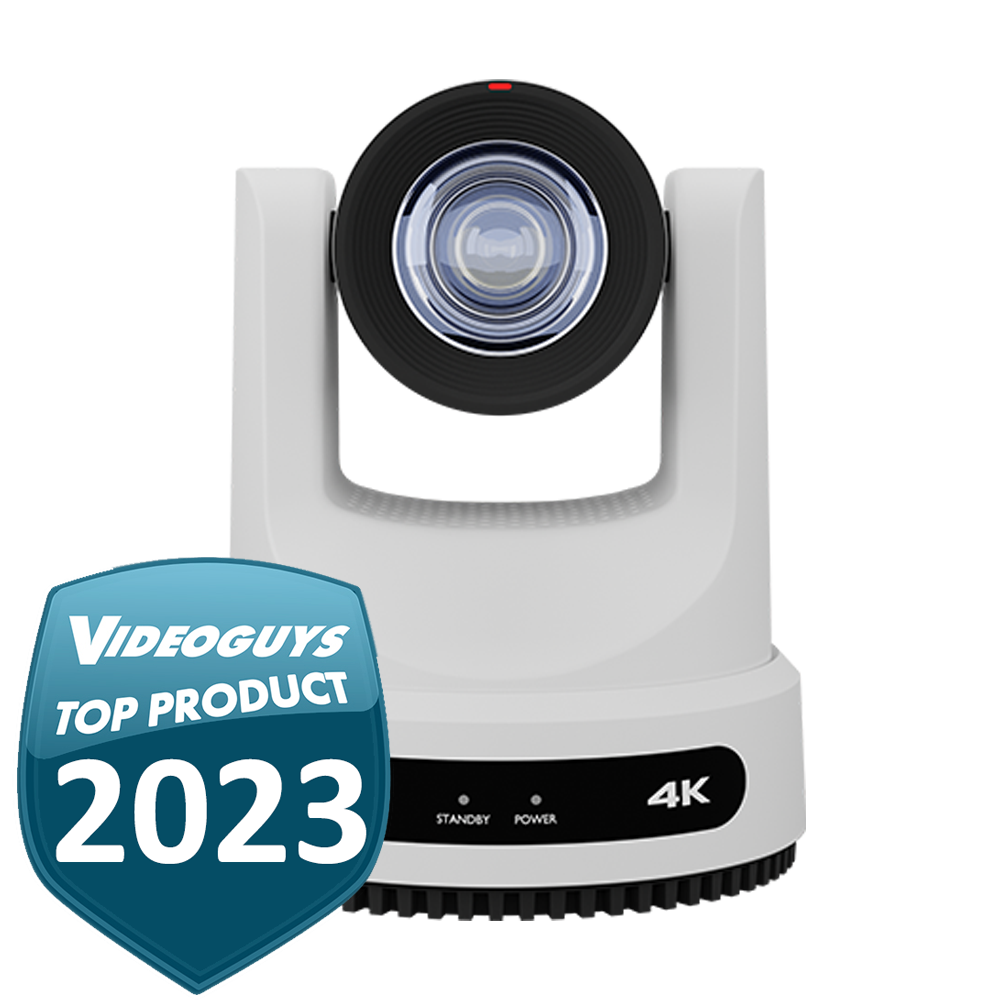

PTZOptics Move 4K 20X NDI|HX PTZ Camera - Gray

PTZOptics Move 4K 20X PTZ Camera

The PTZOptics Move 4K 20X is a professional 4K PTZ camera with auto-tracking designed for auditoriums, houses of worship, event spaces and larger production environments. It combines 4K video at up to 60 fps, extended optical zoom, intelligent Presenter-Lock™ auto-tracking and flexible connectivity for professional live production and Pro AV applications.

Featuring 20X optical zoom plus 2X digital SuperZoom, the Move 4K 20X provides up to 40X total zoom for capturing presenters, speakers and subjects from greater distances. With up to 250 feet of tracking distance, it provides the reach needed for midsize to large spaces while maintaining automated subject framing.

Key Features

• 4K video at up to 60 fps for professional production and streaming
• 20X optical zoom plus 2X digital SuperZoom for up to 40X total zoom
• Up to 250-foot auto-tracking distance for midsize to large spaces
• Presenter-Lock™ auto-tracking automatically keeps designated subjects framed
• Native NDI® HX3 for networked video production and IP workflows
• SDI, HDMI and USB connectivity for flexible production setups
• IP streaming for network-based production and remote workflows
• Horizon camera control and intelligent automation included standard
• Browser-based camera control with visual presets and advanced image adjustments
• PoE+ support for simplified network installation
• Ideal for auditoriums, houses of worship, event spaces, studios and larger production environments

Professional 4K PTZ Camera with 20X Optical Zoom

The Move 4K 20X combines professional 4K video with extended zoom and intelligent automation for productions where subjects may be positioned farther from the camera. Its 20X optical zoom provides greater reach than the 12X model, while 2X digital SuperZoom increases total zoom capability to 40X.

The camera supports 4K video at 60 fps, as well as HD and Full HD workflows, making it suitable for live events, streaming, worship services, education and professional video production.

250-Foot Auto-Tracking for Larger Spaces

Designed for midsize to large environments, the Move 4K 20X provides up to 250 feet of tracking distance. Presenter-Lock™ auto-tracking keeps designated presenters or subjects framed automatically, reducing the need for continuous manual camera operation.

This makes the camera well suited for auditoriums, houses of worship, event venues, lecture spaces and larger production environments where presenters may move throughout a wide area.

Native NDI HX3, SDI, HDMI and USB Connectivity

The Move 4K 20X provides the connectivity needed for modern professional video systems. Native NDI® HX3 supports networked video production, while SDI, HDMI and USB provide compatibility with production switchers, computers, displays and other video equipment.

With IP streaming and network control, the camera can also support remote production (REMI), live streaming and distributed video workflows.

40X Total Zoom for Extended Camera Reach

The Move 4K 20X features 20X optical zoom combined with 2X digital SuperZoom, delivering up to 40X total zoom. The extended optical range makes it easier to frame subjects positioned farther away while maintaining the flexibility required for larger production spaces.

For productions requiring different coverage ranges, the Move 4K platform is also available in 12X and 30X optical zoom models.

Horizon Camera Control and Automation

Horizon camera control and intelligent automation are included standard with every Move 4K camera. The browser-based interface provides intuitive camera control, visual presets, automated tracking and advanced image adjustments.

Operators can manage camera movement and settings from a networked computer, helping simplify multi-camera production and reduce the amount of equipment and personnel required at the camera position.

Flexible PTZ Camera for Production and Pro AV

The Move 4K 20X is designed to work across both professional video production and Pro AV environments. Its combination of 4K60 video, 40X total zoom, NDI HX3, SDI, HDMI, USB, IP streaming and PoE+ makes it adaptable to a wide range of installations.

It is ideal for:

• Live event production
• Houses of worship
• Auditoriums
• Corporate events and presentations
• Education and lecture spaces
• Live streaming and webcasting
• Studios and broadcast environments
• Remote production and REMI workflows
• Pro AV installations
• Large meeting and event spaces

More Production with Fewer Operators

Presenter-Lock™ auto-tracking helps keep designated subjects in frame without requiring constant manual camera adjustments. This allows smaller production teams to capture consistent video while focusing operator attention on switching, graphics, audio and other production tasks.

Flexible, Future-Ready Deployment

The Move 4K 20X supports modern IP and baseband production workflows while providing the flexibility to adapt as production requirements change. Native NDI® HX3, SDI, HDMI, USB, IP streaming, PoE+ and browser-based control make it suitable for both traditional and networked video systems.

The camera also supports remote production workflows with IP control, cloud access and direct streaming capabilities.

Camera & Lens

• Resolution & Frame Rate HDMI
  • 3840x2160p - 60/59.94/50/30/29.97/25
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94
  • 1024x576
  • 720x480
  • 720x408
  • 640x480
  • 640x360 - 60/59.94/50/30/29.97/25
• Resolution & Frame Rate 3G-SDI
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94
  • 1024x576
  • 720x480
  • 720x408
  • 640x480
  • 640x360 - 60/59.94/50/30/29.97/25
• Resolution & Frame Rate USB
  • 3840x2160p - 30/25/24/20/15/10/7.5/5
  • 1920x1080p - 30/25/24/20/15/10/7.5/5
  • 1280x720p - 30/25/24/20/15/10/7.5/5
  • 1024x576 - 30/25/24/20/15/10/7.5/5
  • 720x480 - 30/25/24/20/15/10/7.5/5
  • 720x408 - 30/25/24/20/15/10/7.5/5
  • 640x480 - 30/25/24/20/15/10/7.5/5
  • 640x360 - 30/25/24/20/15/10/7.5/5
• Resolution & Frame Rate NDI Stream 1: 3840x2160, 1920x1080, 1280x720, 1024x576, 720x480, 720x408, 640x480, & 640x360. ALL capable of 1 ~ 60 FPS
• Resolution & Frame Rate NDI Stream 2: 720x480, 720x408, 640x480, 640x360, 480x320, 320x240. ALL capable of 1 ~ 60 FPS
• Lens
  • (12X) Sony 1/2.5 inch, CMOS
  • (20X) Sony 1/1.8 inch, CMOS
  • (30X) Sony 1/1.8 inch, CMOS
• Image Sensor
  • (12X) 8.51MP, Effective Pixels: 8.29M
  • (20X) 8.42MP, Effective Pixels: 8.29M
  • (30X) 8.42MP, Effective Pixels: 8.29M
• Optical Lens Focal Length (Zoom)
  • (12X) f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
  • (20X) f = 6.25mm ~ 125mm, F1.58 ~ F3.95
  • (30X) f = 7.1mm ~ 210mm, F1.61 ~ F5.19
• Maximum Tracking Distance
  • (12X) 202' (61.57m)
  • (20X) 264' (80.47m)
  • (30X) 334' (101.80m)
• Optical Lens Field of View Horizontal & Vertical
  • (12X) H 6.9° ~ 72.5° V 3.9° ~ 44.8°
  • (20X) H 3.5° ~ 60.7° V 1.9° ~ 34.1°
  • (30X) H 2.5° ~ 59.2° V 1.4° ~ 34.6°
• Display Field of View
  • (12X) 82.8°
  • (20X) 66.6°
  • (30X) 66.7°
• Min Lux: 0.5 Lux @ (F1.8, AGC ON)
• Shutter: 1/30s ~ 1/10000s
• Pan Movement Range: ±170°
• Tilt Movement Range: -30° ~ +90°
• Pan Speed: 0.7°/s ~ 100°/s
• Tilt Speed: 0.7°/s ~ 69.9°/s
• Presets: 255 Presets
• Preset Accuracy: 0.1⁰
• Image: Flip, Mirror, and Freeze    Supported

Physical Specifications

• Dimensions (L x W x H)
  • (12X) 6.65” L x 5.57” W x 7.91” H / 169mm L x 141.5mm W x 201mm H
  • (20X) 6.65” L x 5.57” W x 7.91” H / 169mm L x 141.5mm W x 201mm H
  • (30X) 7.12” L x 6.69” W x 8.98” H / 181mm L x 170mm W x 228mm H
• Weight
  • (12X) 3.25 lbs (1.47 kg)
  • (20X) 3.25 lbs (1.47 kg)
  • (30X) 4.41lbs (2.0 kg)
• Working Environment: Indoor
• Humidity Range: 10% - 80%
• Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C )
• Storage Temperature: -40°F ~ 140°F (-40°C ~ 60°C)

Connections

• RJ45: 10/100/1000M Adaptive Ethernet Port, NDI HX enabled
• HDMI: Version 2.0
• 3G-SDI: BNC Type, 800mVP-p, 75Ω, Along to SMPTE 424M,standard
• USB 2.0: Type A
• Compression Standards: YUY2 / MJPEG / H.264 / H.265
• Audio Interface: 3.5mm Line level Input & Output
• RS232 Input: 8-pin Mini DIN RS232 Input, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P
• RS232 Output: 8-pin Mini DIN RS232 Output, Max distance: 98.5ft / 30m, Protocol: VISCA / Pelco-D / Pelco-P
• RS485 Input / Output: 2-pin Phoenix port RS485 Input / Output, Max distance: 3,937ft / 1200m, Protocol: VISCA / Pelco-D / Pelco-P
• IR: 4x IR Addresses, Max distance 30ft / 9m
• Power Supply: JEITA type (DC IN 12V) / PoE+ (802.3at)
• Current Consumption: Max 1.0A

Certifications

• BIS
• CE-EMC
• CE-LVD
• FCC
• REACH
• RoHS
• UKCA

Software Certifications

• ONVIF-S
• NDI HX3

• PTZOptics Move 4K PTZ Camera
• IR Remote Control
• 12 VDC Power Adapter
• USB-A to USB-A Cable
• RS-232 Cable
• 2 x AA Battery
• Warranty: Limited 5-Year Manufacturer Warranty
