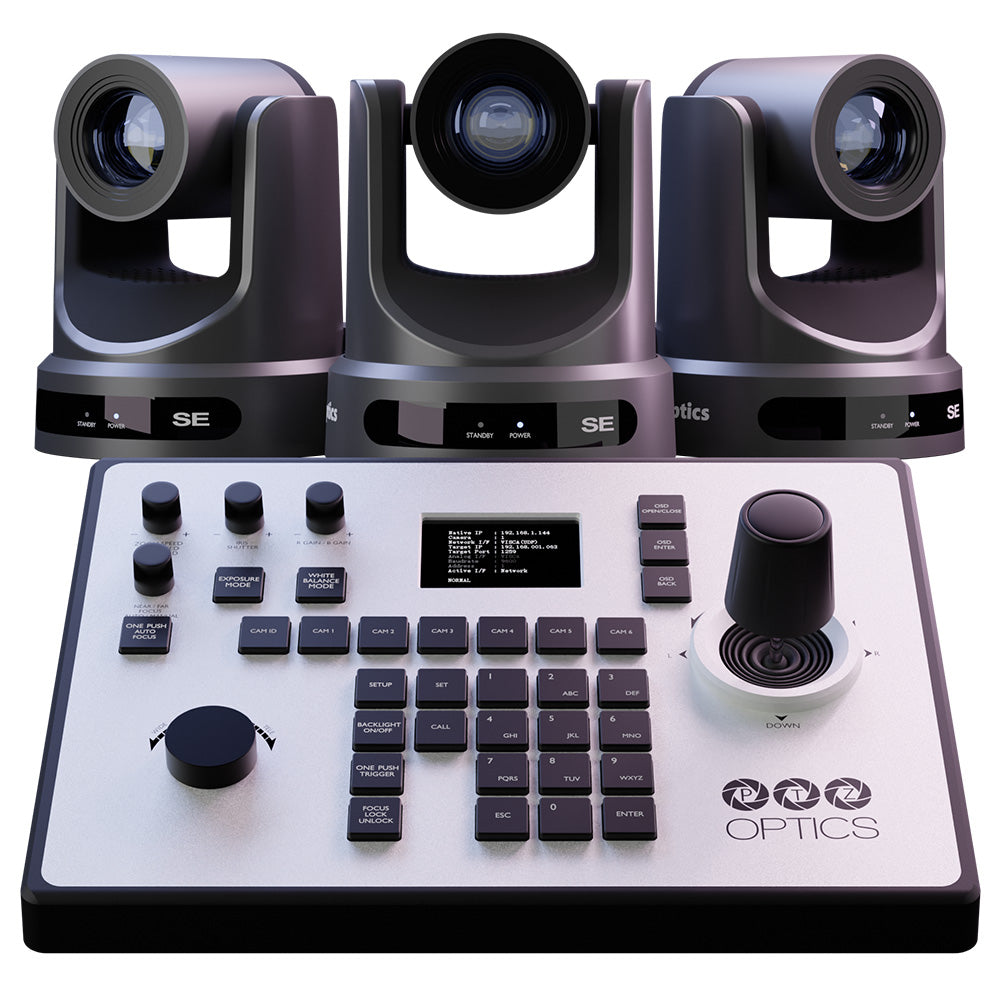

PTZOptics Producer Move SE 20x PTZ Camera Bundle

The Producer-SE Bundle is a great starting point for multi-camera 1080p systems.

Three 20X Move SE Cameras
These state-of-the-art cameras can capture head and shoulders views of your subjects from over 50 feet away.


Diverse Video Outputs
With multiple outputs, including HDMI, SDI, USB, and IP, the cameras offer unmatched versatility, all captured in spectacular 1080p.


Auto-Tracking
No more hassles of manual adjustments. With auto-tracking, let the camera follow your subject with precision.


4th Generation IP Joystick
The package includes our PT-JOY-G4 joystick, empowering you to manage multiple cameras easily. Experience intuitive PTZ camera controls without breaking the bank.

Image Sensor & Lens
Video Sensor
1/2.8’’, CMOS, Effective Pixel: 2.07M
Resolution and Frame Rate
1080p-60/50/30/25/59.94/29.97, 1080i-60/50/59.94, 720p-60/50/59.94
Digital Zoom
Off (1920x1080), 2X (960x540), 3X (640x360), 4X, (480x270), 8X (240x135), 16X (128x72)
Min. Lux
0.5 Lux @ (F1.8, AGC ON)
Shutter
1/30s ~ 1/10000s
Lens
12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
White Balance
Auto, Indoor, Outdoor, One Push, Manual, VAR
Backlight Compensation
Supported
Digital Noise Reduction
2D & 3D Digital Noise Reductions
Field of View
12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)

Pan/Tilt Movement
Pan Movement
±170°
Pan Speed
1.7° ~ 100°/s
Tilt Movement
+90° to -30
Tilt Speed
1.7° ~ 69.9°
Image Flip, Mirror and Freeze
Supported
Presets
255 Presets
Preset Accuracy
0.1°

Power Options
Power Supply
DC 12V
Input Power
2A (Max)

Physical Specifications
Material
Aluminum, Plastic
Color
Gray
Dimensions (W x D x H)
5.6” W x 6.7” D 6.5” H (7.88” H max height w/ tilt up)
142mm W x 169mm D x 164” H (189mm H max height w/ tilt up)m
Weight
3.2 lbs. (1.445 kg)
Working Environment
Indoor
Operating Temperature
14°F ~ 104°F (-10°C to 40°C)
Storage Temperature
-40°F ~ 140°F (-40°C to 60°C)

Rear Board Connectors
HD Video Output
1x RJ45: 10/100 Adaptive Ethernet Port 424M standard
1x HDMI: version 1.3
1x 3G-SDI: BNC type, 800mVP-p, 75Ω, along to SMPTE 424M standard, USB 3.0 Type C
1x USB 3.0 Type C
NDI|HX Included
Audio Interface
1x 3.5mm Line level Input
Communication Interface
1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
IR
4x IR Addresses, Max distance 30ft / 9m
Power Jack
JEITA type (DC IN 12V)

• 3 Gray 20X Move SE PTZ cameras
• 1  PT-JOY-G4 Joystick Controller
