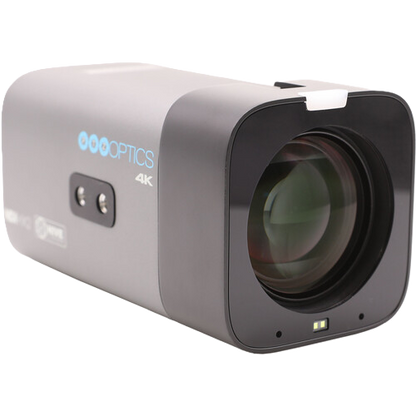

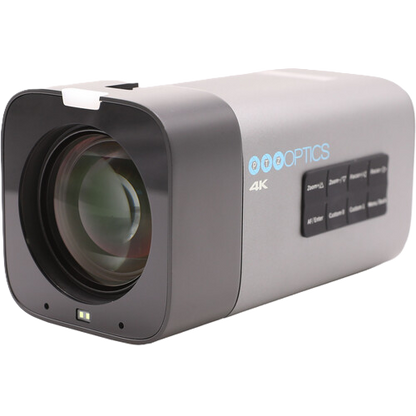

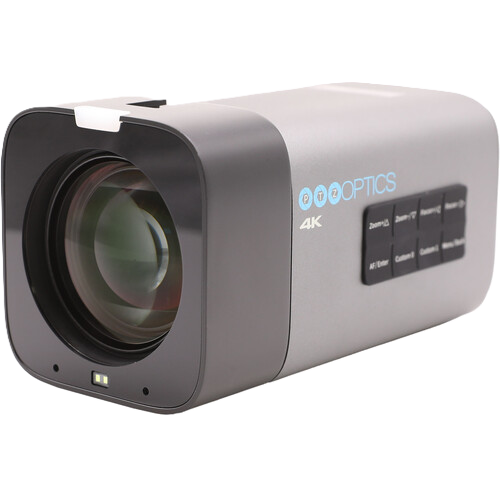

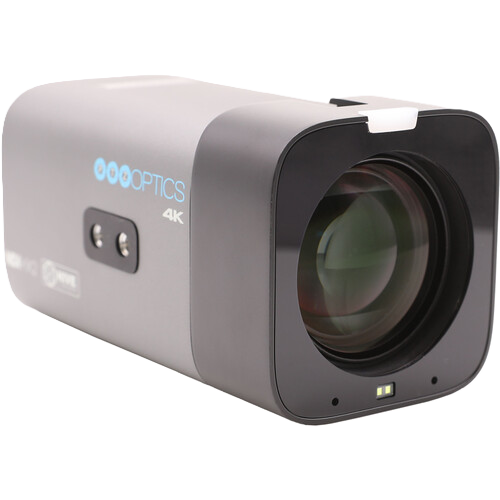

PTZOptics Studio 4K 12X PTZ Camera TAA Compliant (Gray)

PTZOptics Studio 4K 12X PTZ Camera – TAA Compliant

The PTZOptics Studio 4K 12X is a compact fixed-camera solution for professional 4K video, wide-angle coverage and flexible digital reframing. With 4K video up to 60 fps, 12X optical zoom, native NDI HX3, and SDI, HDMI, USB and IP outputs, it fits easily into studios, classrooms, conference rooms, houses of worship and production environments.

In addition, SuperZoom extends total zoom up to 24X in 1080p, while built-in ePTZ allows operators to digitally pan, tilt and zoom within the camera's sensor. As a result, you can create different framing options and recall presets without physically moving the camera.

Key Features

• 4K video up to 60 fps with support for HD and Full HD workflows
• 12X optical zoom for detailed shots from a distance
• Up to 24X total zoom in 1080p with SuperZoom
• ePTZ digital pan, tilt and zoom for flexible in-frame composition
• Native NDI HX3 for professional IP video workflows
• SDI, HDMI, USB and IP outputs for flexible connectivity
• Five-year limited parts and labor warranty
• Continuous firmware updates for long-term functionality
• Designed for 24/7/365 operation
• TAA compliant

Professional 4K Video in a Compact Design

The Studio 4K features a next-generation UHD CMOS sensor that captures high-quality 4K video at up to 60 fps. It also supports multiple resolutions and frame rates, making it easy to adapt the camera to different production and streaming workflows.

The compact fixed-camera design provides a discreet option for secondary camera positions, permanent installations and spaces where a traditional PTZ camera may not be necessary.

12X Optical Zoom with SuperZoom

The 12X optical zoom provides detailed head-and-shoulder shots while maintaining a wide field of view for room coverage. When operating in 1080p, SuperZoom increases total zoom to 24X, giving you additional reach when subjects are farther from the camera.

This makes the Studio 4K 12X well suited for classrooms, conference rooms, studios, courtrooms, meetings and other spaces where camera placement may be limited.

Flexible ePTZ Reframing

With built-in ePTZ, operators can digitally pan, tilt and zoom within the camera's image sensor. This provides greater framing flexibility without physically moving the camera.

You can also save and recall framing presets, making it easier to quickly switch between different shots during presentations, meetings, lessons and live productions.

Native NDI HX3 and Flexible Connectivity

The Studio 4K 12X comes equipped with native NDI HX3 alongside SDI, HDMI, USB and IP streaming. Therefore, it can connect directly to a production switcher, streaming system, computer or network-based video workflow.

Whether you're producing live video, streaming classes or meetings, recording presentations or adding a secondary camera to a larger production system, the Studio 4K provides multiple connection options.

Built for 24/7 Operation

Designed for continuous operation, the Studio 4K is built to serve as a dependable camera for professional installations. Furthermore, a five-year limited parts and labor warranty and continuous firmware updates help protect your investment and keep the camera current over time.

Ideal Applications

The PTZOptics Studio 4K 12X is a strong choice for:

• Studios and live production
• Classrooms and lecture spaces
• Conference rooms and corporate meetings
• Houses of worship
• Courtrooms and municipal meetings
• Sports and game analysis
• Manufacturing environments
• Security and monitoring applications
• Secondary camera positions
• Live streaming and IP video production

The PTZOptics Studio 4K 12X combines professional 4K60 video, 12X optical zoom, 24X SuperZoom in 1080p, ePTZ reframing and native NDI HX3 in a compact fixed-camera design. With SDI, HDMI, USB and IP connectivity plus long-term firmware support, it provides a flexible solution for professional video, streaming and AV installations.

Camera & Lens

• Resolution & Frame Rate HDMI, NDI, & USB
  • 3840x2160p - 60/59.94/50/30/29.97/25
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94
• Resolution & Frame Rate SDI
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94/50
• Lens
  • (12X) Sony 1/2.8" CMOS
  • (20X) Sony 1/2.8" CMOS
• Image Sensor
  • (12X) 8.46MP, Effective Pixels: 8.29
  • (12X) 8.46MP, Effective Pixels: 8.29
• Optical Lens Focal Length (Zoom)
  • (12X) f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
  • (20X) f = 4.7mm ~ 94mm, F1.6 ~ F3.6
• Optical Lens Field of View Horizontal & Vertical
  • (12X) Horizontal.......... 6.9° ~ 72.5°, (12X) Vertical.......... 3.9° ~ 44.8°
  • (20X)Horizontal.......... 3.5° ~ 60.7°, (20X) Vertical.......... 1.9° ~ 34.1°
• Display Field of View
  • (12X) 80.2°
  • (20X) 67.8°
• Min Lux: 0.5 Lux @ (F1.8, AGC ON)
• Shutter: 1/30s ~ 1/10000s
• Presets: 255 Presets
• Preset Accuracy: 0.1⁰
• Image Flip, Mirror, and Freeze: Supported
• Scanning Mode: Progressive and Interlaced

Physical Specifications

• Material: Aluminum, Plastic
• Color: Gray or White
• Dimensions(L x W x H): 5.7” L x 2.99” W x 3.09” H, 145 mm L x 76 mm W x 78.5mm H
• Weight
  • (12X) 1.5 lbs 0.68kg
  • (20X) 1.4 lbs 0.64kg
• Working Environment: Indoor
• Humidity Range: 10% - 80%
• Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C )
• Storage Temperature: -40°F ~ 140°F (-40°C ~ 60°C)

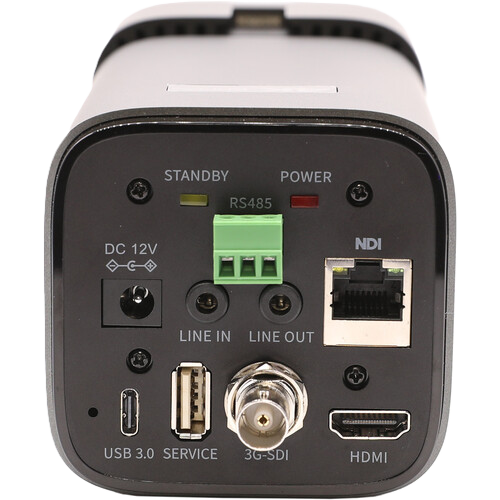

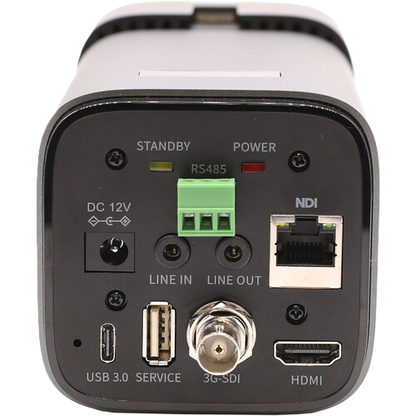

Connections

• RJ45: 10/100/1000M Adaptive Ethernet Port
• HDMI: Version 2.0
• 3G-SDI: BNC Type, 800mVP-p, 75Ω, Along to SMPTE 424M,standard
• USB 3.0: Type C
• UVC Version Supported: UVC 1.0
• Compression Standards
• YUY2 YUY2: Max resolution: 1920x1080p@30
• MJPEG: Max resolution: 3840x2160p@30
• H.264 AVC & SVC: Max resolution: 3840x2160p@30
• H.265: Max resolution: 3840x2160p@30 ( RSTP/NDI HX2 only)
• Audio Interface: 3.5mm Line level Input & Output
• RS485 Input Output: 2-pin Phoenix port RS485 Input / Output, Max distance: 3,937ft / 1200m, Protocol: VISCA / Pelco-D / Pelco-P
• IR: 4x IR Addresses, Max distance 30ft / 9m
• Power Supply: JEITA type (DC IN 12V) / PoE (802.3at)
• Current Consumption: Max 2.0A

IP Video Specifications

• Video Compression: H.264 / H.265 / MJPEG / YUY2 (H265 HEVC via RTSP/NDI HX2 only)
• Video Stream: First Stream, Second Stream
• First Stream Resolutions: 3840x2160, 2560x1440, 1920x1080, 1280x720, 1024x576, 960x540, 640x360
• Second Stream Resolutions: 1920x1080, 1280x720, 1024x576, 960x540, 640x360
• Video Bitrate First Stream: 32kbps ~ 81920kbps, Second Stream: 32kbps ~ 20480kbps
• Bitrate Type: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
• Frame Rate: 50Hz: 1 ~ 50 fps. 60Hz: 1 ~ 60 fps
• Audio Compression: AAC
• Audio Bit Rate: 96kbps, 128kbps
• Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, SRT,Multicast, etc.

Compliance

• NDAA Compliant camera
• TAA Compliant

• PTZOptics Studio 4K Camera
• Power Supply
• IR Remote Control
• 2 x AA Battery (Remote)
• USB-C to USB-A Cable
• Camera Lens Cap
• Warranty: Limited 5-Year Manufacturer Warranty
