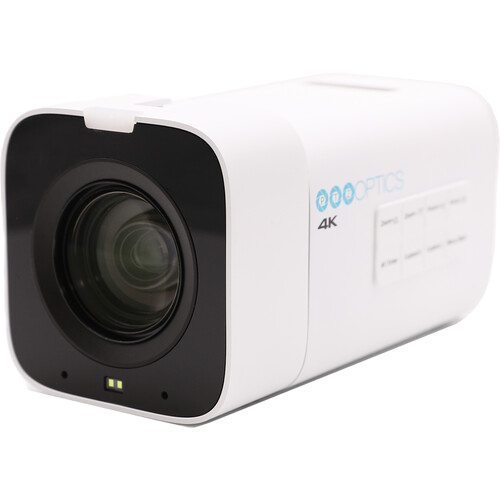

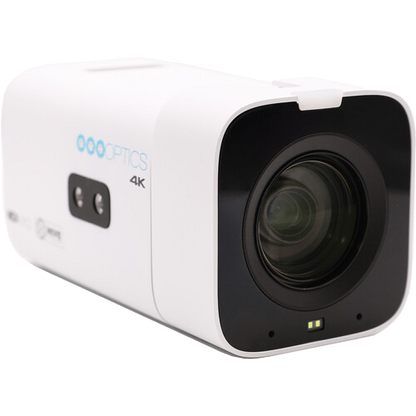

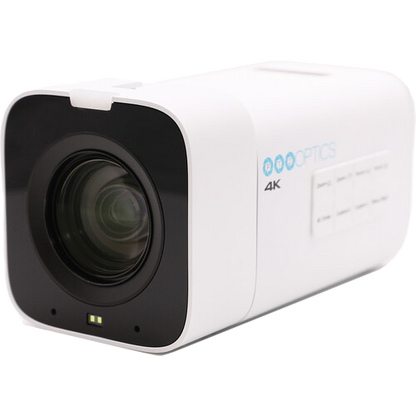

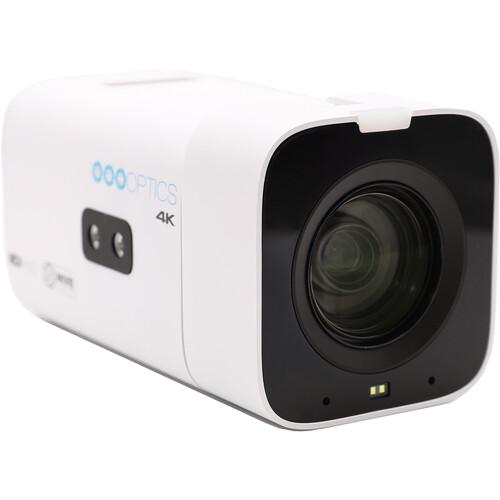

PTZOptics Studio 4K 20X PTZ Camera TAA Compliant (White)

PTZOptics Studio 4K 20X PTZ Camera – TAA Compliant

The PTZOptics Studio 4K 20X combines professional 4K video, extended optical zoom and flexible digital reframing in a compact fixed-camera design. With 4K video up to 60 fps, 20X optical zoom, native NDI HX3, and SDI, HDMI, USB and IP outputs, it provides a flexible solution for lecture halls, auditoriums, houses of worship, professional studios and other large spaces.

In 1080p mode, SuperZoom extends total zoom up to 40X, providing additional reach for distant subjects. Meanwhile, built-in ePTZ lets operators digitally pan, tilt and zoom within the image sensor. You can also save and recall framing presets without physically moving the camera.

Key Features

• 4K video up to 60 fps with support for HD and Full HD workflows
• 20X optical zoom for detailed shots over long distances
• Up to 40X total zoom in 1080p with SuperZoom
• ePTZ digital pan, tilt and zoom for flexible electronic reframing
• Native NDI HX3 for professional IP video workflows
• SDI, HDMI, USB and IP outputs for flexible connectivity
• Five-year limited parts and labor warranty
• Continuous firmware updates for long-term functionality
• Designed for 24/7/365 operation
• TAA compliant

Professional 4K Video with 20X Optical Zoom

The Studio 4K 20X features a next-generation UHD CMOS sensor capable of capturing 4K video at up to 60 fps. It also supports a range of resolutions and frame rates, allowing the camera to adapt to different production, streaming and recording requirements.

The 20X optical zoom provides the reach needed to capture clear head-and-shoulder shots of subjects more than 100 feet away. As a result, it is well suited for larger spaces where the camera may need to be positioned farther from the action.

40X SuperZoom and ePTZ Reframing

When operating in 1080p, SuperZoom increases total zoom up to 40X, giving you additional reach while maintaining a compact fixed-camera design.

Furthermore, ePTZ allows operators to digitally pan, tilt and zoom within the image sensor. This makes it possible to create multiple compositions from a single camera position. Framing presets can also be saved and recalled, allowing operators to quickly switch between shots without physically moving the camera.

Native NDI HX3 and Flexible Connectivity

The Studio 4K 20X comes equipped with native NDI HX3 along with SDI, HDMI, USB and IP streaming. Therefore, it can connect to a wide range of professional production and streaming systems.

Connect to a live production switcher, send video over your network, stream through an IP workflow or use the SDI and HDMI outputs for traditional video production. With multiple output options, the Studio 4K 20X can adapt to both established and modern AV environments.

Built for 24/7 Operation

Designed for 24/7/365 operation, the Studio 4K provides dependable performance for permanent installations and demanding professional environments. Its discreet fixed-camera profile also makes it a practical choice for secondary camera positions and spaces where a compact installation is preferred.

In addition, the five-year limited parts and labor warranty and continuous firmware updates help provide long-term value while keeping the camera current with new capabilities.

A Flexible Camera for Professional Applications

The Studio 4K 20X is designed for a wide range of professional video applications, including:

• Lecture halls and auditoriums
• Professional studios
• Houses of worship
• Classrooms and education
• Courtrooms and municipal meetings
• Corporate presentations and meetings
• Sports and game analysis
• Live streaming and video production
• Manufacturing environments
• Security and monitoring applications
• Secondary camera positions

The PTZOptics Studio 4K 20X delivers 4K60 video, 20X optical zoom, up to 40X SuperZoom in 1080p, ePTZ reframing and native NDI HX3 in a compact fixed-camera design. With SDI, HDMI, USB and IP connectivity, 24/7 operation and long-term firmware support, it is a versatile solution for professional video production, streaming and Pro AV installations.

Camera & Lens

• Resolution & Frame Rate HDMI, NDI, & USB
  • 3840x2160p - 60/59.94/50/30/29.97/25
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94
• Resolution & Frame Rate SDI
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94/50
• Lens
  • (12X) Sony 1/2.8" CMOS
  • (20X) Sony 1/2.8" CMOS
• Image Sensor
  • (12X) 8.46MP, Effective Pixels: 8.29
  • (12X) 8.46MP, Effective Pixels: 8.29
• Optical Lens Focal Length (Zoom)
  • (12X) f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
  • (20X) f = 4.7mm ~ 94mm, F1.6 ~ F3.6
• Optical Lens Field of View Horizontal & Vertical
  • (12X) Horizontal.......... 6.9° ~ 72.5°, (12X) Vertical.......... 3.9° ~ 44.8°
  • (20X)Horizontal.......... 3.5° ~ 60.7°, (20X) Vertical.......... 1.9° ~ 34.1°
• Display Field of View
  • (12X) 80.2°
  • (20X) 67.8°
• Min Lux: 0.5 Lux @ (F1.8, AGC ON)
• Shutter: 1/30s ~ 1/10000s
• Presets: 255 Presets
• Preset Accuracy: 0.1⁰
• Image Flip, Mirror, and Freeze: Supported
• Scanning Mode: Progressive and Interlaced

Physical Specifications

• Material: Aluminum, Plastic
• Color: Gray or White
• Dimensions(L x W x H): 5.7” L x 2.99” W x 3.09” H, 145 mm L x 76 mm W x 78.5mm H
• Weight
  • (12X) 1.5 lbs 0.68kg
  • (20X) 1.4 lbs 0.64kg
• Working Environment: Indoor
• Humidity Range: 10% - 80%
• Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C )
• Storage Temperature: -40°F ~ 140°F (-40°C ~ 60°C)

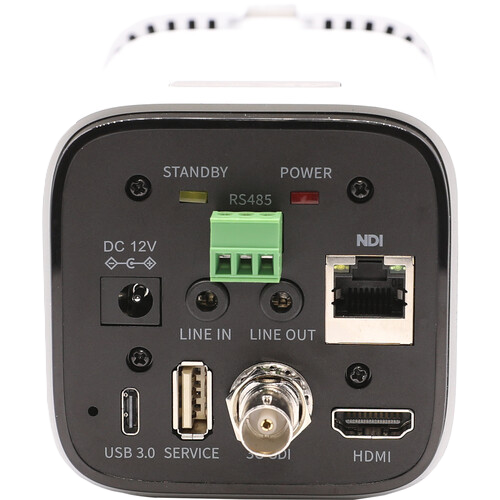

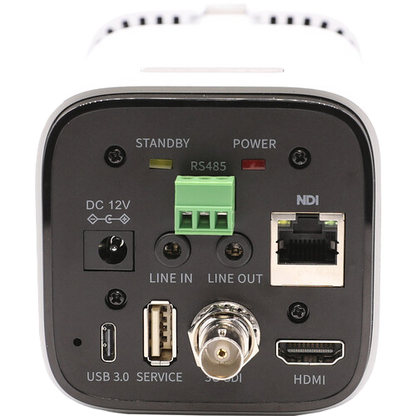

Connections

• RJ45: 10/100/1000M Adaptive Ethernet Port
• HDMI: Version 2.0
• 3G-SDI: BNC Type, 800mVP-p, 75Ω, Along to SMPTE 424M,standard
• USB 3.0: Type C
• UVC Version Supported: UVC 1.0
• Compression Standards
• YUY2 YUY2: Max resolution: 1920x1080p@30
• MJPEG: Max resolution: 3840x2160p@30
• H.264 AVC & SVC: Max resolution: 3840x2160p@30
• H.265: Max resolution: 3840x2160p@30 ( RSTP/NDI HX2 only)
• Audio Interface: 3.5mm Line level Input & Output
• RS485 Input Output: 2-pin Phoenix port RS485 Input / Output, Max distance: 3,937ft / 1200m, Protocol: VISCA / Pelco-D / Pelco-P
• IR: 4x IR Addresses, Max distance 30ft / 9m
• Power Supply: JEITA type (DC IN 12V) / PoE (802.3at)
• Current Consumption: Max 2.0A

IP Video Specifications

• Video Compression: H.264 / H.265 / MJPEG / YUY2 (H265 HEVC via RTSP/NDI HX2 only)
• Video Stream: First Stream, Second Stream
• First Stream Resolutions: 3840x2160, 2560x1440, 1920x1080, 1280x720, 1024x576, 960x540, 640x360
• Second Stream Resolutions: 1920x1080, 1280x720, 1024x576, 960x540, 640x360
• Video Bitrate First Stream: 32kbps ~ 81920kbps, Second Stream: 32kbps ~ 20480kbps
• Bitrate Type: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
• Frame Rate: 50Hz: 1 ~ 50 fps. 60Hz: 1 ~ 60 fps
• Audio Compression: AAC
• Audio Bit Rate: 96kbps, 128kbps
• Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, SRT,Multicast, etc.

Compliance

• NDAA Compliant camera
• TAA Compliant

• PTZOptics Studio 4K Camera
• Power Supply
• IR Remote Control
• 2 x AA Battery (Remote)
• USB-C to USB-A Cable
• Camera Lens Cap
• Warranty: Limited 5-Year Manufacturer Warranty
