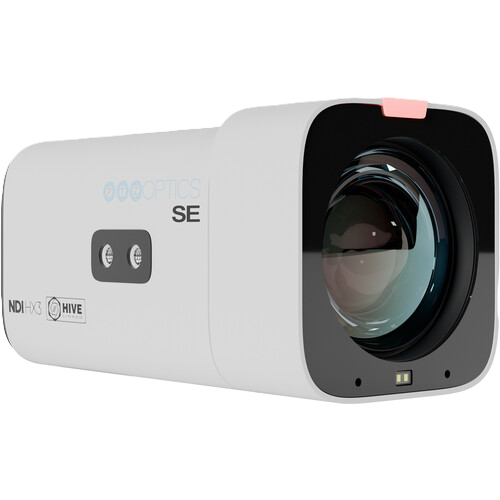

PTZOptics Studio SE 12X PTZ Camera TAA Compliant (White)

PTZOptics Studio SE 12X PTZ Camera – TAA Compliant

The PTZOptics Studio SE 12X delivers reliable 1080p video, wide-angle coverage and flexible connectivity in a compact fixed-camera design. With 1080p video up to 60 fps, 12X optical zoom, a 72.5° horizontal field of view and native NDI HX3, it provides clear, consistent video for conference rooms, classrooms, houses of worship and secondary camera positions.

In addition, SDI, HDMI, USB and IP outputs make it easy to connect the Studio SE 12X to production switchers, streaming systems, computers and network-based video workflows.

Key Features

• 1080p video up to 60 fps with support for multiple resolutions and frame rates
• 12X optical zoom for detailed shots at a distance
• 72.5° horizontal field of view for wide-angle room coverage
• Native NDI HX3 for professional IP video workflows
• SDI, HDMI, USB and IP outputs for flexible connectivity
• Compact, discreet fixed-camera design
• Designed for 24/7/365 operation
• Five-year limited parts and labor warranty
• Continuous firmware updates
• TAA compliant

Reliable 1080p Video in a Compact Design

The Studio SE 12X features a next-generation Sony UHD CMOS sensor designed to capture high-quality 1080p video at up to 60 fps. It also supports additional resolutions and frame rates, allowing you to configure the camera for different production and streaming requirements.

Its discreet fixed-camera profile makes it especially useful when you need dependable video without the larger footprint of a traditional PTZ camera.

12X Optical Zoom with Wide-Angle Coverage

The 12X optical zoom provides the reach needed to capture clear shots of subjects from a distance. At the same time, the 72.5° horizontal field of view provides broad coverage for rooms, presentations and group shots.

As a result, the Studio SE 12X works well in smaller spaces while also serving as a versatile secondary camera in larger production environments.

Native NDI HX3 and Flexible Connectivity

The Studio SE 12X comes equipped with native NDI HX3, along with SDI, HDMI, USB and IP outputs. Therefore, it can adapt to a variety of professional video workflows.

Connect directly to a live production switcher, send video over an IP network, stream through an NDI workflow or use SDI and HDMI for traditional video production. The range of outputs makes it easy to build the camera into both new and existing systems.

Built for 24/7 Operation

Designed for 24/7/365 operation, the Studio SE 12X provides dependable performance for permanent installations and professional AV environments. Furthermore, continuous firmware updates help add capabilities over time, while the five-year limited parts and labor warranty provides added long-term value.

A Flexible Camera for Professional Applications

The Studio SE 12X is well suited for:

• Conference rooms
• Classrooms and education
• Houses of worship
• Studios and live production
• Courtrooms and municipal meetings
• Corporate presentations
• Sports and event production
• Live streaming
• Secondary camera positions
• Manufacturing environments
• Security and monitoring applications

The PTZOptics Studio SE 12X combines 1080p60 video, 12X optical zoom, a wide 72.5° field of view and native NDI HX3 in a compact fixed-camera design. With SDI, HDMI, USB and IP connectivity, 24/7 operation and long-term firmware support, it provides a dependable solution for professional video production, streaming and Pro AV installations.

Camera & Lens

• Resolution & Frame Rate HDMI, NDI, & USB
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94
• Resolution & Frame Rate SDI
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94/50
• Lens
  • (12X) Sony 1/2.8" CMOS
  • (20X) Sony 1/2.8" CMOS
• Image Sensor
  • (12X) 8.46MP, Effective Pixels: 8.29
  • (12X) 8.46MP, Effective Pixels: 8.29
• Optical Lens Focal Length (Zoom)
  • (12X) f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
  • (20X) f = 4.7mm ~ 94mm, F1.6 ~ F3.6
• Optical Lens Field of View Horizontal & Vertical
  • (12X) Horizontal.......... 6.9° ~ 72.5°
  • (12X) Vertical.......... 3.9° ~ 44.8°
• Optical Lens Field of View Horizontal & Vertical
  • (12X) Horizontal.......... 6.9° ~ 72.5°, (12X) Vertical.......... 3.9° ~ 44.8°
  • (20X)Horizontal.......... 3.5° ~ 60.7°, (20X) Vertical.......... 1.9° ~ 34.1°
• Display Field of View
  • (12X) 80.2°
  • (20X) 67.8°
• Min Lux: 0.5 Lux @ (F1.8, AGC ON)
• Shutter: 1/30s ~ 1/10000s
• Presets: 255 Presets
• Preset Accuracy: 0.1⁰
• Image Flip, Mirror, and Freeze: Supported
• Scanning Mode: Progressive and Interlaced

Physical Specifications

• Material: Aluminum, Plastic
• Color: Gray or White
• Dimensions(L x W x H): 5.7” L x 2.99” W x 3.09” H, 145 mm L x 76 mm W x 78.5mm H
• Weight
  • (12X) 1.5 lbs 0.68kg
  • (20X) 1.4 lbs 0.64kg
• Working Environment: Indoor
• Humidity Range: 10% - 80%
• Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C )
• Storage Temperature: -40°F ~ 140°F (-40°C ~ 60°C)

Connections

• RJ45: 10/100/1000M Adaptive Ethernet Port
• HDMI: Version 2.0
• 3G-SDI: BNC Type, 800mVP-p, 75Ω, Along to SMPTE 424M,standard
• USB 3.0: Type C
• UVC Version Supported: UVC 1.0
• Compression Standards
• YUY2: Max resolution: 1920x1080p@30
• MJPEG: Max resolution: 1920x1080p@60
• H.264 AVC & SVC: Max resolution: 1920x1080p@30
• H.265: Max resolution: 1920x1080p@30 ( RSTP/NDI HX3 only)
• Audio Interface: 3.5mm Line level Input & Output
• RS485 Input Output: 2-pin Phoenix port RS485 Input / Output, Max distance: 3,937ft / 1200m, Protocol: VISCA / Pelco-D / Pelco-P
• IR: 4x IR Addresses, Max distance 30ft / 9m
• Power Supply: JEITA type (DC IN 12V) / PoE (802.3at)
• Current Consumption: Max 2.0A

IP Video Specifications

• Video Compression: H.264 / H.265 / MJPEG / YUY2 (H265 HEVC via RTSP/NDI HX2 only)
• Video Stream: First Stream, Second Stream
• First Stream Resolutions: 1920x1080, 1280x720, 1024x576, 960x540, 640x360
• Second Stream Resolutions: 1920x1080, 1280x720, 1024x576, 960x540, 640x360
• Video Bitrate: First Stream: 32kbps ~ 81920kbps, Second Stream: 32kbps ~ 20480kbps
• Bitrate Type: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
• Frame Rate: 50Hz: 1 ~ 50 fps. 60Hz: 1 ~ 60 fps
• Audio Compression: AAC
• Audio Bit Rate: 96kbps, 128kbps
• Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, SRT,Multicast, etc.

Compliance

• NDAA Compliant camera
• TAA Compliant

• PTZOptics Studio SE
• 12V, 2A International Power Supply
• Lens Cap
• USB-A to USB-C Cable
• IR Remote
• 2 x AAA Battery
• Warranty: Limited 5-Year Manufacturer Warranty
