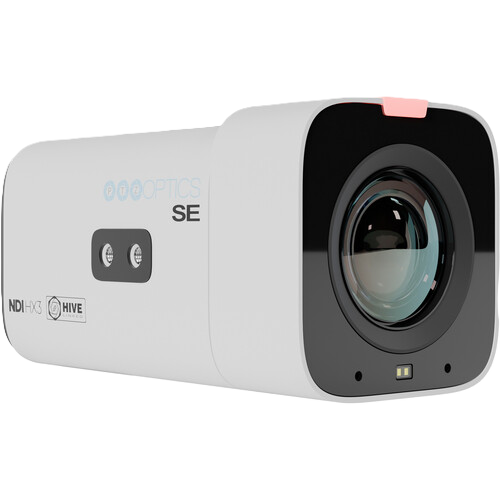

PTZOptics Studio SE 20X PTZ Camera TAA Compliant (White)

PTZOptics Studio SE 20X PTZ Camera – TAA Compliant

The PTZOptics Studio SE 20X delivers reliable 1080p video, extended optical zoom and flexible connectivity in a compact fixed-camera design. With 1080p video up to 60 fps, 20X optical zoom and native NDI HX3, it provides detailed long-distance coverage for lecture halls, houses of worship, auditoriums and larger production spaces.

In addition, SDI, HDMI, USB and IP outputs provide flexible connectivity for professional video production, streaming and AV workflows. The discreet fixed-camera design also makes the Studio SE 20X a practical choice for permanent installations and secondary camera positions.

Key Features

• 1080p video up to 60 fps with support for multiple resolutions and frame rates
• 20X optical zoom for detailed long-distance coverage
• Captures clear head-and-shoulder shots of subjects from over 100 feet away
• Native NDI HX3 for professional IP video workflows
• SDI, HDMI, USB and IP outputs for flexible connectivity
• Compact, discreet fixed-camera design
• Designed for 24/7/365 operation
• Five-year limited parts and labor warranty
• Continuous firmware updates
• TAA compliant

Reliable 1080p Video with 20X Optical Zoom

The Studio SE 20X features a next-generation Sony UHD CMOS sensor that captures high-quality 1080p video at up to 60 fps. It also supports additional resolutions and frame rates, making it easy to configure the camera for different production, streaming and recording workflows.

With 20X optical zoom, the Studio SE 20X provides the reach needed to capture detailed shots from greater distances. As a result, it is well suited for larger spaces where the camera needs to be positioned farther from presenters, speakers, performers or other subjects.

Long-Distance Coverage for Larger Spaces

The 20X optical zoom makes the Studio SE 20X a strong choice for lecture halls, sanctuaries, auditoriums and professional production spaces. It can capture clear head-and-shoulder shots of subjects more than 100 feet away while maintaining a compact installation footprint.

Because the camera uses a fixed-camera design, it can also serve as a dedicated secondary angle or permanent production camera without requiring a traditional PTZ camera position.

Native NDI HX3 and Flexible Connectivity

The Studio SE 20X comes equipped with native NDI HX3, along with SDI, HDMI, USB and IP outputs. Therefore, it can support a wide range of professional video and streaming workflows.

Connect directly to a production switcher, send video over an IP network, stream through an NDI workflow or use SDI and HDMI for traditional video production. Multiple output options make it easy to adapt the camera to existing AV systems.

Built for 24/7 Operation

Designed for 24/7/365 operation, the Studio SE 20X provides dependable performance for permanent installations and professional AV environments. Its discreet profile also makes it a practical option when you need a camera that can remain installed and ready for production.

Furthermore, the five-year limited parts and labor warranty and continuous firmware updates provide long-term value and help keep the camera current as workflows evolve.

A Flexible Camera for Professional Applications

The Studio SE 20X is well suited for:

• Lecture halls and auditoriums
• Houses of worship and sanctuaries
• Classrooms and education
• Professional studios
• Corporate presentations and meetings
• Courtrooms and municipal meetings
• Sports and event production
• Live streaming and video production
• Secondary camera positions
• Manufacturing environments
• Security and monitoring applications

The PTZOptics Studio SE 20X combines 1080p60 video, 20X optical zoom, native NDI HX3 and flexible SDI, HDMI, USB and IP connectivity in a compact fixed-camera design. With long-distance coverage, 24/7 operation and long-term firmware support, it provides a dependable solution for professional video production, streaming and Pro AV installations.

Camera & Lens

• Resolution & Frame Rate HDMI, NDI, & USB
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94
• Resolution & Frame Rate SDI
  • 1920x1080p - 60/59.94/50/30/29.97/25
  • 1920x1080i - 60/59.94/50
  • 1280x720p - 60/59.94/50
• Lens
  • (12X) Sony 1/2.8" CMOS
  • (20X) Sony 1/2.8" CMOS
• Image Sensor
  • (12X) 8.46MP, Effective Pixels: 8.29
  • (12X) 8.46MP, Effective Pixels: 8.29
• Optical Lens Focal Length (Zoom)
  • (12X) f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
  • (20X) f = 4.7mm ~ 94mm, F1.6 ~ F3.6
• Optical Lens Field of View Horizontal & Vertical
  • (12X) Horizontal.......... 6.9° ~ 72.5°
  • (12X) Vertical.......... 3.9° ~ 44.8°
• Optical Lens Field of View Horizontal & Vertical
  • (12X) Horizontal.......... 6.9° ~ 72.5°, (12X) Vertical.......... 3.9° ~ 44.8°
  • (20X)Horizontal.......... 3.5° ~ 60.7°, (20X) Vertical.......... 1.9° ~ 34.1°
• Display Field of View
  • (12X) 80.2°
  • (20X) 67.8°
• Min Lux: 0.5 Lux @ (F1.8, AGC ON)
• Shutter: 1/30s ~ 1/10000s
• Presets: 255 Presets
• Preset Accuracy: 0.1⁰
• Image Flip, Mirror, and Freeze: Supported
• Scanning Mode: Progressive and Interlaced

Physical Specifications

• Material: Aluminum, Plastic
• Color: Gray or White
• Dimensions(L x W x H): 5.7” L x 2.99” W x 3.09” H, 145 mm L x 76 mm W x 78.5mm H
• Weight
  • (12X) 1.5 lbs 0.68kg
  • (20X) 1.4 lbs 0.64kg
• Working Environment: Indoor
• Humidity Range: 10% - 80%
• Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C )
• Storage Temperature: -40°F ~ 140°F (-40°C ~ 60°C)

Connections

• RJ45: 10/100/1000M Adaptive Ethernet Port
• HDMI: Version 2.0
• 3G-SDI: BNC Type, 800mVP-p, 75Ω, Along to SMPTE 424M,standard
• USB 3.0: Type C
• UVC Version Supported: UVC 1.0
• Compression Standards
• YUY2: Max resolution: 1920x1080p@30
• MJPEG: Max resolution: 1920x1080p@60
• H.264 AVC & SVC: Max resolution: 1920x1080p@30
• H.265: Max resolution: 1920x1080p@30 ( RSTP/NDI HX3 only)
• Audio Interface: 3.5mm Line level Input & Output
• RS485 Input Output: 2-pin Phoenix port RS485 Input / Output, Max distance: 3,937ft / 1200m, Protocol: VISCA / Pelco-D / Pelco-P
• IR: 4x IR Addresses, Max distance 30ft / 9m
• Power Supply: JEITA type (DC IN 12V) / PoE (802.3at)
• Current Consumption: Max 2.0A

IP Video Specifications

• Video Compression: H.264 / H.265 / MJPEG / YUY2 (H265 HEVC via RTSP/NDI HX2 only)
• Video Stream: First Stream, Second Stream
• First Stream Resolutions: 1920x1080, 1280x720, 1024x576, 960x540, 640x360
• Second Stream Resolutions: 1920x1080, 1280x720, 1024x576, 960x540, 640x360
• Video Bitrate: First Stream: 32kbps ~ 81920kbps, Second Stream: 32kbps ~ 20480kbps
• Bitrate Type: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
• Frame Rate: 50Hz: 1 ~ 50 fps. 60Hz: 1 ~ 60 fps
• Audio Compression: AAC
• Audio Bit Rate: 96kbps, 128kbps
• Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, SRT,Multicast, etc.

Compliance

• NDAA Compliant camera
• TAA Compliant

• PTZOptics Studio SE
• 12V, 2A International Power Supply
• Lens Cap
• USB-A to USB-C Cable
• IR Remote
• 2 x AAA Battery
• Warranty: Limited 5-Year Manufacturer Warranty
