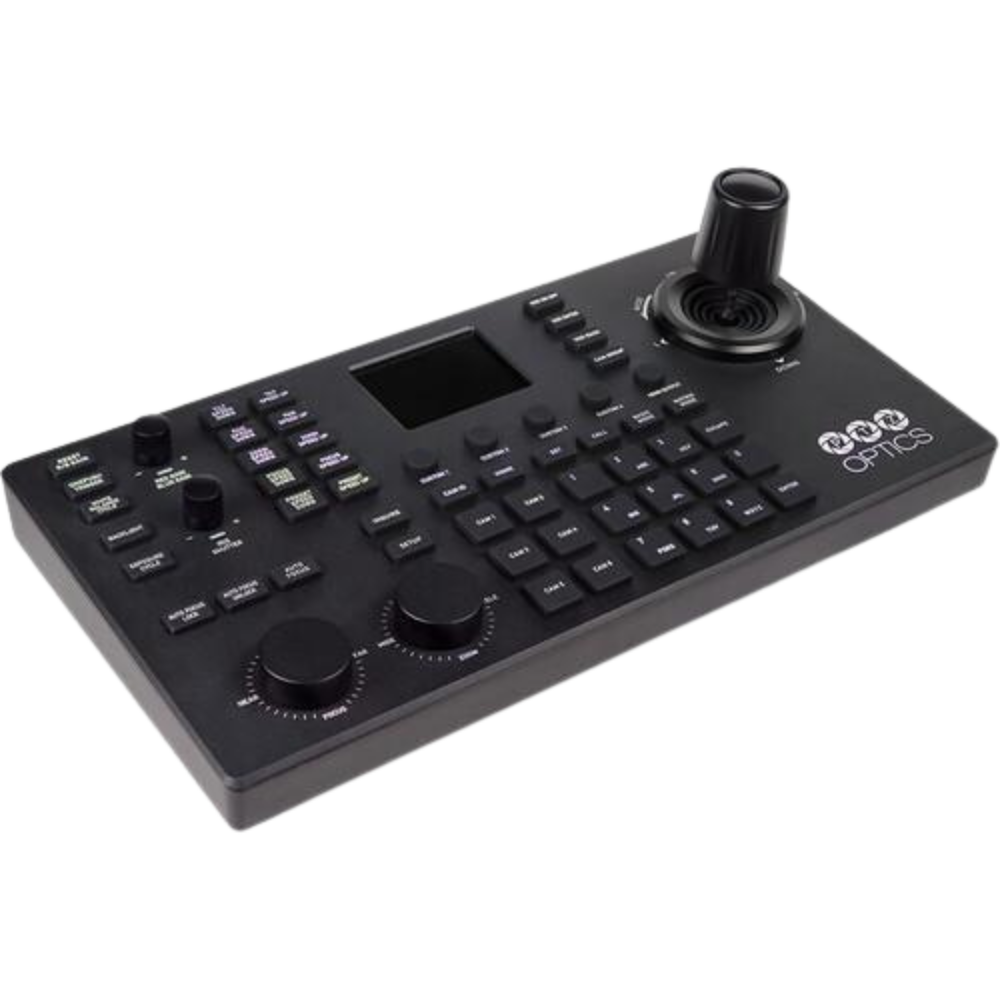

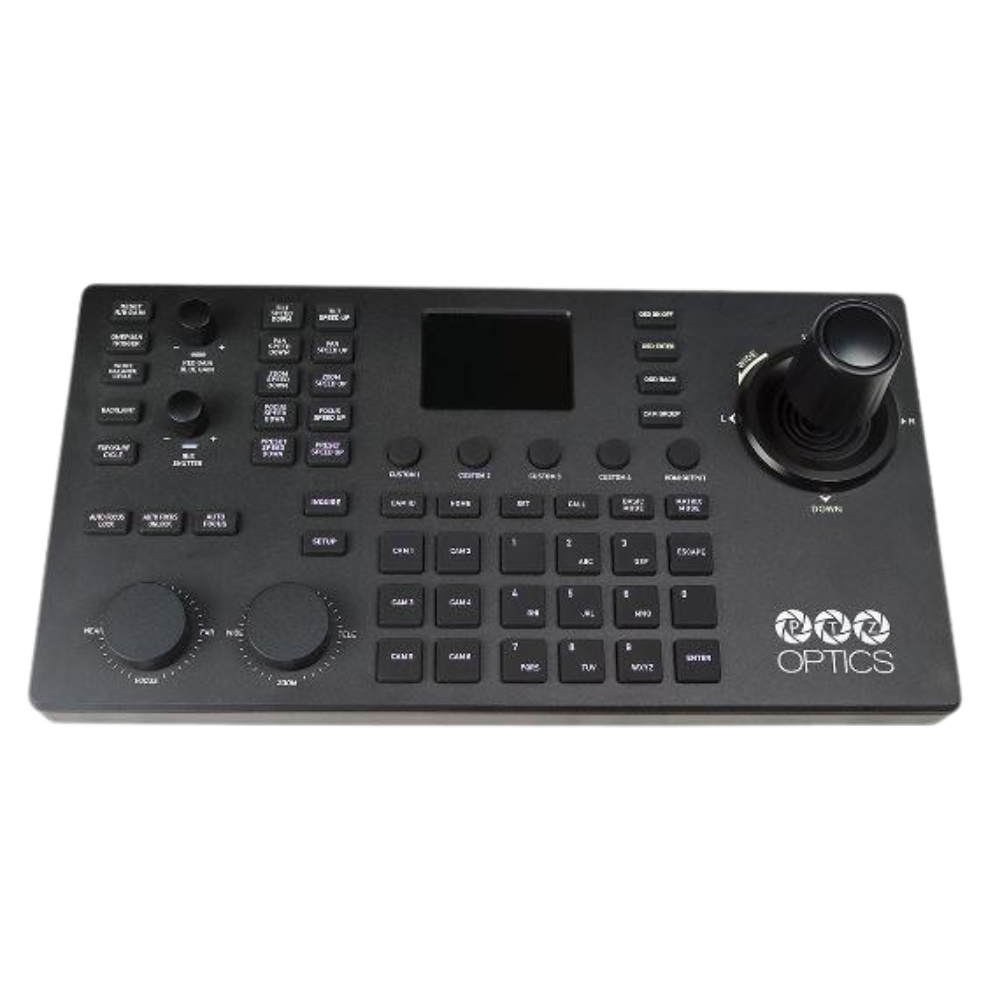

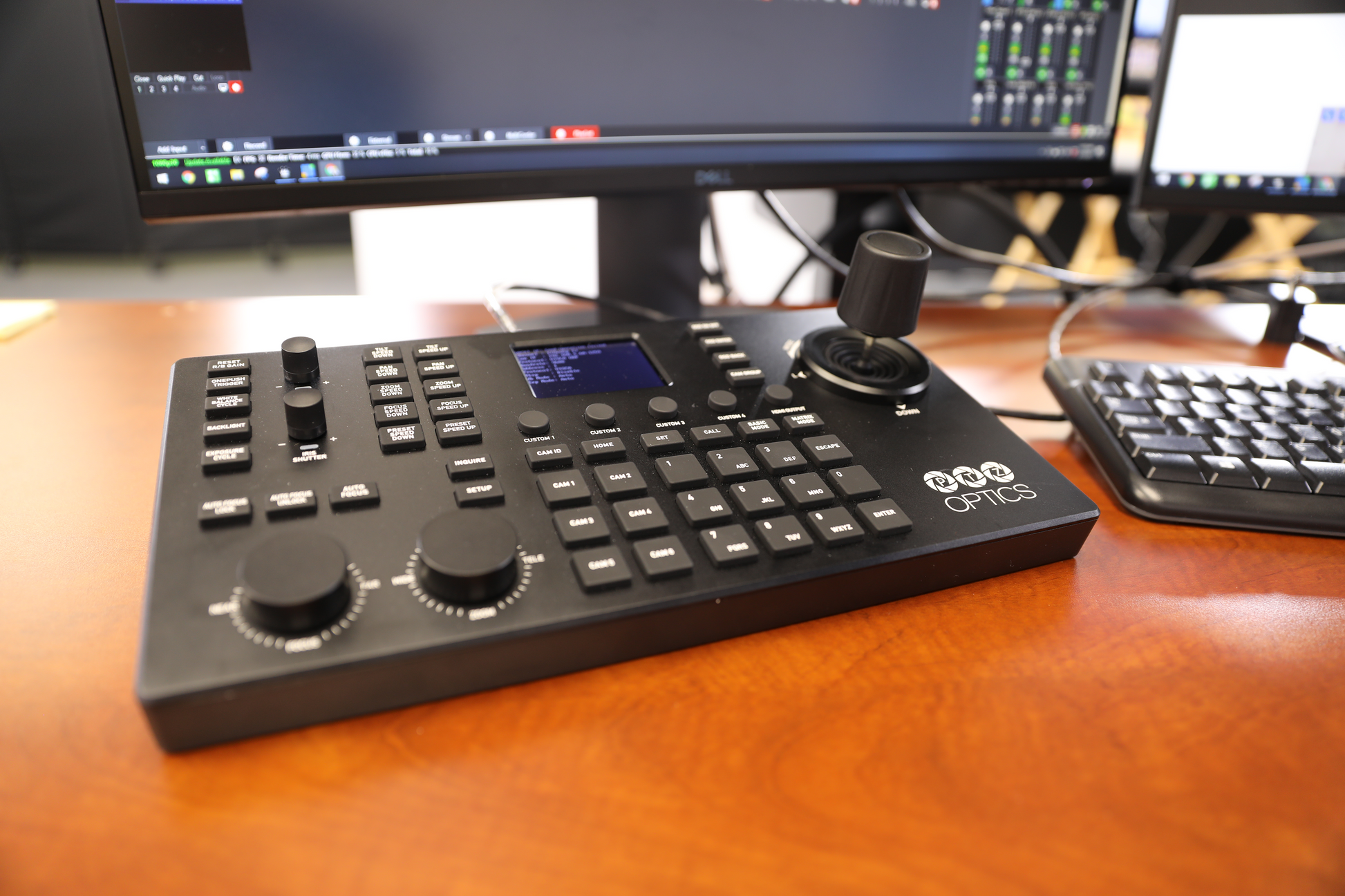

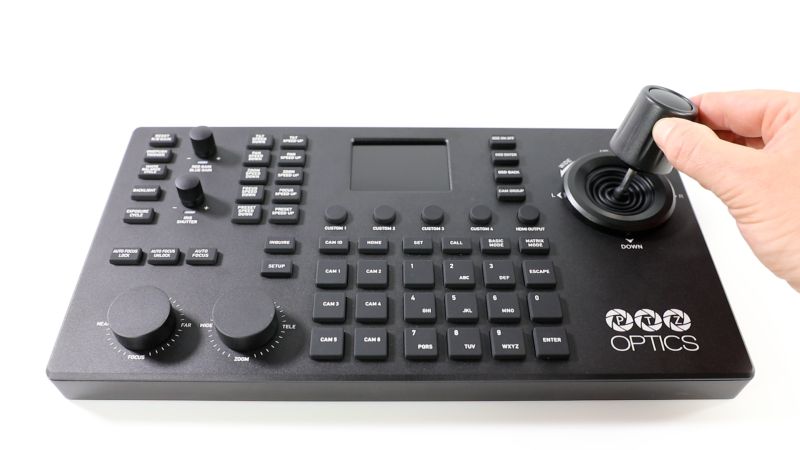

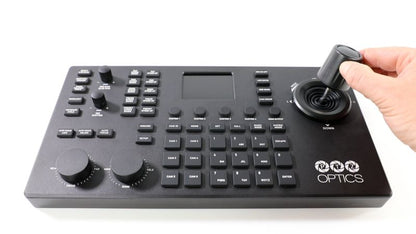

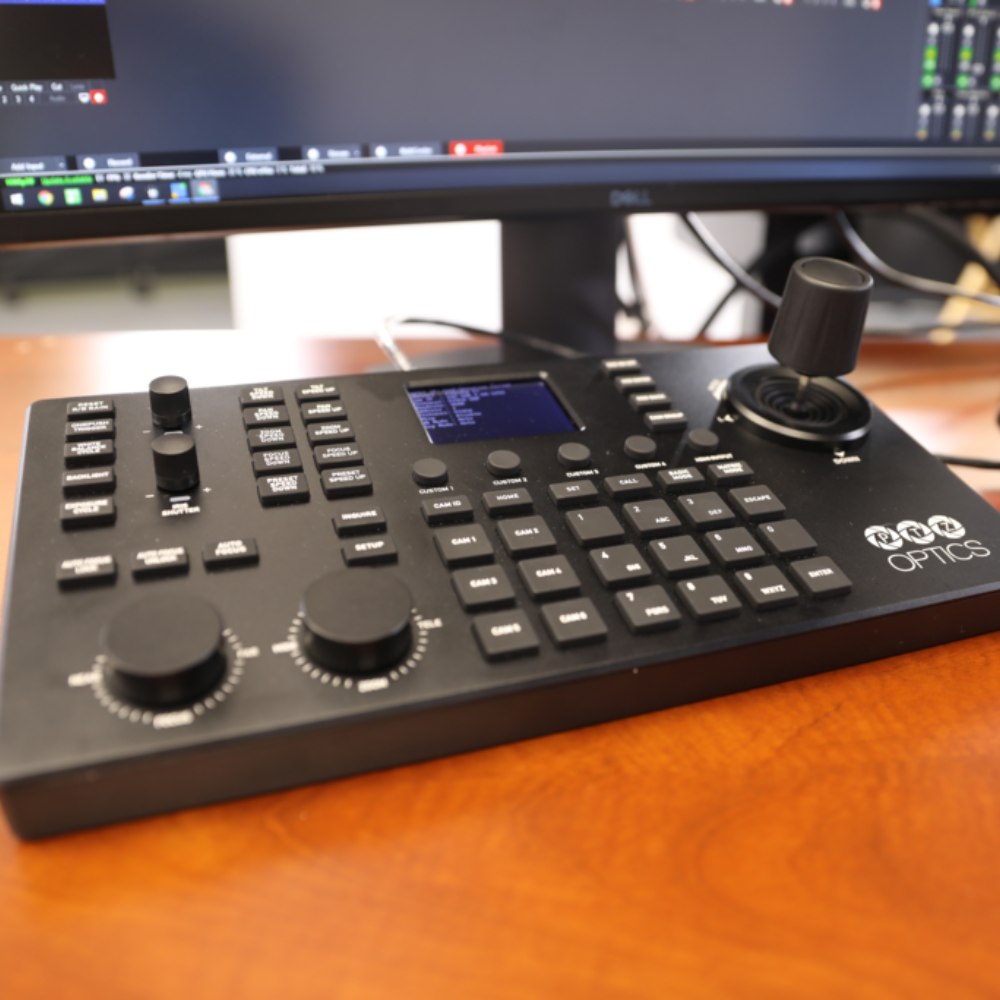

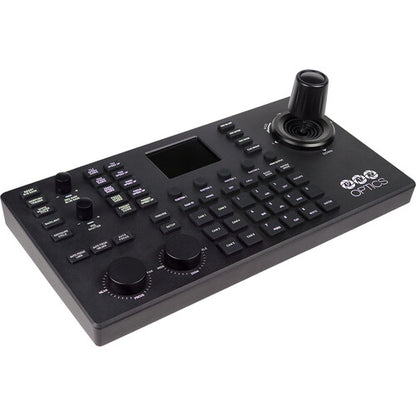

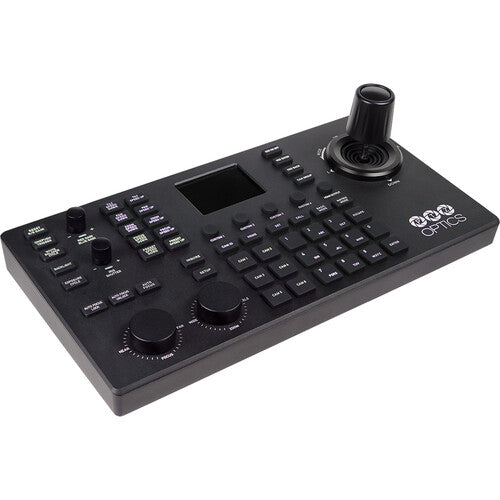

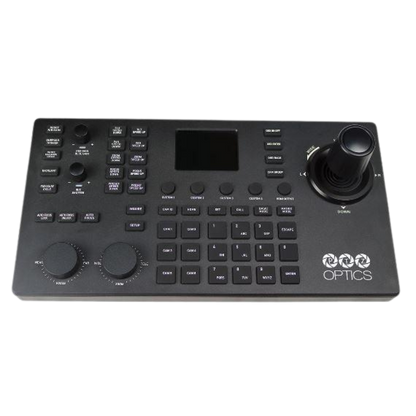

PTZOptics Superjoy IP & Serial PTZ Camera Joystick Controller

Create a Powerful, Precise and Versatile Production Experience
Introducing the PTZOptics SuperJoy, a PTZ camera joystick controller designed for smooth, efficient production workflows. The SuperJoy takes remote pan, tilt, and zoom camera operations to the next level in a simplified user interface with advanced controls for power users.

Features and Benefits

• Simultaneous NDI®, IP & Serial Control for a Range of PTZ Cameras
• Create 5 Camera Control Groups (Cam Groups 1-4: 7 channels, Cam Group 5: 225 channels)
• Fine Tune Focus Control
• Multi-Brand Compatibility, including Sony, BirdDog, NewTek & More
• Large LCD Screen with Controller Status and built-in decoder with HDMI output
• Basic, Basic Plus & Matrix Modes for Users of All Skill Levels
• Up to 255 PTZ Camera Presets, 9 Quick Presets, and 4 Super-Presets

Streamlined, Real-Time Production
The SuperJoy offers an intuitive, tactile interface, simplifying and streamlining even the most complex production setups. The SuperJoy’s HDMI video output provides a 1080p video preview for any camera connected to the SuperJoy that has an RTSP video feed available for use. This HDMI video output is ideal for viewing cameras over a local area network. In this way, a SuperJoy controller can be set up anywhere on a network to gain PTZ camera controls with a low-latency, live video preview.

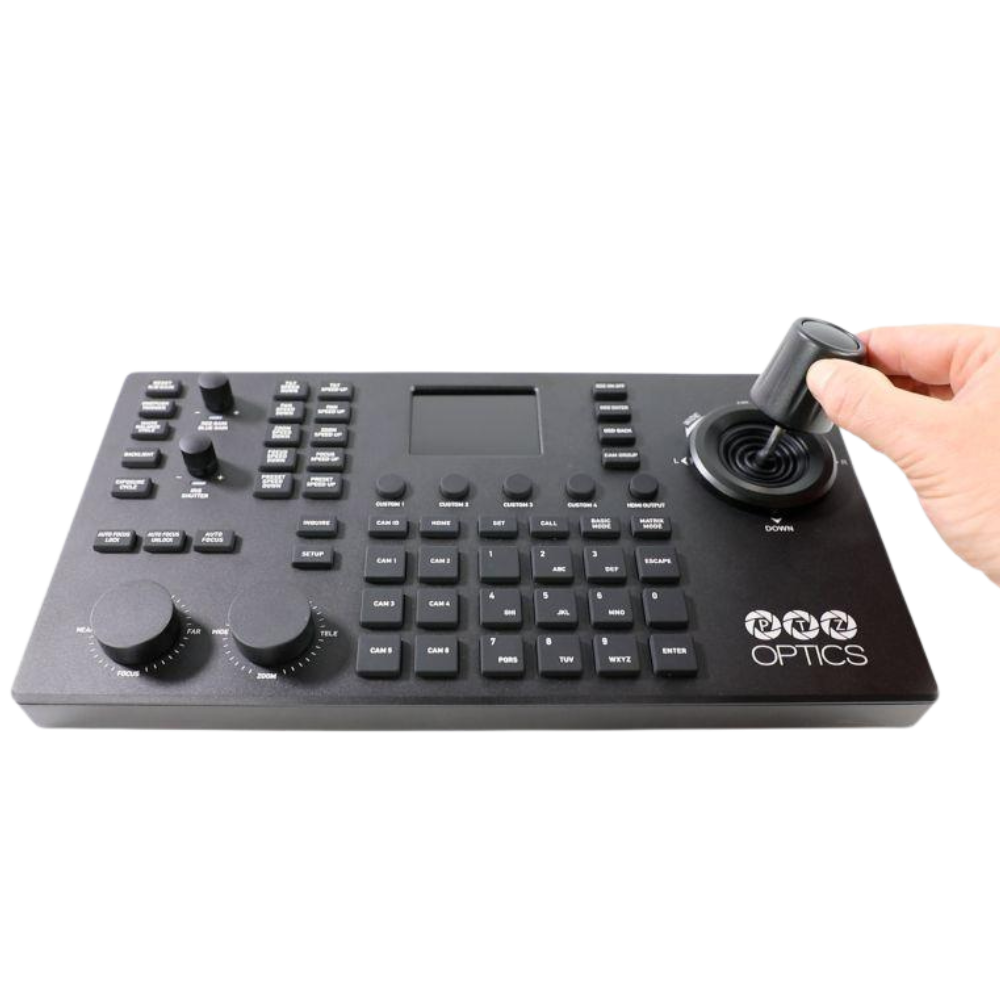

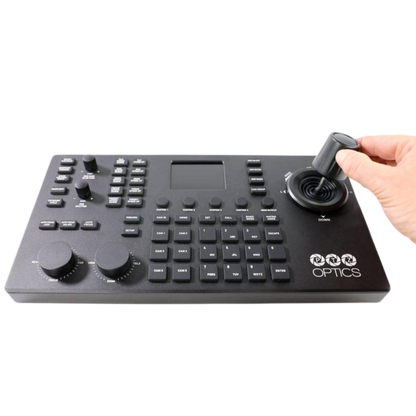

• Ergonomic, rubberized controls and pressure-sensitive dials for precise, on-the-fly-tuning, with no OSD adjustments required
• Control white balance, red and blue gain, shutter speed and more!

Custom Control Across a Variety of Cameras and Devices
The PTZOptics SuperJoy is a comprehensive solution supporting mix-and-match serial and network-based control for PTZ cameras of any generation.

• Simultaneous pan, tilt and zoom control across IP, NDI® and serial cameras from multiple brands including PTZOptics, HuddleCamHD, Sony, BirdDog, Lumens, Marshall, NewTek, and Panasonic (newer Panasonic cameras that support Sony VISCA will work)
• If it’s IP-controlled, chances are the SuperJoy can control it – cameras, lights, projector screens and more – using four customizable buttons
• Powerful Super-Preset buttons are programmable to trigger synchronized multi-preset commands across up to four unique camera groups with up to seven cameras each, as well as a fifth group of up to 225 cameras

From Power Users to Novices, a Controller for Everyone
With three user-centered control modes designed to accommodate varying skill levels, the SuperJoy offers unparalleled flexibility for production teams of all backgrounds and experiences.

• Use Basic and Basic Plus mode to limit functions to presets and single-camera control
• Matrix mode enables operators to call presets across up to three cameras
• Expert users can program custom buttons for production automation

New Custom Button

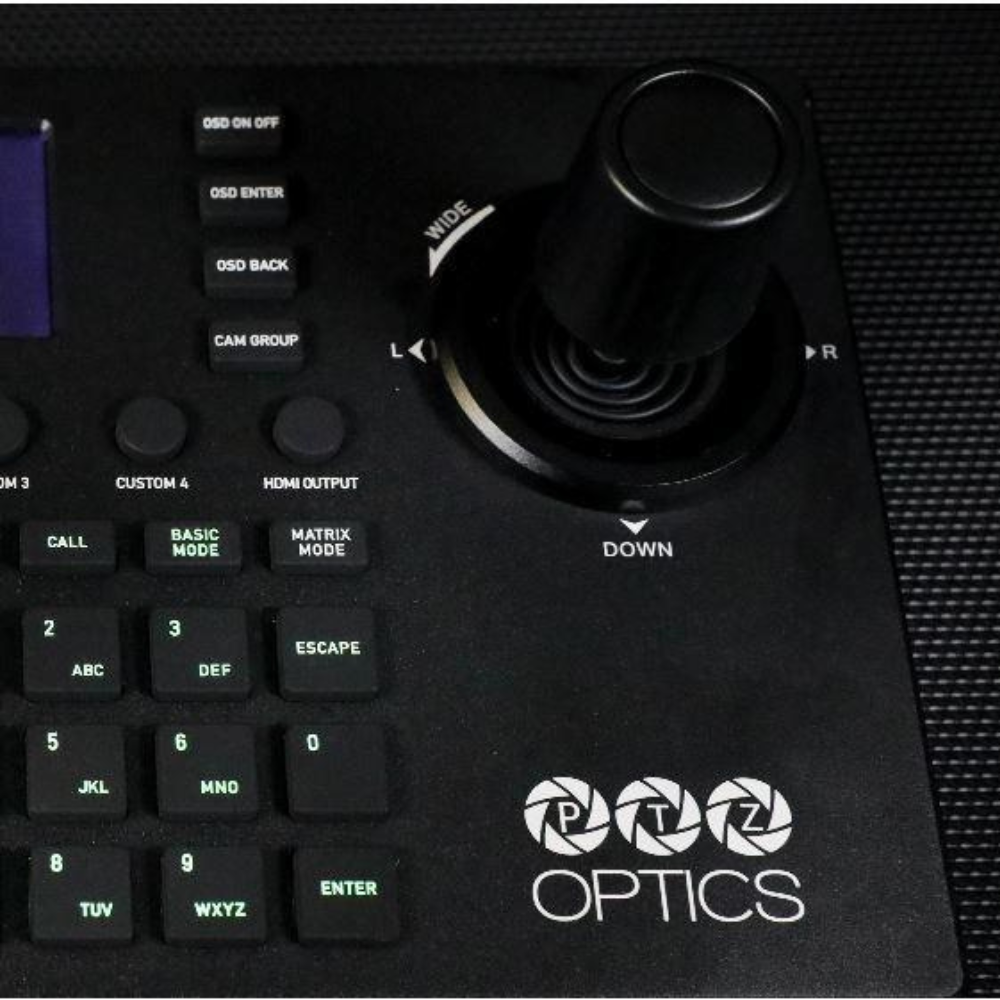

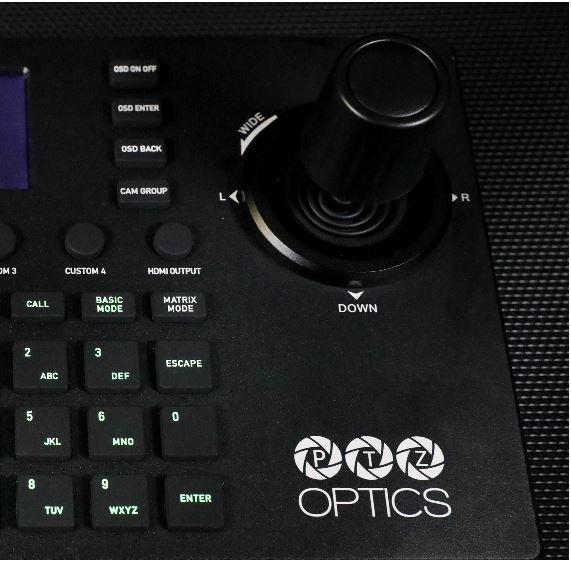

Take a new level of control over your production with a customizable joystick button. This button is conveniently located at the top of the joystick controller for quick access to your most used functions. This joystick button is fully customizable so you can choose if you want it to start recording in your video production software OR start auto-tracking on your currently selected camera.

Automatic Triggers
PTZOptics IP joystick controllers now support automatic triggers which can be used to trigger a command when switching a camera. Automatic Triggers are ideal for integrating your PT-JOY-G4 or PT-SUPERJOY-G1 joystick controllers with your video switcher or other production equipment. Use Automatic Triggers to automate your video production workflow to effortlessly queue up your next camera or prepare your next scene.

Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow. The SuperJoy comes with a 2-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty.

PTZOptics Continuous Advantage
PTZOptics products continuously improve over their lifespan. Since 2014, PTZOptics has provided customers with regular, free product updates based on customer feedback, enhancing the value and functionality of their products over time. For example, the PTZOptics award-winning second generation camera line was improved with over 100 new features over its 7-year production life-span. Beginning in 2023, updates can be applied with a single click. Additionally, our new PTZOptics Discord channel allows users to communicate directly with our engineering team and access beta firmware. This approach enables products to evolve with users’ needs, increasing their overall value.

Technical Specifications

• Protocols
  • PTZOptics VISCA and VISCA over IP
  • PELCO-D and PELCO-P via Serial Ports
  • Limited Sony VISCA and VISCA over IP support
  • Limited ONVIF support
  • Limited NDI® support
  • Limited Panasonic Support (HTTP)
  • WebSockets
• Baud rate: 1200 -19200 bps
• Max Cameras
  • 253 channels / cameras
  • Groups 1-4: 7 channels / cameras
  • Group 5: 225 channels / cameras
• Recommended Max Distance
  • Ethernet: 328 feet | 100 Meters
  • RS-232: 50 feet | 15 Meters
  • RS-485: 3,937 feet | 1200 Meters
  • RS-422: 50 feet | 15 Meters

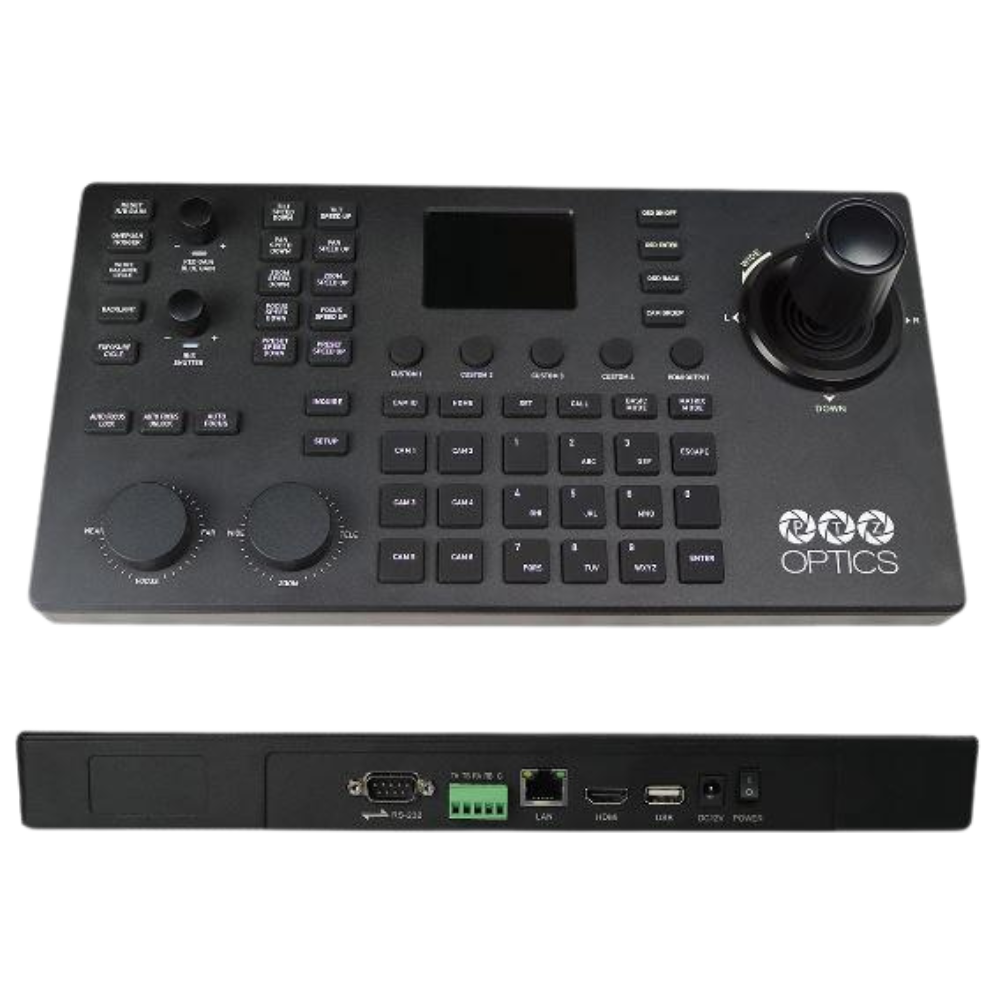

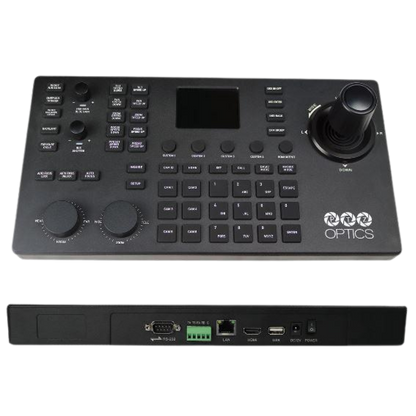

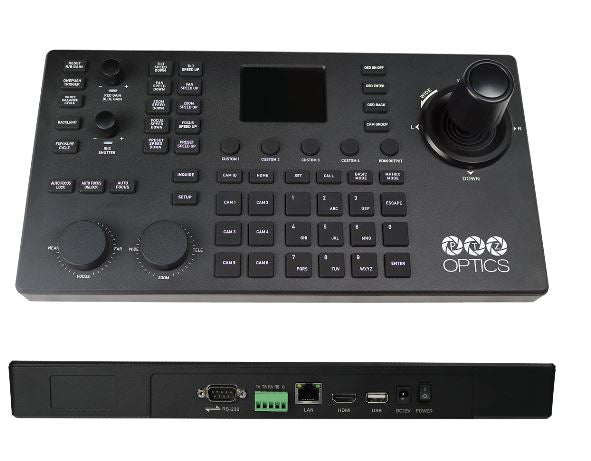

Connections

• Power Connector: 12DC Power Connection
• Power Requirements: 12V DC
• Power Consumption: 6W
• HD Video Output: HDMI 1.3
• Communication Interface
  • RS-232 Control Connection
  • RS-422 / RS-485 Control Connection
  • 10/100M Ethernet / RJ-45 (PoE) Network Port
  • Supports 802.3af PoE power
  • Network: NIC (TCP and UDP)
  • Serial/Analog: RS-232 Full Duplex, RS-485 Semi Duplex, RS422 Full Duplex
• USB 2.0 Interface: USB 2.0 Service Port (Update Firmware, Import Config, Export Config)

Physical Specifications

• Product Material: Aluminum
• Dimensions: 13.94in W x 7.09in D x 3.98in H
• 354mm W x 180mm D x 101mm H
• Weight: 3.75 lbs | 1.70 kg
• Box Dimensions: 14.57in W x 8.46in D x 4.61in H (370mm W x 215mm D x 117mm H)
• Box Weight: 5.80 lbs | 2.63 kg
• Operating Environment: Indoor
• Operating Temperature: 14° F ~ 122° F (-10° C ~ +50° C)
• Operating Humidity: 10% ~ 90% (non condensation)
• Warranty: 2 Year Manufacturer Warranty

• PT-SUPERJOY-G1 Joystick Controller
• 12V 2A DC International Power Supply
• RS-232C cable 8ft (2.4m)
• PT-SUPERJOY-G1 Quick Start Guide
• Warranty: 2 Year Manufacturer Warranty
