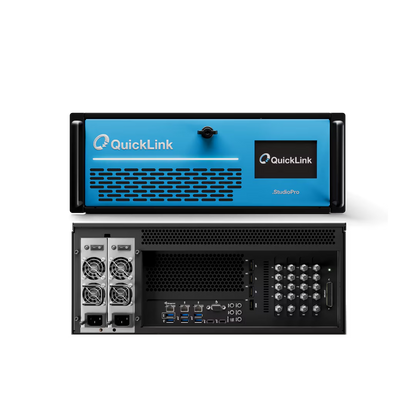

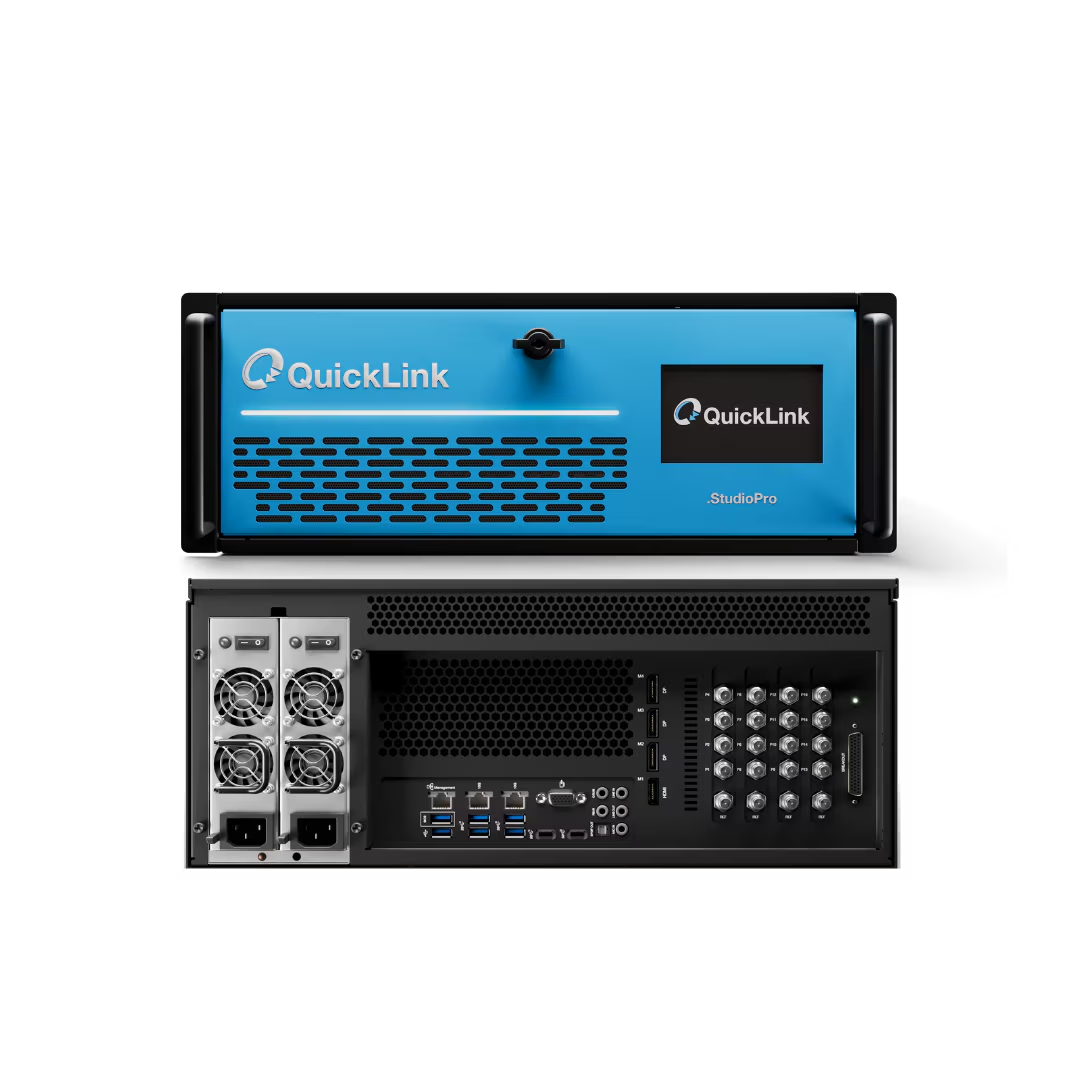

QuickLink StudioPro 16 - 16x 12G-SDI (HD/4K/8K) Video Production System

StudioPro is the World's Easiest-to-use 4K Video Production Platform
Enjoy atrue-to-life, ultra-lowlatency production experience without the complexity of legacy systems

StudioPro is ideal for these production environments:

• Corporate
• Houses of Worship
• Education
• Government

One-frame Delay
Synchronize flawlessly between stage speakers and large projected screens or video walls for live presentations. StudioPro eliminates lip-sync issues.

Remote Guest Integration
Take remote guest integration to unprecedented heights with built-in StudioEdge. Microsoft Teams, Skype, Zoom, WhatsApp, and more!

Capture Unlimited Devices
Effortlessly integrate unlimited cameras, microphones, videos, NDI sources, and remote guests into your productions. Create productions like a pro.

StudioPro
Produce amazing ‘scenes’, like creating presentation slides. Add multiple layers and switch effortlessly between scenes, much like Microsoft PowerPoint or Adobe Photoshop.

QuickLink StudioPro
Compare to the Vizrt TriCaster, NewTek TriCaster, Ross Carbonite, vMix and other live production systems with remote contribution features of NewTek TalkShow

• Video Input: 64
• Network Video Input: NDI/RTMP/UDP/ SRT/RIST
• Hardware Video Input/Output: 16 x configurable 12G-SDI (HD/4K/8K)
• PTZ: 64 simultaneous
• Video Output: 16 independent HD or 4 UHD video mix outputs, with simultaneous delivery via IP and SDI
• Network Video Output: Yes
• Conference Calling (Advanced): Yes
• Conference Calling: Yes
• Stream Output: 8
• Multiviewer Output: 4x Multiviewer outputs (1x HDMI, 3x DisplayPort)
• Mix/Effect Output: 120 individual mixed Scenes
• DSK Channels: 16
• Media Sources: Yes
• NewBlue Captivate™ Software: Yes
• Third-party Overlays: Yes
• Keyers: Yes
• Artificial Intelligence: Yes
• Virtual Sets: Yes
• Macros: Yes
• Recording: 16
• Storage: 4 TB SSD internal storage (Supports recording to external storage via 7 USB 3.2 type A, and 1 USB 3.2,type C, 1 USB 2.0 2(Gen2, Type A). Supports shared storage integration and third-party partner solutions)
• Support for Hardware Controllers: Yes
• Remote Control: Yes
• MIDI: Yes
• Hardware Audio Inputs/ Outputs:
  • 8x XLR (8 line level balanced in)
  • 8x XLR (8 line level balanced out)
• Network Audio: Yes
• Genlock: Genlock input supporting SD (Bilevel) or HD (Tri-level) reference signals
• Supported Input & Output Formats:
  • 8K – 25, 30, 50, 60 *
  • 4K – 25, 30, 50, 60 *
  • 2K – 25, 30, 50, 60 *
  • 1080i – 50, 59.94, 60
  • 1080p – 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• HDR / 10 Bit SDR: Yes
• Monitoring: 4
• Tally (Hardware): Yes
• Tally (Network): Yes
• NIC:
  • 2 x 10GbE NIC
  • 2 x 1GbE NIC***
• RRC™ (Rugged Reliable Chassis), Dual Hot-Swap Power Supply: Yes
• Raided Drives: N/A
• Dimensions: 440mm (W) x 176mm (H) x 468mm (D) | 17.32” (W) x 6.93” (H) x 18.43” (D)
• Chasis: 4U chassis
• Weight: 17kg (37.5 lb)
