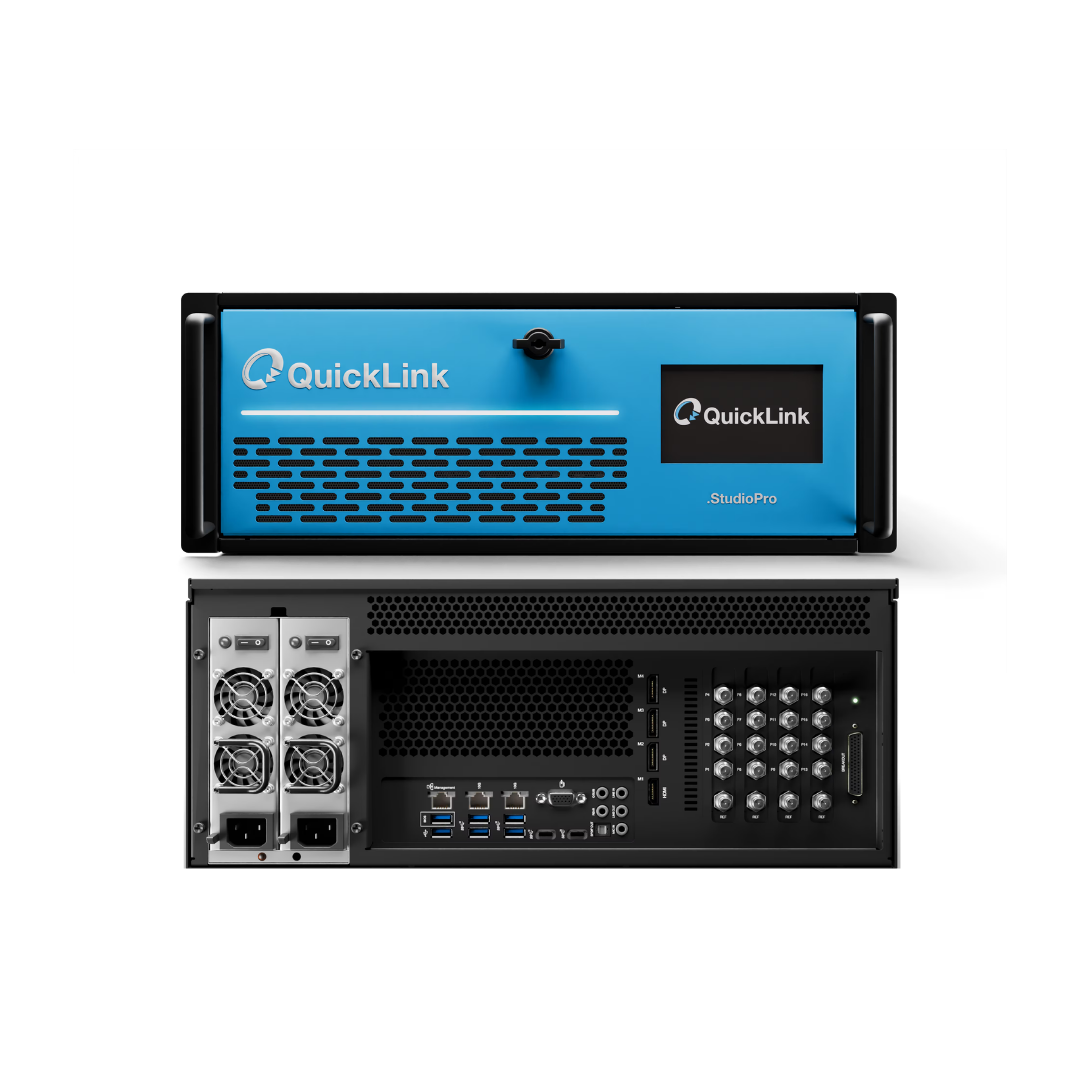

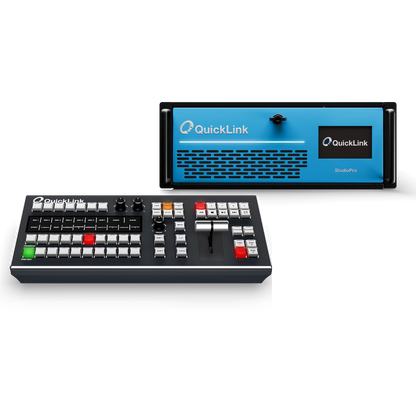

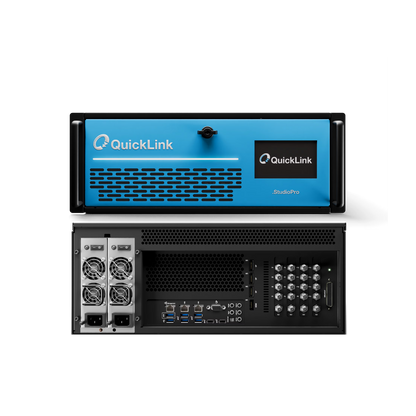

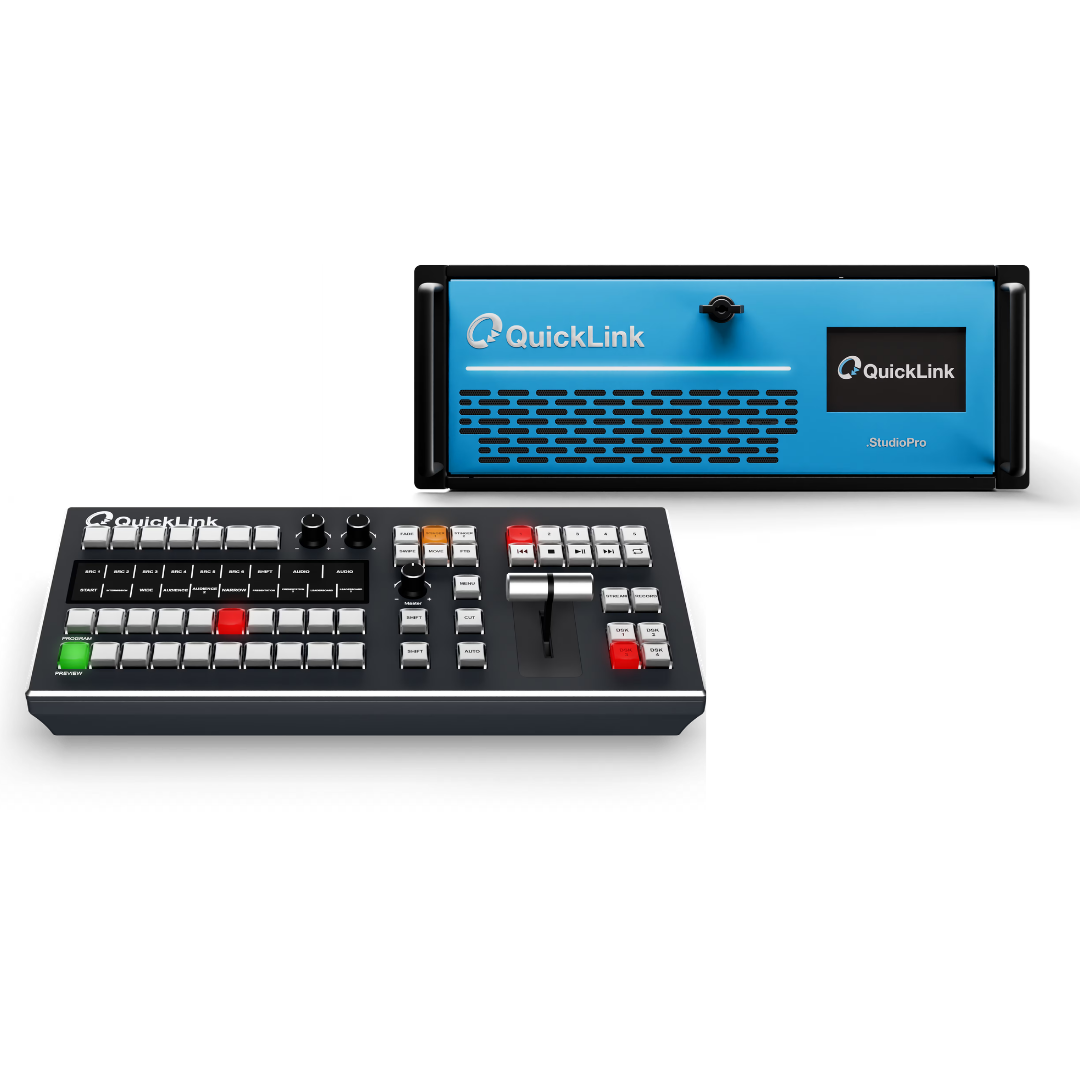

Quicklink StudioPro-16 Video Production System + StudioPro Proton Control Panel Bundle

StudioPro-16

StudioPro is the World's Easiest-to-use 4K Video Production Platform
Enjoy atrue-to-life, ultra-lowlatency production experience without the complexity of legacy systems

StudioPro is ideal for these production environments:

• Corporate
• Houses of Worship
• Education
• Government


One-frame Delay
Synchronize flawlessly between stage speakers and large projected screens or video walls for live presentations. StudioPro eliminates lip-sync issues.

Remote Guest Integration
Take remote guest integration to unprecedented heights with built-in StudioEdge. Microsoft Teams, Skype, Zoom, WhatsApp, and more!

Capture Unlimited Devices
Effortlessly integrate unlimited cameras, microphones, videos, NDI sources, and remote guests into your productions. Create productions like a pro.

StudioPro
Produce amazing ‘scenes’, like creating presentation slides. Add multiple layers and switch effortlessly between scenes, much like Microsoft PowerPoint or Adobe Photoshop.

StudioPro Proton Control Panel

StudioPro™ Proton is a compact and rugged control panel purpose-designed for maximum live production functionality. Built to deliver powerful StudioPro control in a streamlined form factor, Proton puts switching, transitions, audio, and more at your fingertips.


Control your whole production
Natively control your StudioPro™ production, and over 600+ devices, including lighting, cameras, audio mixers, and many other studio elements — powered by Bitfocus Companion.

Harness the power of StudioPro™, anywhere!
With StudioPro™ Proton, you can take direct control of your whole production – including scene switching, audio control, media playback, and more! Proton delivers precision, hands-on control that perfectly complements the award-winning StudioPro™ platform. Its intuitive interface makes it easy for anyone to use, even complete beginners to multicamera production — while still offering creative power that rivals far more complex and expensive systems.

Portable, yet professional control!
StudioPro™ Proton is the perfect travel companion. The rugged, all-metal design and small footprint make it ideal for on-the-road productions — built to deliver professional results from anywhere! Designed for efficiency, Proton features a mapped layout with 54 buttons, including 27 fully configurable keys. Large backlit buttons, a premium T-Bar, and tactile controls ensure confident operation in fast-paced live production.

Complementing the award-winning StudioPro™
StudioPro™ revolutionizes live production with a user-friendly interface and powerful, all-in-one feature set, including remote guest contribution, switching, audio mixing, graphics, and media playback. Proton is purpose-built to enhance this experience. Seamlessly integrated with StudioPro, it provides fast, reliable access to all essential video production controls.

One Panel. Your Way.
With StudioPro™ Proton, control is at your fingertips — and makes it yours. With 27 fully configurable buttons, you can tailor your panel to match the exact needs of your production. Easily assign actions to each button using Companion’s intuitive interface. From switching scenes in StudioPro™, triggering NewBlue graphics, managing Zoom or Microsoft Teams calls, to controlling lighting, audio mixers, and PTZ cameras — Proton becomes the central command hub for your entire setup.

StudioPro-16

• Video Input: 64
• Network Video Input: NDI/RTMP/UDP/ SRT/RIST
• Hardware Video Input/Output: 16 x configurable 12G-SDI (HD/4K/8K)
• PTZ: 64 simultaneous
• Video Output: 16 independent HD or 4 UHD video mix outputs, with simultaneous delivery via IP and SDI
• Network Video Output: Yes
• Conference Calling (Advanced): Yes
• Conference Calling: Yes
• Stream Output: 8
• Multiviewer Output: 4x Multiviewer outputs (1x HDMI, 3x DisplayPort)
• Mix/Effect Output: 120 individual mixed Scenes
• DSK Channels: 16
• Media Sources: Yes
• NewBlue Captivate™ Software: Yes
• Third-party Overlays: Yes
• Keyers: Yes
• Artificial Intelligence: Yes
• Virtual Sets: Yes
• Macros: Yes
• Recording: 16
• Storage: 4 TB SSD internal storage (Supports recording to external storage via 7 USB 3.2 type A, and 1 USB 3.2,type C, 1 USB 2.0 2(Gen2, Type A). Supports shared storage integration and third-party partner solutions)
• Support for Hardware Controllers: Yes
• Remote Control: Yes
• MIDI: Yes
• Hardware Audio Inputs/ Outputs:
  8x XLR (8 line level balanced in)
  8x XLR (8 line level balanced out)Network Audio: Yes
• Genlock: Genlock input supporting SD (Bilevel) or HD (Tri-level) reference signals
• Supported Input & Output Formats:
  8K – 25, 30, 50, 60 *
  4K – 25, 30, 50, 60 *
  2K – 25, 30, 50, 60 *
  1080i – 50, 59.94, 60
  1080p – 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  HDR / 10 Bit SDR: Yes
• Monitoring: 4
• Tally (Hardware): Yes
• Tally (Network): Yes
• NIC:
  2 x 10GbE NIC
  2 x 1GbE NIC***
• RRC™ (Rugged Reliable Chassis), Dual Hot-Swap Power Supply: Yes
• Raided Drives: N/A
• Dimensions: 440mm (W) x 176mm (H) x 468mm (D) | 17.32” (W) x 6.93” (H) x 18.43” (D)
• Chasis: 4U chassis
• Weight: 17kg (37.5 lb)

StudioPro Proton Control Panel

• Native StudioPro™ Control: Yes
• Bitfocus Companion Support: Yes
• Connection Type: Ethernet
• Buttons: 54 (27 configurable)
• Configurable Button Setup: Yes
• Direct Crosspoint Buttons: 10
• Audio Meter Control: Yes
• PTZ Joystick: No
• Media Playback Control: Yes
• Macro Capability: Yes
• Tally Support: Yes
• Power: DC 12V | PoE
• Dimensons: 354mm (L) x 165mm (D) x 92mm* (H) | 13.94" (L) x 6.49" (D) x 3.62"*(H)
  Weight: 3.3 lbs (1.5 kg)

• StudioPro-16 Video Production System
• StudioPro Proton Control Panel
• StudioPro-16 Elite Support - 1 Year support contract
• StudioPro Fusion Control Panel Elite Support - 1 Year support contract
