Ranger Mk II 750 12G-SDI/HDMI - Wireless TX/RX Set V-Mount
TERADEK LIVE

Ranger Mk II 750 12G-SDI/HDMI - Wireless TX/RX Set V-Mount

$8,490.00
/
Free Shipping & Tech Support.
MFR Part # (MPN): 10-2580-V
Videoguys Part # (SKU): TER102580V
Short Description:
  • Free Shipping & Tech Support

Experience uncompromising wireless performance with Ranger, the
only solution with true zero-delay (<1ms) transmission, visually
lossless image quality, and wide spectrum operation over licensed
and unlicensed bands. And now with support for 6GHz (U-NII-5),
Ranger offers 12 additional RF channels free of interference.

ZERO-DELAY
Go from TX to RX in .001 seconds –
perfect for IMAG and live event
production.

VISUALLY LOSSLESS 4K HDR
Transmit video in exceptional detail –
superior to HEVC and H.264 solutions.

AES-256 ENCRYPTION
Keep your video transmission
confidential and secure.

GRANULAR FREQUENCY CONTROL
Make adjustments to the frequency of
your signal in 5 MHz increments.

LICENSED & UNLICENSED
FREQUENCIES
Operate from 4.9 GHz to 6.4 GHz on
licensed and unlicensed bands.

INTERCOMPATIBLE
Pair any previous and current Ranger systems together.


State-of-the-art hardware. Designed for professional video production. The Ranger Series is
powered by our Emmy® & Academy Award-winning technology for zero-delay wireless video
transmission. It boasts a maximum range of 5,000 feet (1,524 meters). And it works seamlessly
within a variety of professional broadcast, sports, and ENG applications, including hand-held
gimbals, drones, and shoulder-mounted production cameras.





  • Video I/O
    1x HDMI 2.0 Input
    1x BNC (12G-SDI) Input
    1x BNC (12G-SDI) Loop Output

  • Embedded Audio
    HDMI: 2-Channel
    SDI: 2-Channel

  • Latency
    < 0.01 ms

  • Video Format
    HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 60/59.94/50
    480p: 60/59.94/50
    576i: 60
    480i: 59.94
    SDI (10-Bit 4:2:2 YCC)
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 60/59.94/50
    576i: 50
    480p: 60/59.94/50
    480i: 59.94
    Show Less

  • Battery Type
    1x V-Mount

  • Power Consumption
    12 W

  • Mounting
    1x 1/4"-20 Female
    Inputs / Outputs

  • Antenna I/O
    2x RP-SMA Female

  • Video I/O
    1x HDMI 2.0 Input
    1x BNC (12G-SDI) Input
    1x BNC (12G-SDI) Loop Output

  • Embedded Audio
    HDMI: 2-Channel
    SDI: 2-Channel

  • Audio I/O
    No

  • Power I/O
    1x LEMO 2-Pin (28 VDC) Input

  • Other I/O
    1x USB-C (Firmware) Input

  • Encryption
    256-Bit AES

  • Wireless:

  • Wireless Range
    750' / 228.6 m (Line-of-Sight)

  • Channel Bandwidth
    40 MHz, 20 MHz

  • Frequency Range
    US: 5.92 to 6.42 GHz
    US: 4.85 to 5.15 GHz
    US: 5.35 to 5.47 GHz
    US: 5.85 to 5.92 GHz
    Non-DFS Frequencies
    US: 5.15 to 5.25 GHz
    US: 5.72 to 5.85 GHz
    DFS Frequencies
    US: 5.25 to 5.35 GHz
    US: 5.47 to 5.72 GHz

  • Latency
    < 0.01 ms

  • RF Power
    23 dBm

  • Wi-Fi
    No

  • Bluetooth
    5.0 LE

  • Mobile App Compatible
    Yes: Android & iOS
    Functionality: Adjust Settings, Remote Control, Setup, View Live Feed

  • Cellular Support
    No

  • Format Support
    Video Format
    HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 60/59.94/50
    480p: 60/59.94/50
    576i: 60
    480i: 59.94
    SDI (10-Bit 4:2:2 YCC)
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 60/59.94/50
    576i: 50
    480p: 60/59.94/50
    480i: 59.94

  • Video Standard Compliance
    SMPTE 424M

  • Audio Format
    2-Channel 24-Bit 48 kHz

  • Wireless Video Compression
    Uncompressed

  • Timecode Support
    Yes

  • Power:

  • DC Input Power
    6 to 28 VDC

  • Battery Type
    1x V-Mount

  • Power Consumption
    12 W

  • Mounting:

  • Mounting
    1x 1/4"-20 Female

  • Environmental:

  • Operating Temperature
    32 to 72°F / 0 to 40°C

  • General:

  • Material of Construction
    Aluminum, Polycarbonate

  • Dimensions
    5.9 x 3.6 x 1.2" / 149 x 91 x 30 mm

  • Weight
    19.2 oz / 544 g


Ranger Mk II 750 12G-SDI/HDMI - Wireless TX/RX Set V-mount
2 x N-Type Antenna

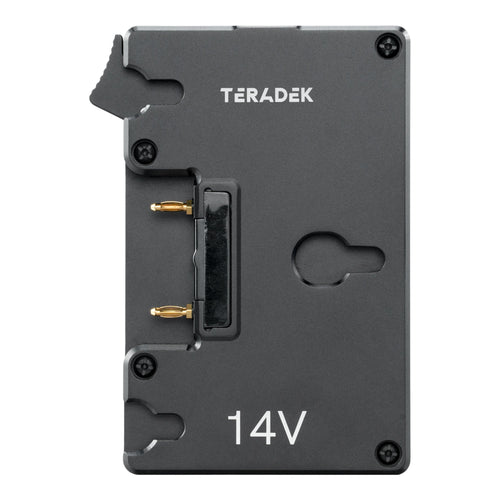

V-Mount Battery Plate
Limited 1-Year Manufacturer Warranty
