Roland P-20HD Video Instant Replayer
$3,100.00$2,995.00
0
VideoGuys Part # (SKU): P20HD
MFR Part # (MPN): P20HD

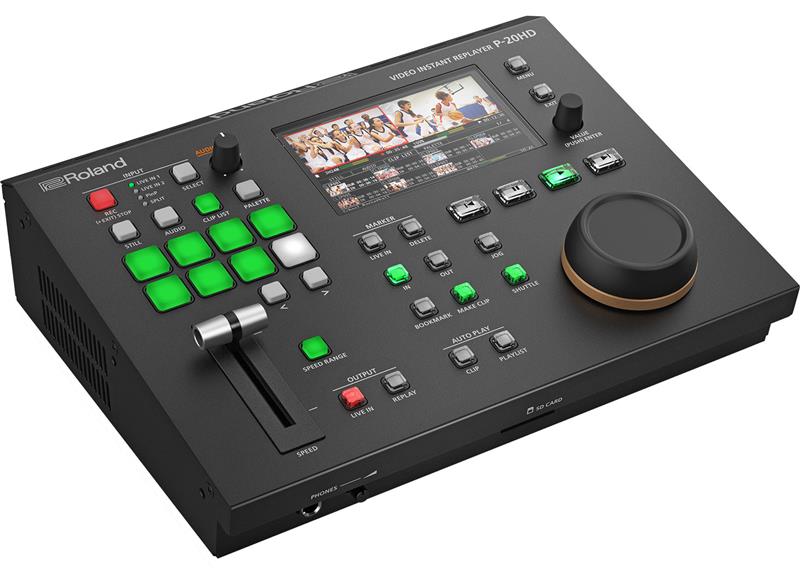

Roland P-20HD Video Instant Replayer

TRANSFORM SPORTS PRODUCTION

Until now, creating slow-motion instant replays in live sports productions has required an arsenal of complicated and expensive gear—and the knowledge to run it all. Roland’s P-20HD changes all that, providing an affordable and easy-to-use solution that lets you bring pro replay capabilities to any production setup. Offering seamless integration with most Roland A/V switchers and HDMI camcorders and cameras, the P-20HD transforms everyday sports video productions into edge-of-seat fan experiences.

Take Local Sports Production to the Next Level

When watching a sporting event live or on a broadcast stream, today’s audiences expect the high production values they see when watching pro teams on network TV. With the P-20HD, adding the magic of instant replay to your workflow has never been more simple and affordable. Using intuitive controls and the integrated color LCD, you can easily cue up replays of important action to let fans relive the moment, either on your streaming feed or live event screens—or both at once.

Plays Well with Others

The P-20HD can be seamlessly inserted into a variety of workflows. Use it on its own, or upstream or downstream of any Roland video switcher. Connect two cameras and switch/composite between sources to capture them for replay. Both HDMI inputs feature built-in scalers, providing worry-free connectivity with nearly any video source.


One Person Operation

A pro sports network broadcast has a dedicated team that handles replay duties. With the P-20HD, a single operator can easily mark, cue, and replay clips while managing other elements of a production. Simply register events as clips with button taps while recording, and then instantly play them back with dedicated panel switches.

Built-In Preview Monitor

With its onboard color display, the P-20HD makes it simple to manage and execute your workflow in real time. In recording view, the screen shows the current video input, plus critical SD card information like recording duration, remaining storage space, and available time. And in playback view, you can display cropped previews of all video clips for live replay or compilation into playlists.


Learn more about the Roland P-20HD Video Instant Replayer

  • Full Description
  • Specifications
  • What's Included
  • Demo Videos
  • Reviews
Features
  • Slow-motion instant replay and variable speed playback
  • Intuitive controls for single-operator sports production
  • Simultaneous recording and playback
  • Clip playlist builder for creating highlight reels
  • Integrated color LCD for preview monitoring
  • Capture long events to low cost and widely available SD cards
  • Compact, portable, and reliable hardware design
  • Ideal for school sports, esports, and sports training

Record and Replay at the Same Time
The P-20HD records directly to high-capacity SD cards, which are widely available and easy to swap out. And as you cue up and replay clips, the game keeps recording in the background, with no gaps in the action.

Direct-Access Controls

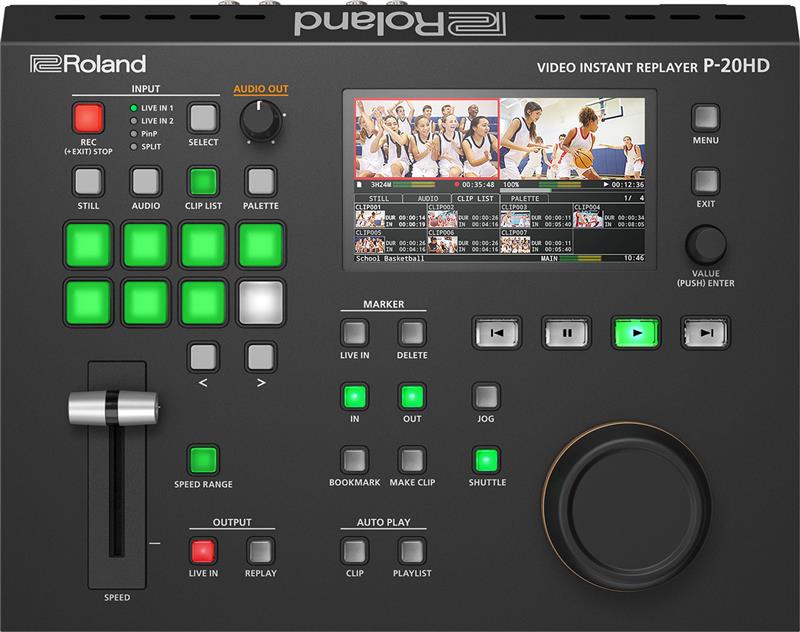

Filled with single-task hardware controls, the P-20HD provides a hands-on experience that lets you get the job done with zero frustration. Dedicated transport buttons include play, pause, forward, rewind, mark in, and mark out. A jog/shuttle wheel with optical encoding provides precise, fluid control to scrub clips for replay and editing, while the T-bar lets you adjust playback speed. Engaging the Speed Range function provides ultra-fine control, perfect for focusing in on tight action and contested plays.

Create Highlight and Training Reels
After the action’s over, use the media playlist builder to aggregate clips into curated pro videos, ready for distribution and sharing on your favorite platform. Celebrate the best moments of a game on social media, or distribute practice and training sessions to coaches and players for further evaluation.

Superb Audio Quality

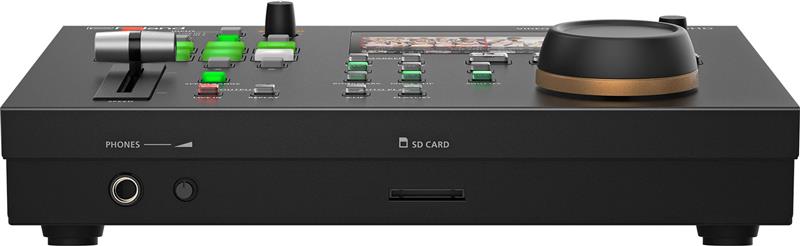

The P-20HD features the high-quality sound processing that Roland is famous for. Stereo audio I/O is supported via embedded HDMI and analog RCA jacks, and there’s a convenient headphones jack for signal monitoring. Onboard EQ, limiter, and delay effects are also available to enhance the sound and eliminate audio and video sync issues.

Universal File Compatibility
The P-20HD records natively in H.264*, one of the most universally supported file formats available. H.264 maintains high quality even at low bit rates, providing excellent video at reduced file sizes. All of the most popular online video platforms accept H.264 format, letting you upload files created on the P-20HD with no conversion steps in-between.
*For maximum recording stability, the P-20HD automatically divides the recording file every three minutes.



APPLICATIONS

School Sports
The P-20HD helps you keeps audiences engaged with modern production values, bringing more interest and support to your athletic programs. And thanks to its intuitive interface, anyone can run the P-20HD with a minimal learning curve. During any game, the operator can instantly replay the last action in forward, reverse, or slow motion, step through plays frame by frame, and even freeze the action at key moments.

Esports
With its integrated recording and instant playback capabilities, the P-20HD is perfect for esports broadcasting and livestreaming. The standalone hardware design provides dedicated processing, conserving computer GPU resources for competitive gameplay.

Coaching and Training
The P-20HD gives coaches and trainers a powerful and efficient solution to build skills, analyze plays, and develop strategy, helping athletes and performers be perfect when it matters most.

VIDEO

  • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit
  • Input Connectors: INPUT 1--2: HDMI type A x 2
    * Multi-format Supported
  • Output Connectors: MAIN: HDMI type A
    * Multi-format Supported
    PREIVEW: HDMI type A
  • Input Formats: 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
    SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz),
    WXGA (1280 x 800/60Hz), FWXGA (1366 x 768/60Hz),
    SXGA (1280 x 1024/60Hz), SXGA+ (1400 x 1050/60Hz),
    UXGA (1600 x 1200/60Hz), Full HD (1920 x 1080/60Hz),
    WUXGA (1920 x 1200/60Hz
    * The refresh rate is the maximum value of each resolution.
    * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
    * 1920 x 1200/60 Hz: Reduced blanking
    * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
  • Output Formats: MAIN: 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
    * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
    PREVIEW:
    1080/59.94p, 1080/50p
    * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
    Still Image:
    Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed. PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color, 8-bits alpha channel. * It can be stored up to 16 files in each Projects.
  • Recording mode: Instant Replay Mode
    file format: MPEG2-TS
    CODEC: H.264 Hight@L.4.1 10Mbps 8bit 4:2:0
    AAC LC 128kbps, 48kHz, 16bit stereo
    recording mode: resolution priority, framerate priority
    * It can be selected at project settings
  • Recording media: SD/SDHC/SDXC card
  • Video Effects: Composition: PinP, SPLIT
    Transition: CUT, MIX, WIPE
    Other: Flip horizontal, Still Image Playback, Test pattern output

AUDIO



  • Audio Processing: Sample rate: 24 bits/48 kHz
  • Audio formats: Linear PCM, 24 bits/48 kHz, 2ch
  • Input Connectors: INPUT 1--2: HDMI Type A x 2
    AUDIO IN: RCA phono type
  • Output Connectors: MAIN OUT: HDMI Type A
    PREVIEW OUT: HDMI Type A
    AUDIO OUT: RCA phono type
    PHONES: Stereo 1/4-inch phone type
  • Input Level: AUDIO IN: -10 dBu (Maximum: +8 dBu)
  • Input Impedance: AUDIO IN: 15 k ohms
  • Output Level: AUDIO OUT: -10 dBu (Maximum: +8 dBu)
    PHONES: 92 mW + 92 mW (32 ohms)
  • Output Impedance: AUDIO OUT: 1 k ohm
    PHONES: 10 ohms
  • Audio Effects: Eq, Delay, Limiter, Test tone output
  • Audio Player: File format: WAV (Linear PCM, 48kHz/48kHz, 16bit, stereo
    * It can be stored up to 16 files in each Projects.

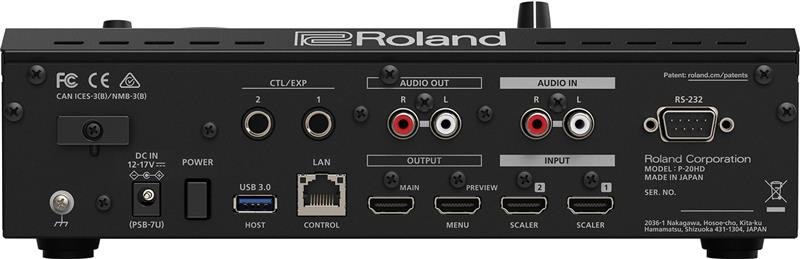

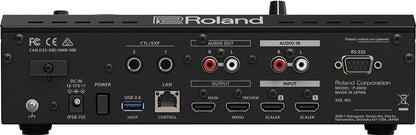

OTHERS



  • Other Connectors: USB HOST port: USB A type (For USB flash drive)
    LAN port: RJ-45, 1000BASE-T (For remote control)
    RS-232 connector: DB-9 type (Male, for remote control)
    CTL/EXP 1, 2: 1/4-inch TRS phone type
    DC IN
  • Other Functions: Panel lock function
    EDID Emulator
  • Display: 4.3 inches TFT Color LCD: 480 x 272 dots
  • Power Supply: AC adaptor
  • Current Draw: 3 A
  • Power Consumption: 36 W
  • Operation Temperature: +0 to +40 degrees Celsius
    +32 to +104 degrees Fahrenheit
  • Dimensions: 265 (W) x 216 (D) x 87 (H) mm
    10-7/16 (W) x 8-9/16 (D) x 3-7/16 (H) inches
  • Weight (excluding AC adaptor): 2.1 kg
    4 lbs 11 oz



  • P-20HD Video Instant Replayer
  • Owner's Manual
  • AC adaptor
  • Power cord
