Regular price $1,650.00 Sale price$1,550.00
/
Free Shipping & Tech Support.

INSTANT SAVINGS of $100.00!!

Videoguys Part # (SKU): V1SDI
MFR Part # (MPN): V-1SDI

Short Description:

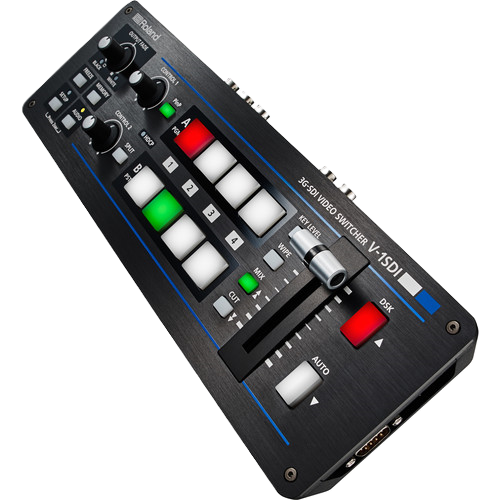

Compact, Portable, 1080p SDI Switcher: Professional SDI Video Switching that you can take anywhere.

  • Free Shipping & Tech Support

Professional SDI Video Switching that you can take anywhere.

V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players.

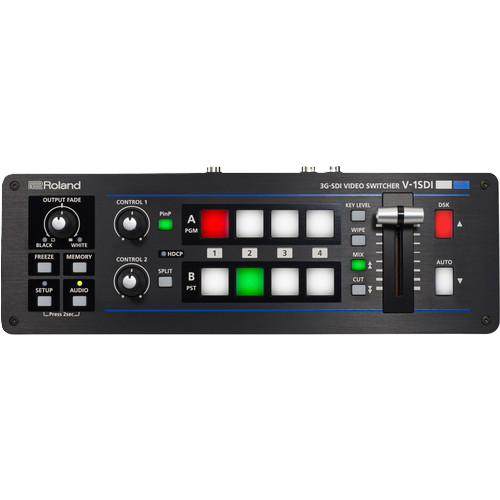

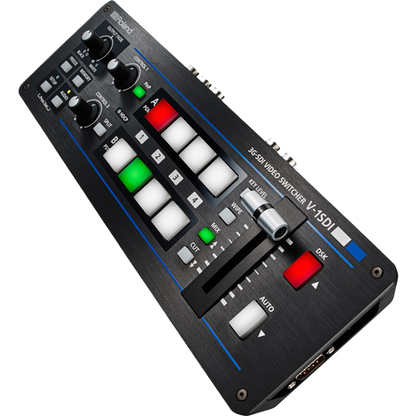

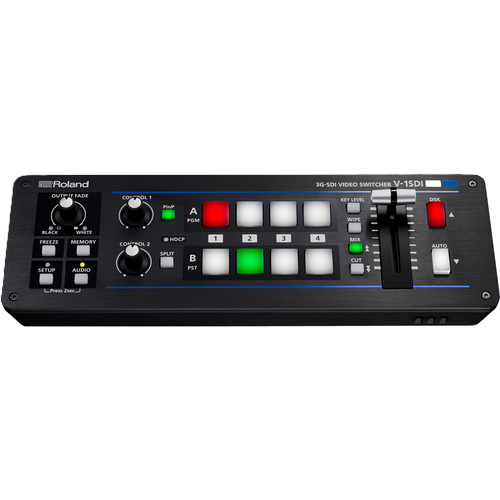

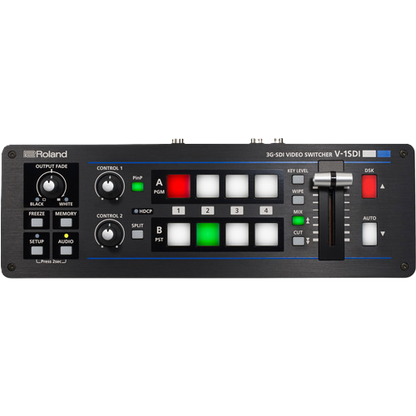

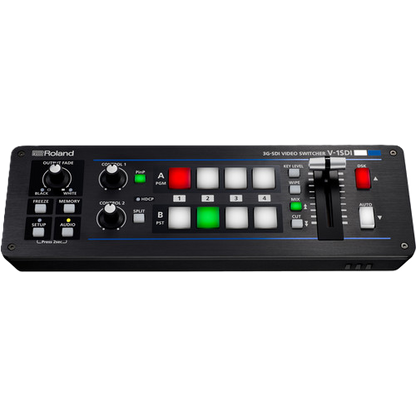

Compact and portable, the V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.

With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.

Main Features

  • 3 x 3G-SDI and 2 x HDMI inputs
  • 2 x 3G-SDI and 1 x HDMI outputs
  • Supports full 1080p
  • Compact with hardware control
  • Multiviewer with audio metering • DSK (downstream keyer)
  • PiP, Split, Quad, and Chromakey effects
  • 14-channel audio mixer
  • Remote software control Mac/PC
  • RS-232 Remote Control

INPUTS

The V-1SDI has two dedicated 3G SDI inputs, a third channel input that supports 3G SDI or HDMI and a fourth channel HDMI input that also includes scaling.

This makes the V-1SDI ideal in a variety of configurations for both an all camera applications and applications that mix cameras, video sources and computer data sources.

Inputs 1 to 3 of the V-1SDI support 1080p/1080i/720p video resolutions with Input 4’s scaler supporting a wider range of video and VESA resolutions. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. HDCP is supported* for input of copy protected content from devices such as Blu-ray disc players.

*Video is only output from HDMI when HDCP is enabled. SDI outputs are disabled when HDCP is enabled.

OUTPUTS

The V-1SDI has two 3G SDI Outputs and one HDMI output. SDI PVW and MULTI-VIEW outputs are assignable from Program, Multi-view Preview or Full Frame Preview for flexibility in different applications where output display devices support either SDI or HDMI inputs.

QUAD INPUT MULTI-VIEWER

The four-way multi-view preview screen shows all four input sources on a single display for confident monitoring. A red border shows the video currently being output and a green one indicates the video to be output next. It also includes audio metering for all input sources and the main output.

COMPOSITION EFFECTS

The V-1SDI includes DSK (Downstream Keying), Picture-in-Picture (PinP), Split and Quad composting effects ideal for creating news style broadcasts and corporate presentation content.


The DSK function is great for overlaying titles, song lyrics or logos onto incoming video sources that can be switched in the background while text or images remain displayed. The DSK supports both Luminance Keying (Black / White) and Chroma Keying (Blue / Green).

AUDIO MIXING

Included is a 14 channel digital audio mixer.

The V-1SDI can mix 5 stereo audio inputs from the SDI or HDMI ports, the stereo line level input and a mic level input.
Every audio input is equipped with a delay function* to synchronize the video and the audio.

Audio follow function enables the audio to transition along with the video.

The final audio mix is both embedded in the SDI and HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device.

*The maximum delay time is 500ms.

REMOTE CONTROL

Remote control is possible with the V-1SDI RCS dedicated computer software for Mac and PC connected via a USB cable.

The application offers a detailed view of the connected V-1SDI and can be used to switch video, mix audio or change settings.

For integration with A/V control systems, the V-1SDI is equipped with a serial connection for control by industry standard RS-232 serial controls.



VIDEO

  • Video Processing: 4:2:2 (Y/Pb/Pr), 8-bit

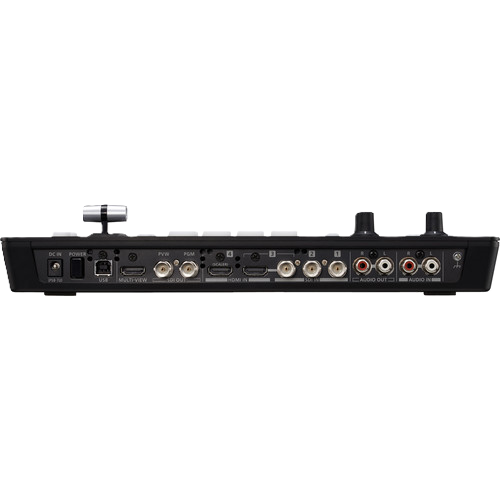

  • Input Connectors
    SDI INPUT 1--3: BNC x 3. Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
    HDMI INPUT 3--4: Type A (19 pins) x 2. HDCP Supported
    INPUT 3: SDI or HDMI selected.

  • Output Connectors
    SDI OUT PGM: BNC x 1
    SDI OUT PVW: BNC x 1. Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
    HDMI OUT MULTI-VIEW: Type A (19 pins) x 1. HDCP Supported

  • Input Formats
    SDI INPUT 1-3 Conforms to SMPTE 296M, SMPTE 274M

    HDMI INPUT 3. 720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
      1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p)
      The input interlaced video signal is converted to progressive video signal by internal processing.
      The video signal frame rate can be selected at the SETUP menu (59.94 or 50).

    HDMI INPUT 4
    480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p

    VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)

    WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)

    FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)

    UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
    * The refresh rate is the maximum value of each resolution.
    * Conforms to VESA DMT Version 1.0 Revision 11.
    * 1920 x 1200/60 Hz: Reduced blanking.
    * The input interlaced video signal is converted to progressive video signal by internal processing.
    * The video signal frame rate can be selected at the SETUP menu (59.94 or 50).

  • Output formats
    SDI OUT(PGM/PVW) Conforms to SMPTE 296M, 274M

    HDMI OUT MULTI-VIEW
    720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
    1080/59.94i, 1080/50i SMPTE 274M(FORMAT switch = 1080i)
    1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080p)
    * The video signal frame rate can be selected at the SETUP menu (59.94 or 50).

  • Video Effects
    Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types)
    Composition: PinP, SPLIT, QUAD, DSK (Luminance Key, Chroma Key)

AUDIO

  • Audio Processing: Sampling rate: 24 bits/48 kHz
  • Audio Formats
    SDI: Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M
    HDMI: Linear PCM, 24 bits/48 kHz, 2ch

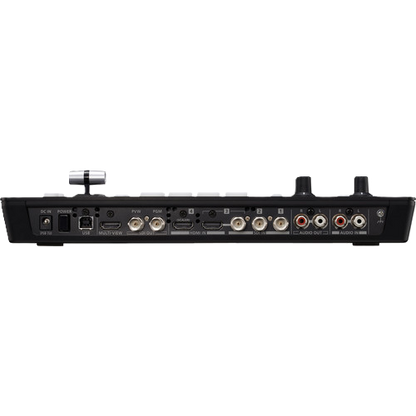

  • Input Connectors
    Digital: SDI INPUT 1--3 (BNC) x 3 SMPTE 299M
    HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2

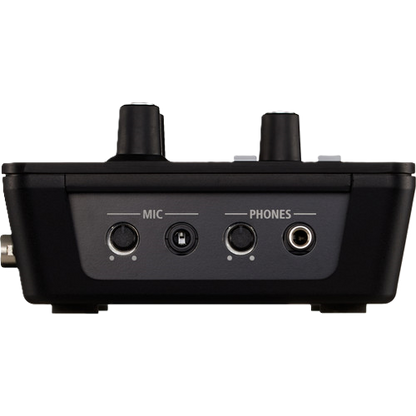

    Analog: AUDIO IN (RCA phono type)

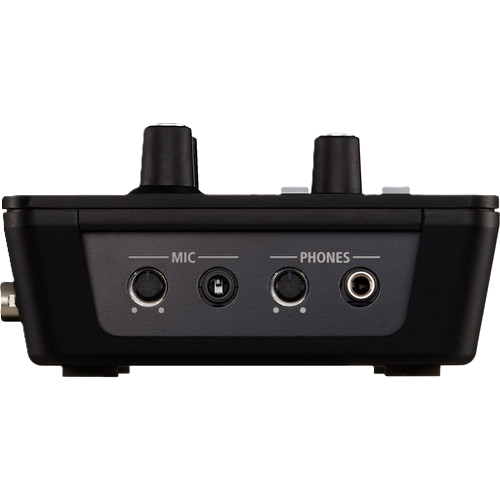

    MIC (Stereo mini type, plug-in power supported)

  • Output Connectors
    Digital: SDI OUT PGM: BNC x 1 SMPTE 299M
    SDI OUT PVW: BNC x 1 SMPTE 299M
    HDMI OUT MULTI-VIEW: Type A (19 pins) x 1

    Analog: AUDIO OUT (RCA phono type)
    PHONES (Stereo mini type)

  • Input Level
    AUDIO IN: -10 dBu (Maximum: +8 dBu)
    MIC: -41-- -13 dBu (Maximum: -1 dBu)

  • Input Impedance
    AUDIO IN: 15 k ohms
    MIC: 10 k ohms

  • Output Level
    AUDIO OUT: -10 dBu (Maximum: +8 dBu)
    PHONES: 92 mW + 92 mW (32 ohms)

  • Output Impedance
    AUDIO OUT: 1 k ohm
    PHONES: 10 ohms

  • Audio Effects
    EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect

OTHERS

  • Other Connectors:
    USB: B Type (for remote control from PC)

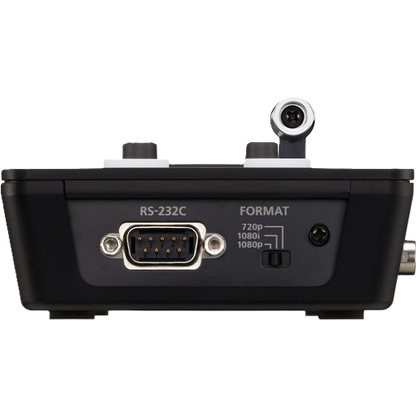

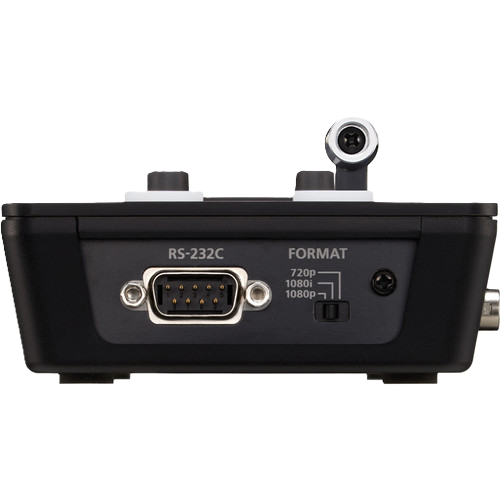

    RS-232: DB-9 type

  • Other Functions
    MEMORY (8 types)
    FREEZE (input video captured)
    OUTPUT FADE (Audio, Video: WHITE or BLACK)

  • Power SupplyAC Adaptor
  • Current Draw2.1 A
  • Power Consumption25 W
  • Operation Temperature: +0 to +40 degrees Celsius, +32 to +104 degrees Fahrenheit
  • Dimensions313 (W) x 108 (D) x 59 (H) mm, 12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inches
  • Weight (excluding AC adaptor)1.2 kg, 2 lbs 10-2/5 oz
  • Accessories
    Owner's manual
    AC adaptor
    Power cord
    Cord hook

  • Roland V-1SDI 3G SDI Switcher
  • Owner's manual
  • AC adaptor
  • Power cord
  • Cord hook
