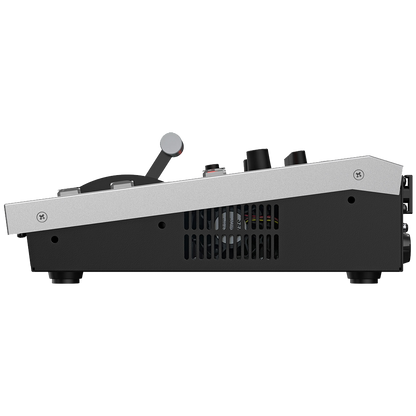

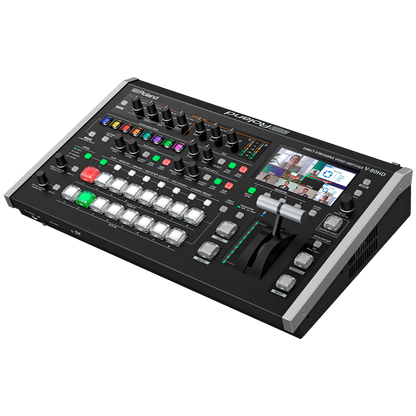

Roland V-80HD Direct Streaming Video Switcher
Roland V-80HD Direct Streaming Video Switcher
Roland V-80HD Direct Streaming Video Switcher
Roland V-80HD Direct Streaming Video Switcher
Roland V-80HD Direct Streaming Video Switcher
Roland V-80HD Direct Streaming Video Switcher
Roland V-80HD Direct Streaming Video Switcher
Roland V-80HD Direct Streaming Video Switcher
Roland V-80HD Direct Streaming Video Switcher

Roland V-80HD Direct Streaming Video Switcher

Regular price$3,195.00
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): V80HD
MFR Part # (MPN): V-80HD

Short Description:
  • Free Shipping & Tech Support

Professional Switching for Live Events, Web Streaming, and Studio Production
Compact and powerful, the V-80HD covers professional video production needs for in-person events, livestreaming, studio productions, and other applications. The all-in-one design is easy to carry and set up, while flexible I/O features support 3G SDI, HDMI, USB 3.0, and LAN (RTMP/SRT) connections. The V-80HD also includes multi-channel audio mixing and effects, integrated control for PTZ cameras, and remote operation with video monitoring via dedicated control apps. And with the companion Graphics Presenter software, you can easily enhance productions with impressive titles, motion graphics, and more.


Multiple Video Inputs
The V-80HD features versatile input connectivity with HDMI for common A/V devices and SDI for long cable runs and high-end cameras. Eight total channels are available, enabling seamless switching for up to four HDMI and four SDI input sources. Two 4K HDMI inputs are equipped with downscalers and the ability to send parallel connections to gaming consoles at eSports events. Additionally, an SRT input can be assigned to a cross-point button together with an SDI and HDMI input.


Versatile Video Outputs and Flexible Routing
With its multiple assignable outputs—including two SDI and three HDMI video outputs, a USB-C streaming output, and LAN (RTMP/SRT)—the V-80HD puts a high-end video matrix at your command. Each output can be assigned to 10 buses, allowing you to feed program displays, auxiliary monitors, multi-view producer displays, and online audiences all at once.


Powerful Video Effects Engine
The V-80HD is filled with tools to elevate presentations with impressive video effects and graphics. The onboard effects engine features five composition layers that include a split-screen effect, two PinP windows with key composition, and one DSK with fill/key composite support. It’s simple to create common layouts, such as a business presentation with an individual speaker, image slides, and a title on a background. PinP and DSK layers can be managed individually on the Program, Sub-Program, and two Aux outputs, providing flexibility for any production need.


Professional Graphics Made Easy
The Graphics Presenter software for Windows allows you to create stunning titles and graphics without the need for expensive third-party graphic presentation solutions. Setup with the V-80HD is quick and straightforward, requiring only a single HDMI connection to send fill and key signals from the computer to the switcher. Graphics Presenter offers an intuitive workflow with a wide selection of ready-to-edit templates, including animated title text, sports scores, motion graphics, and more. The software and templates are available free of charge, and additional content is periodically provided for download on Roland Cloud.


Plug-and-Play Streaming
The V-80HD uses the same connection technology as webcams, providing a plug-and-play streaming experience. Simply connect the USB-C output to a computer or smartphone and start streaming with Zoom, Microsoft Teams, or any platform that can use a webcam as its source. LAN connectivity is also supported, allowing you to stream directly to YouTube, Facebook Live, Twitch, or any RTMP platform without a computer.


Secure AV Transmission with SRT
The V-80HD supports SRT (Secure Reliable Transport), an open-source standard for AVoIP that provides secure encrypted audio and video transmission over IP networks. It also offers future-proof connectivity within installed system configurations. SRT allows you to seamlessly extend your V-80HD production capabilities via LAN or an internet connection. Access camera images from remote locations and switch them along with local HDMI and SDI sources. And send a dedicated SRT video output to an external destination, such as another building at the production location.


SDXC Card Recording
With the V-80HD’s onboard recorder, you can easily capture an event to an SDXC card and provide your client with an H.264 MP4 video file* for their editing and distribution needs. Stereo WAV audio can also be recorded independently for podcasts and other audio-driven media. It’s even possible to capture still images to internal memory from any video output bus and save them to the card for later use.
*The recording bitrate is the same as the livestream encoding bitrate.


PTZ Camera Support
Robotic PTZ (pan-tilt-zoom) cameras greatly expand production capabilities, offering extended coverage with studio-grade broadcast quality. And thanks to their small size, they can be placed in discreet locations where larger cameras aren’t practical. The V-80HD includes built-in control support for select Canon, JVC, Panasonic, Sony, PTZOptics, Avonic, and VISCA-compatible PTZ LAN cameras. Mix and match different brands and operate up to eight PTZ cameras simultaneously. The V-80HD Remote iPad App is an ideal companion for PTZ operation, providing remote camera controls and video monitoring from the tablet.


Rapid Workflow with Scenes and Macros
Storing and recalling custom looks can be accomplished with just a few button presses on the V-80HD. The 32 scene memories and powerful effects engine work together to provide seamless scene changes, including synchronizing the transition of all composition layers at the program output. The 100 macros go even deeper, allowing you to build and fire off complex action lists that include switching, DSK on/off, audio mixing adjustments, PTZ camera movements, and much more. Our free remote control software for macOS, Windows, and iPad further enhances this workflow, providing a large graphical interface for setting up and previewing actions before you take them live


Sequencing Magic
The V-80HD’s sequencer makes scenes and macros even more powerful, allowing a single operator to execute perfectly timed cues with ease. You can record up to 1000 steps, and each step can include both scenes and macros. Streamline your productions by setting up cues ahead of time in the sequence list and triggering them in order using the Next button on the panel.


Professional Audio Mixing and Effects
The V-80HD features 28 channels of audio mixing plus a wide selection of processing tools, I/O routing options, and automation features. Enhance sounds with ready-to-use effects, including high-quality vocal processing and a useful Loudness Auto Gain Control function to manage levels while streaming. With the onboard Audio Player, it’s simple to integrate dedicated music and sound effects into every production. Three output buses are available, ready to support complex routing needs for streaming events and studio recording configurations.


Customizable Control Pads
Eight user-assignable pads give you quick control of many V-80HD functions. The pads are organized into eight banks, providing direct access to 64 different operations. Call up scenes, macros, and sequencer steps, trigger audio and video clips, start/stop streams, and more. It’s even possible to control functions in the Graphics Presenter software when the host computer is connected to the V-80HD via USB.


Deep Remote-Control Options

  • The V-80HD supports extended workflows with dedicated software apps and a variety of remote devices.
  • The free V-80HD Remote app for iPad supports wireless connectivity, allowing you to operate functions at events via a portable touch interface.
  • Use the free V-80HD Remote Control Software to operate the switcher from a large display on a Mac or Windows computer.
  • Connect a USB numeric keypad to control video transitions and other functions.
  • Connect footswitches or expression pedals to execute over 100 different switcher commands.
  • Trigger start/stop on select third-party recorders over HDMI.
  • Seamlessly integrate with system installations via the RS-232 and TALLY/GPIO D-Sub connectors.


V-80HD iPad Remote Control Utility
The dedicated V-80HD Remote app turns an iPad into an efficient touch interface for the V-80HD, with versatile connectivity via USB, Bluetooth, or a wireless LAN (Wi-Fi) connection. Run essential switching functions, mix audio with virtual faders, quickly change settings and parameters, and create scenes for fast and efficient setup changes. It’s also possible to monitor video and control switching functions from the app with the latest iPad models and a USB connection.*
*Program, Aux, PinP, and DSK can be monitored and switched. Requires a 3rd generation iPad Pro/5th generation iPad Air or later with USB-C (USB 3.0) and iPadOS 17 or later.


V-80HD RCS for macOS and Windows
Use the V-80HD RCS application for macOS and Windows to control nearly all V-80HD functions remotely from your computer via USB, RS-232, wired LAN, or wireless LAN (Wi-Fi) connections. The V-80HD RCS can run at the same time as your streaming software over USB, allowing you to manage all video and audio switching from your computer screen, including some operations that are unavailable from the V-80HD panel.

VIDEO
Video Processing
4:2:2 (Y/Pb/Pr), 8-bit
Number of Video Channels
8 channels
Video Input Formats
HDMI IN 1--4
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
2160/59.94p, 2160/60p, 2160/29.97p, 2160/30p *1, *3
2160/50p, 2160/25p *2, *3
2160/23.98p, 2160/24p *3
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The input refresh rates of SVGA (800 x 600)--SXGA+ (1400 x 1050) are 75 Hz when the unit's frame rate setting is 50 Hz.
* HDMI IN 1 support Roland FILL+KEY signal
*1 Frame Rate = 59.94 Hz, 60 Hz
*2 Frame Rate = 50 Hz
*3 Only for HDMI IN 3, 4
SDI IN 1--4
720/59.94p *1, *3
720/50p *1, *4
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 System Format = 720p
*2 System Format = 1080i or 1080p
*3 Frame Rate = 29.97 Hz, 30 Hz, 59.94 Hz, 60 Hz
*4 Frame Rate = 25 Hz, 50 Hz
Video Output Formats
HDMI OUT 1--3, SDI OUT 1--2:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *8
1080/59.94i *2, *4
1080/60i *2, *5
1080/50i *2, *8
1080/59.94p *3, *4
1080/60p *3, *5
1080/29.97p *3, *6
1080/30p *3, *7
1080/50p *3, *8
1080/25p *3, *9
1080/23.98p *3, *10
1080/24p *3, *11
*1 System Format = 720p
*2 System Format = 1080i
*3 System Format = 1080p
*4 Frame Rate = 59.94 Hz
*5 Frame Rate = 60 Hz
*6 Frame Rate = 29.97 Hz
*7 Frame Rate = 30 Hz
*8 Frame Rate = 50 Hz
*9 Frame Rate = 25 Hz
*10 Frame Rate = 23.98 Hz
*11 Frame Rate = 24 Hz
USB STREAM:
1080/59.94p, 720/59.94p, 640 x 480/59.94p *1
1080/60p, 720/60p, 640 x 480/60p *2
1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
1080/30p, 720/30p, 640 x 480/30p *4
1080/50p, 720/50p, 640 x 480/50p *5
1080/25p, 720/25p、640 x 480/25p *6
1080/23.98p, 720/23.98p、640 x 480/23.98p *7
1080/24p, 720/24p、640 x 480/24p *8
* Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
*1 Frame Rate(USB Out) = 59.94 Hz
*2 Frame Rate(USB Out) = 60 Hz
*3 Frame Rate(USB Out) = 29.97 Hz
*4 Frame Rate(USB Out) = 30 Hz
*5 Frame Rate(USB Out) = 50 Hz
*6 Frame Rate(USB Out) = 25 Hz
*7 Frame Rate(USB Out) = 23.98 Hz
*8 Frame Rate(USB Out) = 24 Hz
DIRECT STREAM:
720/59.94p *1, *3
720/60p *1, *4
720/29.97p *1, *5
720/30p *1, *6
720/50p *1, *7
720/25p *1, *8
1080/59.94p *2, *3
1080/60p *2, *4
1080/29.97p *2, *5
1080/30p *2, *6
1080/50p *2, *7
1080/25p *2, *8
1080/23.98p *2, *9
1080/24p *2, *10
*1 System Format = 720p
*2 System Format = 1080p
*3 Frame Rate (Stream&Record) = 59.94 Hz
*4 Frame Rate (Stream&Record) = 60 Hz
*5 Frame Rate (Stream&Record) = 29.97 Hz
*6 Frame Rate (Stream&Record) = 30 Hz
*7 Frame Rate (Stream&Record) = 50 Hz
*8 Frame Rate (Stream&Record) = 25 Hz
*9 Frame Rate (Stream&Record) = 23.98 Hz
*10 Frame Rate (Stream&Record) = 24 Hz
Stream and Record formats
Audio Video
Protocols: RTMP, RTMPS, SRT (Caller, Listener)
Container: FLV (RTMP, RTMPS), MPEG2-TS (SRT)
Recording File Format: MP4
Codec:
H.264, target bitrate up to 20,000 kbps
AAC-LC, 16 bits, 48 kHz, stereo, target bitrate up to 384 kbps
* When the format of either Stream & Record or Video Player/SRT In exceeds 1080/30p, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
* When the sum of the bitrate for Stream & Record and Video Player/SRT In exceeds 20,000 kbps, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
Audio
Recording File Format: WAV
Codec:
Linear PCM, 16 bits, 48 kHz, stereo
Video Player
Video Player
File Format: MP4
Codec:
H.264, Average bit rate of 20,000 kbps or less, up to 1080/60p
AAC-LC, 16 bits, 48 kHz, stereo
SRT In
Protocol: SRT (Caller, Listener)
Container: MPEG2-TS
Codec:
H.264, Average bit rate of 20,000 kbps or less, up to 1080/60p
AAC-LC, 16 bits, 48 kHz, stereo
* When the format of either Stream & Record or Video Player/SRT In exceeds 1080/30p, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
* When the sum of the bitrate for Stream & Record and Video Player/SRT In exceeds 20,000 kbps, the Stream & Record and Video Player/SRT In functions cannot be used simultaneously.
Still Image
Bitmap File (.bmp) Up to 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Up to 1920 x 1080 pixels, 24-bit color
JPEG File (.jpg, .jpeg) Up to 1920 x 1080 pixels, 24-bit color
* It can be stored up to 32 files in the internal memory.
* It can be exported to the SD Card and USB flash drive.
* PNG alpha channel supported.
Video Effects
Transition
Cut, Mix (Dissolve/FAM/NAM), WIPE (8 types), SPLIT (2 types)
Composition: PinP x 2 (Square, Circle, Diamond), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key, Alpha Key, External Key), Roland FILL+KEY Mode
Other: Multi-View (3 types), Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade (Audio, Video: White or Black), Test pattern output, Stream Delay



AUDIO
Audio Processing
Sample rate: 24 bits, 48 kHz
Number of Audio Channels
28 channels
Audio Formats
USB STREAM (input/output): Linear PCM, 16 bits, 48 kHz, 2 ch
Bluetooth (input): Linear PCM, 16 bits, 48 kHz, 2 ch
HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch
HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch
SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M)
Audio Player
File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo)
* It can be stored up to 64 tracks in the internal memory.
Audio Effects
Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing
Master Effects: Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay
Other: Output fade, Test tone output



COMMON SECTION
Recording Media
SDHC/SDXC card (commercially available)
USB flash drive (commercially available)
* SDXC card is required for video recording.
Other Functions
Scene Memory (32 types)
Macro Control (100 types)
Sequencer Control (1,000 steps)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
Smart Tally
Remote Camera Control (Up to 8 units)
External Rec Control
Menu language (English, Japanese, Simplified Chinese)

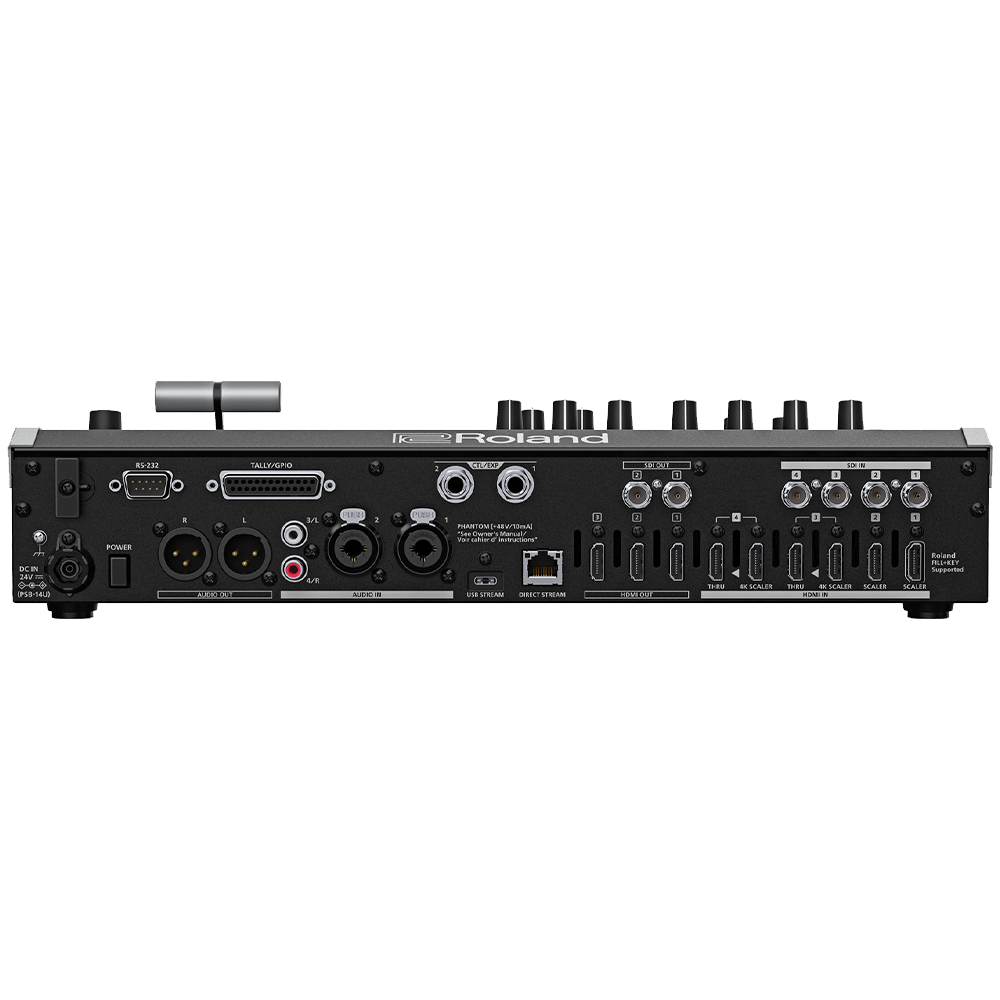

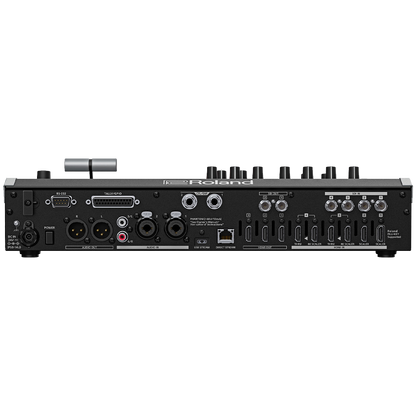

CONNECTORS
Video Input Connectors
HDMI IN 1--4: HDMI type A x 4
* HDCP Supported
* Multi-format Supported
SDI IN 1--4: BNC type x 4
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
Video Output Connectors
HDMI OUT 1--3: HDMI type A x 3
* HDCP Supported
HDMI IN 3--4 THRU: HDMI type A x 2
* HDCP Supported
SDI OUT 1--3: BNC type x 2
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
•USB STREAM: USB Type-C (R)
Audio Input Connectors
Analog:
AUDIO IN 1--2: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 10 mA (maximum load)
AUDIO IN 3/L, 4/R: RCA phono type
Digital:
USB STREAM: USB Type-C (R)
Bluetooth
HDMI IN 1--4: HDMI type A x 4
SDI IN 1--4: BNC type x 4
Audio Output Connectors
Analog:
AUDIO OUT 1--2: XLR type
PHONES: Stereo 1/4-inch phone type
Digital:
USB STREAM: USB Type-C (R)
Bluetooth
HDMI OUT 1--3: HDMI type A x 3
HDMI IN 3--4 THRU: HDMI type A x 2
SDI OUT 1--2: BNC type x 2
Other Connectors
USB HOST: USB A type (for USB flash drive, for remote control from USB numeric keypad)
USB STREAM: USB Type-C (R) (for remote control from PC and iPad, Graphics Presenter)
Bluetooth: for remote control from iPad
CTL/EXP 1, 2:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)
TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8)
RS-232: DB-9 type (Male) (for Remote Control)
DIRECT STREAM: RJ45, 1000BASE-T (for Live Streaming, SRT In/Out and Remote Control)



AUDIO INPUT/OUTPUT CHARACTERISTICS
Input Level
AUDIO IN 1, 2: -64--+4 dBu (Maximum: +24 dBu)
AUDIO IN 3/L, 4/R: -10 dBu (Maximum: +10 dBu)
Input Impedance
AUDIO IN 1, 2: 8.4 k ohms
AUDIO IN 3/L, 4/R: 10 k ohms
Output Level
AUDIO OUT 1, 2: +4 dBu (Maximum: +24 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
AUDIO OUT 1, 2: 600 ohms
PHONES: 33 ohms



OTHERS
Bluetooth
Ver 5.0
Profile Support: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy)
Codec: SBC (Support to the content protection of the SCMS-T method)
Display
4.3 inches TFT Color LCD: 480 x 272 dots
Power Supply
AC adaptor
Current Draw
2.1 A
Power Consumption
51 W
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
396 (W) x 254 (D) x 103 (H) mm
15-5/8 (W) x 10 (D) x 4-1/16 (H) inches
Weight (excluding AC adaptor)
3.5 kg
7 lbs 12 oz
Accessories
Startup Guide
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Options (sold separately)
Footswitch: BOSS FS-5U, FS-6, FS-7
Expression Pedal: EV-5, EV-30, BOSS FV-500L, FV-500H

  • V-80HD
  • Startup Guide
  • Leaflet “USING THE UNIT SAFELY”
  • AC adaptor
  • Power cord


Recently viewed
