The XS-62S is a compact 1U rack mount, compact 6-channel video switcher with audio mixer and PTZ camera control capabilities for both permanent installs and on-site events.

  • Free Shipping & Tech Support

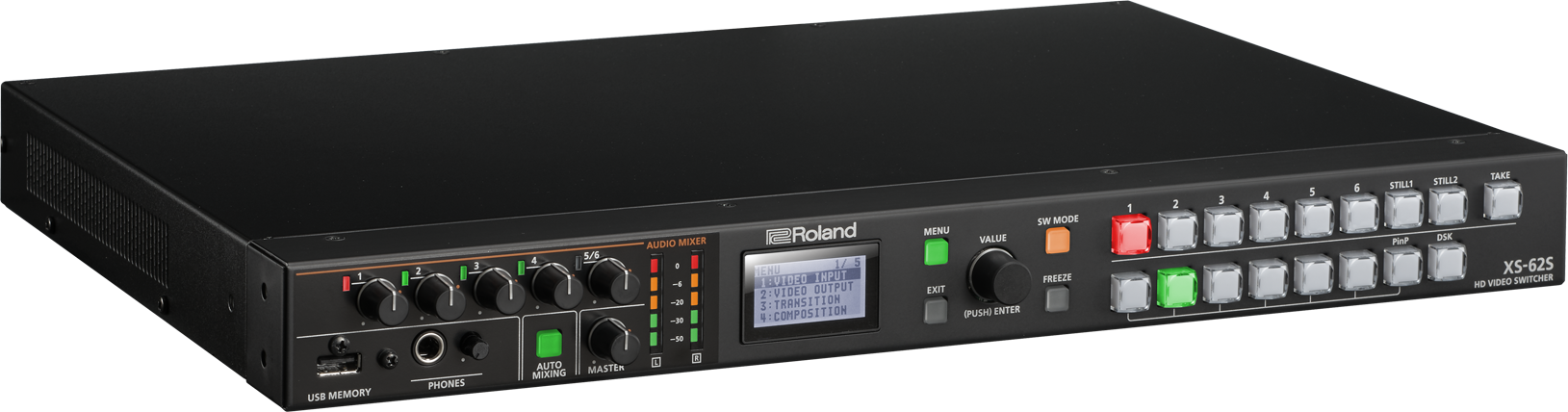

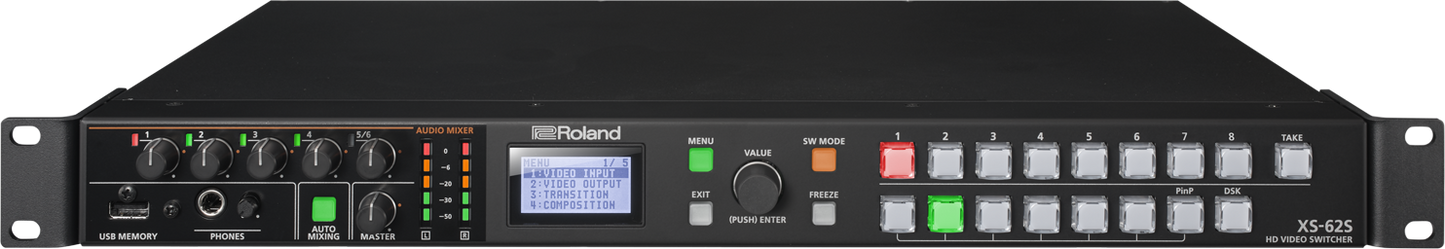

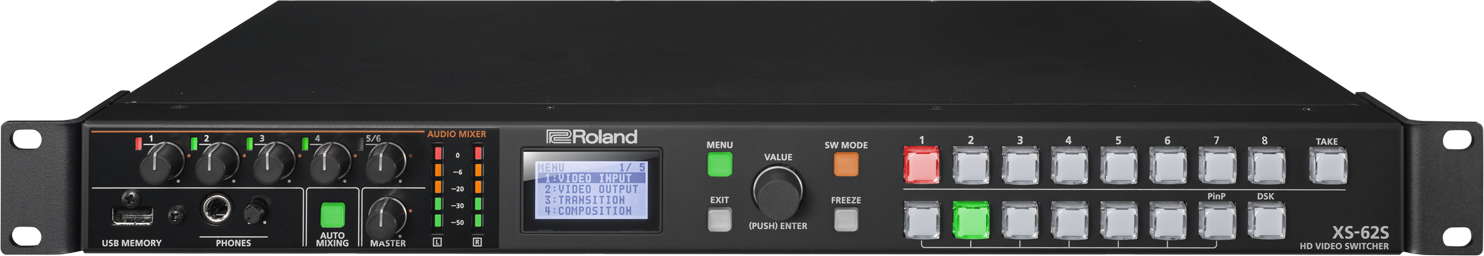

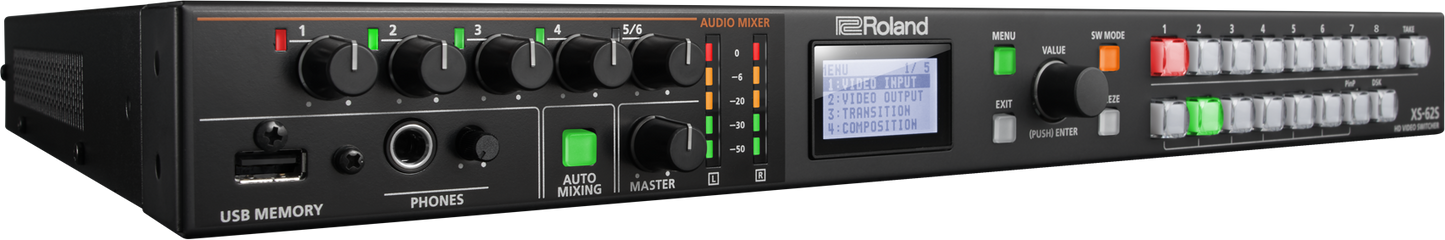

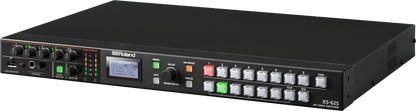

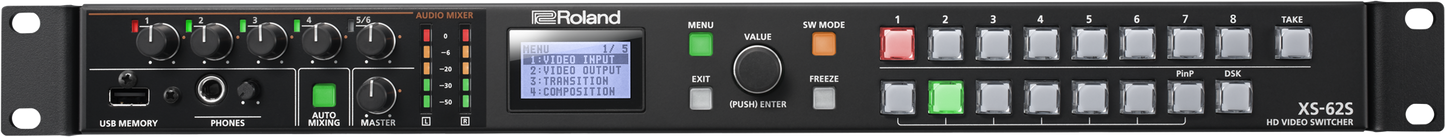

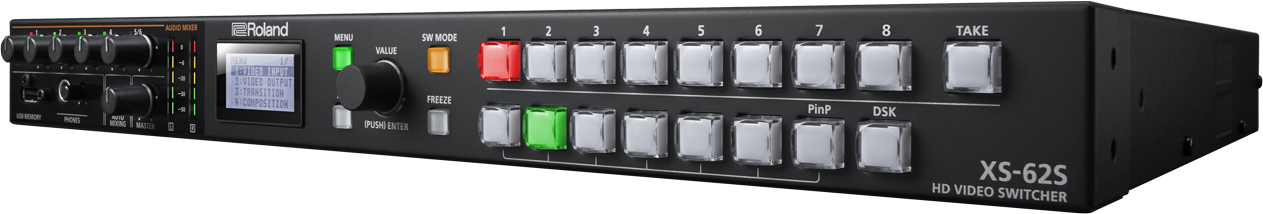

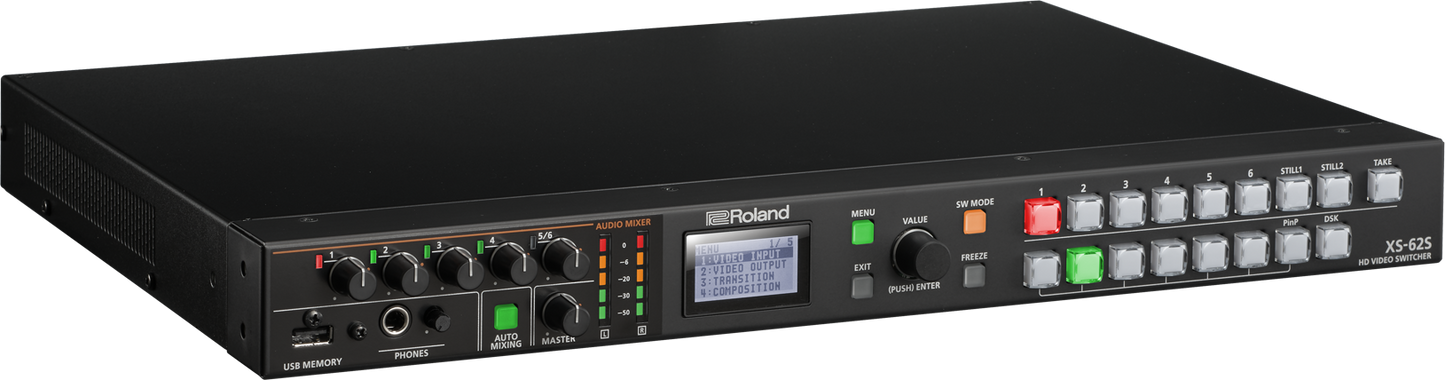

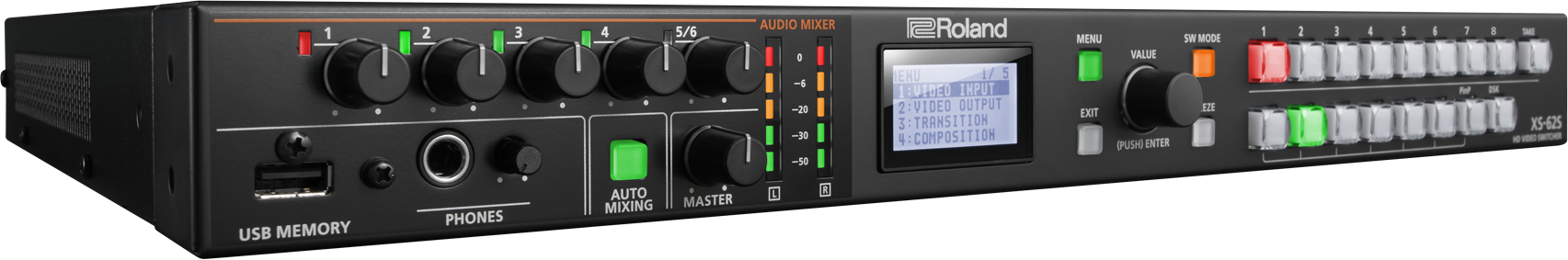

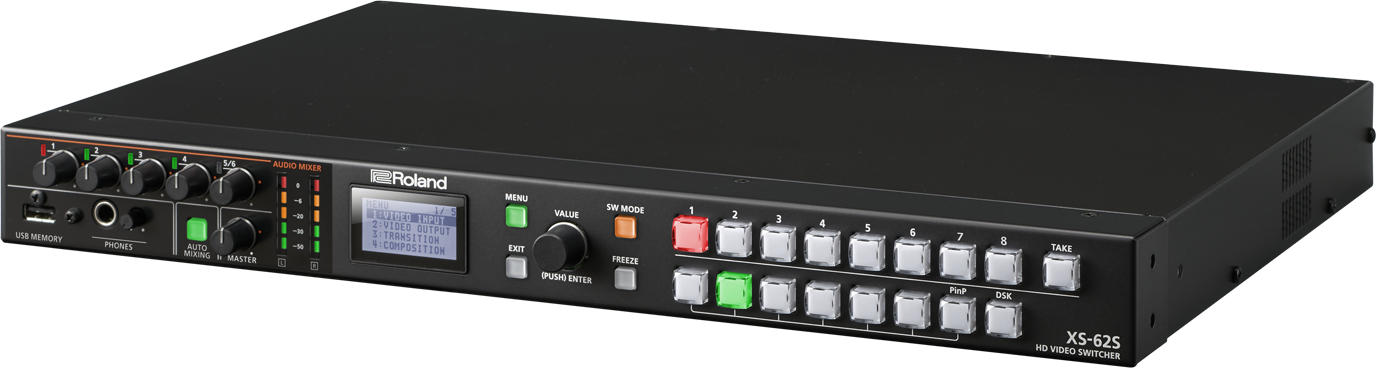

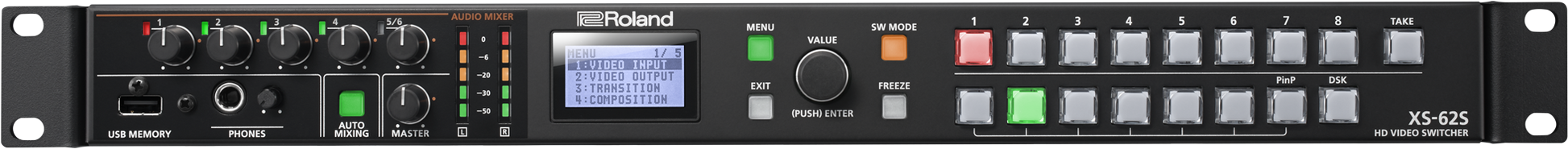

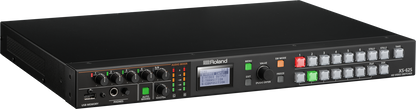

RACKMOUNT SWITCHER FOR LIVE PRODUCTION AND FIXED INSTALLATIONS WITH PTZ CAMERA CONTROL

The XS-62S is a compact 1U rack mount, compact 6-channel video switcher with audio mixer and PTZ camera control capabilities for both permanent installs and on-site events. This powerful, integrated solution supports a wide range of applications including presentation and performance and special event venues, corporate AV conferences, classrooms for e-learning and more. The XS-62S is a great space saving unit that is easy to control from the front panel buttons and menu screen, or from a PC or Mac using realtime remote control software (RCS).

APPLICATIONS

Live Production Studio

Content creation is a challenge for many companies looking to more efficiently produce product presentations, town hall meetings, and trainings. The XS-62S makes it easy to create content with an all-in-one switching and audio mixing system that streamlines the production process.

The XS-62S is easy to use from either the front panel controls or remote control software from a PC or Mac. Programmable presets allow one-touch recall of preset camera positions and angles, and the audio auto mixer takes care of audio mixing in the background, so the operator can focus on switching video. The XS-62S is the perfect size for installation into small spaces and portable enough to be used in multiple areas of a corporate office or other facility.

Performance Venue / Church

XS-62S is the ideal solution for hotel meeting rooms and banquet halls, houses of worship and live performance venues. The XS-62S Matrix Mode makes it easy to send different content to 2 to 3 screen destinations, from a single switcher all while mixing program audio and controlling PTZ remote cameras.

PGM / PST Mode works as a traditional switcher complete with cross-dissolve switching and Aux bus delegation for sending different video to a secondary destination such as a presenter’s confidence monitor or additional presentation screens.

Performance venues will benefit greatly from the built-in auto mixing function. The auto-mixing function automatically balances incoming audio sources such as microphones from a discussion panel, making it easy for the operator. The XS-62S’s audio processing also includes advanced effects such as EQ, dynamics and delay for mixing of vocal speech along with music and other audio embedded in video sources. These effects will provide improved sound quality for streaming applications, recording and sound reinforcement.

Live Streaming and Video Conference

The XS-62S is also suitable for live streaming and web conferencing systems. In this type of application, you could be using multiple PTZ cameras and PCs. With the XS-62S this can easily be operated by a small team or even a single person. PTZ camera control eliminates the need for individual camera operators, since everything can be controlled from the XS-62S while video is being switched by the same operator. The XS-62S’s audio capabilities make it easy to connect 4 microphones, mixing audio from computers and other video sources.

*In order to do Live streaming with the XS-62S, will need to add an encoder device with an SDI or HDMI input, from a 3rd. party supplier.

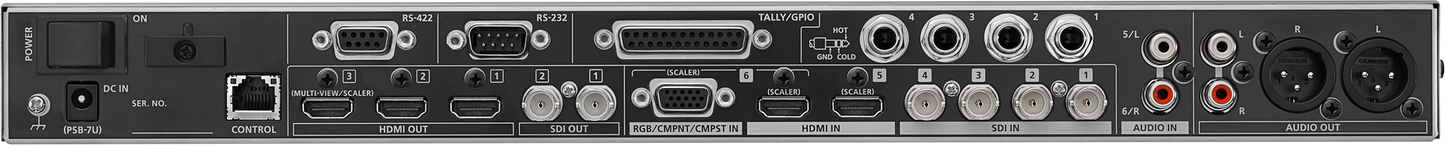

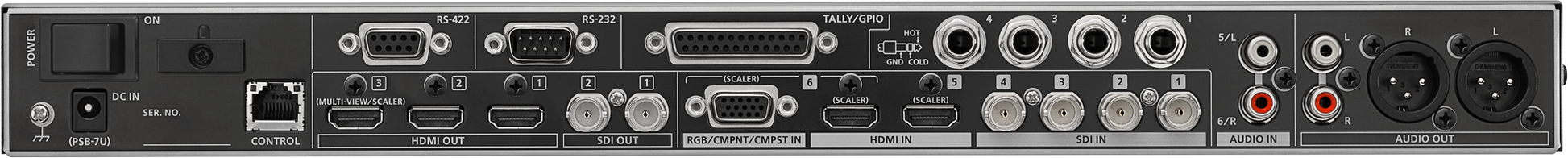

The XS-62S video switcher can seamlessly switch 6 inputs including 3G-SDI, HDMI and Analog (RGB, Component and Composite) sources along with 2 still images stored in internal memory. Three video switching modes can be selected, allowing a wide range of applications from the XS-62S.

  • 14 SDI Inputs (with de-interlacer)
  • 22 HDMI Inputs (scaled)
  • 3RGB/COMPONENT/COMPOSITE input (Scaled) - Shared with HDMI input 6
  • 42 SDI Outputs â€’ Assignable to PGM, PVW, AUX
  • 52 HDMI Outputs â€’ Assignable to PGM, PVW, AUX
  • 61 HDMI Output (scaled / Multi-view) – Multi-view or scaled output
  • 7TALLY/GPIO
  • 8RS-232 â€’ Remote control
  • 9RS-422 â€’ PTZ Control (VISCA) * coming Q2 2018
  • 10LAN â€’ Remote control and Smart Tally

VIDEO

Video Processing  4:2:2 (Y/Pb/Pr), 8-bit

Input Connectors  SDI IN 1--4: BNC type x 4
                             * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M

                              HDMI IN 5--6: HDMI type A x 2
                              * HDCP Supported
                              * Multi-format Supported

                             RGB/COMPONENT/COMPOSITE IN 6: HD DB-15 type x 1
                             * Select either HDMI or RGB/COMPONENT or COMPOSITE for the INPUT 6 connector.
                             * Multi-format Supported

Output Connectors   SDI OUT 1--2: BNC type x 2
                                  * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M

                                  HDMI OUT 1--3: HDMI type A x 3
                                  * HDCP Supported

Analog Input Level, Impedance  RGB: 0.7Vp-p, 75ohms (H, V:5VTTL)
                                                    COMPONENT: 1.0Vp-p, 75ohms(Bi-level sync/Tri-level sync)
                                                    COMPOSITE: 1.0Vp-p (Y), 0.286Vp-p (C: NTSC), 0.3Vp-p (C: PAL), 75ohms

Input formats  SDI IN 1--4: Conforms to SMPTE 296M, SMPTE 274M
                                            720/59.94p, 720/50p(SYSTEM FORMAT = 720p)
                                            1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p(SYSTEM FORMAT = 1080i or 1080p)
                                             * The input interlaced video signal is converted to progressive video signal by internal processing.
                                             * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).

                                            HDMI IN 5--6, RGB/COMPONENT/COMPOSITE IN 6:
                                            480/59.94i, 576/50i, 480/59.94p, 576/50p,
                                            720/59.94p, 720/50p, 1080/59.94i, 1080/50i,
                                            1080/59.94p, 1080/50p,
                                            VGA (640 x 480, 60 Hz), SVGA (800 x 600, 60 Hz), XGA (1024 x 768, 60 Hz),
                                           WXGA (1280 x 800, 60 Hz), SXGA (1280 x 1024, 60 Hz),
                                           FWXGA (1366 x 768, 60 Hz), SXGA+ (1400 x 1050, 60 Hz),
                                           UXGA (1600 x 1200, 60 Hz), WUXGA (1920 x 1200, 60 Hz)
                                           * The refresh rate is the maximum value of each resolution.
                                           * Conforms to VESA DMT Version 1.0 Revision 11.
                                           * 1920 x 1200, 60 Hz: Reduced blanking
                                           * The input interlaced video signal is converted to progressive video signal by internal processing.
                                           * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).

Still Image  Bitmap File (.bmp)
                    * Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
                    * It can be stored up to 2 files in the internal memory.

Output formats  SDI OUT 1--2: Conforms to SMPTE 296M, 274M
                          HDMI OUT 1--2:
                          720/59.94p, 720/50p (System Format = 720p)
                          1080/59.94i, 1080/50i (System Format = 1080i)
                          1080/59.94p, 1080/50p (System Format = 1080p)
                          * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).

                          HDMI OUT 3 (MULTI-VIEW): 1080/59.94p, 1080/50p
                          HDMI OUT 3 (SCALER): 480/59.94p, 576/50p,
                          720/59.94p, 720/50p, 1080/59.94p, 1080/50p,
                          SVGA (800 x 600, 60 Hz)(*1), XGA (1024 x 768, 60 Hz)(*1),
                          WXGA (1280 x 800, 60 Hz)(*1), SXGA (1280 x 1024, 60 Hz)(*1),
                          FWXGA (1366 x 768, 60 Hz)(*1), SXGA+ (1400 x 1050, 60 Hz)(*1),
                          UXGA (1600 x 1200, 60 Hz), WUXGA (1920 x 1200, 60 Hz)
                           * Select either MULTI-VIEW or SCALER for the HDMI OUT 3 connector.
                           * The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
                           * 1920 x 1200, 60 Hz: Reduced blanking
                             (*1) Output refresh rate is 75 Hz when frame rate is set to 50Hz.

Video Effects  Output Mode: PGM-PST, DISSOLVE, MATRIX
                       Transition: CUT, MIX (DISSOLVE/FAM/NAM)(*1), WIPE (30 types)(*1)
                       Composition: PinP (SQUARE, CIRCLE, HEART, DIAMOND)(*1), SPLIT (4 types)(*1), DSK (Luminance Key, Chroma Key)(*1)
                       Other: Flip horizontal, Still Image Capture, Still Image Playback, Test pattern output, Input Freeze
                       (*1) These effects depend on Output Mode

AUDIO

Audio Processing  Sampling rate: 24 bits/48 kHz

Audio formats  SDI IN: Linear PCM, 24 bits/48 kHz, 2 ch (Conforms to SMPTE 299M)
                        SDI OUT: Linear PCM, 24 bits/48 kHz, 8 ch (Conforms to SMPTE 299M)
                        HDMI IN, HDMI OUT: Linear PCM, 24 bits/48 kHz, 2 ch

Input Connectors  SDI IN 1--4: BNC type x 4
                              HDMI IN 5--6: HDMI Type A x 2
                              AUDIO IN 1--4: 1/4-inch TRS phone type
                              AUDIO IN 5--6: RCA phono type

Output Connectors  SDI OUT 1--2: BNC type x 2
                                HDMI OUT 1--3: HDMI type A x 3
                                AUDIO OUT: XLR type, RCA phono type
                                PHONES: Stereo 1/4-inch phone type

Input Level  AUDIO IN 1--4: -60--+4 dBu (Maximum input level: +22 dBu)
                    AUDIO IN 5--6: -10 dBu (Maximum input level: +8 dBu)

Input Impedance  AUDIO IN 1--4: 28 k ohms (HEAD AMP GAIN: 0--+23 dBu), 5 k ohms (HEAD AMP GAIN: +24--+64 dBu)
                             AUDIO IN 5--6: 15 k ohms

Output Level  AUDIO OUT: +4 dBu (XLR type, Maximum input level: +22 dBu), -10 dBu (RCA phono type, Maximum input level: +8 dBu)
                      PHONES: 92 mW + 92 mW (32 ohms)

Output Impedance  AUDIO OUT: 600 ohms (XLR type), 1 k ohm (RCA phono type)
                                PHONES: 10 ohms

Audio Effects  Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Reverb, Multi-Band Compressor, Limiter

OTHERS

Other Connectors  USB MEMORY port (for USB flash drive): USB A type
                               TALLY/GPIO: DB-25 type (Female)
                               RS-232: DB-9 type (Male, for remote control)
                               RS-422: DB-9 type (Female, for VISCA control)
                               CONTROL: RJ45, 100BASE-TX (For remote control)

Other Functions  Preset Memory (8 types)
                            Panel Lock Function
                            EDID Emulator
                            Smart Tally
                            Remote Camera Control

Display  Graphic LCD 128 x 64 dots

Power Supply  AC Adaptor

Current Draw  2.6 A

Power Consumption  31.0 W

Operation Temperature  +0 to +40 degrees Celsius
                                       +32 to +104 degrees Fahrenheit

Dimensions  481 (W) x 333 (D) x 44 (H) mm
                     18-15/16 (W) x 13-1/8 (D) x 1-3/4 (H) inches

Weight (excluding AC adaptor)  3.6 kg
                                                   7 lbs 15 oz

Accessories  Owner's manual
                      AC adaptor
                      Power cord
                     Rubber Foot x 4

Owner's manual AC adaptor Power cord Rubber Foot x 4
