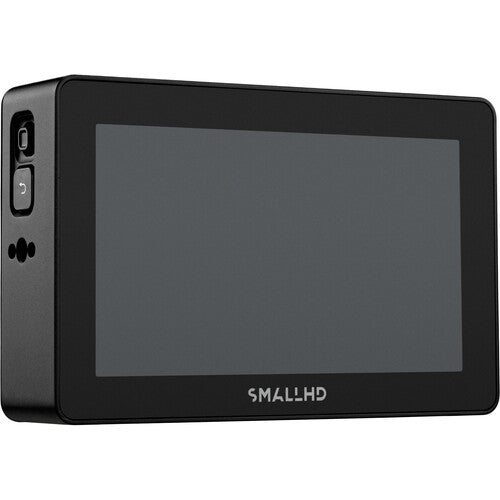

SmallHD CINE 5

Field-ready, 5-inch monitor with 2000nits of brightness and joystick control.

SmallHD CINE 5 is lightweight, compact, and offers 2000nits brightness for full visibility even in direct sunlight. Optional camera-control functionality (software license and cable sold separately) allows users to start, stop, record, and more from the convenience of their Cine 5. Experience all your favorite PageOS 5 tools, functions, and settings pages on this field-ready 5-inch monitor.

1080p resolution ensures a clear look at your production, while 10-bit color processing offers excellent color accuracy. The added joystick and back button allow you to use this smart monitor in nearly all conditions, even on cold days when taking off your gloves is not an option.

Cine 5 is designed for high-end camera use – with bright imagery, optional Camera Control, and 2-pin locking power input – making it ideal for First ACs, Camera Operators, and DPs.

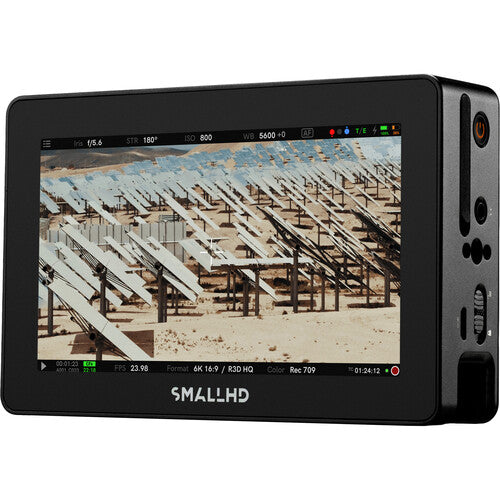

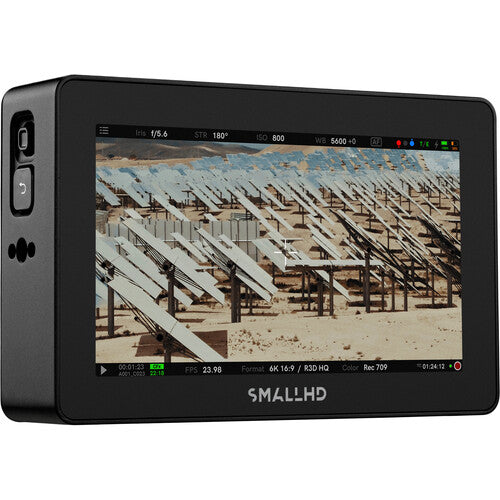

Camera Control for RED, DSMC2, & RCP2

Transform your touchscreen into the central command hub of your camera. SmallHD CINE 5's proprietary software enables unfettered access to RED DSMC2, KOMODO, and V-RAPTOR camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Additional Camera Control compatibility coming soon.

Environmental

Mount Point: 6x 1/4-20 Mounting Points

Display

Panel Type: Touch-Screen

Resolution: 1920 x 1080

Aspect Ratio: 16:9

Brightness: 2000nits

Backlight Type: Edgelit

Input Signal

3G-SDI Input Types: 1x 3G-SDI

Output Signal

HDMI Output Types: 1x HDMI 2.0 (4Kp30)

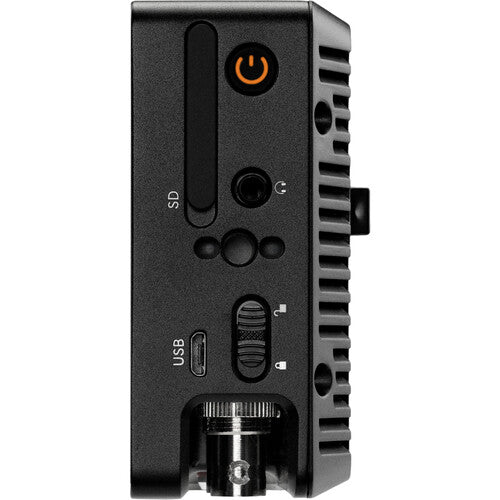

Connector Type

SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)

HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]

Audio: 1x 3.5mm Stereo Headphone Jack

Data I/O

Storage Media: 1x SD Card Slot

USB: 1x Micro USB 1x Locking USB

Power

Input: 2-pin Locking Power Input (10-34V DC, 1.6A)

Software

Pixel Zoom: Yes

Focus Assist: Yes

Peaking: Yes

False Color: Customizable False Color Overlays

Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)

Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
