Small HD FOCUS 504

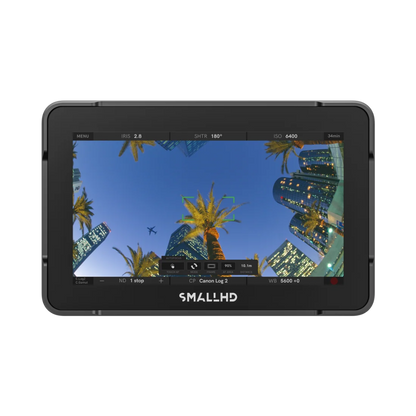

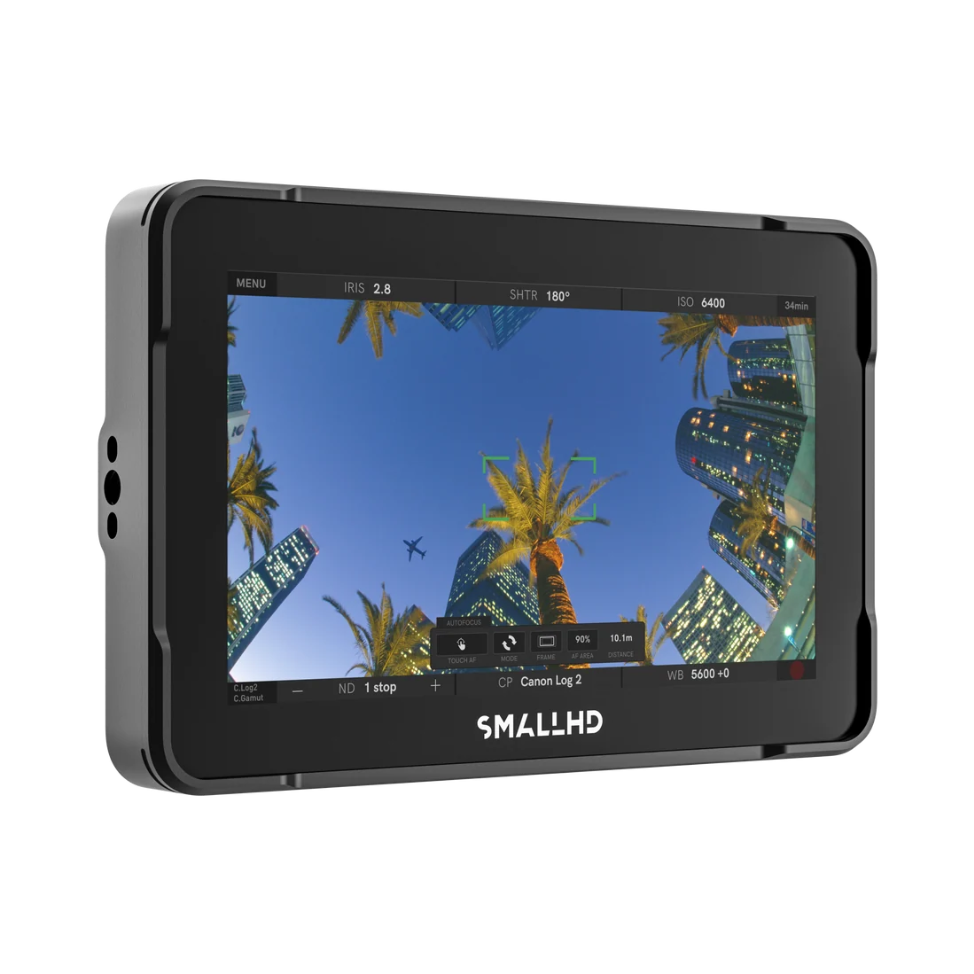

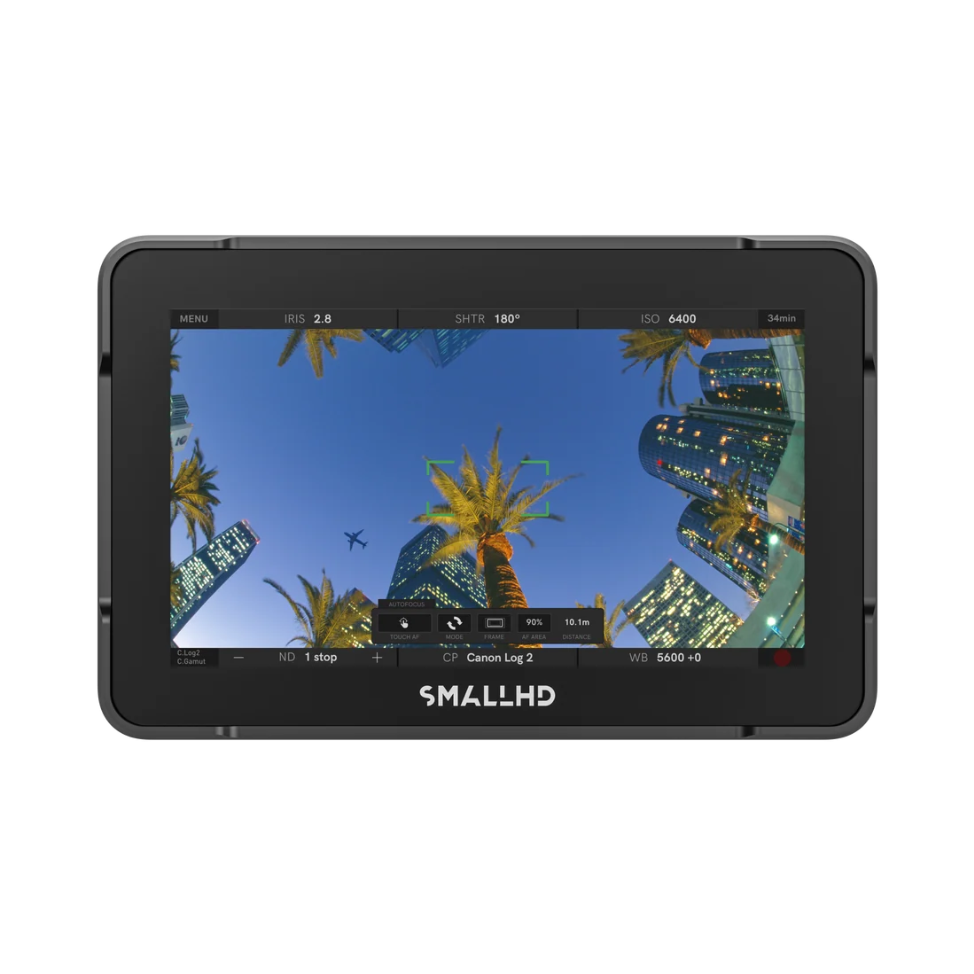

SmallHD Focus 504 5-Inch 1000-Nit Touchscreen Monitor

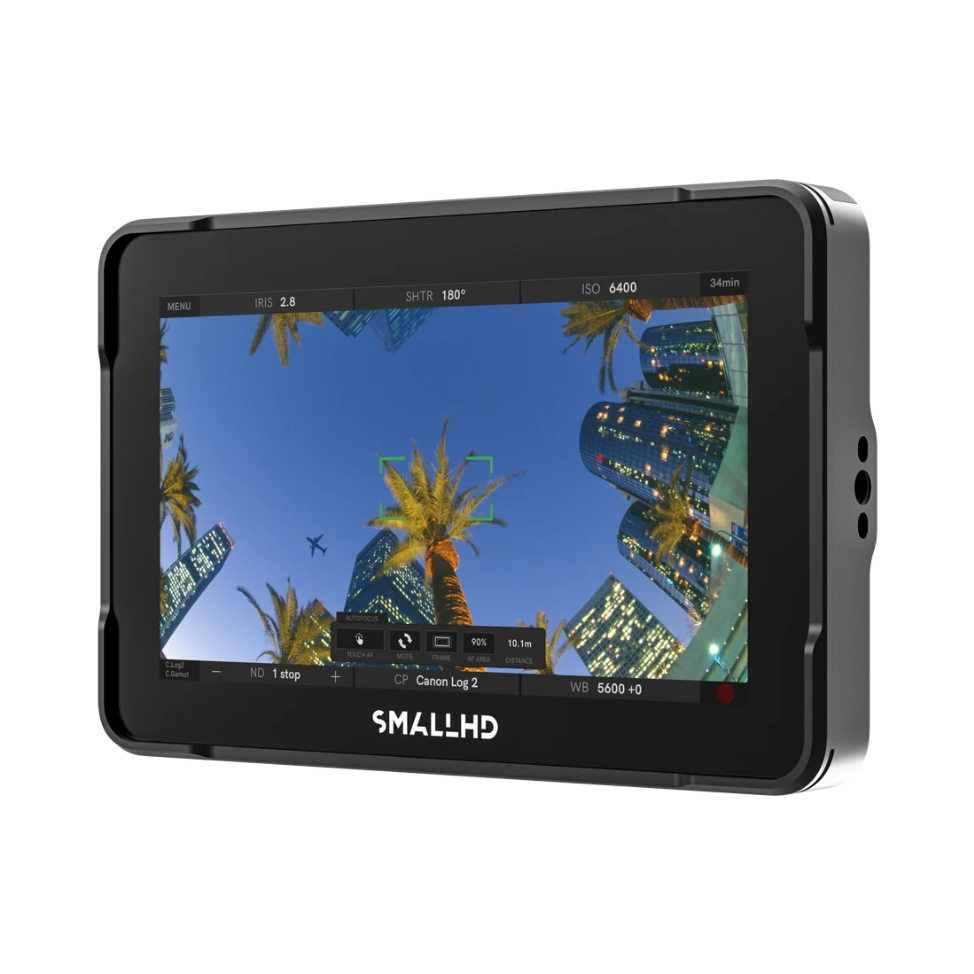

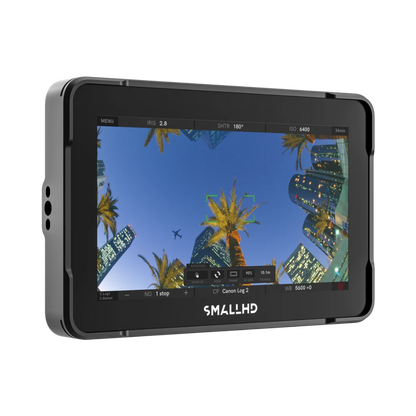

The SmallHD Focus 504 is a compact 5-inch on-camera monitor built for lightweight camera rigs, handheld shooting, mobile production, and professional video workflows. It features a 1920×1080 touchscreen, 1000-nit brightness, and 100% Rec.709 color coverage for clear, accurate monitoring on set.

With 3G-SDI, HDMI 2.0, USB-C connectivity, PageOS software, LUT support, focus and exposure tools, and wireless camera control support, the Focus 504 combines professional monitoring features with a portable design.

Key Features

• 5-inch 1920×1080 touchscreen display
• 1000-nit brightness
• 100% Rec.709 color coverage
• 3G-SDI input and output
• HDMI 2.0 input and output
• Locking USB-C for power, video, and communication
• Two additional locking USB-C ports
• Integrated 2.4 GHz Wi-Fi
• PageOS monitoring software
• LUT support
• Focus and exposure assist tools
• Camera control support for compatible RED, Sony, ARRI, and Canon cameras*
• Four 1/4"-20 mounting points with ARRI locating pins
• Raised protective bezel

Professional Monitoring with PageOS

The Focus 504 runs SmallHD PageOS, giving operators access to customizable monitoring pages, exposure tools, focus assist, LUTs, and other professional monitoring functions. Its touchscreen interface makes it easy to quickly adjust monitoring tools during production.

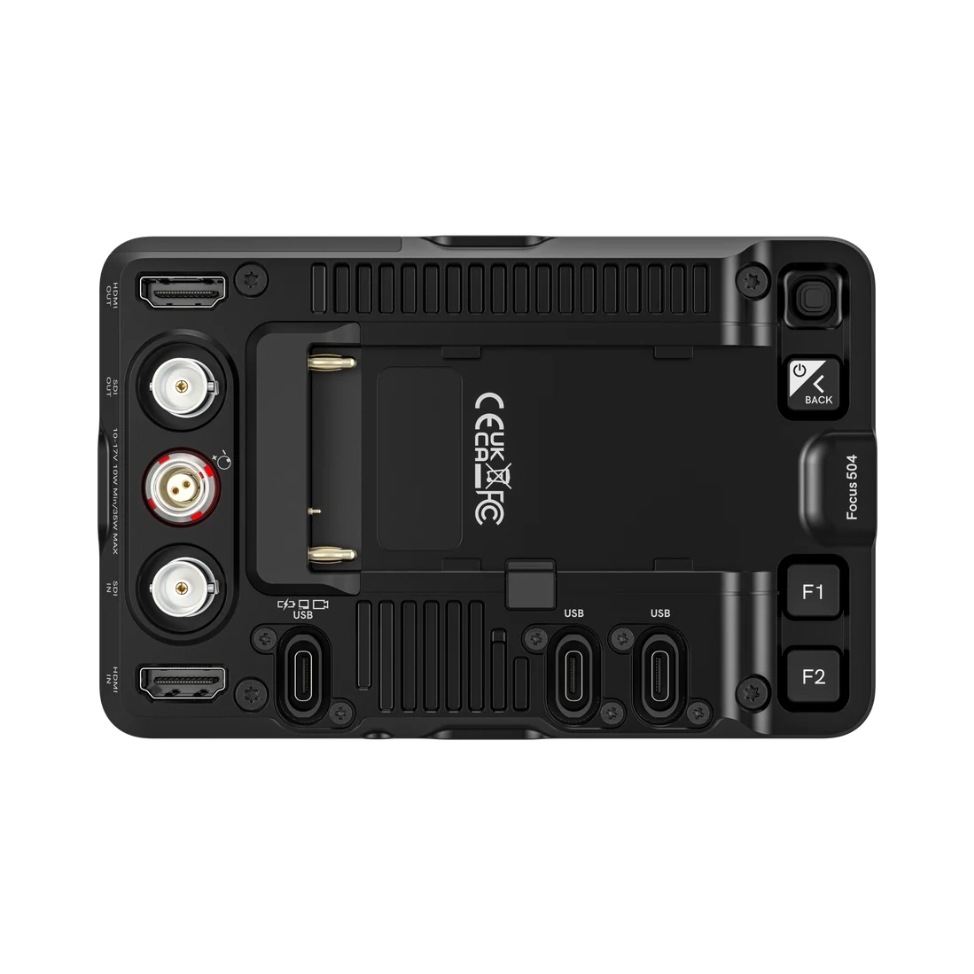

SDI, HDMI, and USB-C Connectivity

The Focus 504 includes both 3G-SDI and HDMI 2.0 input and output, allowing it to integrate with a wide range of cinema, broadcast, and mirrorless camera systems.

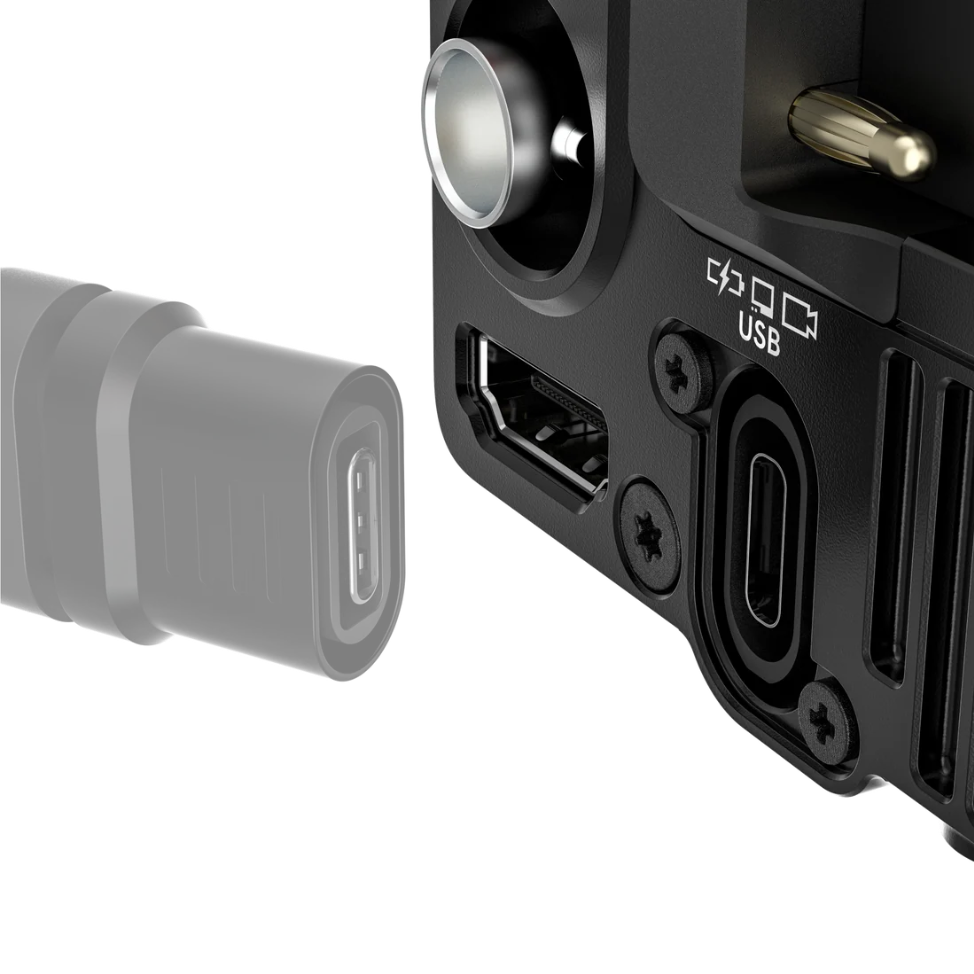

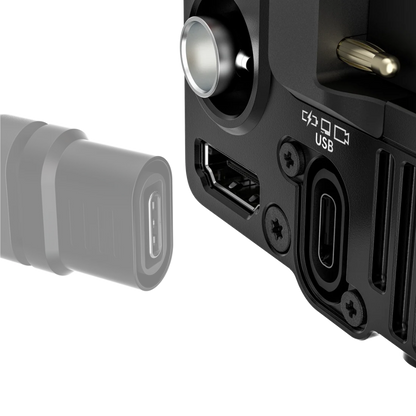

Its locking USB-C PVC port supports Power, Video, and Communication, including DisplayPort Alt Mode video input and USB data depending on the connected device, cable, and firmware.

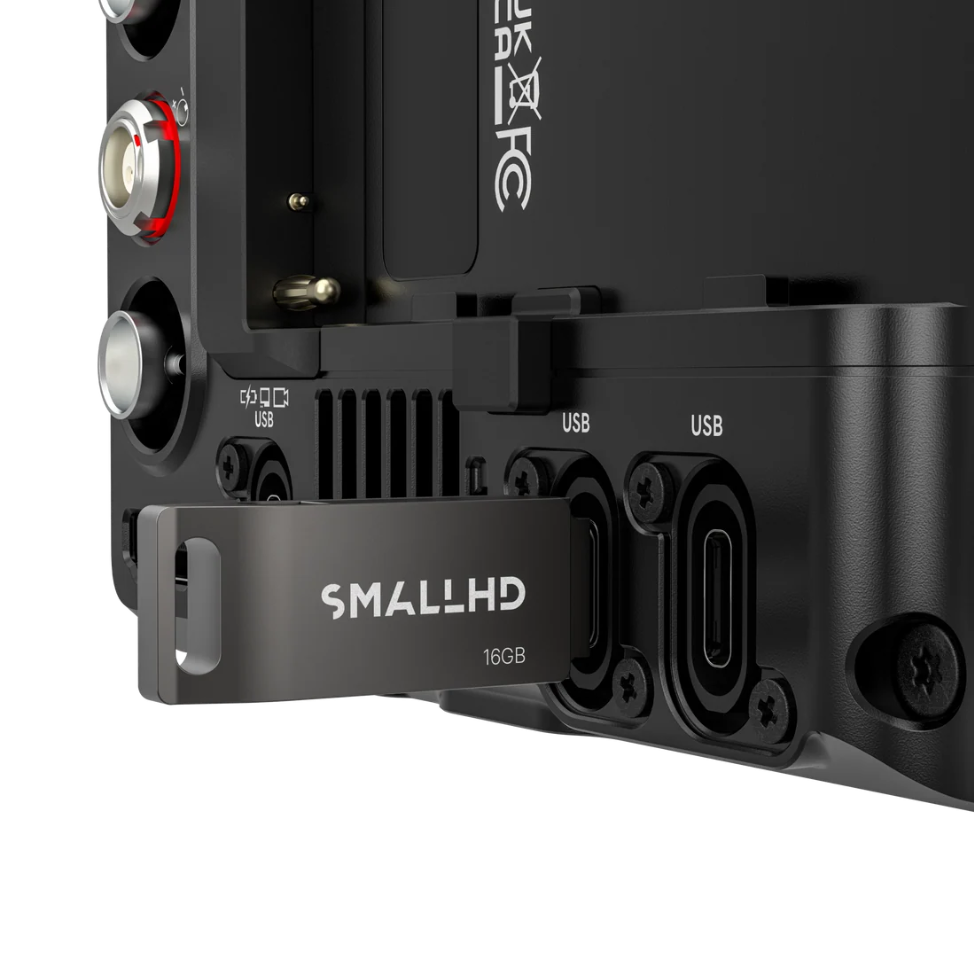

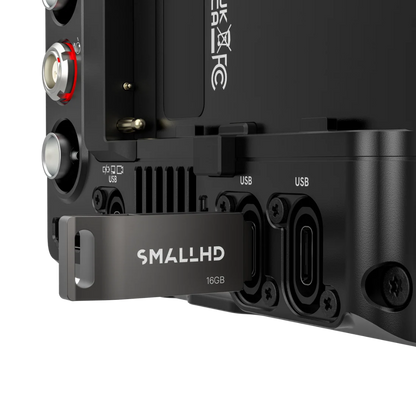

Two additional USB-C ports support camera control, firmware updates, LUT loading, and screen grabs with compatible storage devices.

Camera Control

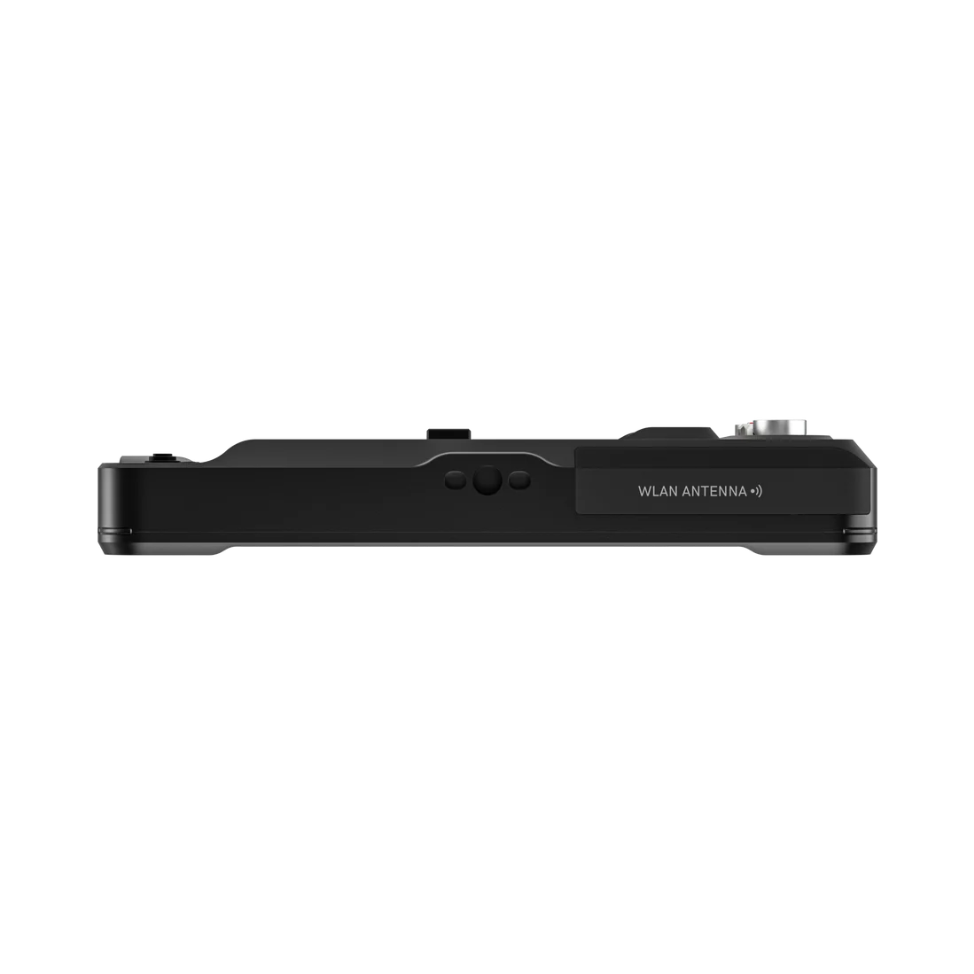

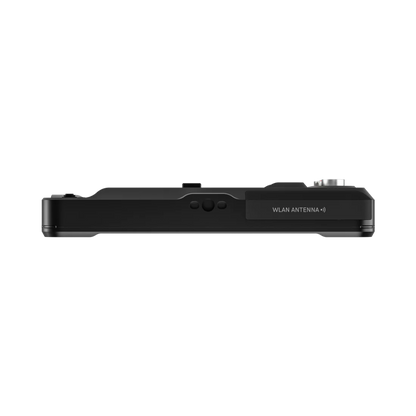

Integrated 2.4 GHz Wi-Fi supports wireless camera control workflows. Compatible camera control licenses are planned for supported RED, Sony, ARRI, and Canon cameras, allowing operators to adjust supported camera settings directly from the monitor.*

Compact Design for Professional Camera Rigs

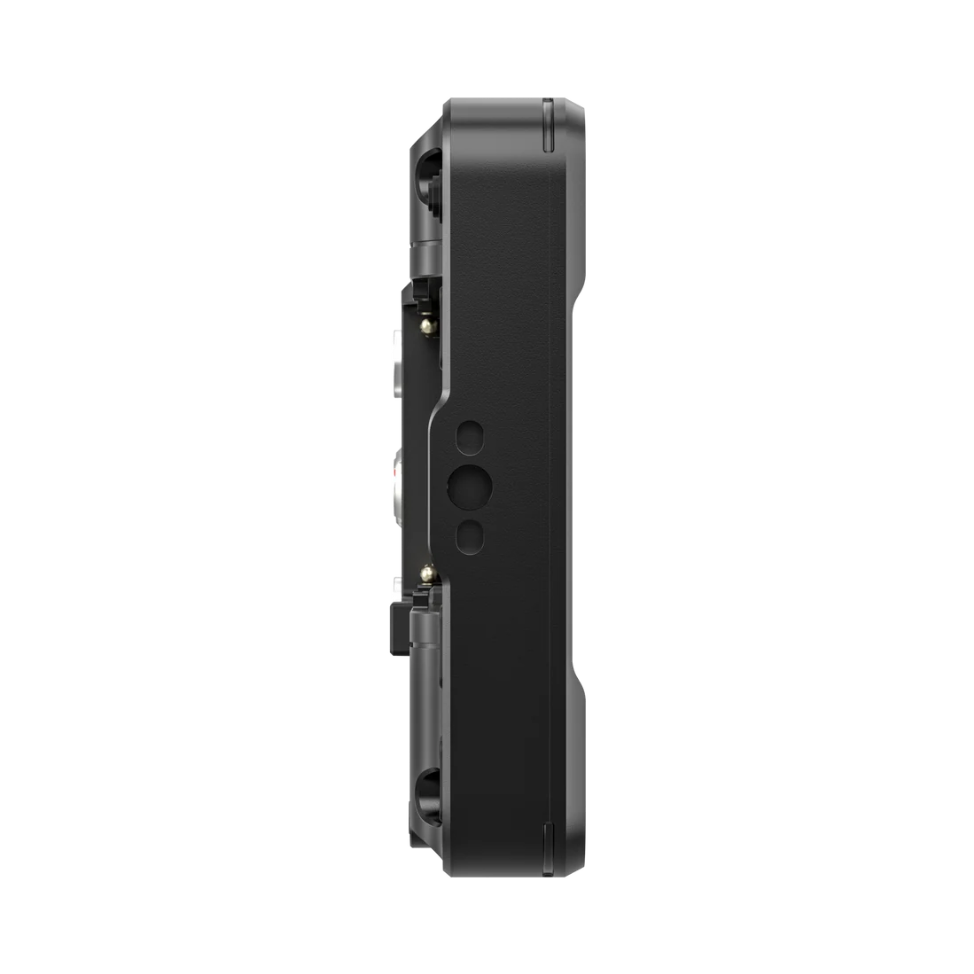

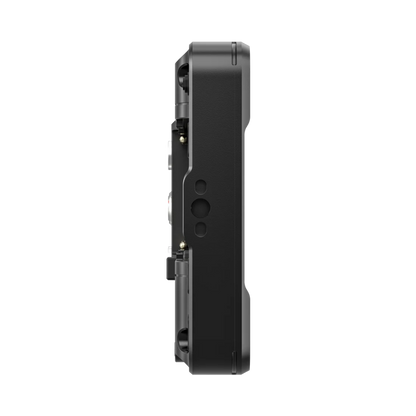

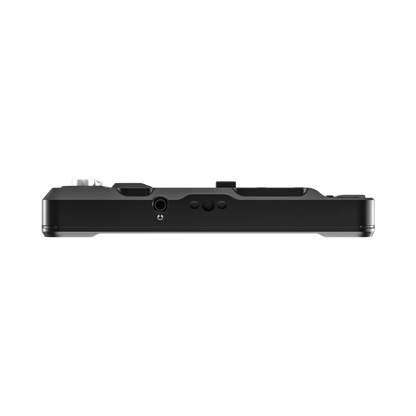

Four 1/4"-20 mounting points with ARRI locating pins provide flexible mounting options for camera cages and accessories. A raised protective bezel helps protect the display during demanding production use.

The SmallHD Focus 504 is well suited for cinematography, documentary production, live production, handheld camera rigs, and other workflows where compact size and professional monitoring tools are equally important.

*Camera control functionality coming soon. Licenses sold separately.

Environmental
Item Weight (oz): 0.68lbs/0.31kg
Package Weight (oz): 1.55lbs
Height (in): 5.35in (136mm)
Width (in): 3.46in (88mm)
Length/Depth (in): 0.94in (23.9mm)
Compliance: FCC, IC, CE, UKCA, RCM, ROHS
Operating Temperature: 32 F - 105 F
Storage Temperature: 0F to 120F
Screen Protection: Clear

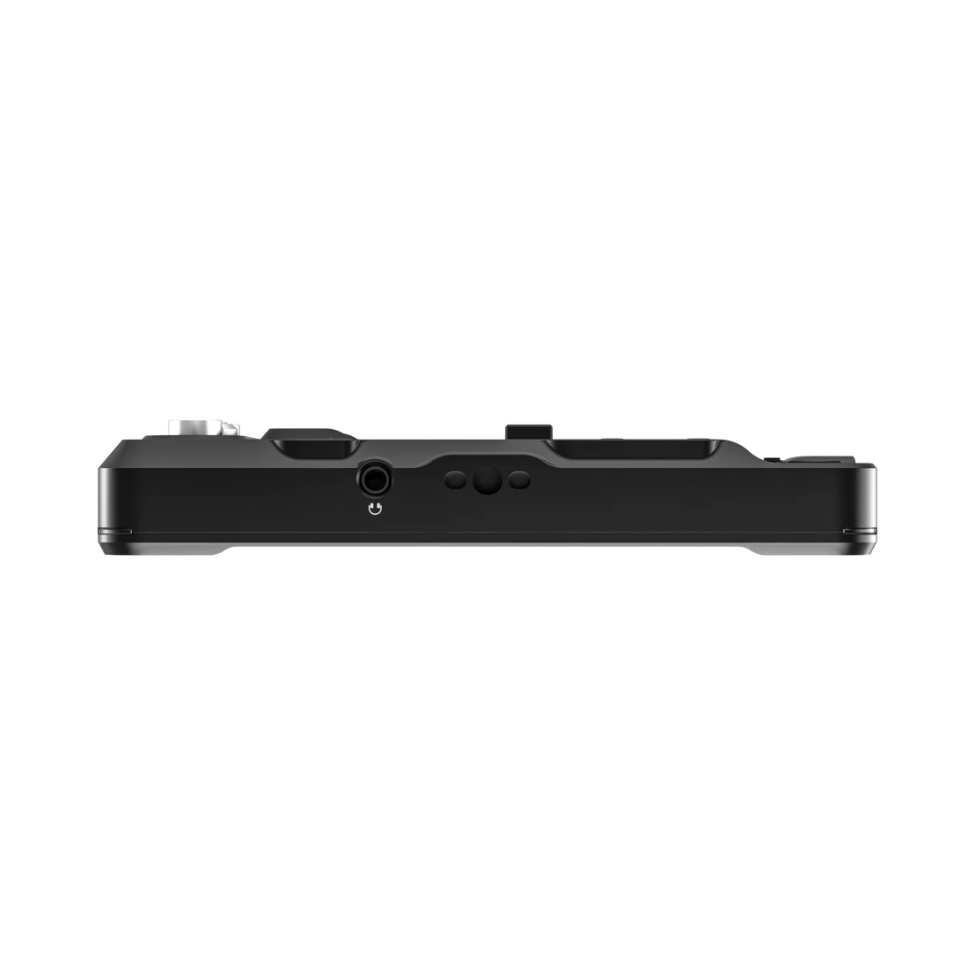

Mount Points:  4x 1/4-20 Mounting Points (Top, Bottom, Left, Right)
Construction: Anodized Aluminum unibody
User Function Buttons: Joystick Back-Button 2x Custom-Function Buttons


Display
Panel Type: IPS LCD with touch
Diagonal Size: 4.97"
Resolution: 1920 x 1080
Pixel Density: 443 PPI
Aspect Ratio: 16:9
Active Area: 61.88 x 110.02 mm
Max Brightness: 1000nits
Contrast: 1000:1
Gamut: 97% Rec709
Color Depth: 10-bit Processing (8-bit panel)
Backlight Type: Edgelit
Adjustable Backlight: Yes
Refresh Rate: 60Hz

Input Signal
3G-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types
HDMI & SDI - Monitor through Headphone Jack - Metering up to 8 channels

Output Signal
3G-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types
YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types
YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types
YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Output Types
HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection and 1x 3.5mm 3-pin Stereo Headphone

Connector Type
SDI: 1x BNC 3G input and 1x BNC 3G output
HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio: HDMI & SDI - Monitor through Headphone Jack - Metering up to 8 channels
Power In: 2-Pin Locking (10V - 17V 10Wmin/35Wmax) PVC USB-C (5-20V, 25W MAX)
Power Out: PVC USB-C (5V 10W MAX)
USB: 3x Locking USB C

Controls
Primary: 1 x Joystick 2 x Function Buttons 1 x Touch Screen x3 USB-C for Camera Control Protocols
Record Capture: Image Capture Tool
Wireless: 2.4GHz WLAN
USB: 3x Locking USB C

Data I/O
SDI: 1x BNC 3G input and 1x BNC 3G output
HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
USB: 3x Locking USB C
Wi Fi: 2.4GHz WLAN

Power
Input: 2-Pin Locking (10V - 17V 10Wmin/35Wmax) PVC USB-C (5V 10W MAX).
Output: PVC USB-C (5V 10W MAX);
Connector: 1 x 2-Pin Locking Connector 1 x PVC Locking USB-C
Consumption
10W (monitor only)/35Wmax

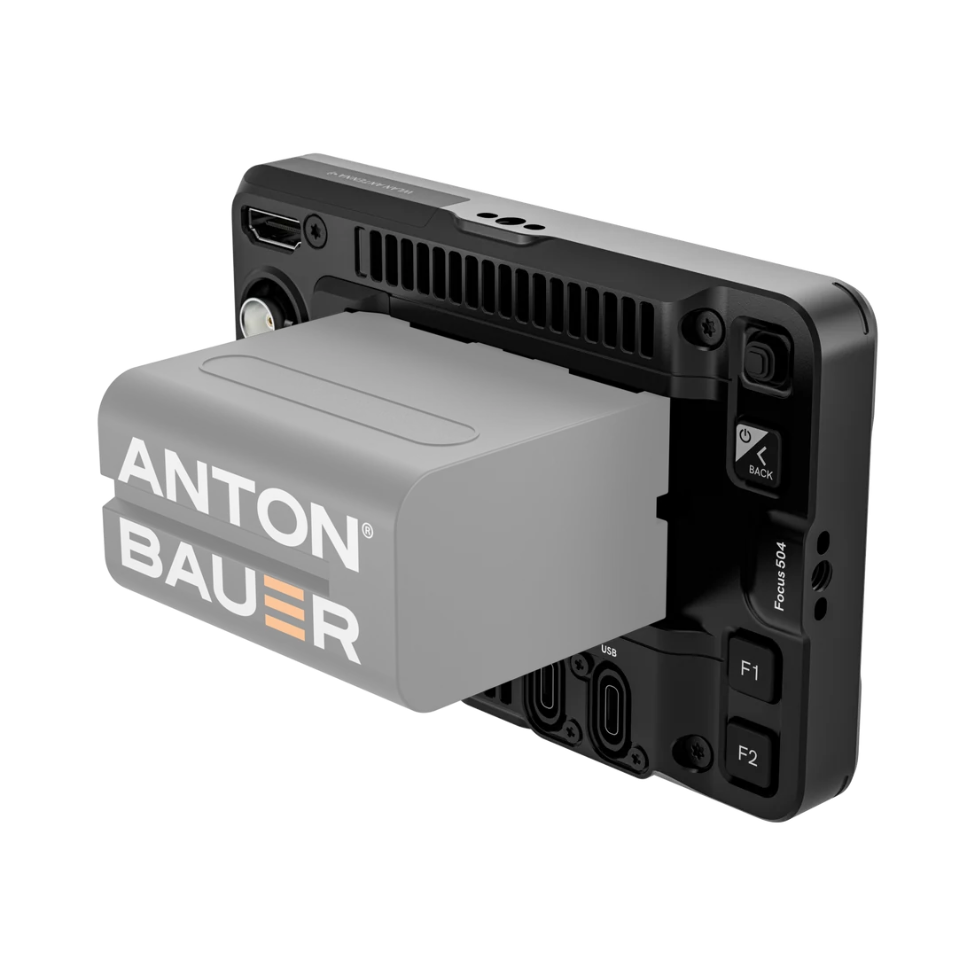

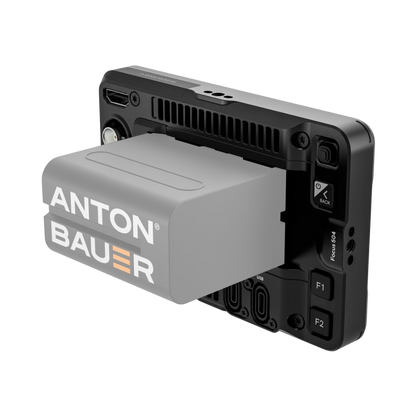

Battery Plate Included: Built in L-Series
Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
Battery Types: 1x L-Series
Output Voltage: 5V

Software
Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides: Preset Aspect Ratios & Customizable
DSLR Scale: Canon 5DMkii & Canon 7D
Custom Scale: Yes (Underscan Only)
Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate: Automatic or Manual Control
Image Flip: Automatic or Manual Control
Cross Conversion: Yes: HDMI → SDI & SDI → HDMI
Focus Assist: User Adjustable Color Style and Intensity
Peaking: User Adjustable Intensity
False Color: Rainbow, Arri Style, Custom with up to 10 nodes
Zebra: Dual - User Configurable
Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope: Yes
RGB Parade: Fully User Customizable
Histogram: Luma & RGB Style
Image Capture: Yes
LUTS: 33pt Calibration LUT, stored internally 17pt User Lut for Tools, stored on removable media 17pt LUT available for downstream video
Custom LUTS: Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream: Available on SDI, HDMI, or PVC Out. Applied on Output Preview Page.
LUT Import: via USB Storage Device, or Fleet Control App
Overlay: With Opacity Slider and Blink Setting
Audio Meters: HDMI, SDI up to 8 channel

Camera Control
Camera Control Compatibility
Camera Control for ARRI Camera Control for Sony VENICE Camera Control for RED® DSMC2™ Camera Control for RED® RCP2™ Cameras (KOMODO®, DSMC3™) *Camera control functionality coming soon. Licenses are sold separately.

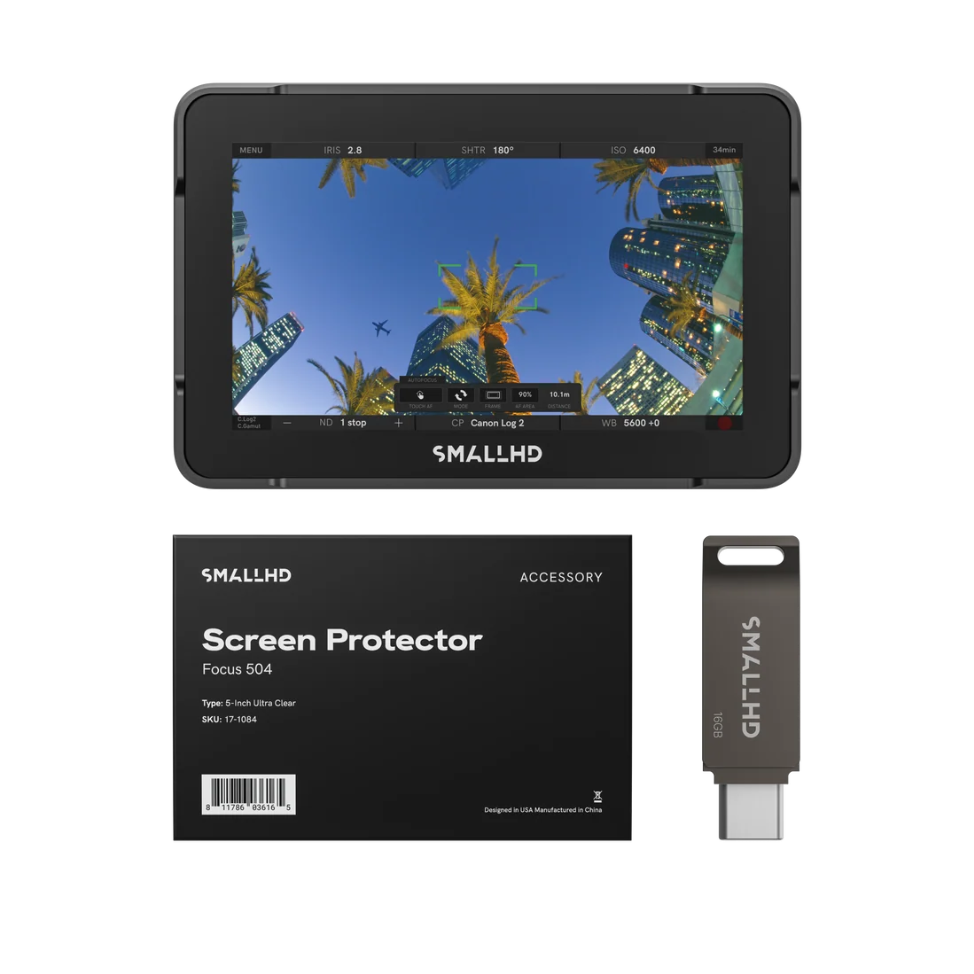

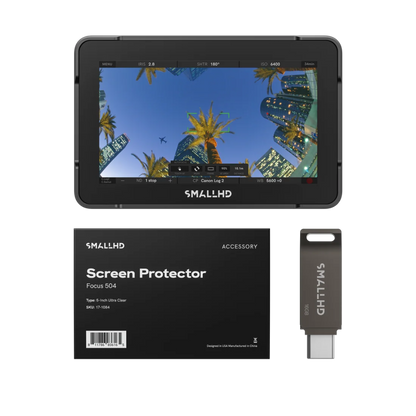

• FOCUS 504
• Focus 504 Screen Protector, Clear
• SmallHD USB-A/C Flash Drive 16GB
