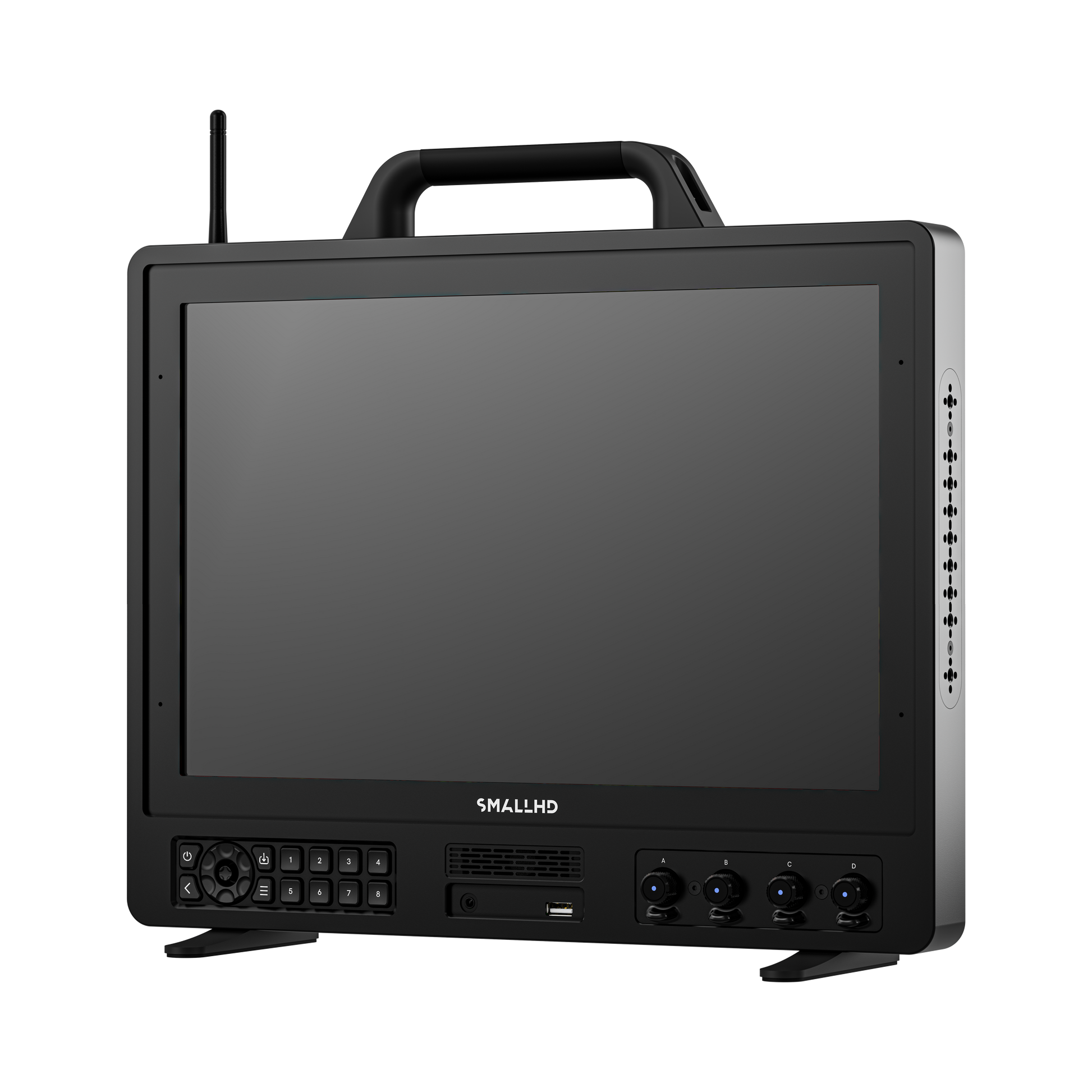

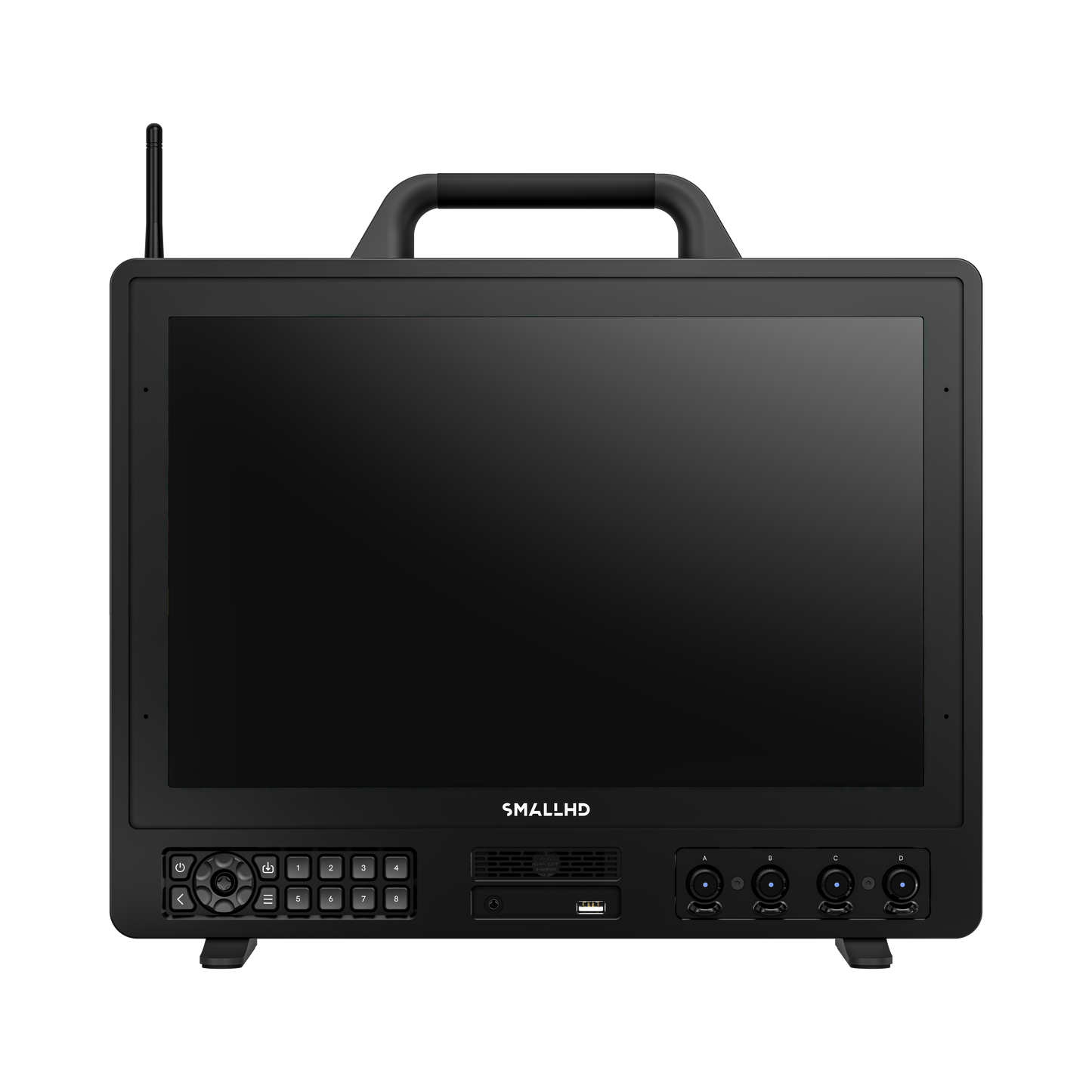

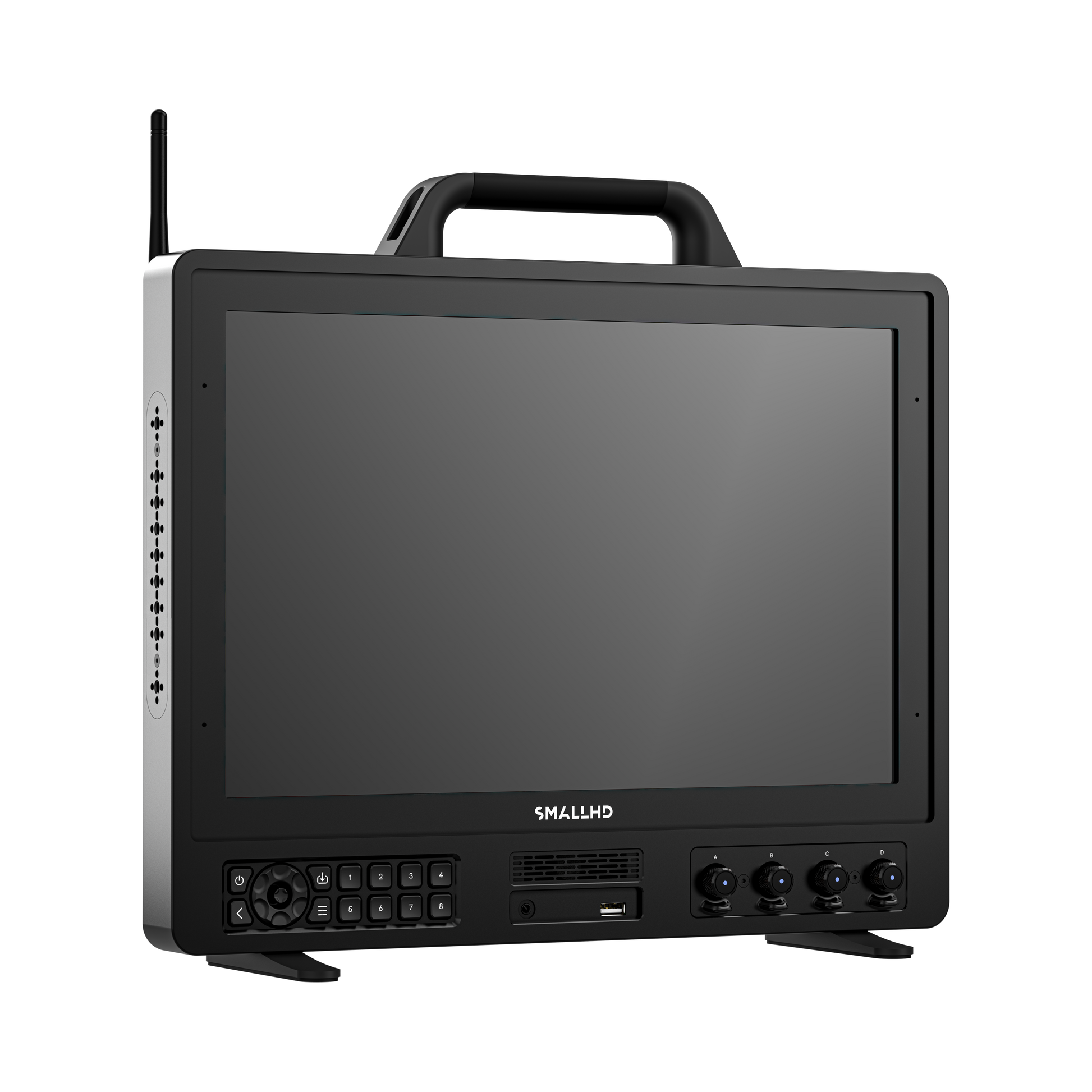

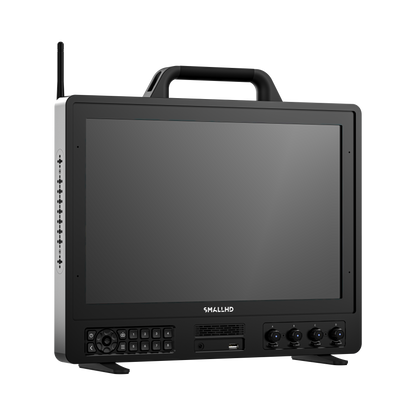

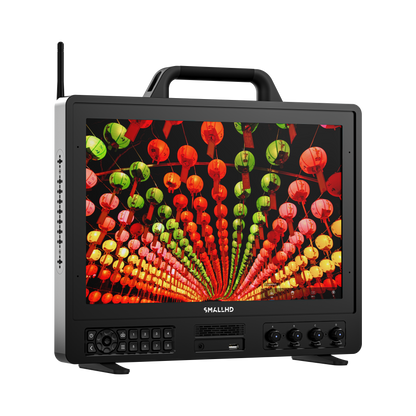

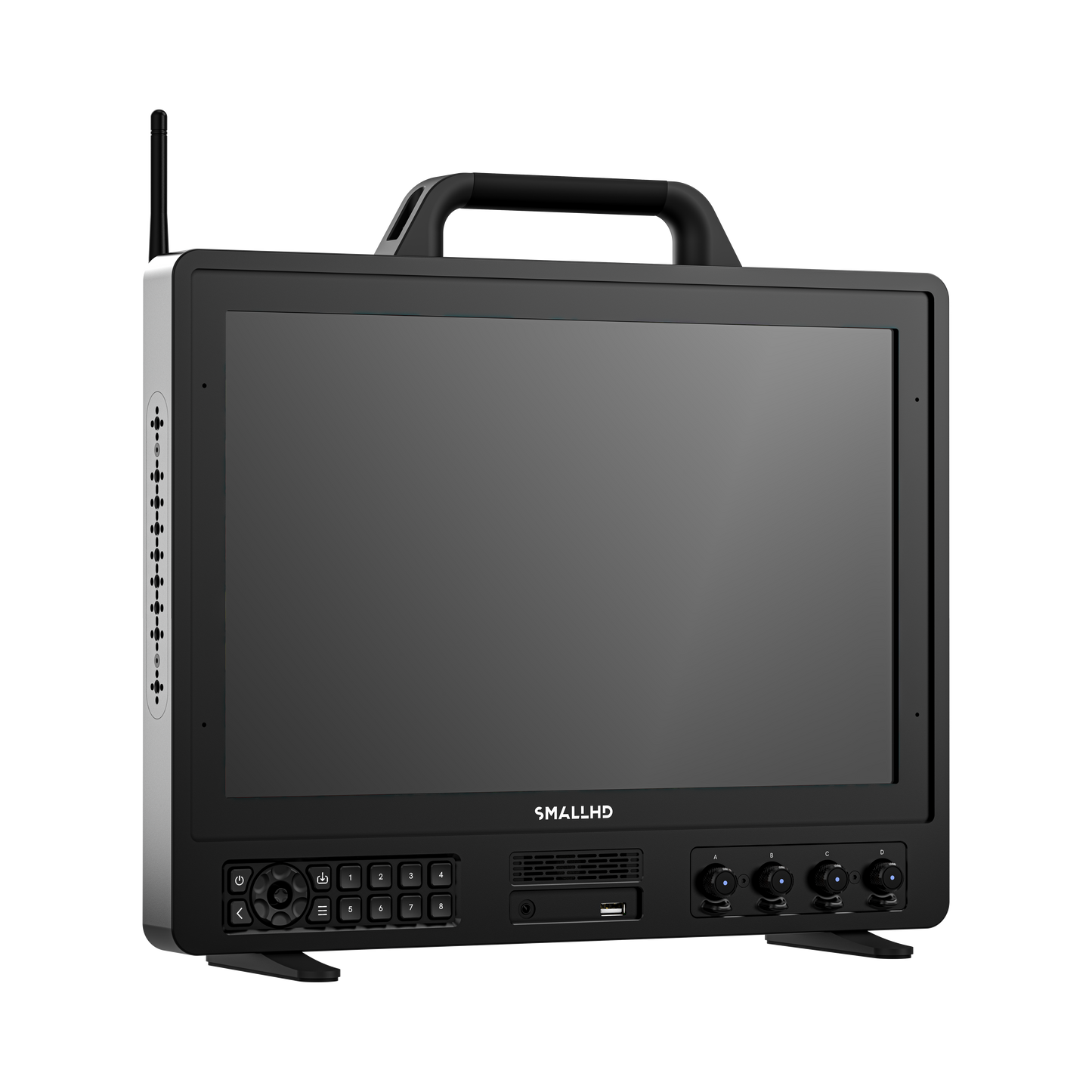

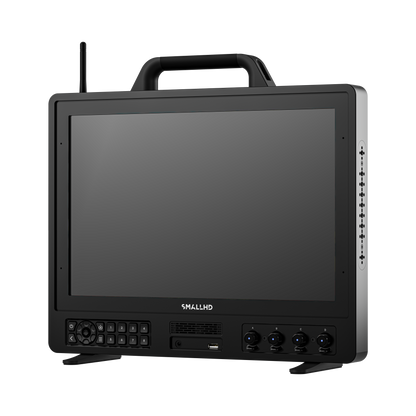

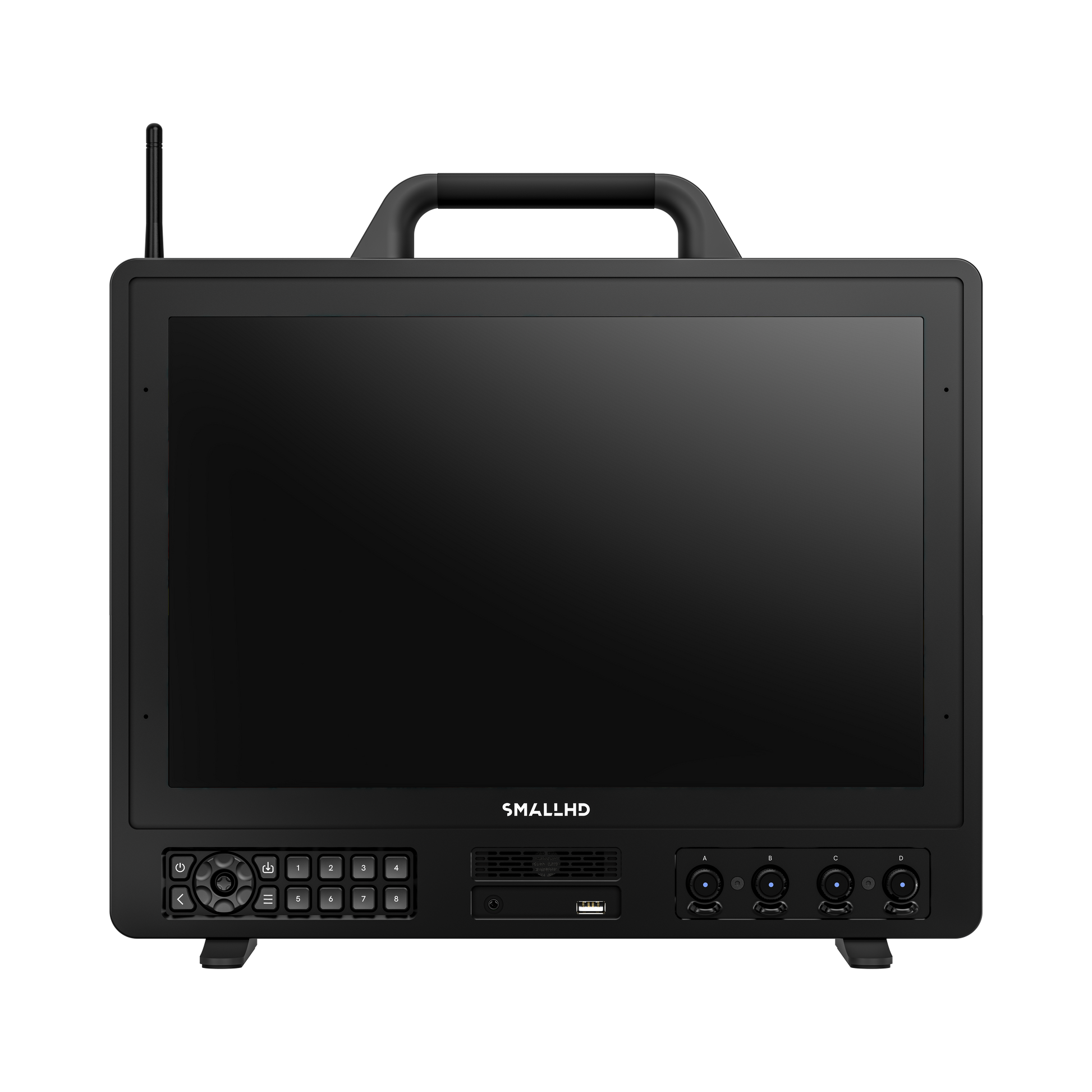

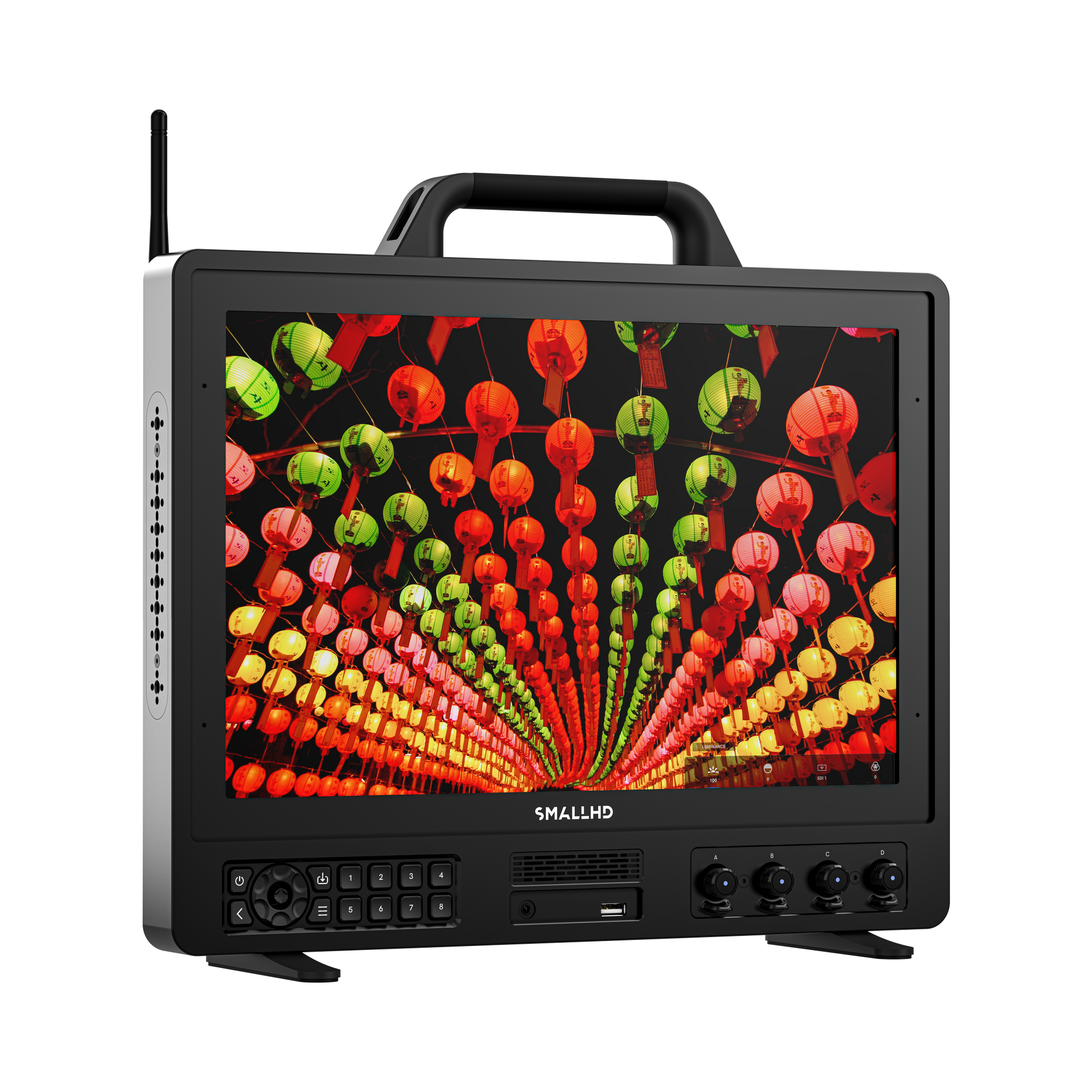

SmallHD OLED 16 - 16" UHD OLED Display

OLED EVOLVED
Lightweight, rugged, and perfectly sized for streamlined DIT and DP workflows, OLED 16 gives you infinite contrast, true blacks, and precise color reproduction with zero haloing. It comes equipped with professional-grade I/O, versatile mounting points, integrated WiFi, and four new multi-function dials to customize your PageOS workflow.

Features:

• Contrast Ratio: >1,000,000:1
• Resolution: 3840 x 2160
• Max Brightness: Up to 400nits
• Color Gamut: DCI-P3
• Bit Depth: True 10-bit
• Min Black Point: 0.005nits

The Ultimate Monitoring Toolkit
OLED 16 comes loaded with PageOS, an award-winning, one-of-a-kind, page-based, software toolkit with a streamlined interface, intuitive customization options for color, exposure, LUTs, and more.

A More Intuitive Color Pipe
Easily configure each of the five independent video inputs on 4K production monitors with a new output display configuration.

Downstream LUTs
Instantly send graded looks to downstream devices without extra boxes or additional gear, ensuring a consistent look across every display on set.

Fleet Control
Control all on-set SmallHD monitors from one app via Ethernet or WiFi. Match settings, manage signals and feeds, adjust LUTs, Color Pipes, and more.

Updated EL Zone
Developed by Ed Lachman, ASC, this intuitive stop-based exposure tool works like a virtual spot meter, replacing IRE exposure values with stops.

Livegrade Integration
Pomfort Livegrade is now an integrated plug-in, enabling colorists and DITs to transform their reference monitor into a dual-purpose color grading tool.

Integrated Calibration
SmallHD monitors integrate directly with Calman™ to deliver precise color accuracy across production and post workflows.

Production-Ready Hardware

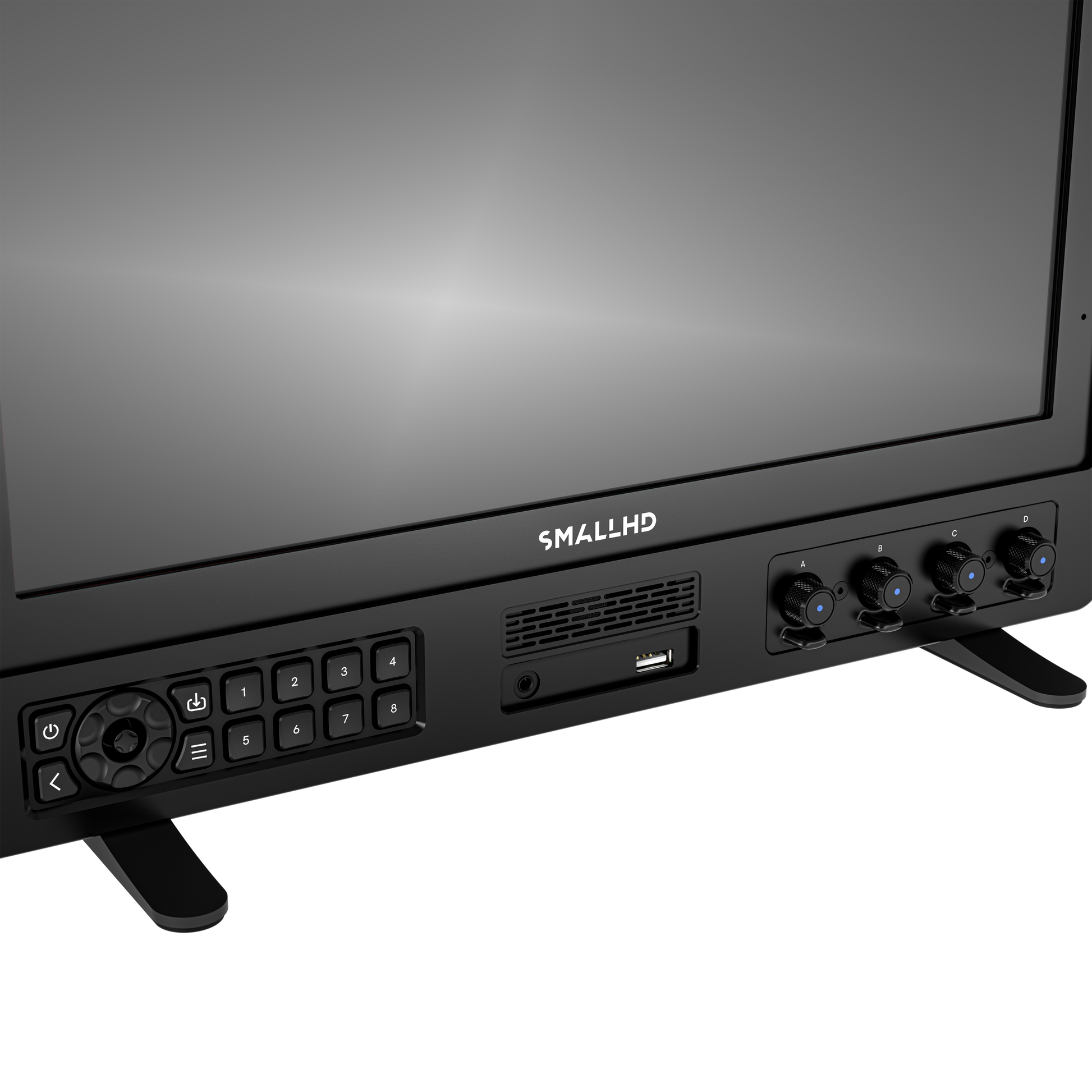

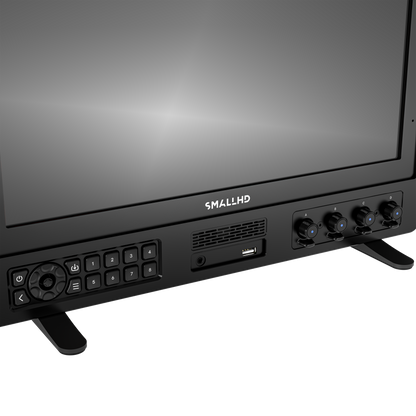

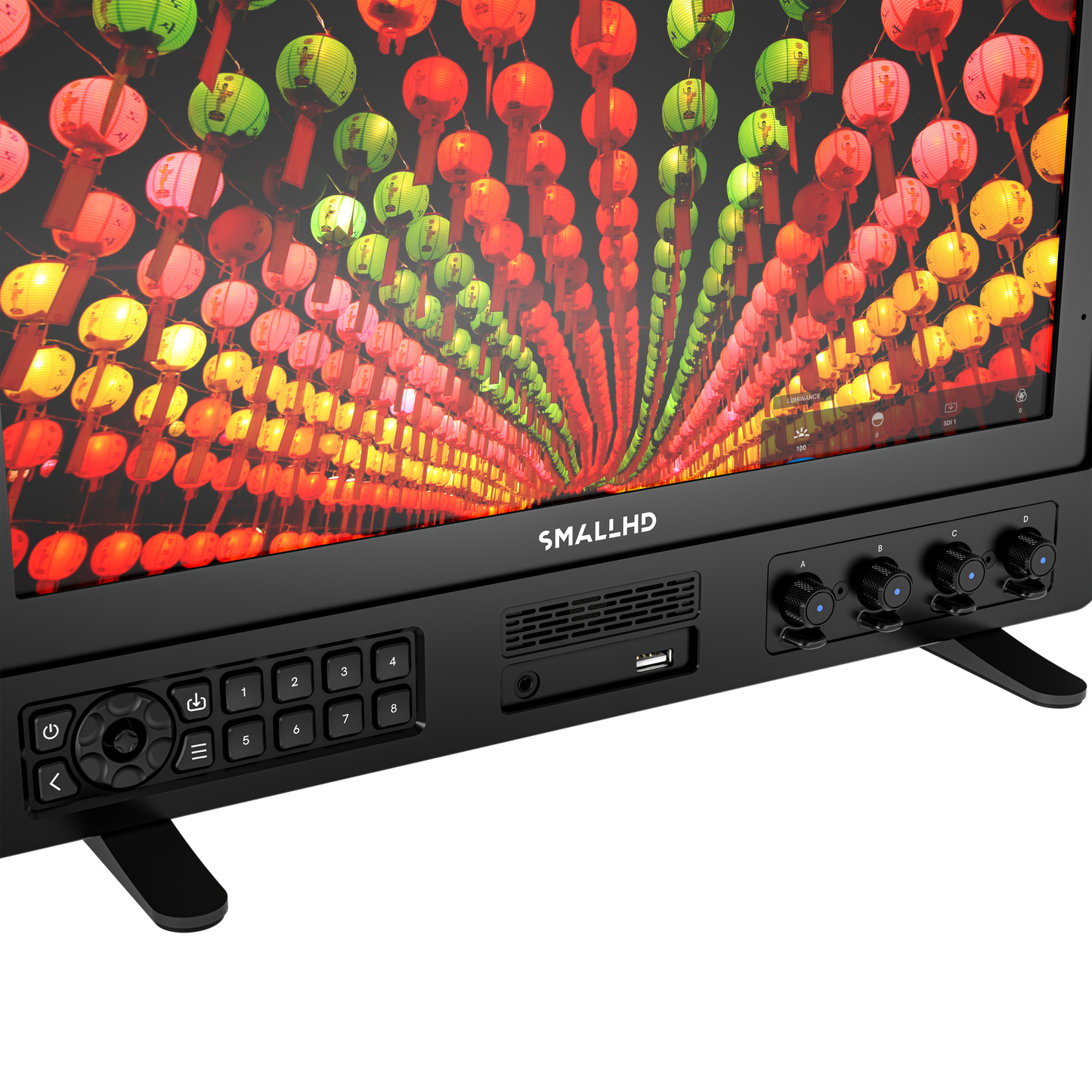

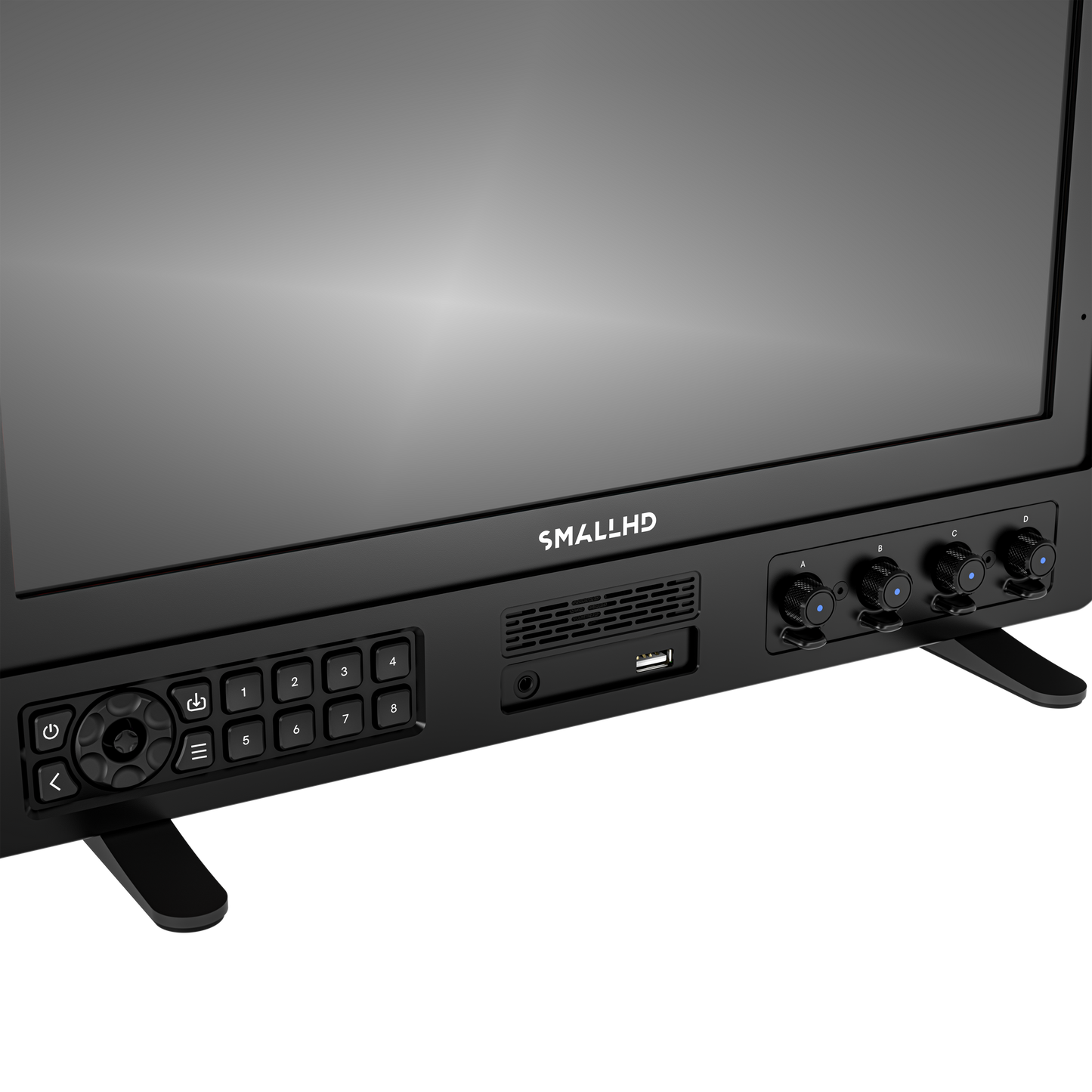

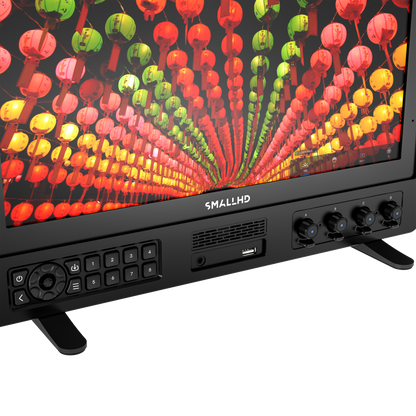

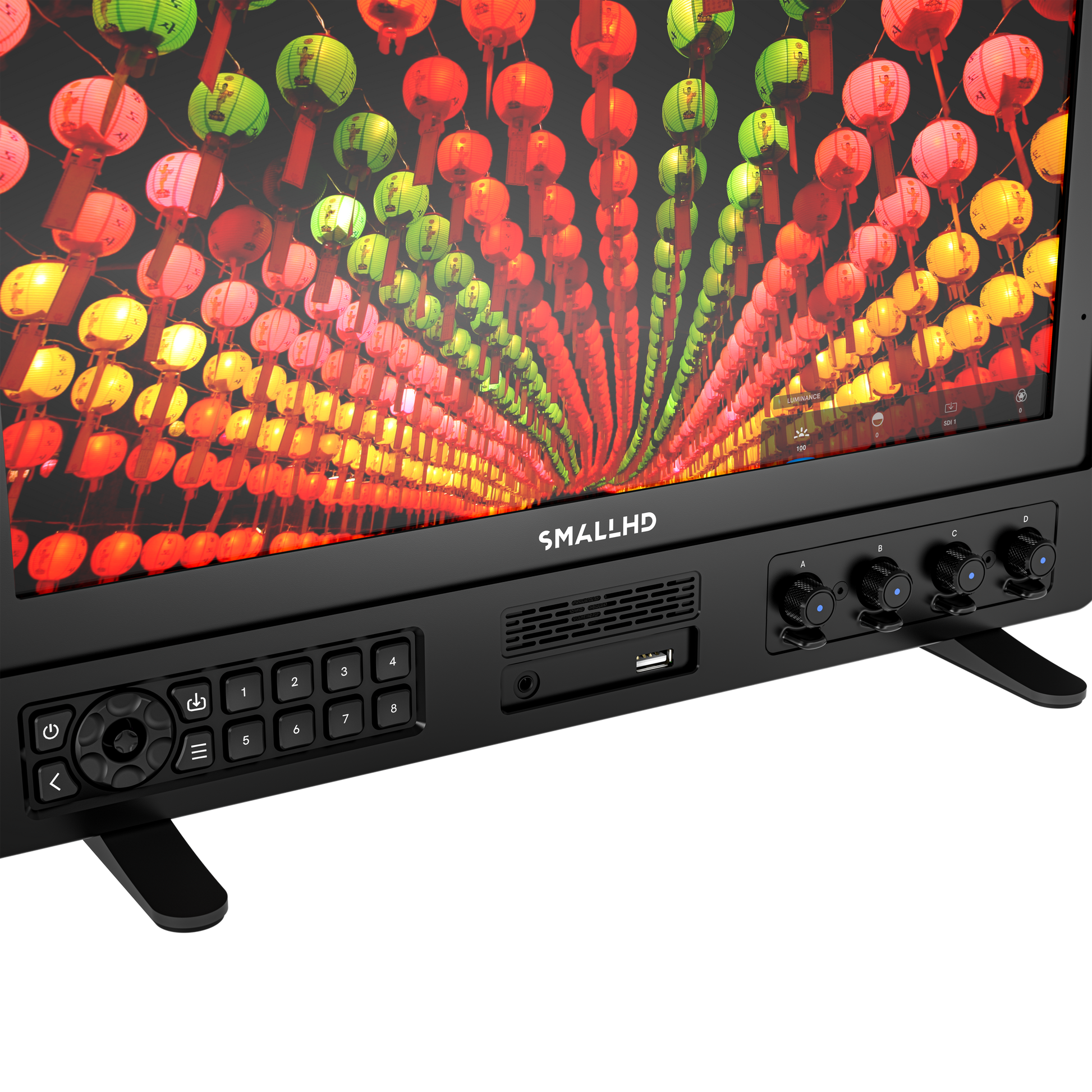

The OLED Series features a lightweight Unibody Smart Chassis with field-tested durability, professional-grade I/O options, customizable multi-function dials, and integrated mounting points for versatile accessory configurations.

• Resolution: 3840 x 2160 (UHD) Resolution
• Color Space: 99% DCI-P3 / 97% Rec.2020
• Bit Depth: 10-bit (1.073 billion colors)
• Brightness: 400nits

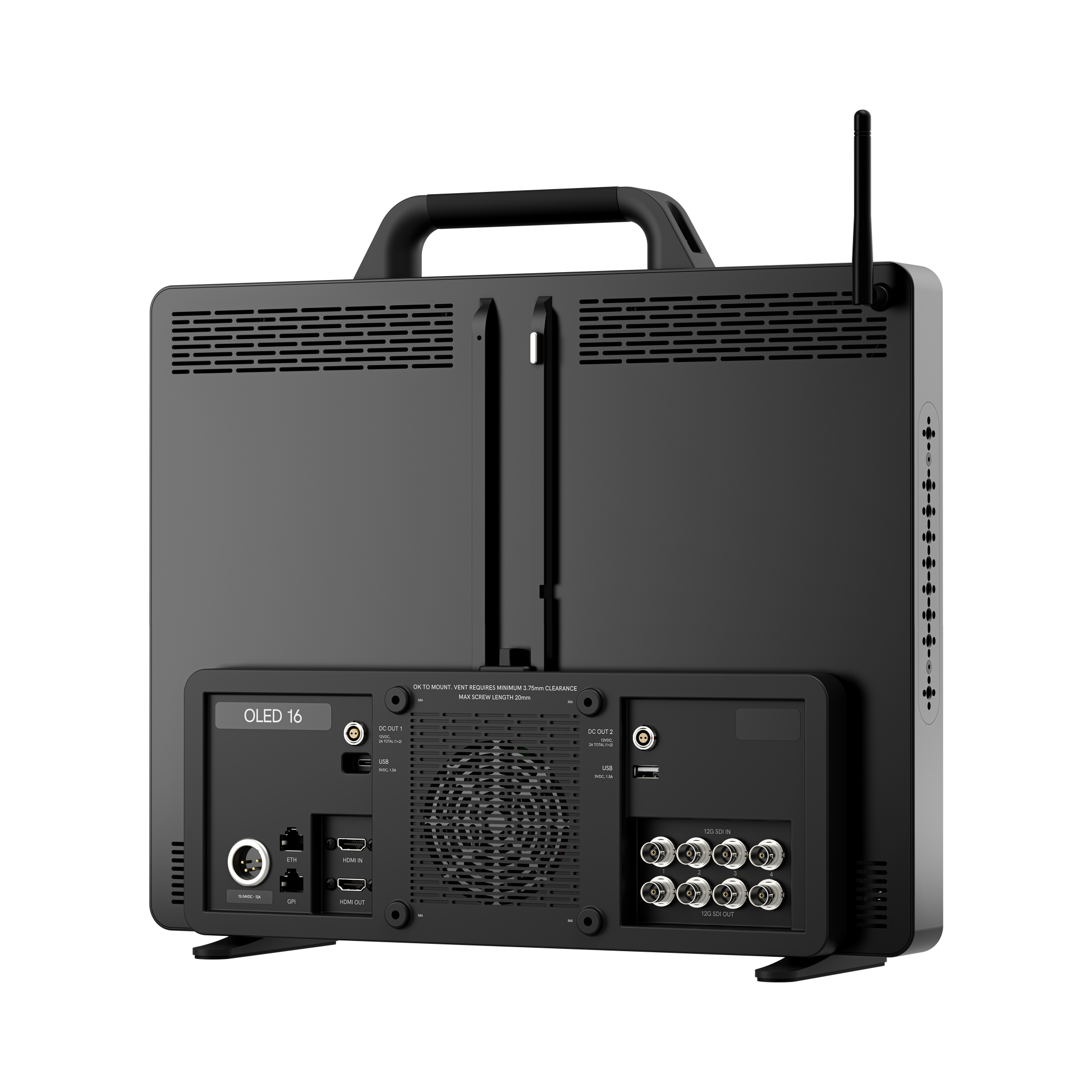

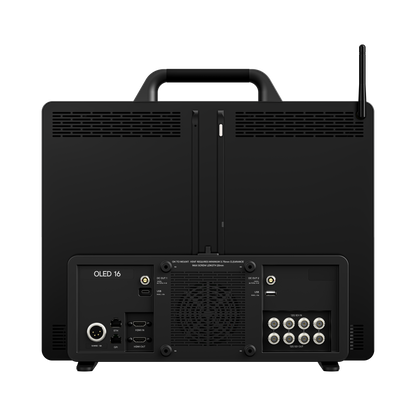

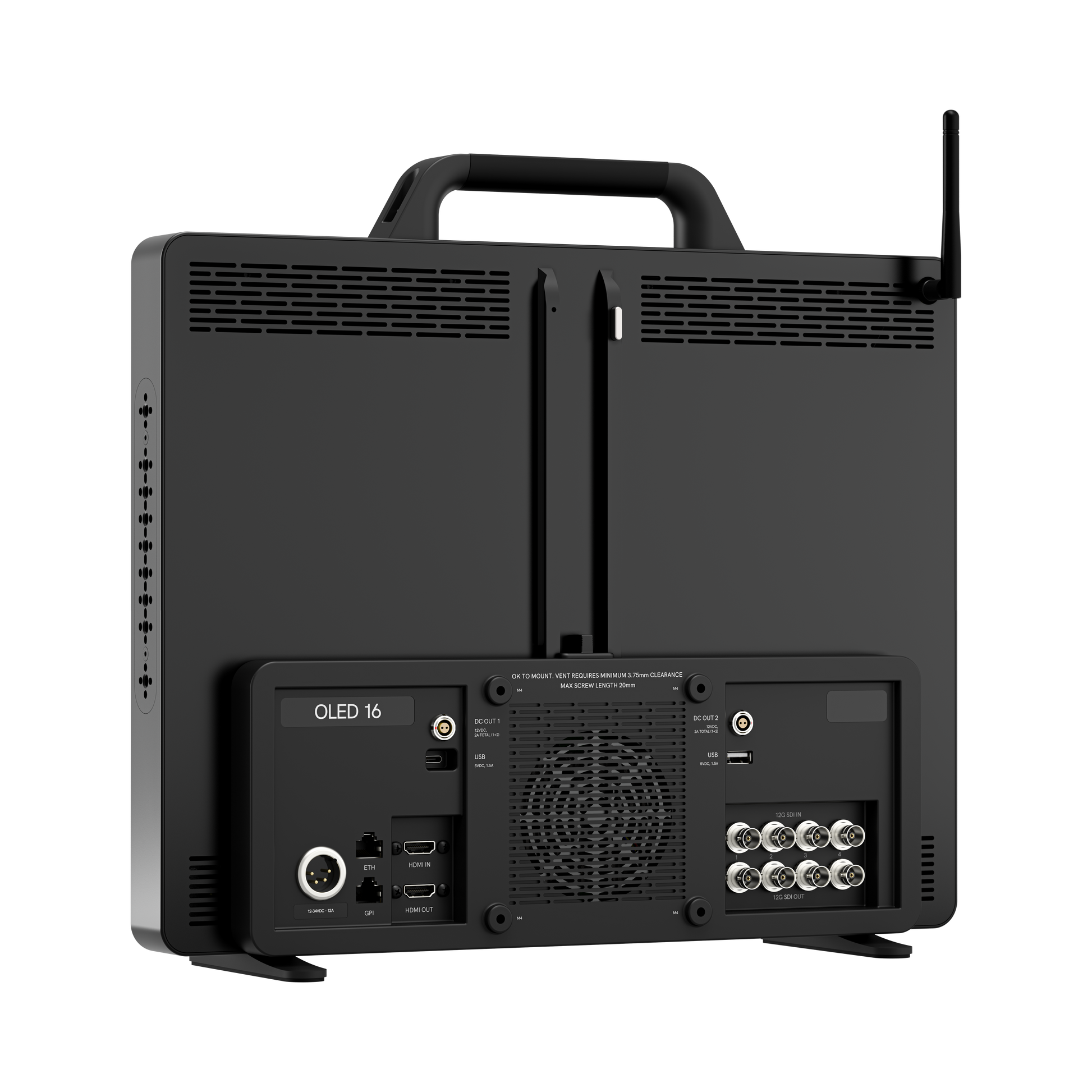

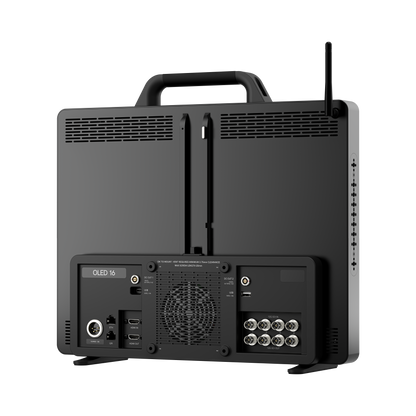

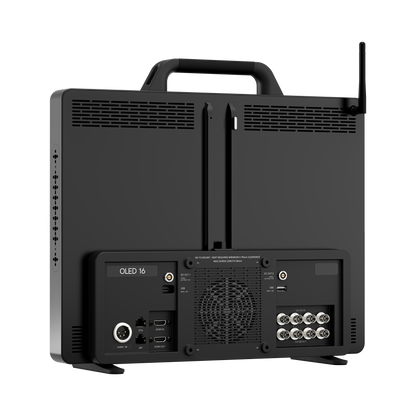

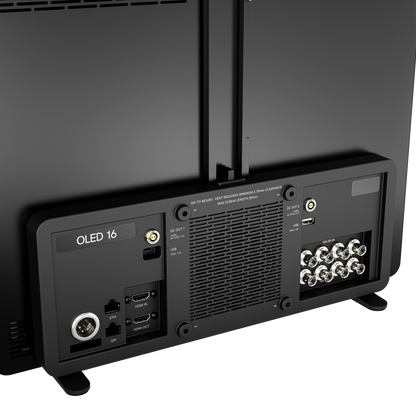

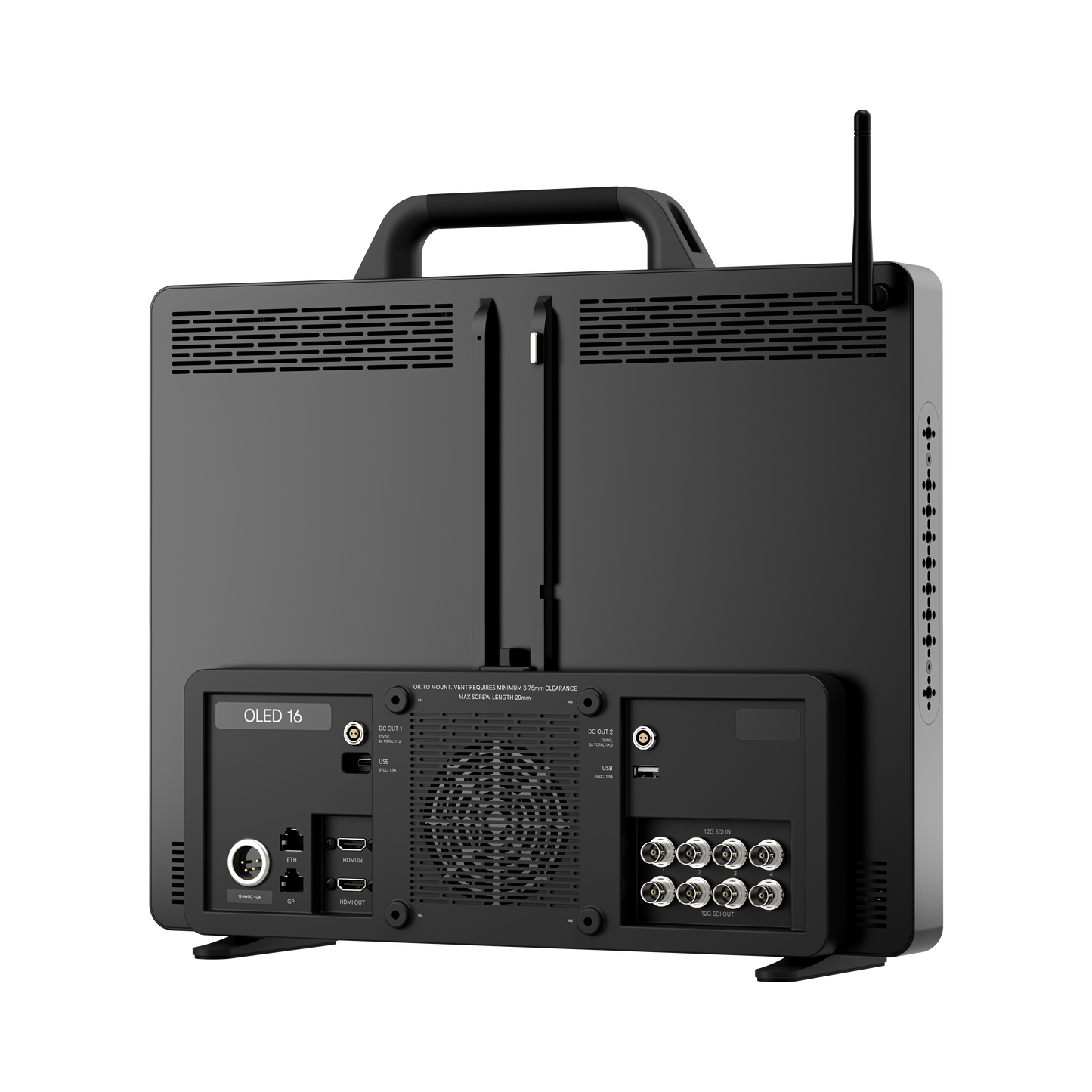

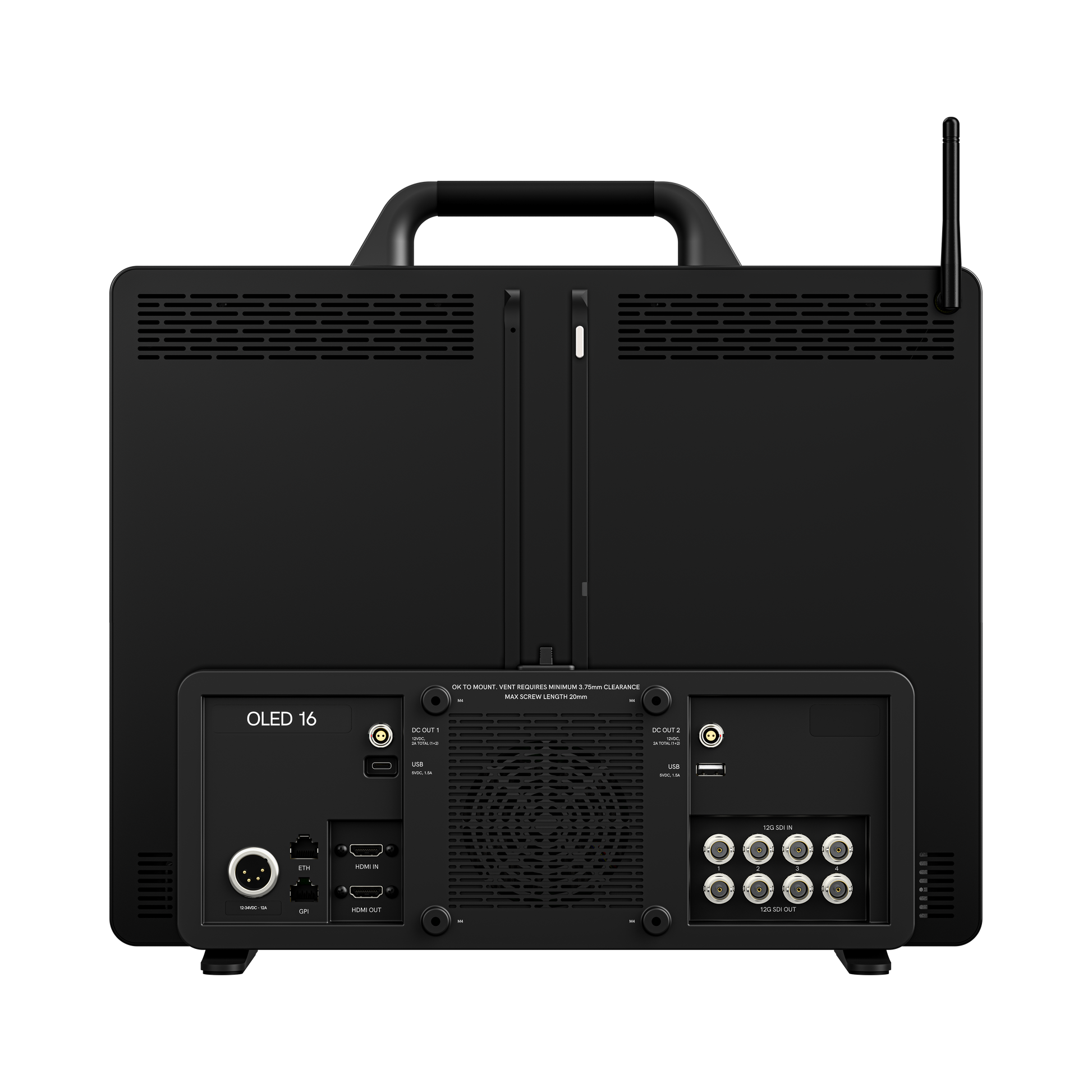

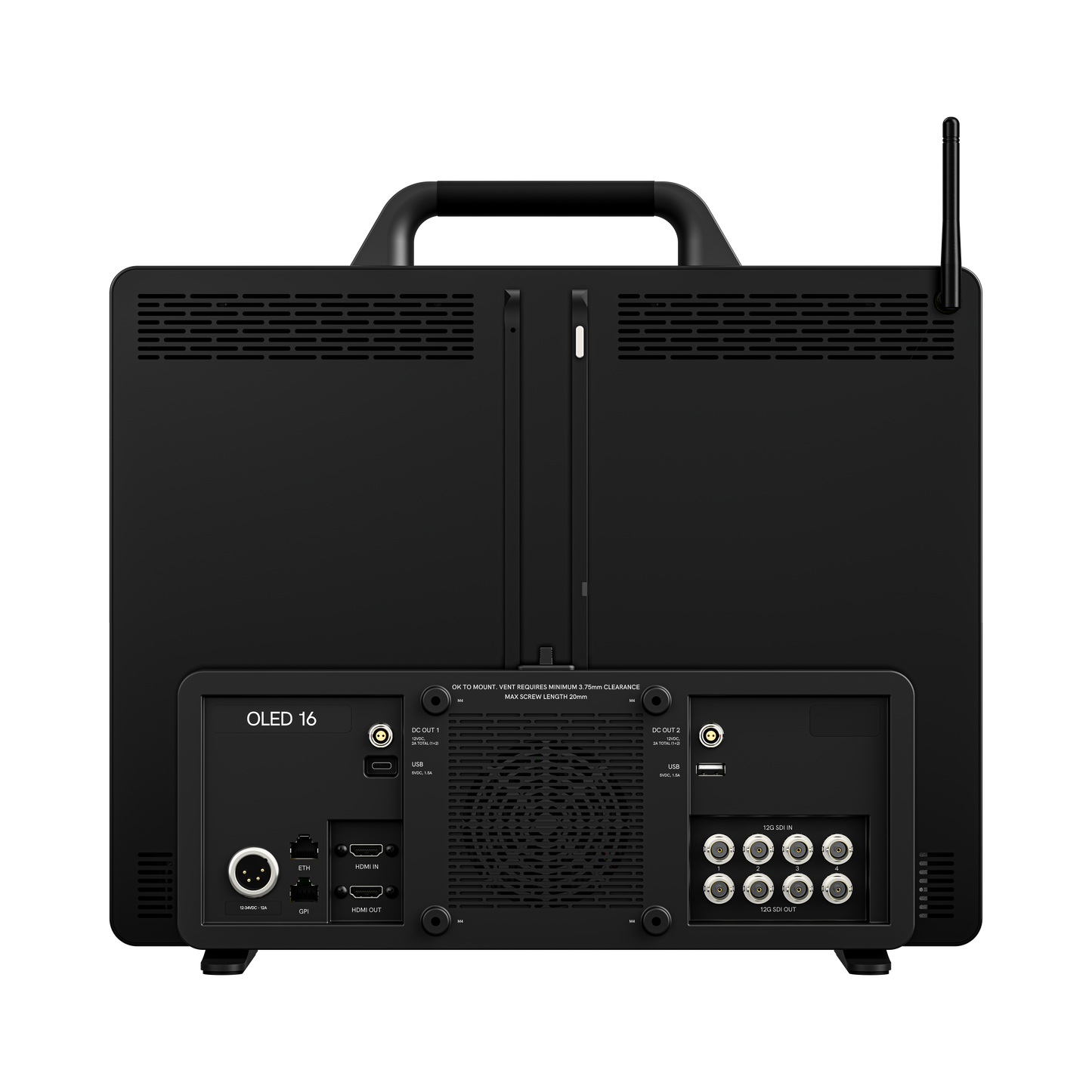

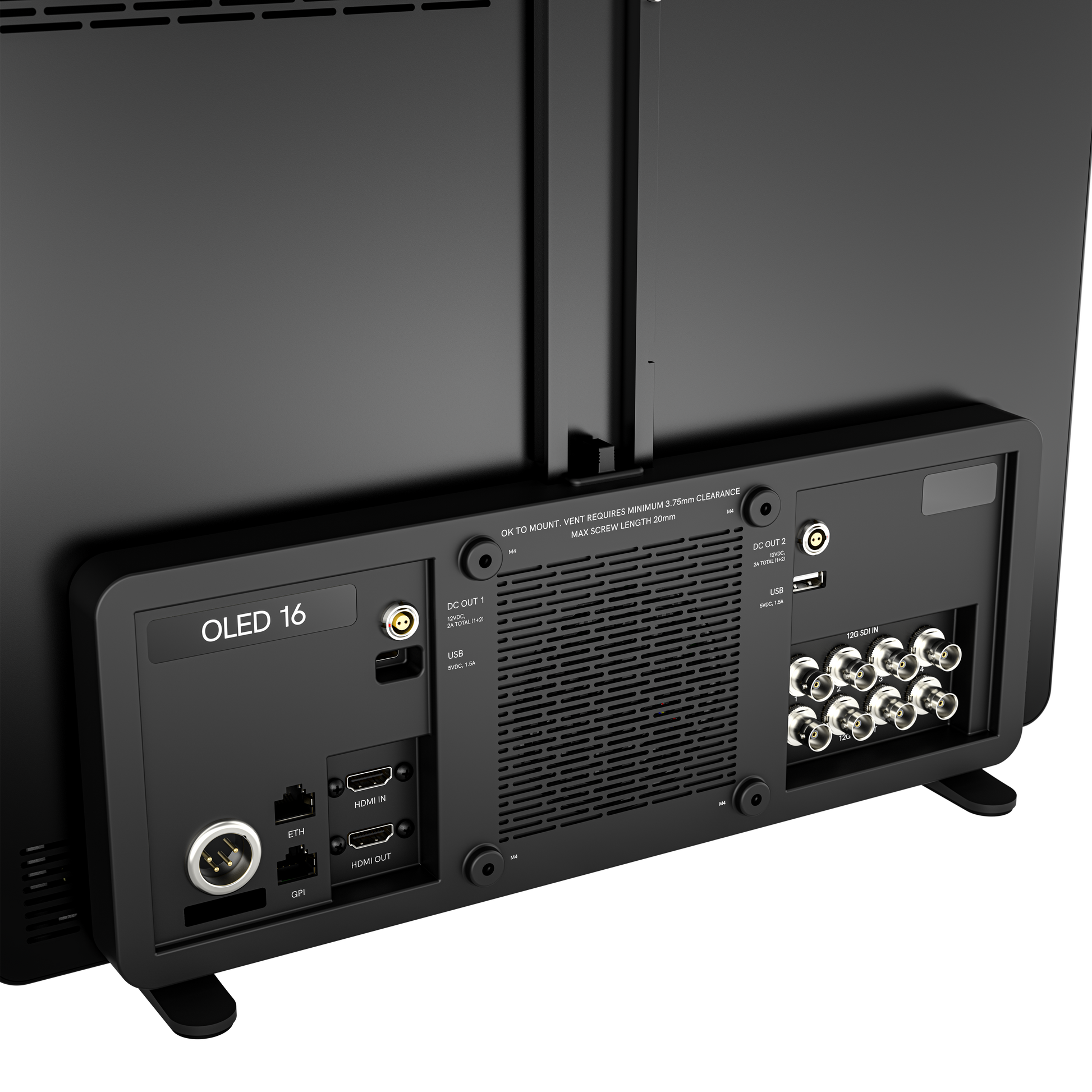

• Input/Output: 4x 12G-SDI | 1x HMDI 2.0
• Construction: Aluminum Unibody Chassis
• Power: 1x 4-Pin XLR

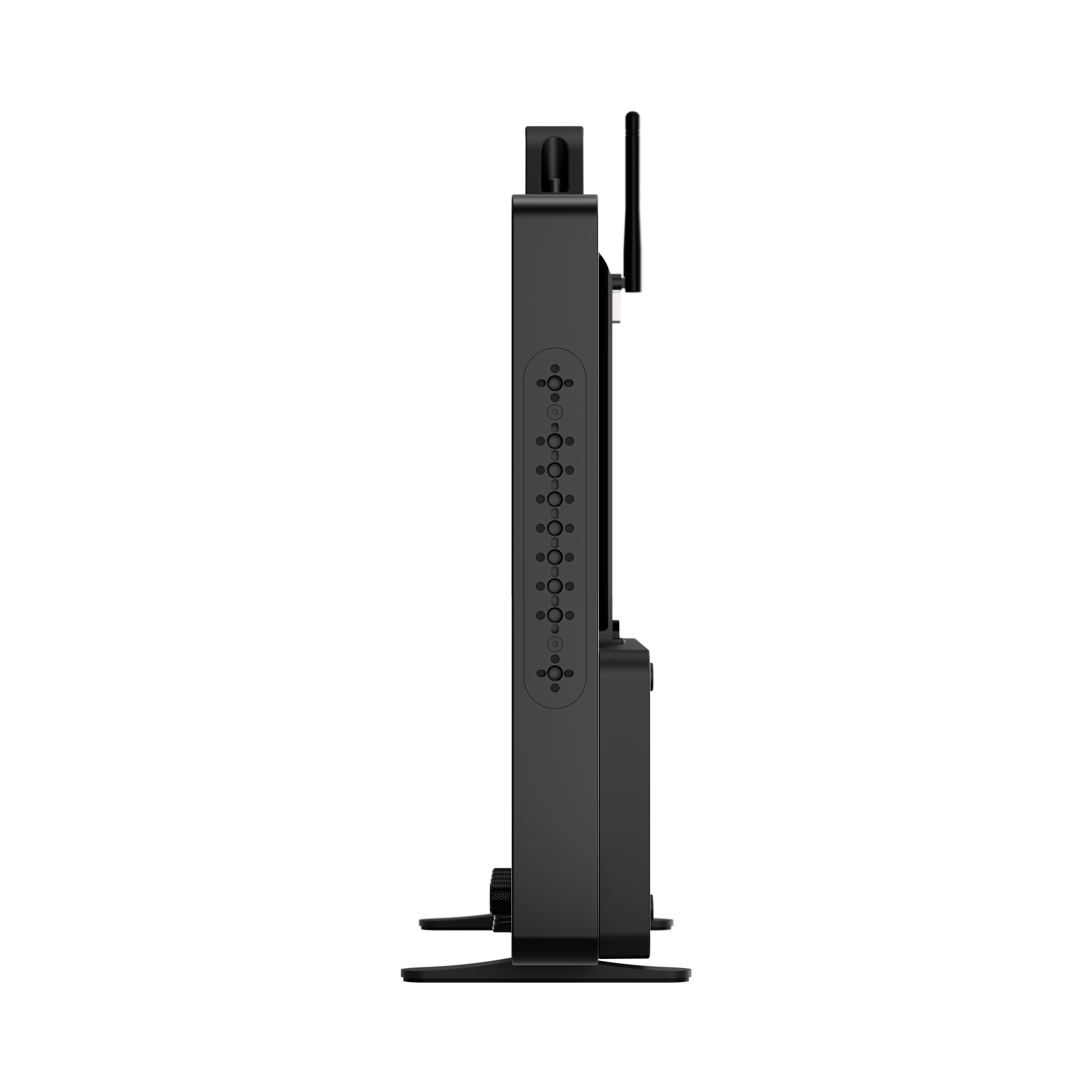

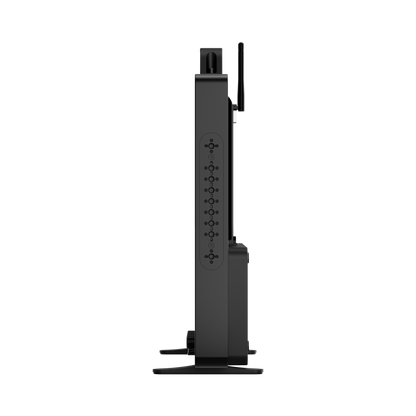

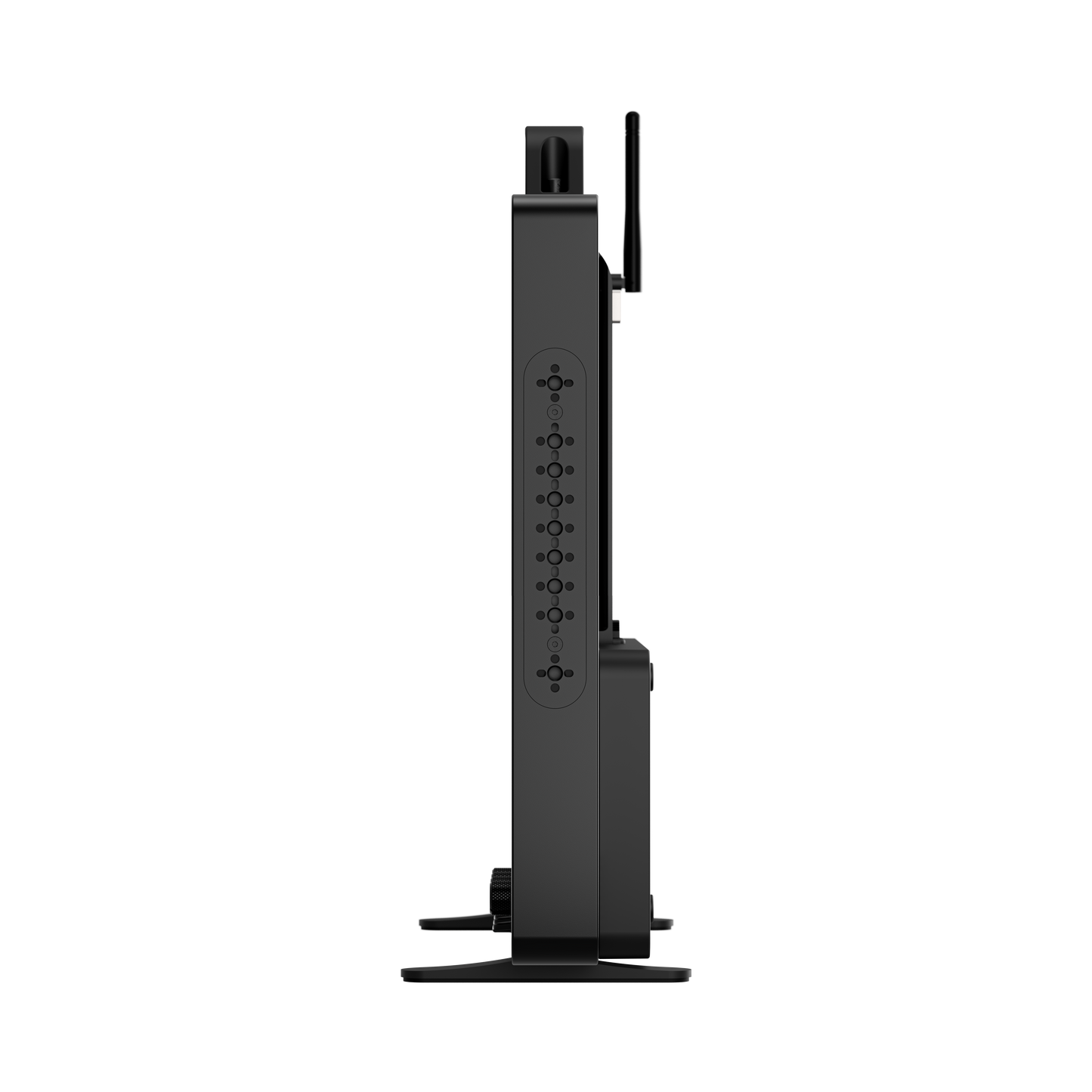

• Mounting: Amart Rail Connector | 100mm VESA-Compatible Mount

• SmallHD OLED 16
• Power Supply
• 2 x Support Foot
• Warranty: Limited 1-Year Manufacturer Warranty
