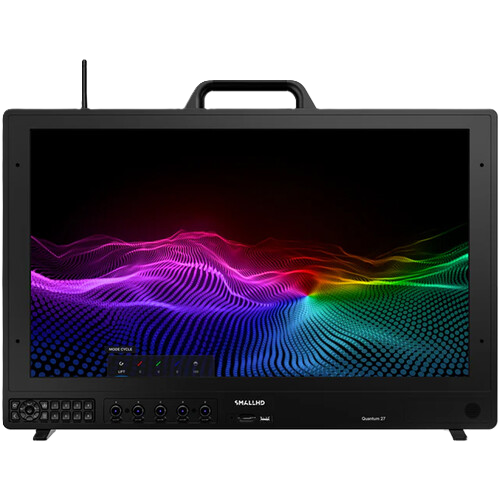

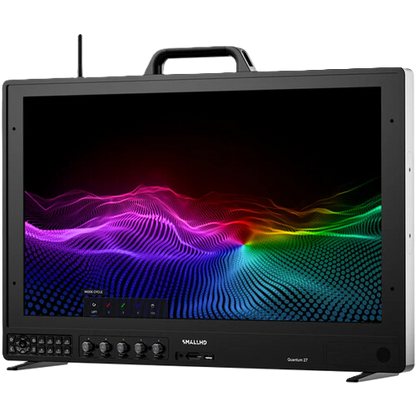

SmallHD Quantum 27 4K Reference Monitor

SmallHD Quantum 27 4K Reference Monitor
True Reference OLED with 1000nits brightness

Features:

• Screen Size: 26.5”
• Quantum Dot OLED Display
• Input/Output: 4x 12G/6G/3G/HD-SDI
• Resolution: 3840 x 2160 (UHD)
• Brightness: Up to 1000 Nits
• Color: 97% DCI-P3/80% Rec.2020
• Bit Depth: 10-bit

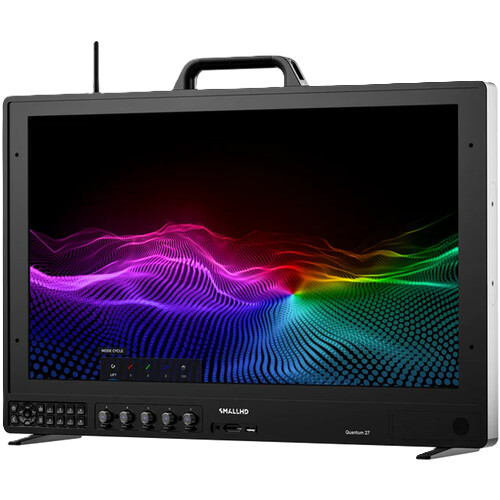

Quantum 27 utilizes Nobel Prize-winning quantum dot nanoparticles in a unique OLED panel design that directly emits narrow-spectrum RGB light evenly in all directions, providing peak luminance of up to 1000 nits and extending color gamut coverage to over 97% of DCI-P3, offering pristine images with an exceptionally wide color volume and viewing angle.

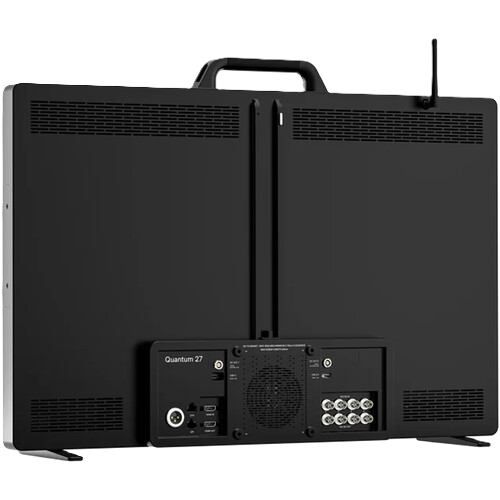

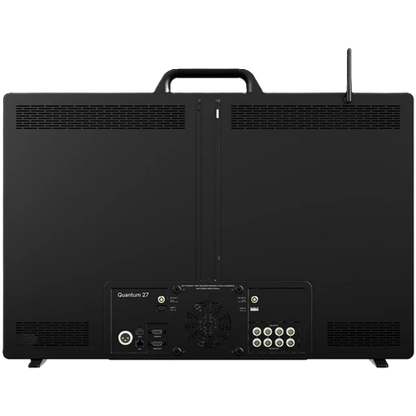

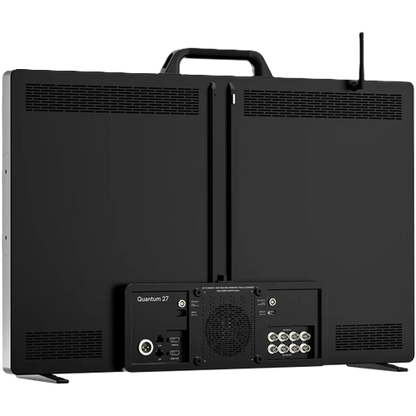

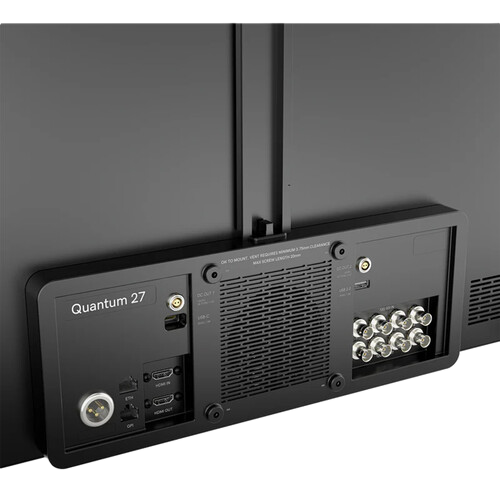

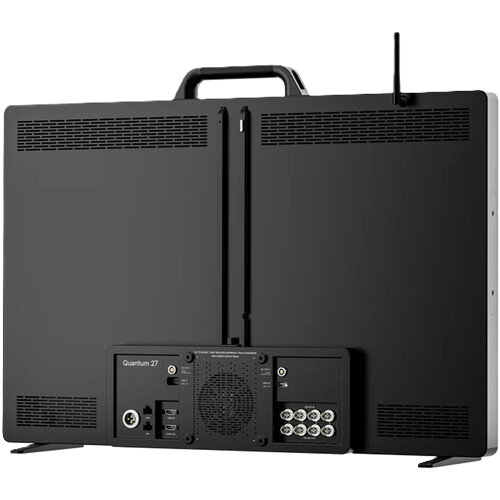

Quantum 27 boasts a resolution of 3840 x 2160 (UHD), 10-bit color processing, 1,500,000:1 contrast ratio, four 12G/6G/3G/HD-SDI inputs and outputs. The Unibody Smart Chassis offers multiple interchangeable mounting points, DC power input and 2-pin power output, 100mm VESA Mount, Dovetail mounting rail for batteries and other accessories, and new built-in WiFi support for wireless remote monitor control. Quantum 27 ships ready for color-critical studio and broadcast desktop use and includes optional top handle and cheese plate inserts for on-set mobility and accessory attachments.

Quantum 27 features a new, more powerful central processor with an entirely custom-designed architecture running PageOS, SmallHD’s unique operating system. PageOS is an intuitive and highly customizable page-based monitoring interface with extensive tools for video engineering workflows, and numerous third-party software integrations.

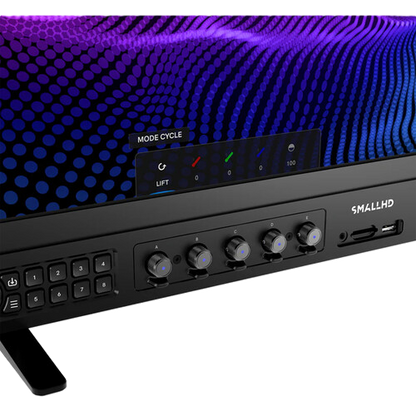

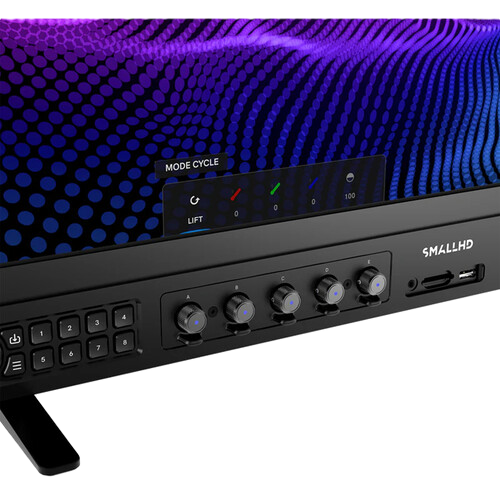

The Quantum 27 also includes dial control functionality, making it even easier to control and navigate PageOS. These tactile dials offer touch-activated illumination to identify programmed functions with long-push, short-push, rotary, and capacitive-touch features, letting you change different tools, settings, and functions on the fly and giving you more ways than ever to customize your workflow.

Environmental

• Item Weight (oz): 18.5lbs / 8.39kg
• Height (in): 17.05 (w/out feet)
• Width (in): 13.82 (w/out feet)
• Length/Depth (in): 26.3 (w/out feet)

Display

• Panel Type: Quantum Dot OLED
• Diagonal Size: 26.5"
• Resolution: 3840x2160
• Max Brightness: Up to 1000nits
• Contrast: 1,500,000:1
• Gamut: 97% DCI-P3
• Color Depth: True 10-bit
• Viewing Angle: 0=60° (u'v'≤ 0.015)
• Backlight Type: QD-OLED

HDR Preview (230~250 Nits Max)

• 1000 Nits: (< 3%) Images with an average luminance below 3% will display at full brightness without dimming when set to 1000 nits
• 230~250 Nits: (< 100%) Images with an average luminance up to 100% have no risk of dimming when set to 230~250 nits (Depending on Calibration)

Input Signal

• 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
• 6G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
• 12G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
• HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
• SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
• HDMI Input Types: YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

Output Signal

• 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
• 6G-SDI Output Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
• 12G-SDI Output Types: YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
• HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
• HDMI Output Types: YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

Power

• Input: 1x 3-pin XLR (142W max, 25V-34V, 12A max)
• Output: 2x 2pin (12V / 2A combined), 1x USB-A (2.4A) (Front), 1x USB-A (1.5A) (Rear), 1x USB-C (5V / 1.5A) (Rear)
• Consumption: 22-34V, 169W Monitor Only, 266W Max
• Battery Plate Included: No
• Battery Types: 26V+

Software

• LUTS: 33pt 3D-LUT on output/input

• Quantum 27
• Power Supply Unit for Quantum 27 / 32
• Combination Cheese Stick for SmallHD 4K Monitors (3/8"-16 & 1/4"-20)
• 1/4"-20 Cheese Stick for SmallHD 4K Monitors
• Replacement Antenna
• Quantum 27 Transport Screen Protector
