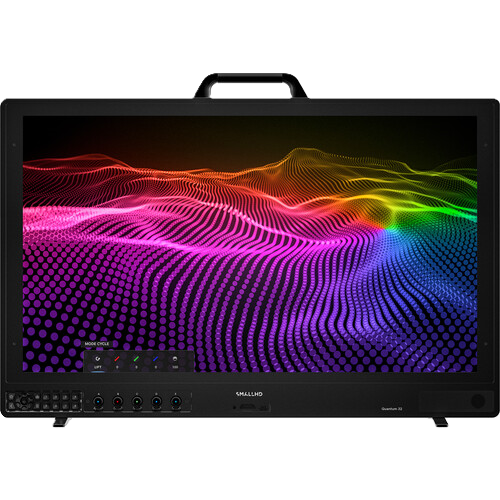

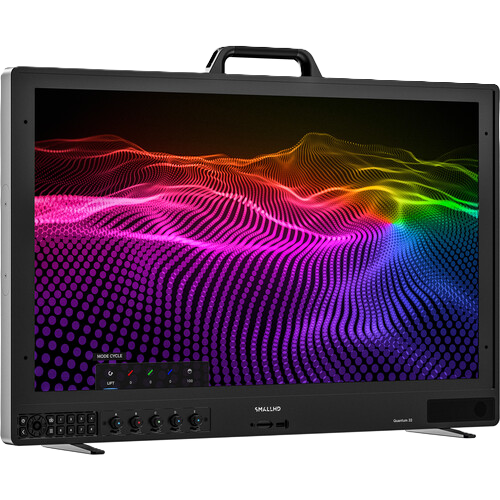

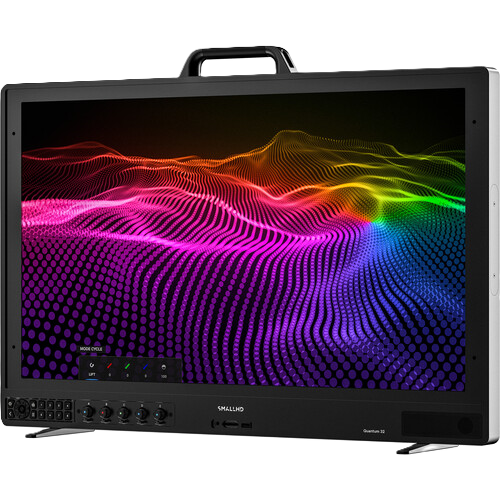

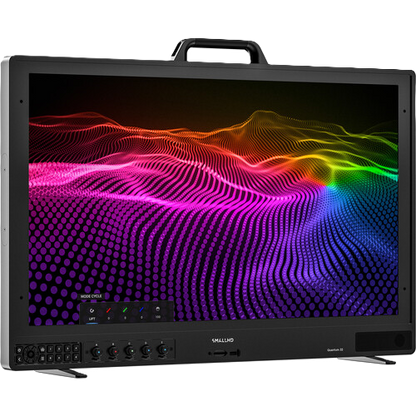

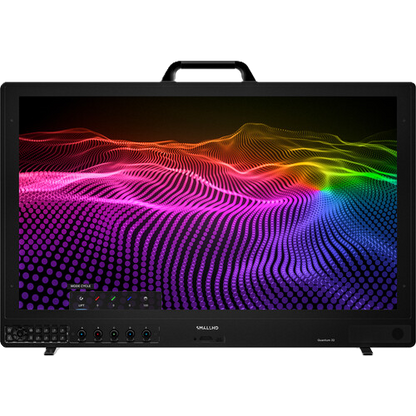

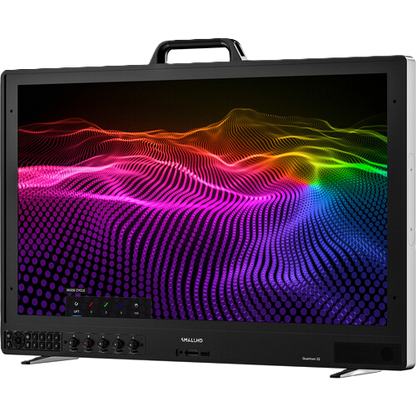

SmallHD Quantum 32

Discover our most advanced 4K display technology to date. Designed for critical on-set monitoring applications, Quantum 32 utilizes Nobel Prize winning quantum dot nanoparticles in a unique OLED panel design that directly emits narrow spectrum RGB light evenly in all directions, provides uniform luminance up to 1000nits, and extends color gamut coverage to over 80% of BT.2020, enabling pristine images with exceptionally wide color volume and viewing angle.

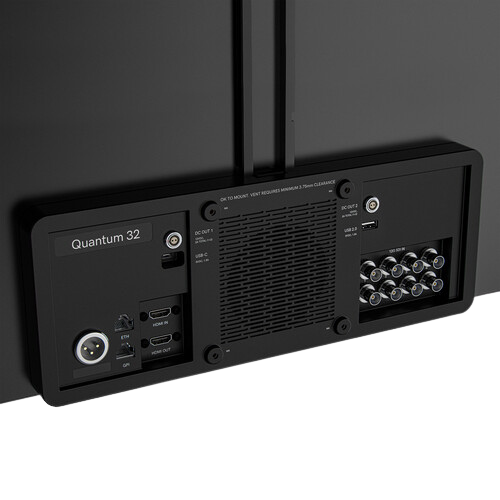

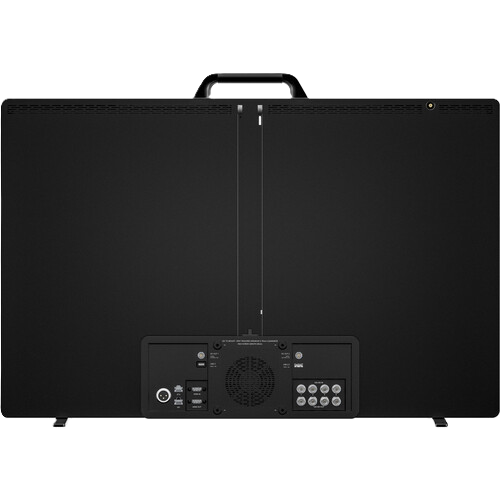

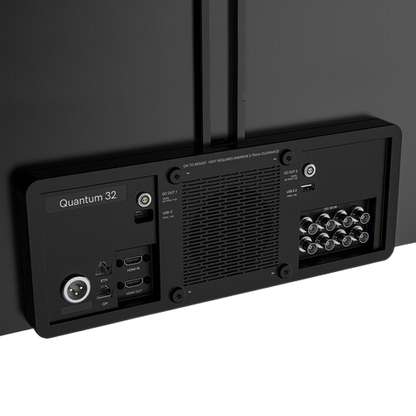

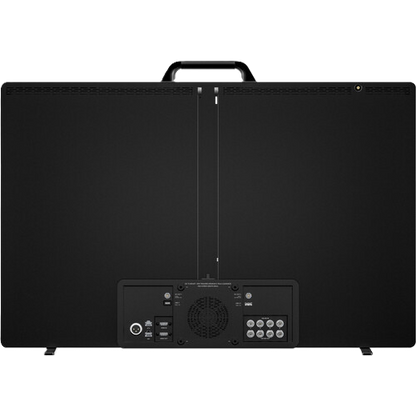

Quantum 32 boasts a resolution of 3840 x 2160 (UHD), 10-Bit color processing, 1,500,000:1 contrast ratio, four 12G/6G/3G/HD-SDI inputs and outputs, and much more. The Unibody Smart Chassis offers multiple, interchangeable mounting points, DC power IN and 2-pin power OUT, 100mm VESA Mount, Dovetail mounting rail for batteries and other accessories, and new WiFi support. Quantum 32 ships ready for color-critical studio and broadcast desktop use and includes optional top handle and cheese plate inserts for mobile field production configurations.

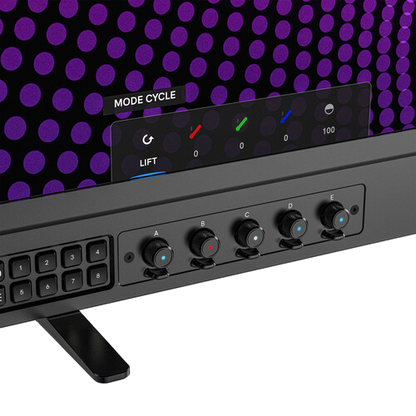

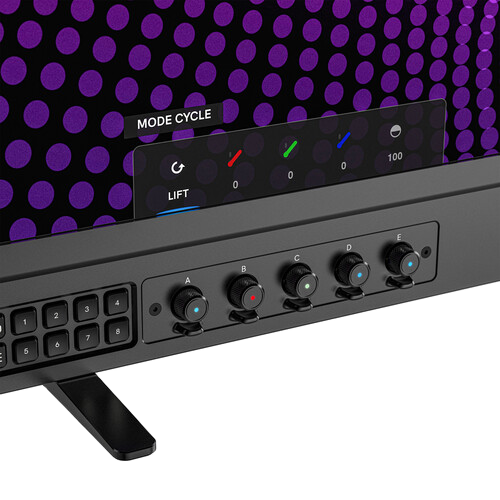

Quantum 32 features a new, more powerful central processor with an entirely custom-designed architecture running PageOS, SmallHD’s unique operating system. PageOS is an intuitive and highly customizable page-based monitoring interface with extensive tools for video engineering workflows, and numerous third-party software integrations.

Features:

• Screen Size: 31.5” Quantum Dot OLED Display
• Input/Output: 4x 12G/6G/3G/HD-SDI
• Resolution: 3840 x 2160 (UHD)
• Brightness: Up to 1000nits
• Color: 97% DCI-P3/80% Rec.2020
• Bit Depth: 10-Bit

Environmental

• Item Weight (oz): 18.2lbs / 8.3kg
• Height (in): 19.49 (w/out feet and handle) 21.42 (w/ feet and handle)
• Width (in): 30.43 (w/out feet and handle) 30.43 (w/ feet and handle)
• Length/Depth (in): 2.91 (w/out feet and handle) 6.3 (w/ feet and handle)
• Compliance: FCC, IC, CE, RoHS, SRRC, MIC
• Operating Temperature: 32 F - 100 F
• Storage Temperature: 0 F - 105 F
• Screen Protection: Glass Hardened
• Mount Points: Interchangeable accessory mount plates on top and sides with multiple ¼”-20 and/or ⅜”-16 options
• Construction: Anodized aluminum chassis with plastic accents

Display

• Panel Type: Quantum Dot OLED
• Diagonal Size: 31.5"
• Resolution: 3840x2160
• Pixel Density: 140.56 PPI
• Aspect Ratio: 1.78:1 (16:9)Active Area: 699.48(H) x 394.73 (V) mm
• Max Brightness: Up to 1000nits
• Contrast: 1,500,000:1
• Gamut: 97% DCI-P3, 80% BT.2020
• Color Depth: True 10-bit
• Viewing Angle: 0=60° (u'v'≤ 0.015)
• Backlight Type: QD-OLED
• Refresh Rate: Synchronizes with input from 48Hz to 60Hz

HDR Preview (230~250 Nits Max)

• 1000 Nits: (< 3%) Images with an average luminance below 3% will display at full brightness without dimming when set to 1000 nits
• 230~250 Nits: (< 100%) Images with an average luminance up to 100% have no risk of dimming when set to 230~250 nits (Depending on Calibration)

Input Signal

• 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
• 6G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
• 12G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
• HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
• SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
• HDMI Input Types: YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25

Output Signal

• 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98
• 6G-SDI Output Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
• 12G-SDI Output Types: YCC 4:2:2 @ 10 bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:2:2:4, RGB, @ 12 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
• HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
  SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
• HDMI Output Types: YCC 4:2:2 @ 12 bits, RGB & YCC 4:4:4 @ 8bits: DCI-4Kp60, DCI-4Kp59.94, DCI-4Kp50, DCI-4Kp48, DCI-4Kp47.95, 2160p60, 2160p59.94, 2160p48, 2160p47.95 YCC 4:2:2: @ 12 bits, RGB & YCC 4:4:4 @8/10/12/16 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, DCI-2Kp30, DCI-2Kp29.97, DCI-2Kp25, DCI-2Kp24, DCI-2Kp23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25
• Audio Output Types: 1x 3.5mm 3-pin Stereo Headphone Jack

Connector Type

• Component: Not Supported
• Composite: Not Supported
• Audio: HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels

Power

• Input: 1x 3-pin XLR (142W max, 25V-34V, 12A max)
• Output: 2x 2pin (12V / 2A combined), 1x USB-A (2.4A) (Front), 1x USB-A (1.5A) (Rear), 1x USB-C (5V / 1.5A) (Rear)
• Consumption: 184w (monitor only) 265w (w/max access. power draw)
• Battery Plate Included: No
• Battery Types: 26V+

Software

• LUTS: 33pt 3D-LUT on output/input

• SmallHD Quantum 32
• Power Supply Unit for Quantum 27/32
• Quantum 32 Transport Screen Protector
• Combination Cheese Stick for SmallHD 4K Monitors (3/8 & 1/4-20)
• 1/4-20 Cheese Stick for SmallHD 4K Monitors
