SmallHD Ultra 5 Bolt 6 RX 750 V-Mount Kit
SmallHD Ultra 5 Bolt 6 RX 750 V-Mount Kit
SmallHD Ultra 5 Bolt 6 RX 750 V-Mount Kit
SmallHD Ultra 5 Bolt 6 RX 750 V-Mount Kit
SmallHD Ultra 5 Bolt 6 RX 750 V-Mount Kit
SmallHD Ultra 5 Bolt 6 RX 750 V-Mount Kit

SmallHD Ultra 5 Bolt 6 RX 750 V-Mount Kit

Regular price$3,499.00
/
Free Shipping & Tech Support.
Videoguys Part # (SKU): 160528VM
MFR Part # (MPN): 16-0528-VM

Short Description:

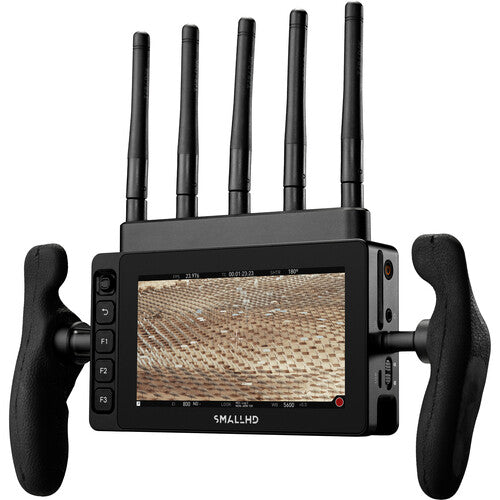

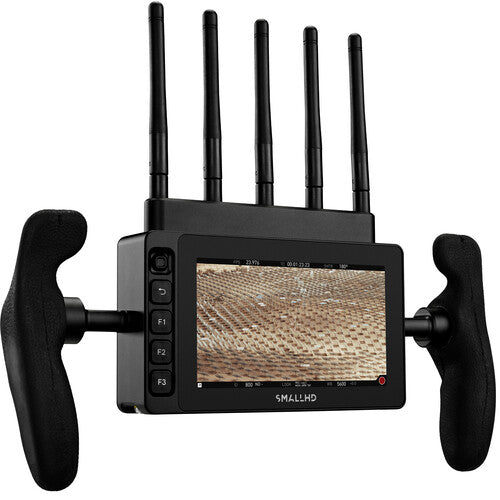

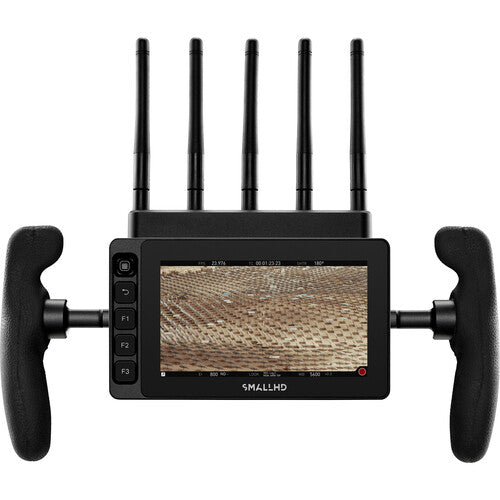

Bringing together SmallHD’s field-ready Ultra 5 monitor with Teradek’s wireless transmission technology, the Ultra 5 Bolt 6 RX 750 integrates a Bolt 6 750 Receiver directly inside, allowing you to view the image from your camera up to 750 feet away.

About Ultra 5

Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. along with P3 color-accuracy. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.

Ultra 5 is designed for the user who wants it all, including optional Gold or V-Mount Micro Battery Plates for a compact power solution and an Ethernet port to enable ARRI and Sony VENICE Camera Control (Camera Control license and cable sold separately).

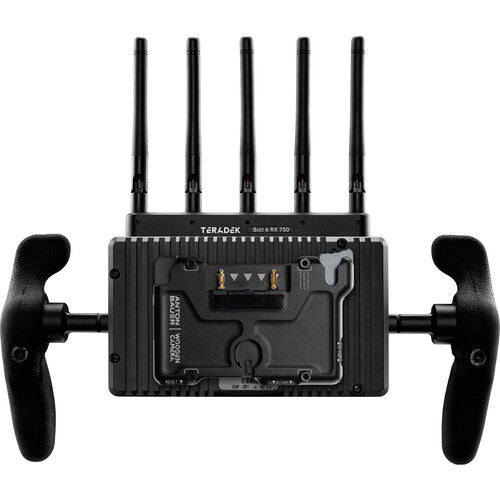

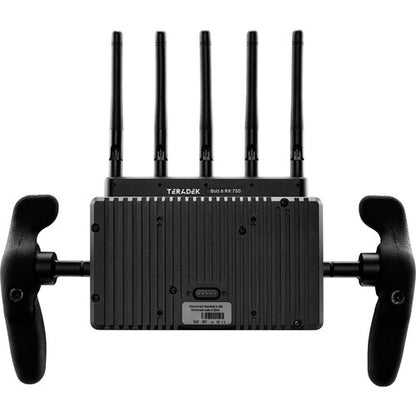

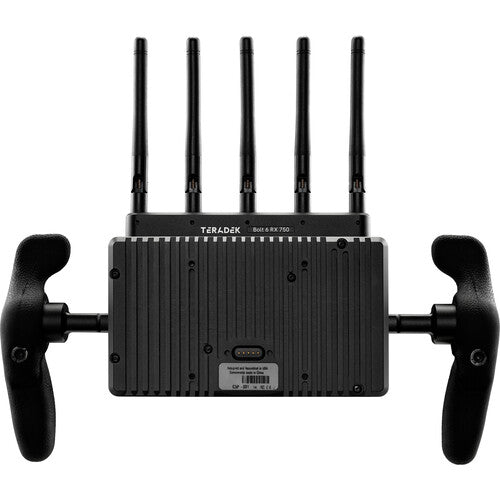

About the Teradek Bolt 6 750 RX

The Bolt 4K TX is a real time wireless video receiver that supports video signals up to 4Kp30 via HDMI with no image delay. This RX allows you to receive color accurate, True HDR images in less than 0.001 seconds. Reliably receive your videos with advanced hardware and minimal image break-up.

Camera Control for ARRI, RED®, and Sony VENICE

Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to ARRI, RED DSMC2, KOMODO®, V-RAPTOR™, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Ultra 5

Environmental

  • Mount Points: 6x 1/4-20 Mounting Points

Display

  • Panel Type: Touch-Screen
  • Resolution: 1920 x 1080
  • Aspect Ratio: 16:9
  • Brightness: 3000nits
  • Backlight Type: Edgelit

Input Signal

  • 3G-SDI Input Types: 1x 3G-SDI

Output Signal

  • HDMI Output Types: 1x HDMI 2.0 (4Kp30)

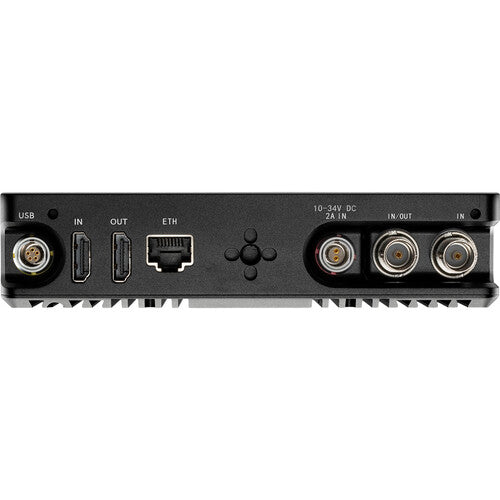

Connector Type

  • SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
  • HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
  • Audio: 1x 3.5mm Stereo Headphone Jack

Data I/O

  • Connector Type: 1x RJ45 Ethernet
  • Storage Media: 1x SD Card Slot
  • USB: 1x Micro USB 1x Locking USB

Power

  • Input: 2-pin Locking Power Input (10-34V DC, 2.1A)

Software

  • Pixel Zoom: Yes
  • Focus Assist: Yes
  • Peaking: Yes
  • False Color: Customizable False Color Overlays
  • Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
  • Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input

  •  Ultra 5 Bolt 6 RX 750 V-Mount Kit
  • Monitor Handles + Neck Strap
  • CS Micro Power Plate
