Regular price$3,299.00
Free Shipping & Tech Support.
Videoguys Part # (SKU): 160529
MFR Part # (MPN): 16-0529

Short Description:
  • Free Shipping & Tech Support

Bringing Teradek’s wireless transmission technology to the Ultra 5 Smart Monitor.

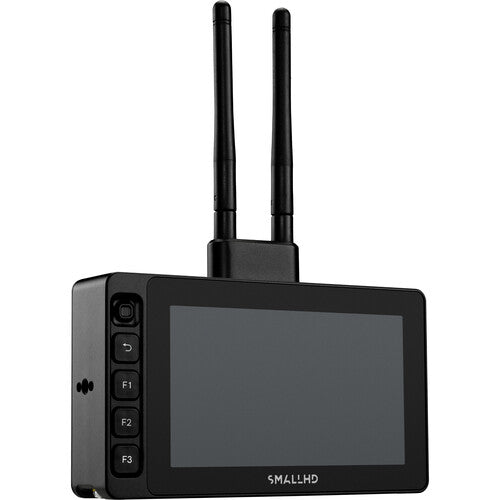

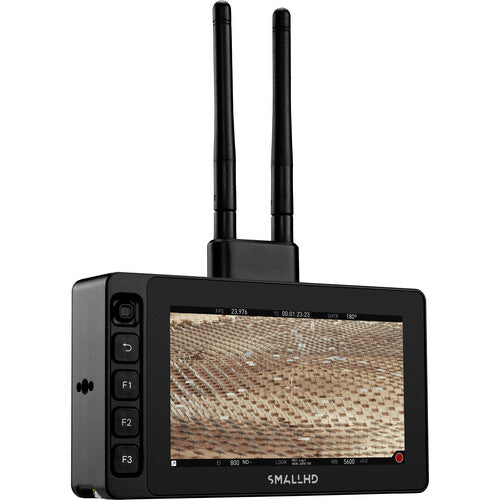

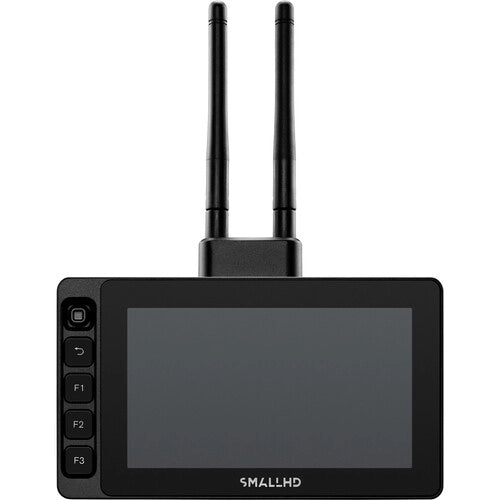

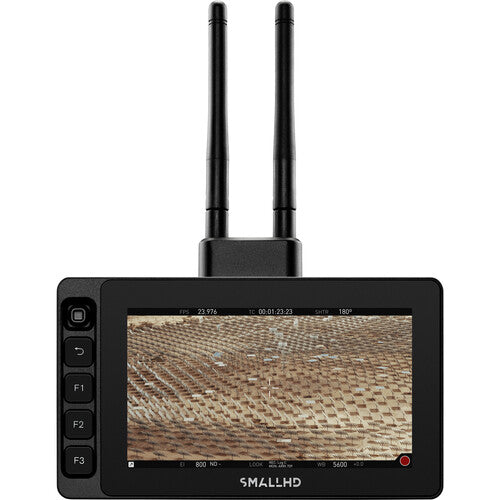

Bringing together SmallHD’s field-ready monitor with Teradek’s wireless transmission technology. Ultra 5 Bolt 6 TX 750 integrates a Bolt 6 750 Transmitter directly inside an Ultra 5 monitor, allowing you to wirelessly send the image from your camera up to 750 feet away.

About Ultra

Powerful, portable, and adaptable, the Ultra 5 offers a dazzling 3000nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions.. Experience all your favorite PageOS 5 tools, functions, and settings pages on a fully-loaded 5-inch touchscreen monitor.

Ultra 5 is designed for the user who wants it all, including optional Gold or V-Mount Micro Battery Plates for a compact power solution and an Ethernet port to enable ARRI and Sony VENICE Camera Control (Camera Control license and cable sold separately).

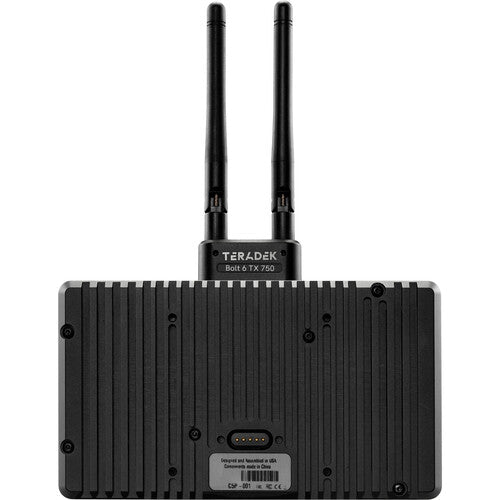

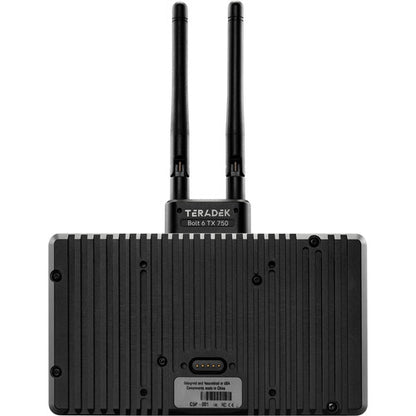

About Teradek Bolt 6 750 TX

The Bolt 6 750 TX is a real-time wireless video transmitter that supports video signals up to 4Kp30 via HDMI with no image delay. This transmitter allows you to send color accurate, True HDR images in less than 0.001 seconds. Reliably transmit your videos with advanced hardware and minimal image break-up.

Camera Control for ARRI, RED®, and Sony VENICE

Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to ARRI, RED DSMC2, KOMODO®, V-RAPTOR™, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Ultra 5


  • Mount Points: 6x 1/4-20 Mounting Points


  • Panel Type: Touch-Screen
  • Resolution: 1920 x 1080
  • Aspect Ratio: 16:9
  • Brightness: 3000nits
  • Backlight Type: Edgelit

Input Signal

  • 3G-SDI Input Types: 1x 3G-SDI

Output Signal

  • HDMI Output Types: 1x HDMI 2.0 (4Kp30)

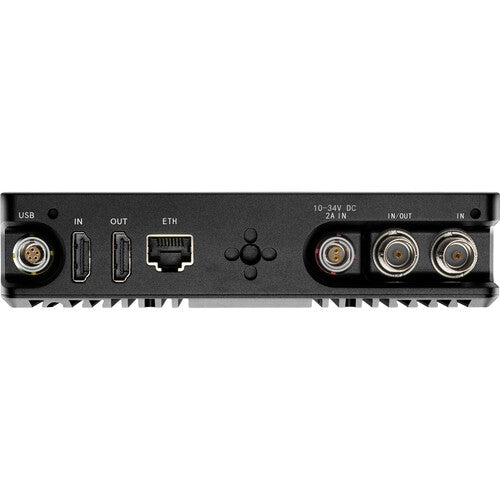

Connector Type

  • SDI: 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
  • HDMI: 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
  • Audio: 1x 3.5mm Stereo Headphone Jack

Data I/O

  • Connector Type: 1x RJ45 Ethernet
  • Storage Media: 1x SD Card Slot
  • USB: 1x Micro USB 1x Locking USB


  • Input: 2-pin Locking Power Input (10-34V DC, 2.1A)


  • Pixel Zoom: Yes
  • Focus Assist: Yes
  • Peaking: Yes
  • False Color: Customizable False Color Overlays
  • Waveform: Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
  • Custom LUTS: 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
