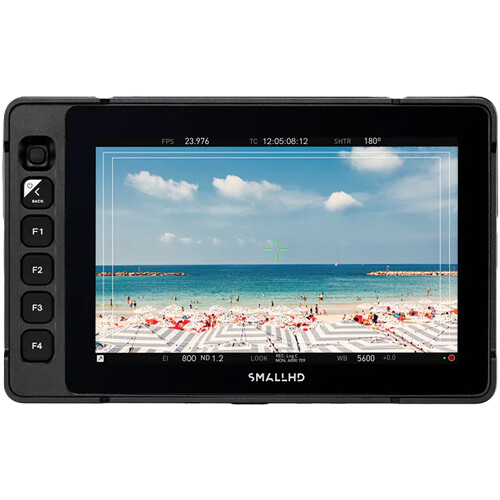

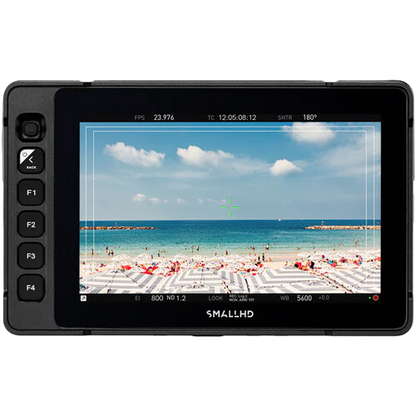

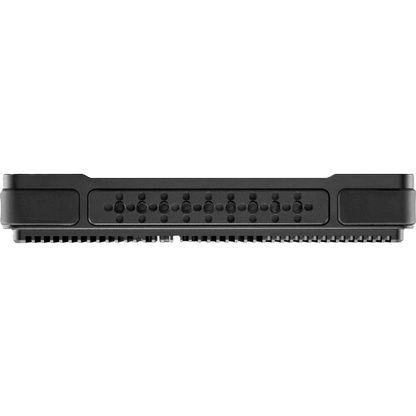

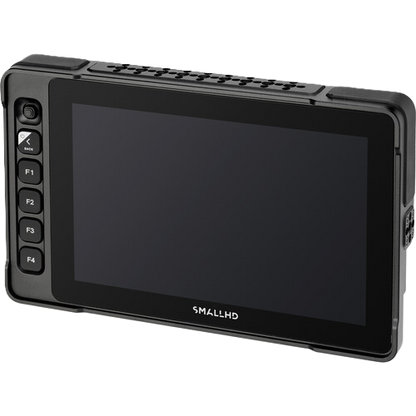

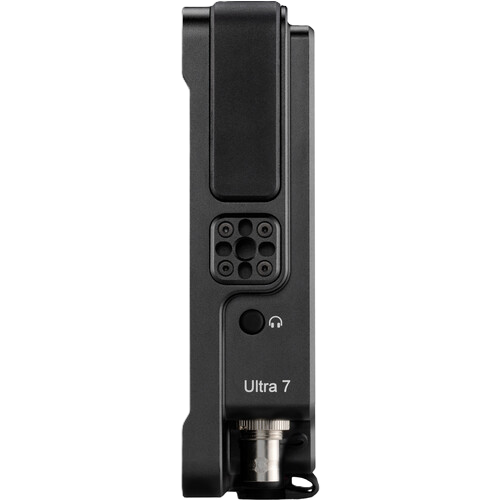

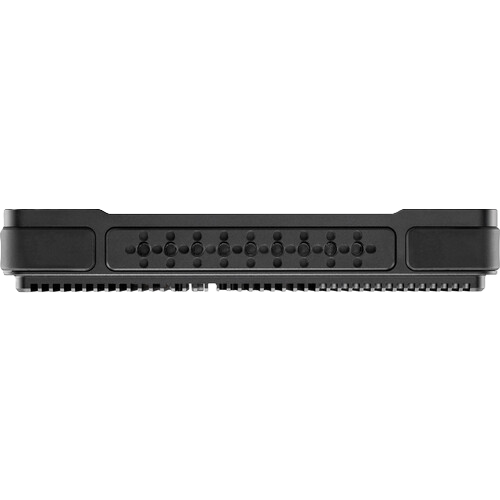

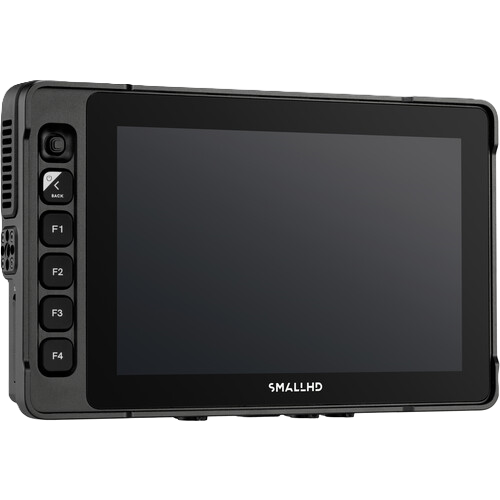

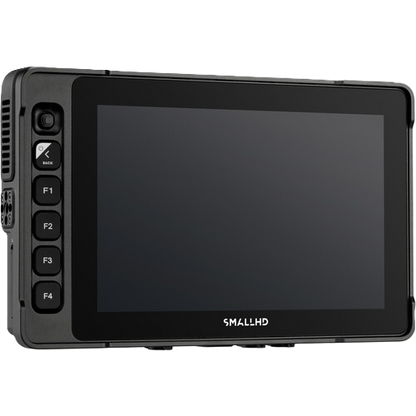

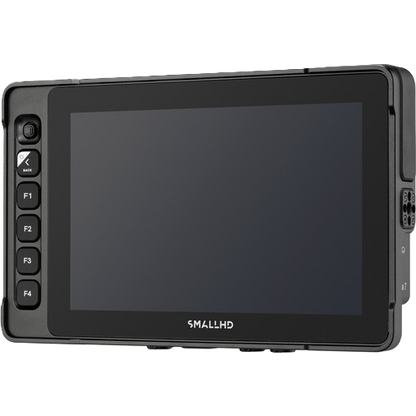

SmallHD Ultra 7 Monitor

7-inch touchscreen camera monitor with 2300nits brightness

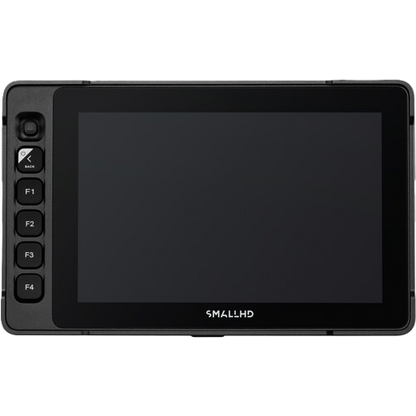

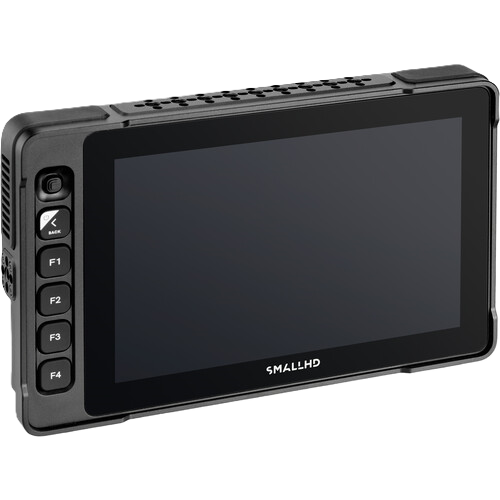

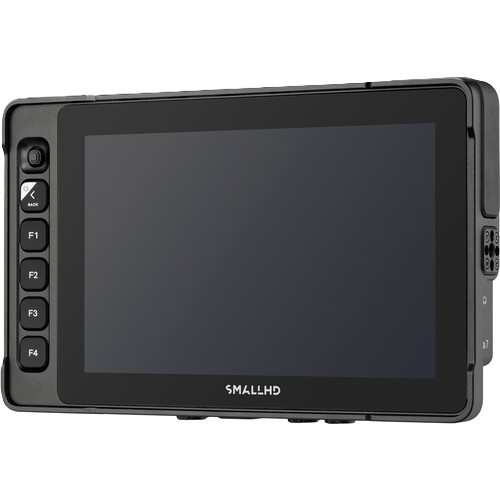

Features

• Customizable colors for buttons and bumpers
• Ultra Bright (2300nits)
• Dust and water resistant with an IP 54 rating
• 6G-SDI for modern 4K end-to-end workflows
• Camera Control compatible with all current SmallHD licenses

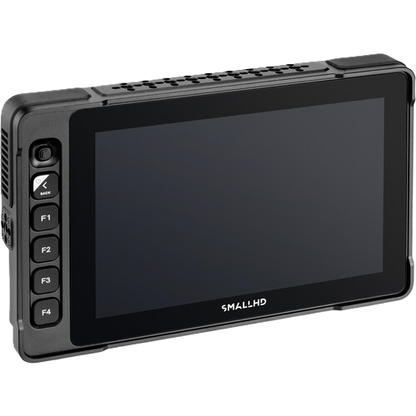

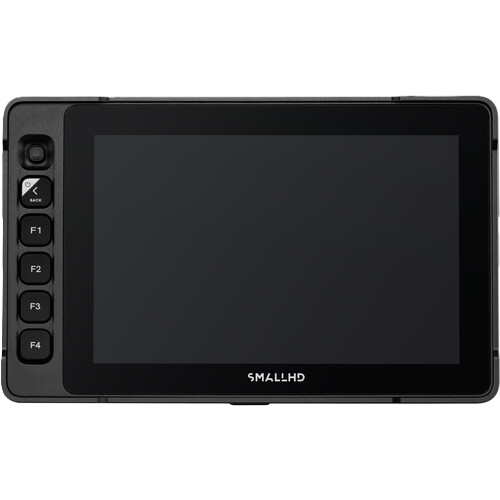

• Function Buttons for tactile control



Powerful, bright, and durable, the Ultra 7 offers a stunning 2300nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS tools and functions on a fully loaded 7-inch touchscreen field monitor powerful enough to ingest a 4K signal with 6G-SDI.

Ultra 7 is adaptable to all situations and conditions, including optional Gold Mount, V-Mount, or B-Mount Micro Battery Plates for a compact power solution, an Ethernet port to enable ARRI and Sony VENICE Camera Control, and a 5-Pin USB port for RED® Camera Control (Camera Control license and cable sold separately).

Environmental

• IP Rating: IP 54
• Item Weight (oz): 32
• Height (in): 1.36
• Width (in): 5.12
• Length/Depth (in): 8.23

Display

• Panel Type: IPS LCD
• Diagonal Size: 7.02"
• Resolution: 1920x1200
• Max Brightness: 2300nits
• Contrast: 1000:1
• Gamut: 95% DCI-P3 Coverage / 98% REC 709
• Color Depth: 10-bit Processing (8-bit panel)
• Backlight Type: LED Edgelit
• Refresh Rate: Synchronizes with input from 48Hz to 60Hz

Input Signal

• 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
• 6G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
• HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
  SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
• HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52

Output Signal

• 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
  HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
• SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
• HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51
• Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

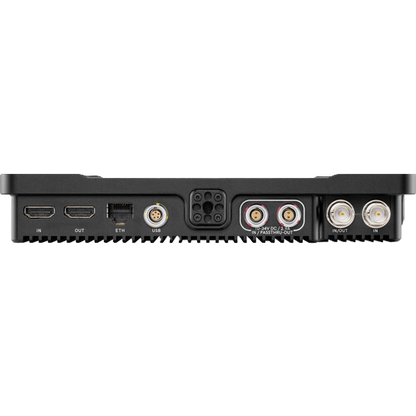

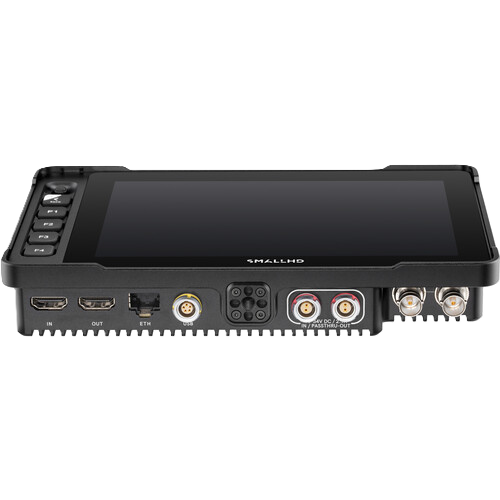

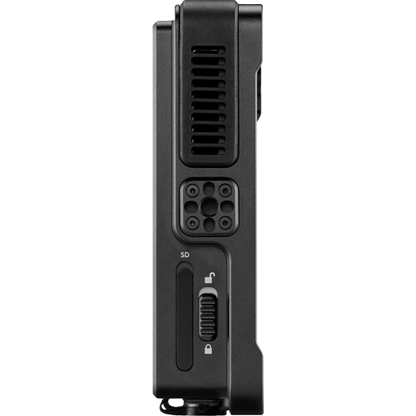

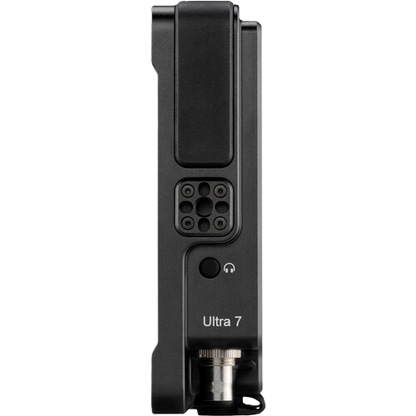

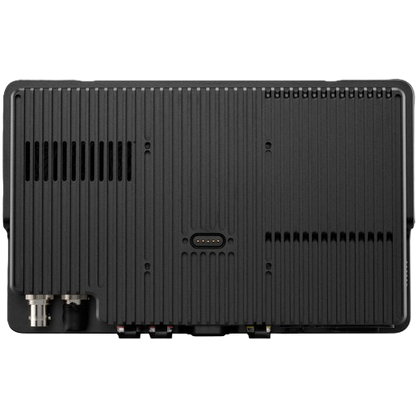

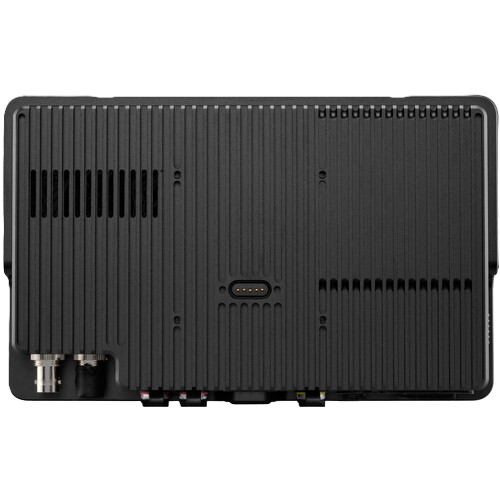

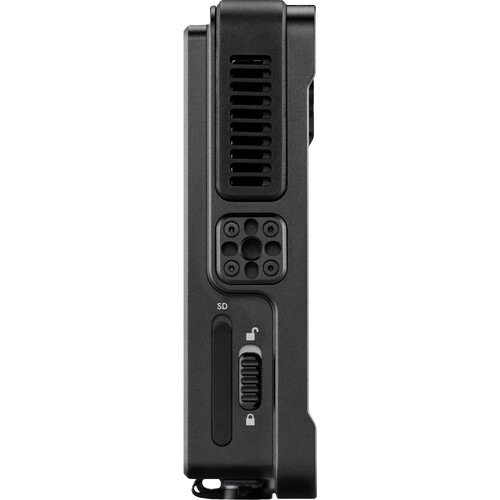

Data I/O

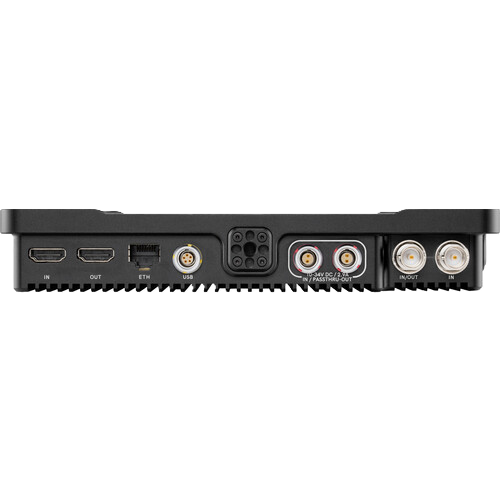

• SDI: 1x BNC 6G input and 1x BNC 6G input/output
• HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
• Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
• Ethernet: RJ45

Power

• Connector: 2-Pin Locking Connector
• Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 10V minimum to 34V max
• Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
• Battery Types: V Mount, Gold Mount Micro Battery Plates
• Overload Protection: DC input: Reverse polarity

Software

• Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
• Frame Guides: Preset Aspect Ratios & Customizable
• DSLR Scale: Canon 5DMkii & Canon 7D
• Custom Scale: Yes (Underscan Only)
• Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
• Image Rotate: Automatic or Manual Control
• Image Flip: Automatic or Manual Control
• Cross Conversion: Yes: HDMI → SDI & SDI → HDMI (Coming Soon)
• Focus Assist: User Adjustable Color Style and Intensity
• Peaking: User Adjustable Intensity
• False Color: Rainbow, Arri Style, Custom with up to 10 nodes
• Zebra: Dual - User Configurable
• Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
• Vectorscope: Yes
• RGB Parade: Fully User Customizable
• Histogram: Luma & RGB Style
• Image Capture: Yes
• LUTS: 33pt User LUT instead of 17pt - 33pt Cal LUT instead of 17pt - LUT tool continues to work after removable media containing the LUT has been removed
• Custom LUTS: Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu - LUT Downstream: Available on SDI or HDMI Out (Coming Soon). Applied on Output Preview Page - LUT Import: via SD Card or USB Storage Device
• Color Pipe: Unique Calibrations may be saved to each Color Pipe - Accurate color processing
• Overlay: With Opacity Slider and Blink Setting
• Audio Meters: HDMI & SDI up to 8 channel
• Multi-View: 2 camera feeds simultaneously

Camera Control

• Camera Control Compatibility: Arri, Venice 1/2, RCP & RCP2

• Ultra 7 Monitor
• D-Tap to 2pin Power Cable 36in
• Ultra Screen Protector for Ultra 7
