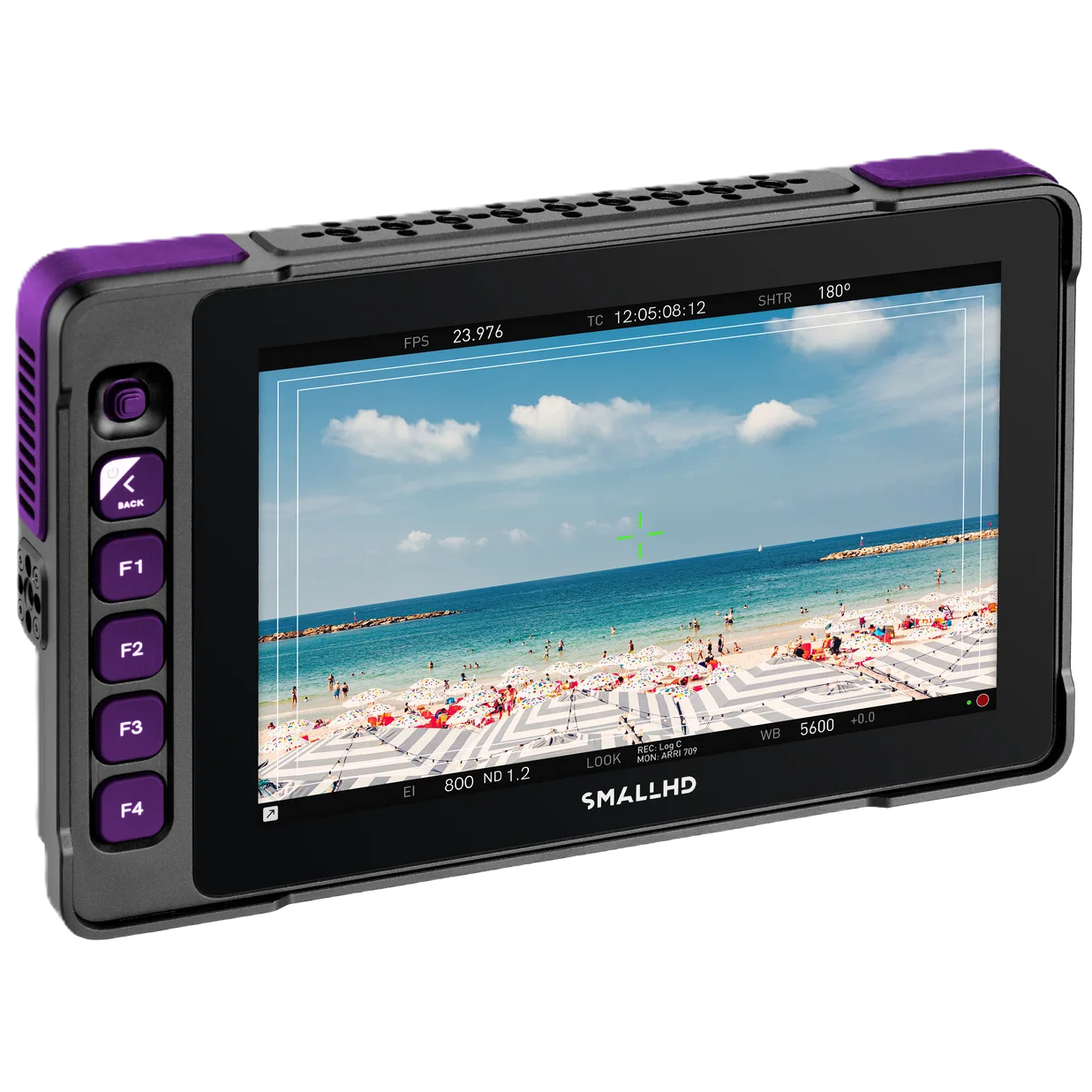

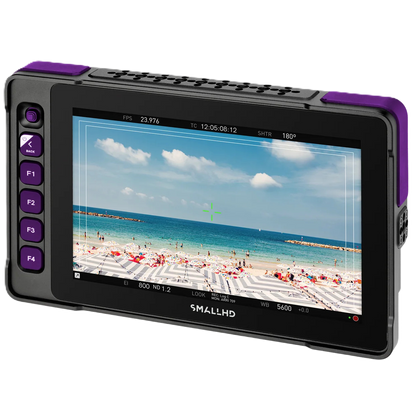

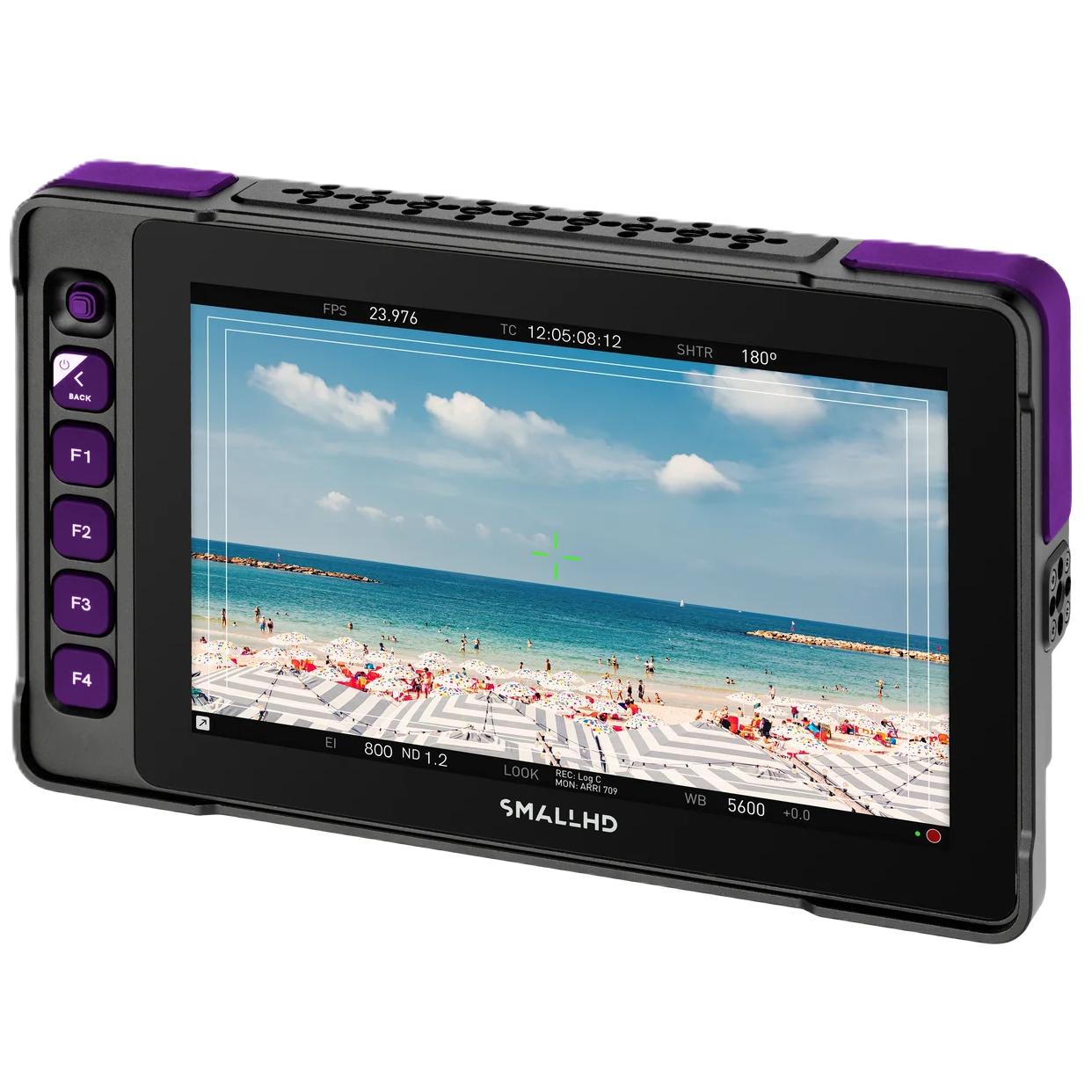

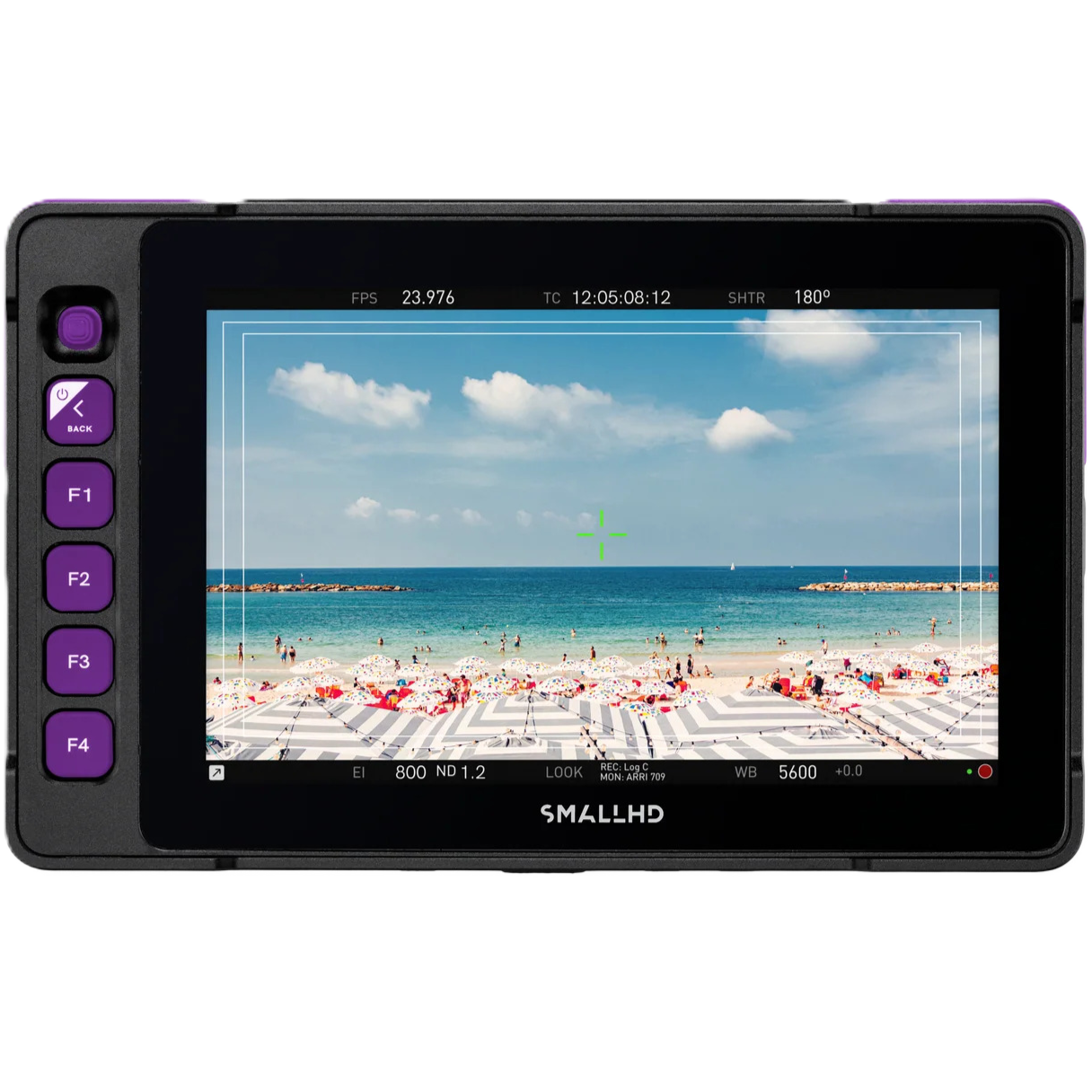

SmallHD Ultra 7 (PURPLE)

Powerful, bright, and durable, the Ultra 7 offers a stunning 2300nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS tools and functions on a fully loaded 7-inch touchscreen field monitor powerful enough to ingest a 4K signal with 6G-SDI.

Ultra 7 is adaptable to all situations and conditions, including optional Gold Mount, V-Mount, or B-Mount Micro Battery Plates for a compact power solution, an Ethernet port to enable ARRI and Sony VENICE Camera Control, and a 5-Pin USB port for RED® Camera Control (Camera Control license and cable sold separately).

Users can now customize the colors of the bumpers and buttons on an Ultra 7, put your own personal touch on the monitor and brand your gear.

Features:

• Customizable colors for buttons and bumpers
• Ultra Bright (2300nits)
• Dust and water resistant with an IP 54 rating
• 6G-SDI for modern 4K end-to-end workflows
• Camera Control compatible with all current SmallHD licenses
• Function Buttons for tactile control

Environmental

• IP Rating: IP 54
• Item Weight (oz): 32
• Height (in): 1.36
• Width (in): 5.12
• Length/Depth (in): 8.23

Display

• Panel Type: IPS LCD
• Diagonal Size: 7.02"
• Resolution: 1920x1200
• Max Brightness: 2300nits
• Contrast: 1000:1
• Gamut: 95% DCI-P3 Coverage / 98% REC 709
• Color Depth: 10-bit Processing (8-bit panel)
• Backlight Type: LED Edgelit
• Refresh Rate: Synchronizes with input from 48Hz to 60Hz

Input Signal

• 3G-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
• 6G-SDI Input Types: YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95
• HD-SDI Input Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
  SD-SDI Input Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
• HDMI Input Types: YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52

Output Signal

• 3G-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102
  HD-SDI Output Types: YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100
• SD-SDI Output Types: YCC 4:2:2 @ 10-bits: 480i59.94, 576i52
• HDMI Output Types: YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51
• Audio Output Types: HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection

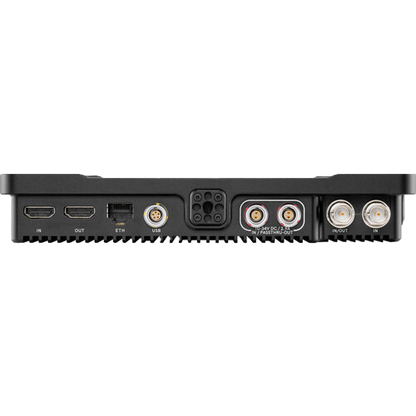

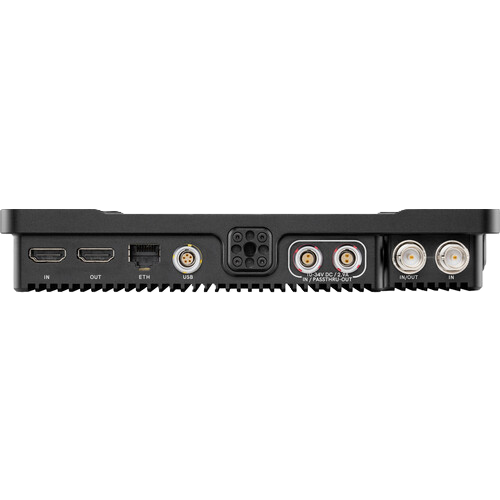

Data I/O

• SDI: 1x BNC 6G input and 1x BNC 6G input/output
• HDMI: 1 input and 1 output: HDMI Type-A Receptacles (full size)
• Audio: 1x 3.5mm 3-pin Stereo Headphone Jack
• Ethernet: RJ45

Power

• Connector: 2-Pin Locking Connector
• Voltage: DC in - 10V minimum to 34V maximum, Battery terminals - 10V minimum to 34V max
• Power Supply: Recommend DC 12~15V at ~2.5 amp or greater
• Battery Types: V Mount, Gold Mount Micro Battery Plates
• Overload Protection: DC input: Reverse polarity

Software

• Pixel Zoom: 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
• Frame Guides: Preset Aspect Ratios & Customizable
• DSLR Scale: Canon 5DMkii & Canon 7D
• Custom Scale: Yes (Underscan Only)
• Anamorphic De-Squeeze: 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
• Image Rotate: Automatic or Manual Control
• Image Flip: Automatic or Manual Control
• Cross Conversion: Yes: HDMI → SDI & SDI → HDMI (Coming Soon)
• Focus Assist: User Adjustable Color Style and Intensity
• Peaking: User Adjustable Intensity
• False Color: Rainbow, Arri Style, Custom with up to 10 nodes
• Zebra: Dual - User Configurable
• Waveform: Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
• Vectorscope: Yes
• RGB Parade: Fully User Customizable
• Histogram: Luma & RGB Style
• Image Capture: Yes
• LUTS: 33pt User LUT instead of 17pt - 33pt Cal LUT instead of 17pt - LUT tool continues to work after removable media containing the LUT has been removed
• Custom LUTS: Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu - LUT Downstream: Available on SDI or HDMI Out (Coming Soon). Applied on Output Preview Page - LUT Import: via SD Card or USB Storage Device
• Color Pipe: Unique Calibrations may be saved to each Color Pipe - Accurate color processing
• Overlay: With Opacity Slider and Blink Setting
• Audio Meters: HDMI & SDI up to 8 channel
• Multi-View: 2 camera feeds simultaneously

Camera Control

• Camera Control Compatibility: Arri, Venice 1/2, RCP & RCP2

• 1x Ultra 7 + Color Option
• 1x 36-inch P-Tap to 2-Pin Power Cable
• 1x Ultrascreen Protector for Ultra 7
