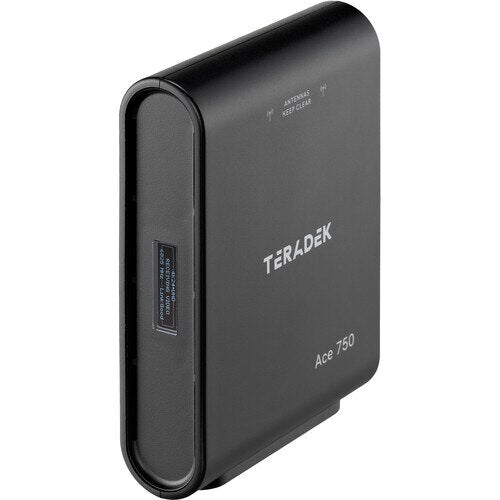

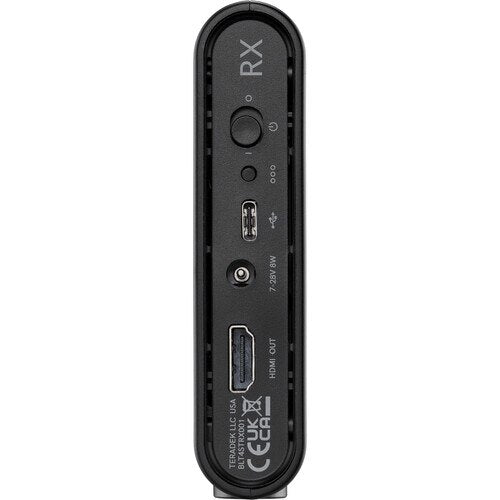

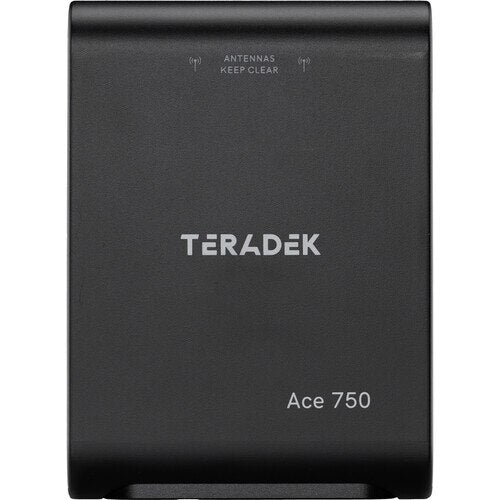

Teradek Ace 750 4K HDMI Wireless Video Receiver

Ace 750 is a lightweight, compact, HDMI wireless video system with built-in antennas designed to be used with mirrorless cameras, camcorders, action cameras and A/V workflows. It sends uncompressed zero-delay, 4Kp30, HDR video and audio with up to 750 feet (230m) of range. Ace 750 is cross-compatible with Bolt 4K and Bolt 6 in 5GHz and 6GHz modes and is fully compliant with FCC and CE frequency usage and power output guidelines. Ace 750 features an integrated hole pattern for mounting and can be powered with NP-F or LP-E6 batteries using an optional L-shaped plate. Ace 750 is built with the same reliable wireless technology found in our acclaimed Bolt product line. Because of this, Ace 750 is fully compatible with all Bolt 4K and Bolt 6 models.

True Zero-Delay for All
Unlike WiFi-based systems, the patented Teradek BB3 silicon chip inside Ace 750 ensures wireless HDMI video transmission with less than 0.01 seconds of latency, sending true zero-delay video to up to six receivers up to 750 feet away.

AUTO CHANNEL SELECTION
Automatically connects to the clearest channel in your area for optimal signal strength.

APP CONTROL
Pair devices and manage settings with the Bolt Manager App for iOS and Android.

6GHz DIVERSITY
Get full 5GHz connectivity plus 12 newly available U-NII 5 channels (aka 6GHz) for more frequency options and the cleanest signal.

GOVERNMENT CERTIFIED
Teradek follows all frequency usage and power output guidelines to ensure full FCC and CE compliance.

The System That Evolves With You
Compatible with all Teradek Bolt 4K and Bolt 6 Series Wireless Systems, Ace 750 lets you scale to any production environment.

Teradek Ace 750 HDMI Wireless Video Receiver Specs

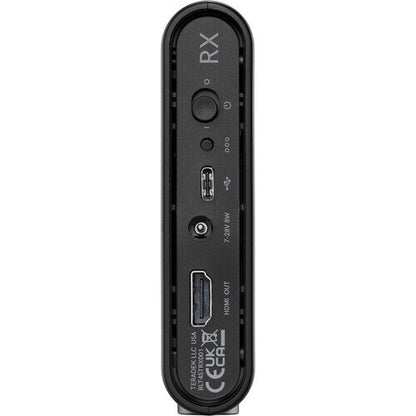

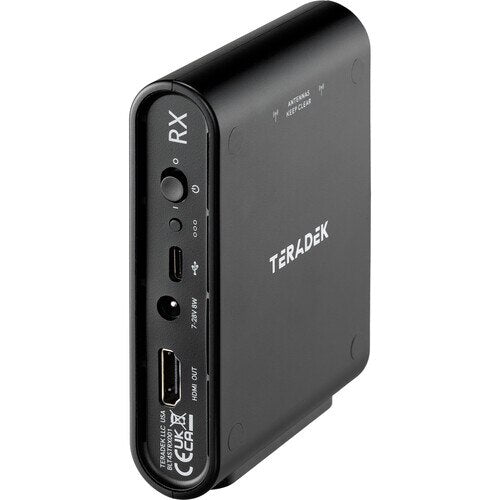

Inputs / Outputs
Antenna I/O
No
Video I/O
1x HDMI 1.4b Output
HDCP Support
Not Specified by Manufacturer
Embedded Audio
HDMI: 2-Channel
Audio I/O
No
Power I/O
1x Barrel (18 VDC) Input
Other I/O
1x USB-C (Firmware) Input
Encryption
256-Bit AES
Wireless
Wireless Range
750' / 228.6 m (Line-of-Sight)
Channel Bandwidth
40 MHz
Frequency Range
Non-DFS Frequencies
US: 5.94 to 6.42 GHz
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Latency
< 0.01 ms
RF Power
17 dBm
Wi-Fi
No
Bluetooth
Yes
Mobile App Compatible
Yes: Android & iOS
App Name: Bolt Manager
Functionality: Adjust Settings, Remote Control, Setup
Cellular Support
No
Format Support
Video Format
HDMI (10-Bit 4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
480p: 60/59.94
576i: 60
480i: 59.94
Audio Format
2-Channel 24-Bit 48 kHz
Timecode Support
Yes
Power
Input Power
7 to 18 VDC
Power Consumption
6 W
Mounting

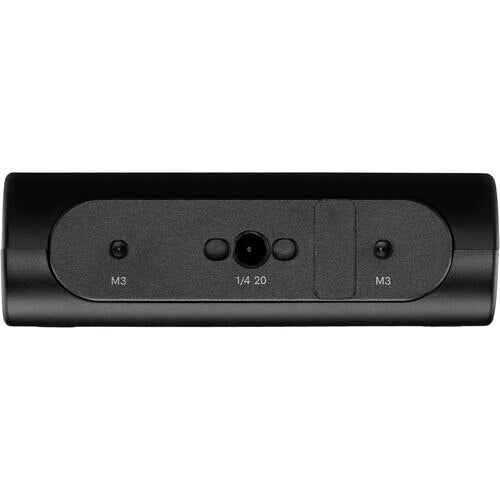

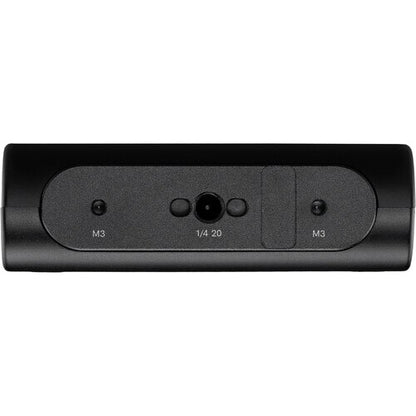

Mounting
1x 1/4"-20 Female
Environmental
Environmental Protection
No
Certifications
No
Operating Temperature
32 to 104°F / 0 to 40°C
General
Material of Construction
Plastic
Dimensions
4.4 x 3.2 x 1" / 112 x 81 x 25 mm
Weight
6.6 oz / 187 g
