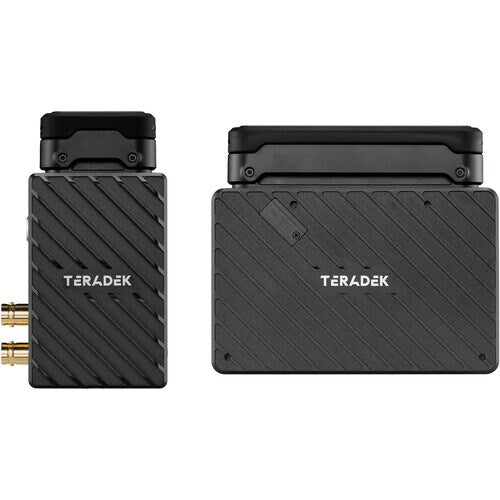

Bolt 6 LT is a wireless video transmission system that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.
Bolt 6 LT Sets offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter.
The 750 model includes V (vertical) antennas. 1500 and MAX models include both V antennas and H (horizontal) antennas. H antennas are designed to maximize signal robustness in the most challenging RF environments.
Optionally, the 750 model of Bolt 6 LT can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.
Kit options include the Transmitter and Receiver by themselves or within a Deluxe kit that also includes Gold or V-Mount Battery plates.
Product Highlights
Video
Video Inputs
3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
1 x HDMI 1.4b Type-A receptacle
Video Outputs
3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support
Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling
SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay Tx To Rx
<0.001sec
Input Cross Conversion
Yes, HDMI to SDI (4Kp23.98-30 HDMI i(more...)
