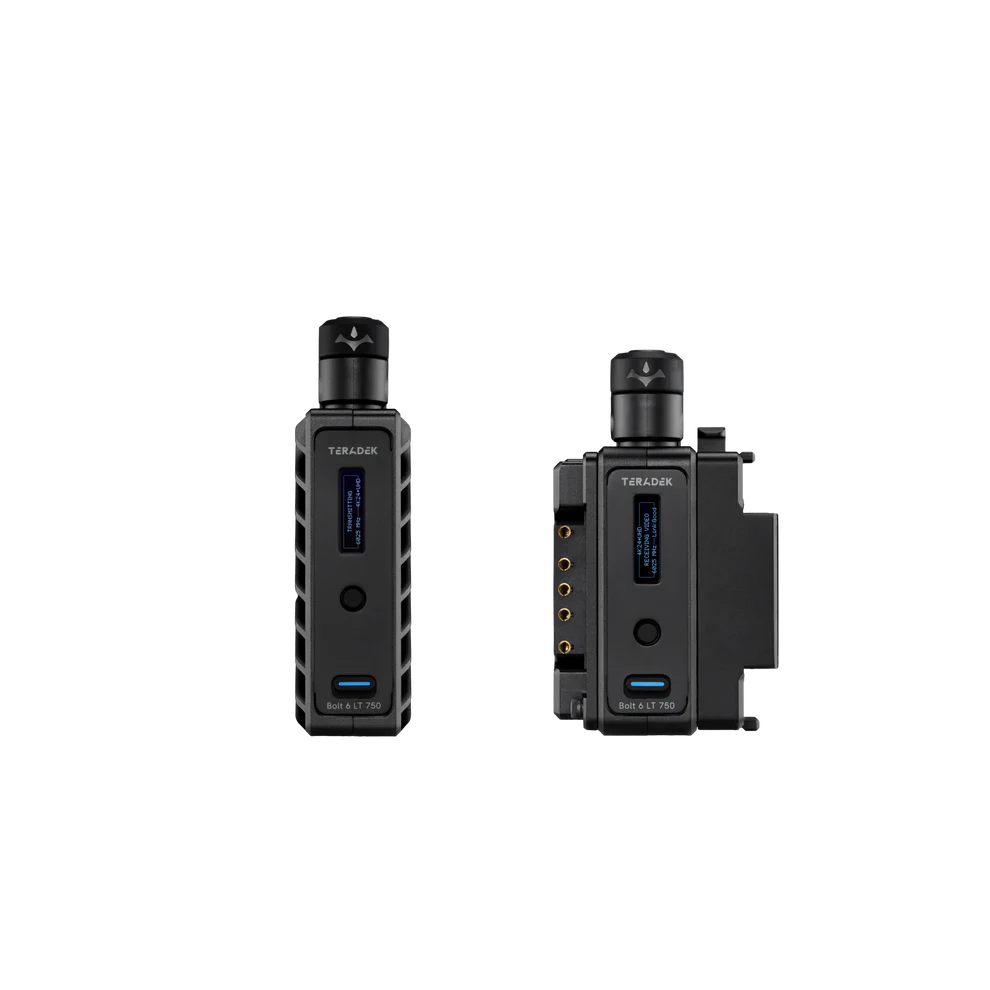

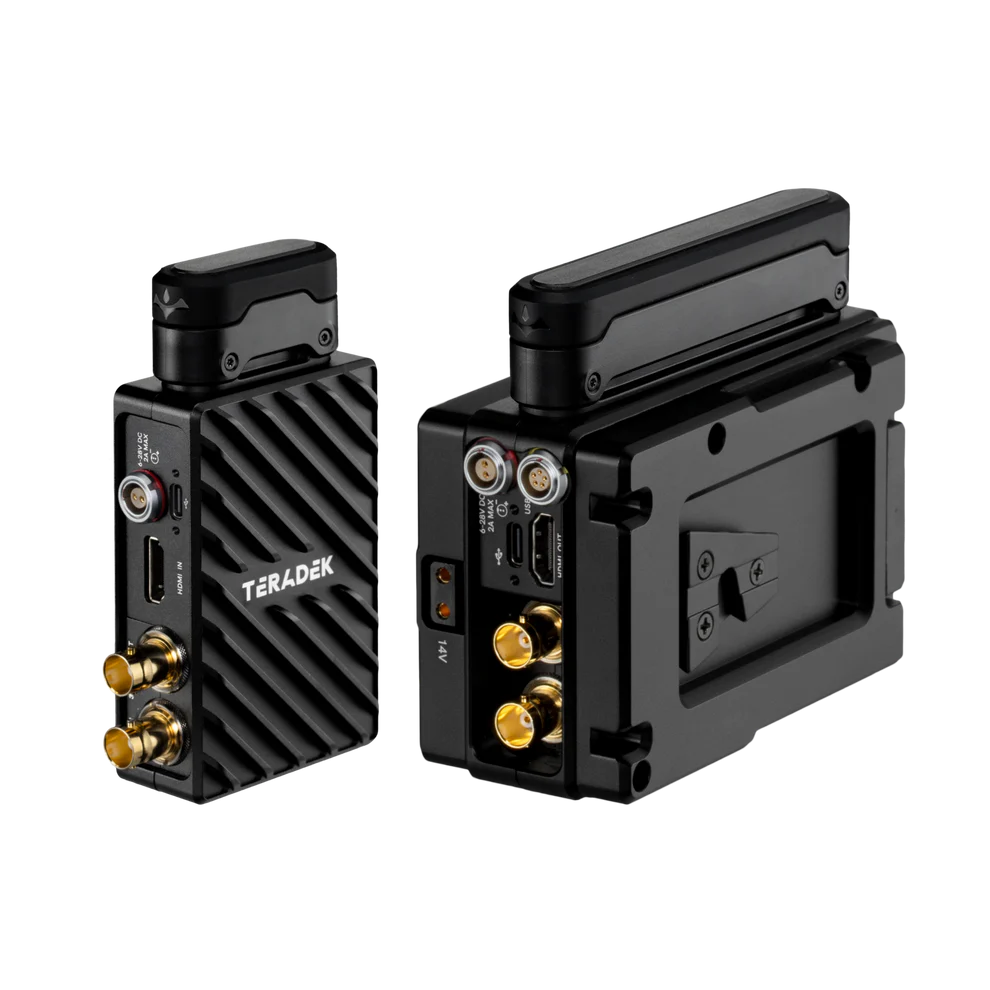

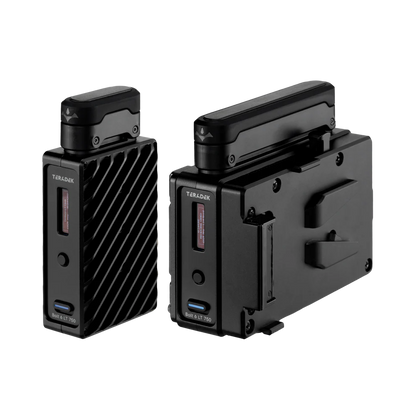

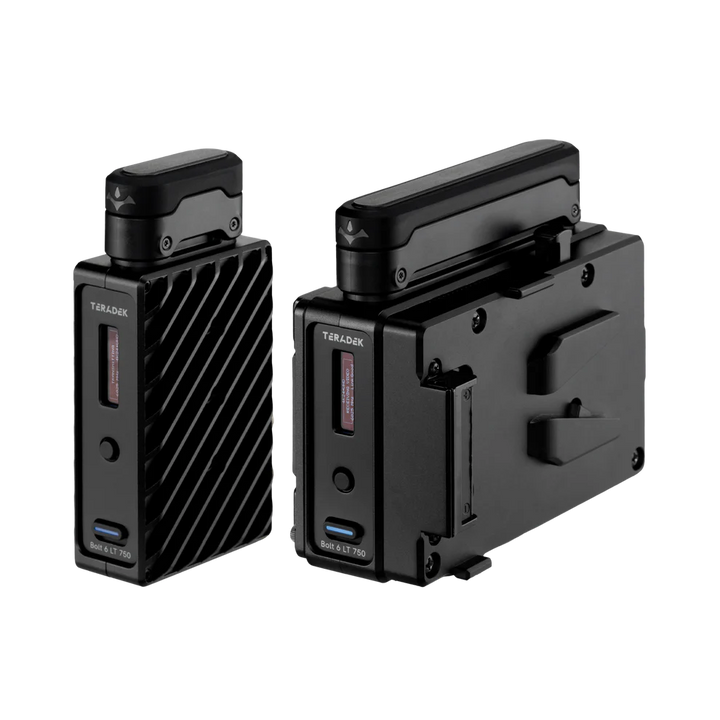

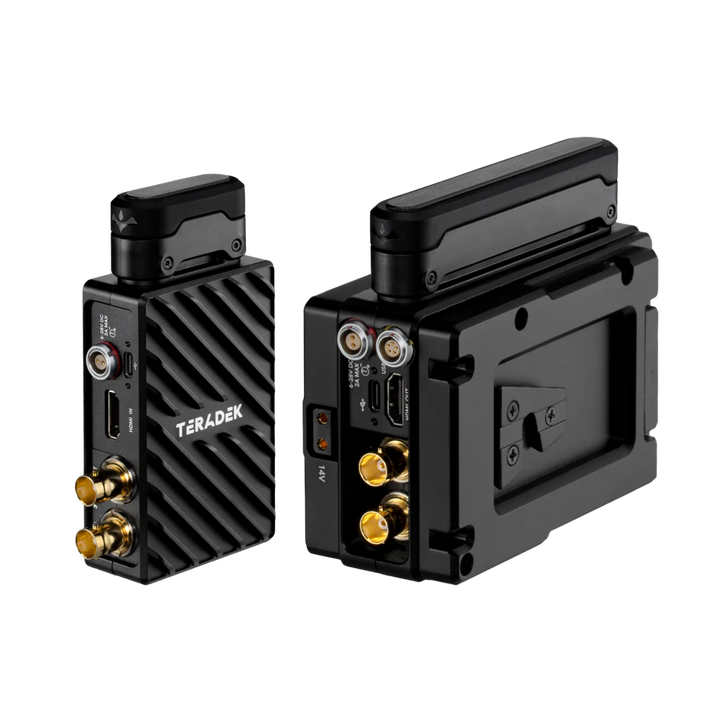

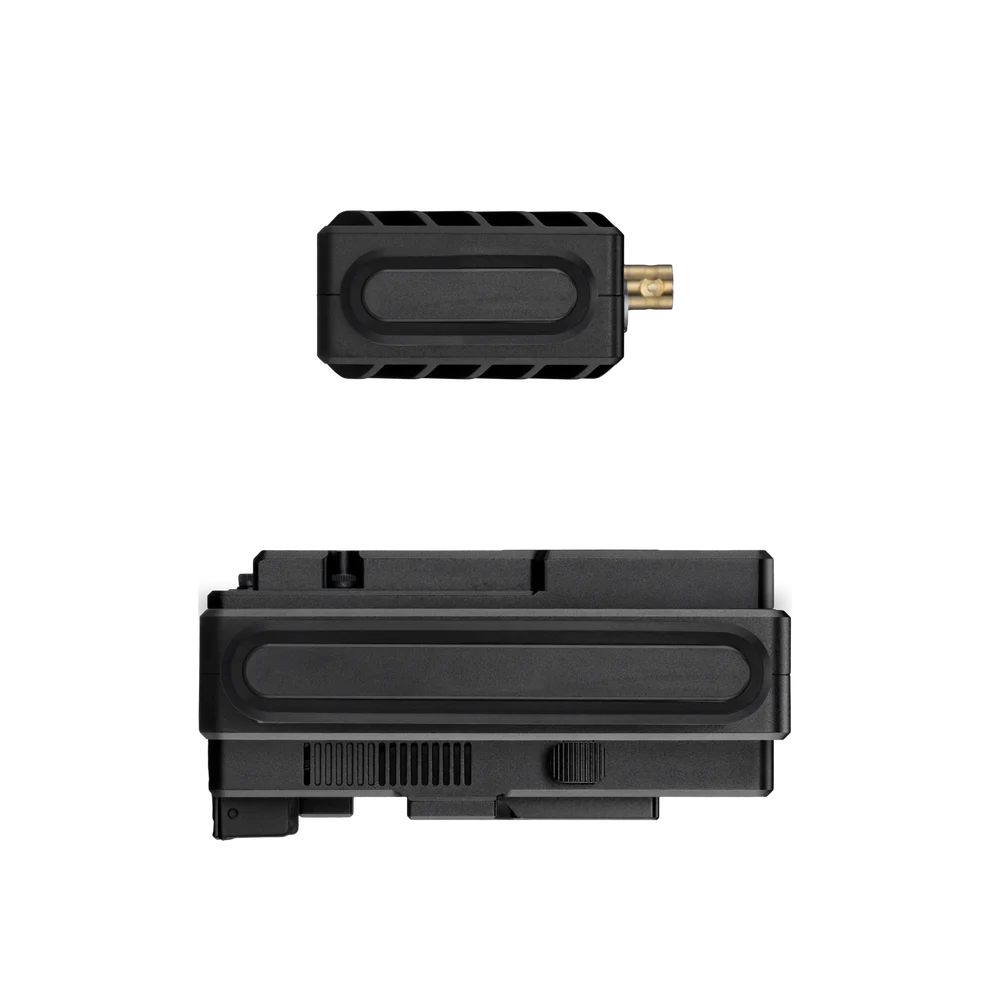

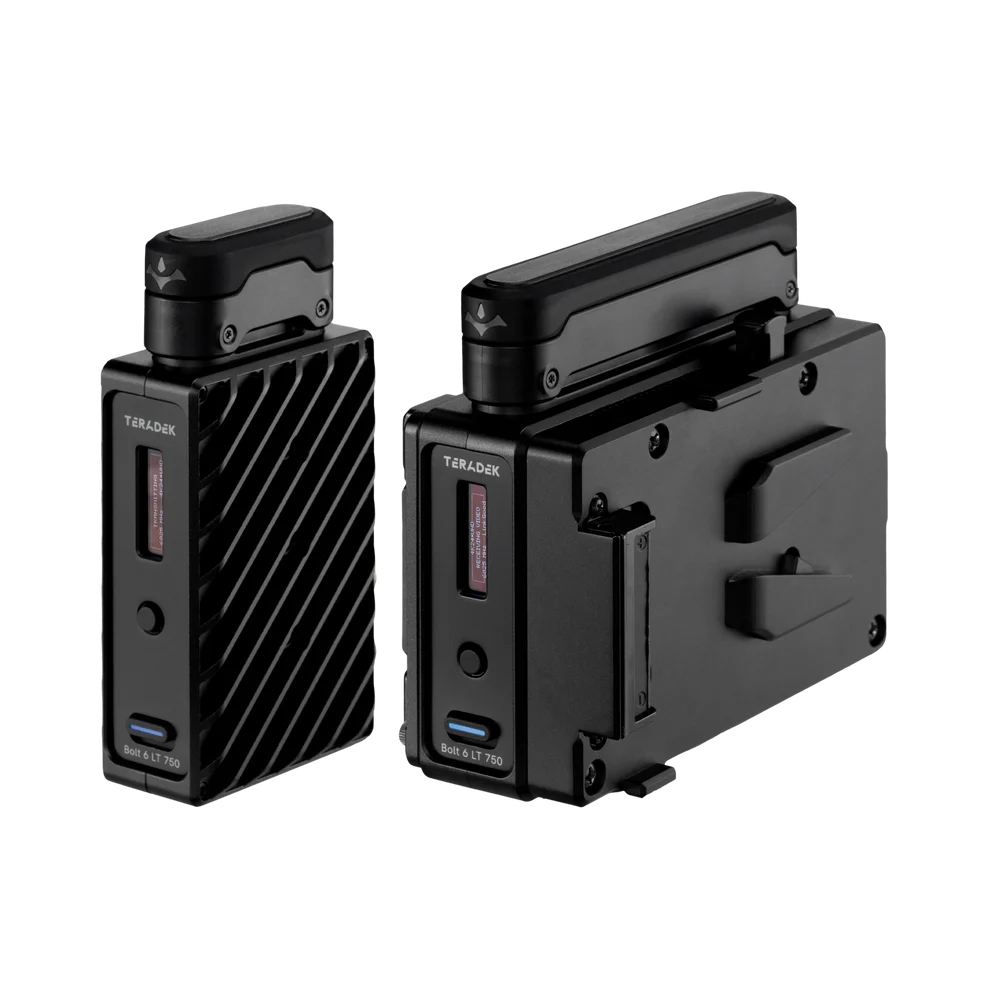

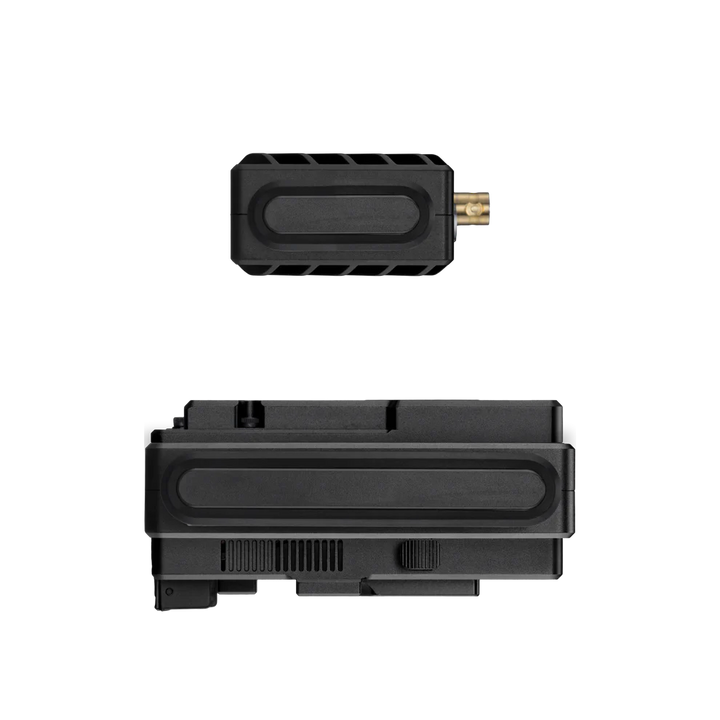

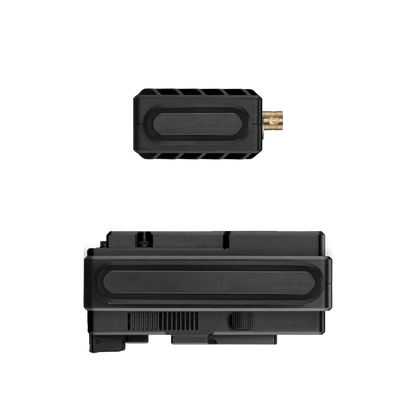

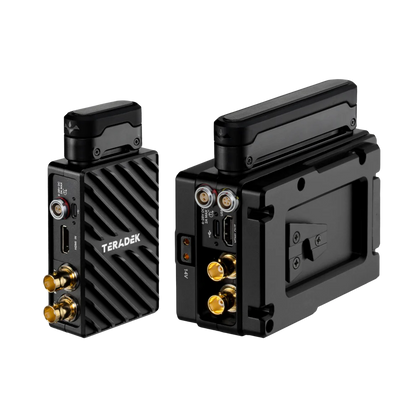

Teradek Bolt 6 LT 750 Int Ant TX / RX V-Mount

Bolt 6 LT Set

• 6GHz Zero-Delay Wireless Video
• Up to 4K30 10-bit 422 HDR Video
• Zero-Delay over 5GHz and 6GHz Frequencies
• 6GHz is available in the US, EU, Canada, Japan, and Australia/New Zealand

Bolt 6 LT is a wireless video transmission system that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies. External Antenna models now ship with new flexible V-antennas.

Bolt 6 LT Sets offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter.

The 750 model includes V (vertical) antennas. 1500 and MAX models include both V antennas and H (horizontal) antennas. H antennas are designed to maximize signal robustness in the most challenging RF environments.

Optionally, the 750 model of Bolt 6 LT can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.

Kit options include the Transmitter and Receiver by themselves or within a Deluxe kit that also includes Gold or V-Mount Battery plates.

Bolt 6 LT 750 Int Ant RX V-Mount

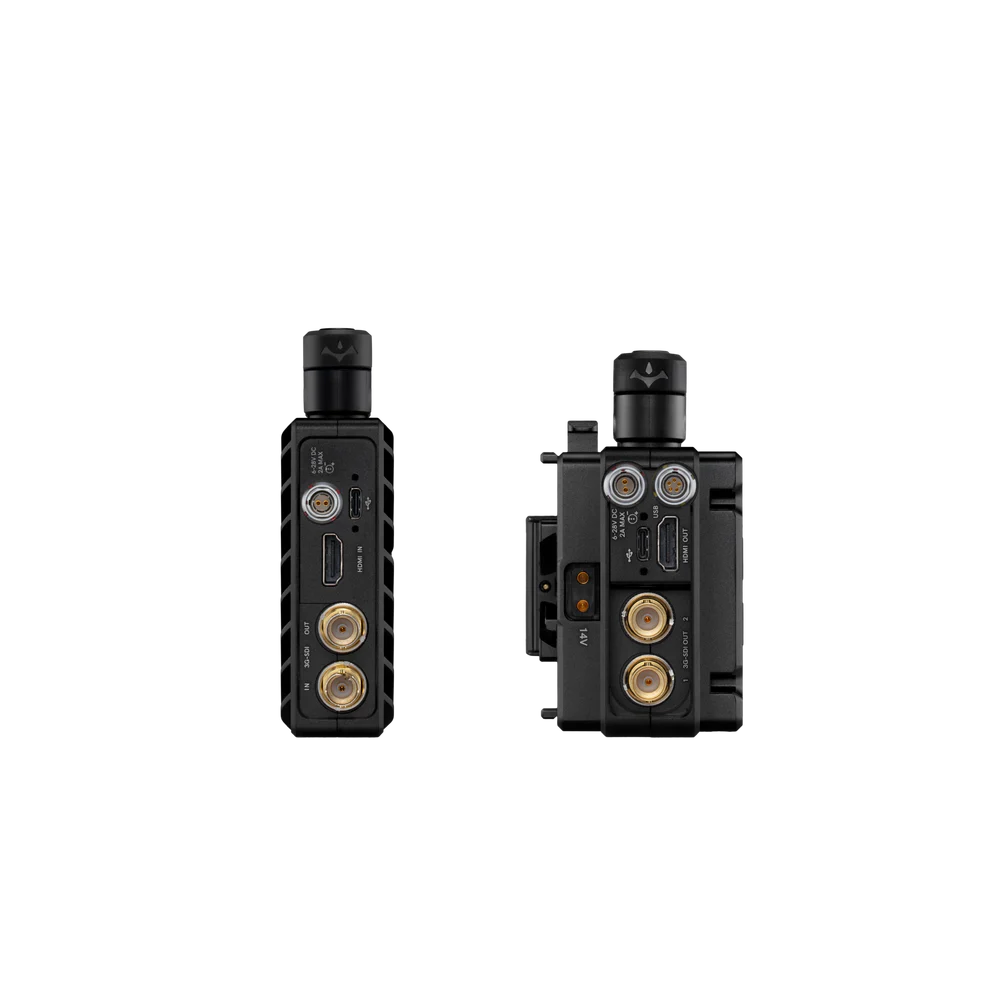

Video Outputs
3G-SDI SMPTE 424M standard/75 Ω (BNC x 1), 1x HDMI 1.4b Type-A receptacle
Sdi Ancillary Data Support
Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling
SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay Tx To Rx
<0.001sec
Output Video Scaling
No (4Kp30 signals are output on HDMI, but scaled to 1080p30 and output over SDI. 4Kp60 signals received from Bolt 6 XT devices are scaled to 1080p60 and output over both HDMI and SDI outputs)
Supported Resolutions
4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression
Visually Lossless
Test Pattern Generator Support
Yes
Spectrum Analyzer
Yes
Color Correction
None
Audio Compression
-
Dimensions
4.8" x 4.2" x 1" (122.4mm x 106.2mm x 27.1mm)
Weight
10.7 oz (304 g)
Construction
Milled Aluminum(Chassis) and regulation-compliant PCB
Mountability
Multiple mounting options with 3/8”x16 and 1/4-20” holes

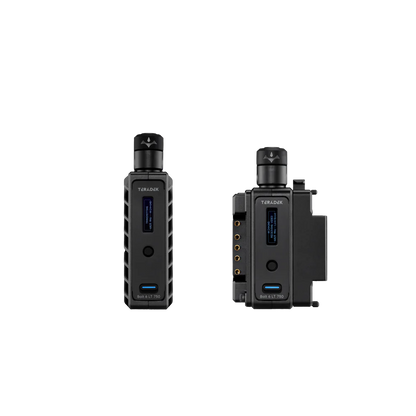

Configuration Interfaces
OSD with Menu, Joystick Navigation
Switches
On/Off Switch
Mobile App
Bolt App
Desktop App
Bolt Manager application for OSX & Windows
Usb Interface Functionality
Upgrade via Micro-USB
Bluetooth
2.4 GHz
Antennas
5x Internal 2dBi antennas
Wireless
DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz
Rf Channel Selection
Auto, Manual
Encryption
AES-256, RSA-1024 key exchange
Rf Power
21 dbm EIRP
Range
Up to 750 ft, line of sight
Unicast Multicast
Can connect one Transmitter to up to 6 Receivers
Noise Rejection
Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Interoperability Compatibility
Can receive wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
Power Input
2-Pin Circular locking Connector 6-28 VDC
Battery
None, optional Gold or V mount battery plate
Nominal Power Consumption
11 Watts
Operating Temperature
0-40℃
Audio Output
Embedded SDI/HDMI Audio Input (2 Channel)

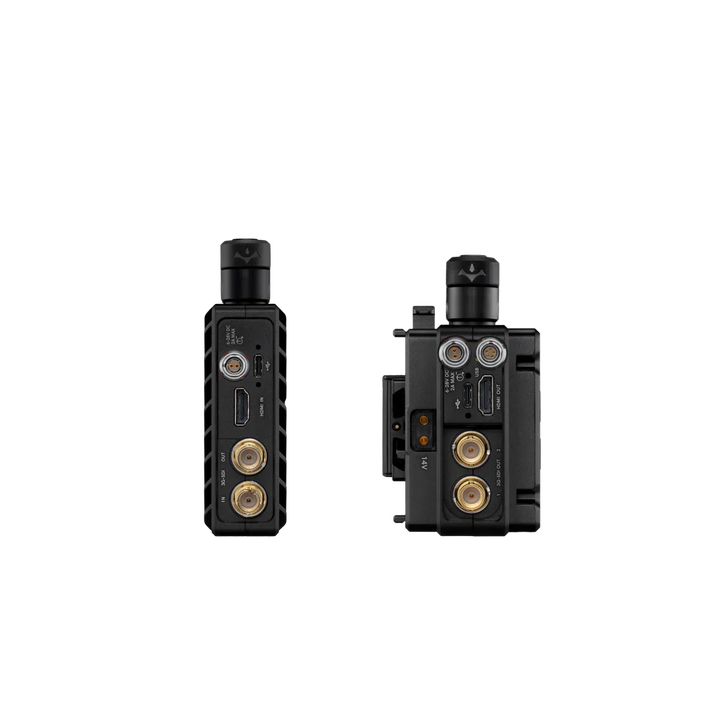

Bolt 6 LT 750 Int Ant TX

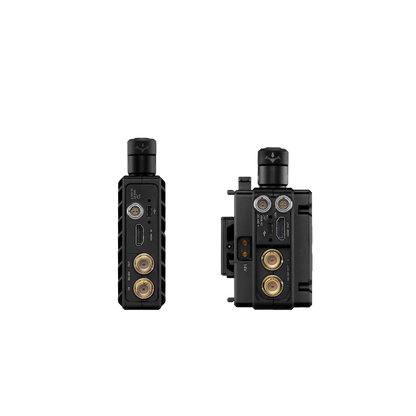

Video Inputs
3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle
Video Outputs
3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support
Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Color Sampling
SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay Tx To Rx
<0.001sec
Input Cross Conversion
Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)
Supported Resolutions
4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60
Video Compression
Visually Lossless
Supported Video Bitrate
-
Color Correction
None
Audio Compression
48kHz 24-bit PCM
Dimensions
2.8" x 4.7" x 1.3" (72mm x 119.8mm x 33.1mm)
Weight
7.5 oz (212 g)
Construction
Milled Aluminum(Chassis) and regulation-compliant PCB

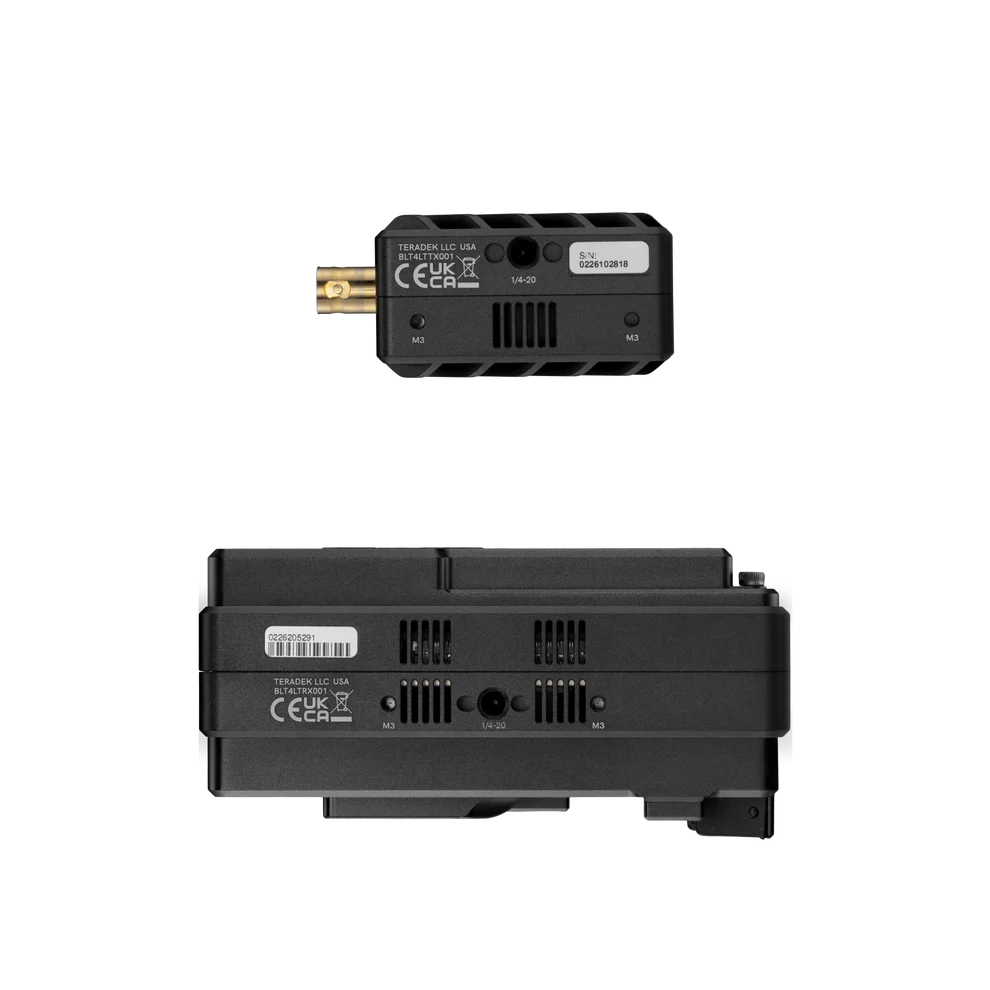

Mountability
Multiple mounting options with 1/4"x20 and M3 holes

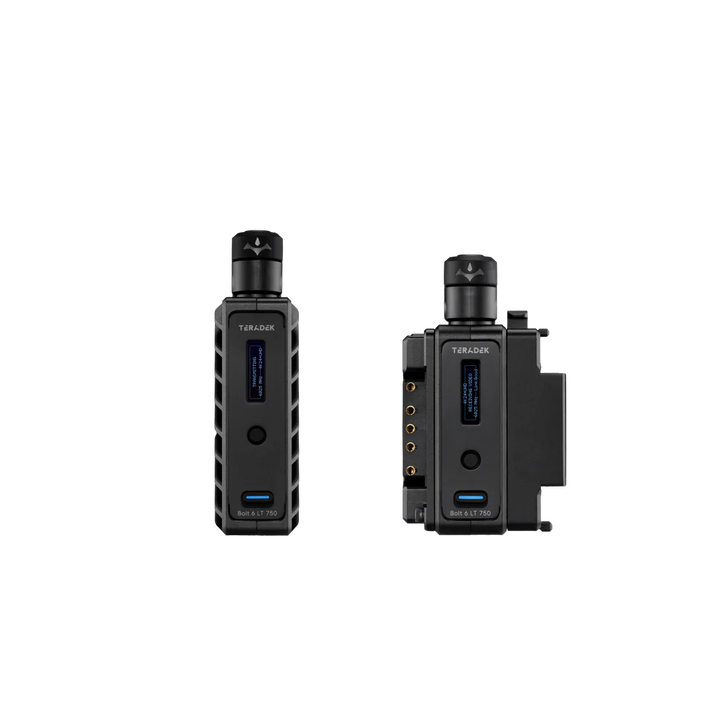

Configuration Interfaces
OSD with Menu, Joystick Navigation
Switches
On/Off Switch
Mobile App
Bolt App
Desktop App
Bolt Manager application for OSX & Windows
Usb Interface Functionality
Upgrade via Micro-USB
Bluetooth
2.4 GHz
Antennas
4x Internal 2dBi Antennas
Wireless
DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz
Rf Channel Selection
Auto, Manual
Encryption
AES-256, RSA-1024 key exchange
Rf Power
23 dbm EIRP
Range
Up to 750 ft, line of sight
Unicast Multicast
Can connect one Transmitter to up to 6 Receivers
Noise Rejection
Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location
Interoperability Compatibility
Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)
Power Input
2-Pin Circular locking Connector 6-28 VDC
Battery
None, optional Sony/Canon dual battery plate
Nominal Power Consumption
9 Watts
Operating Temperature
0-40℃
Audio Input
Embedded SDI/HDMI Audio Input (2 Channel)

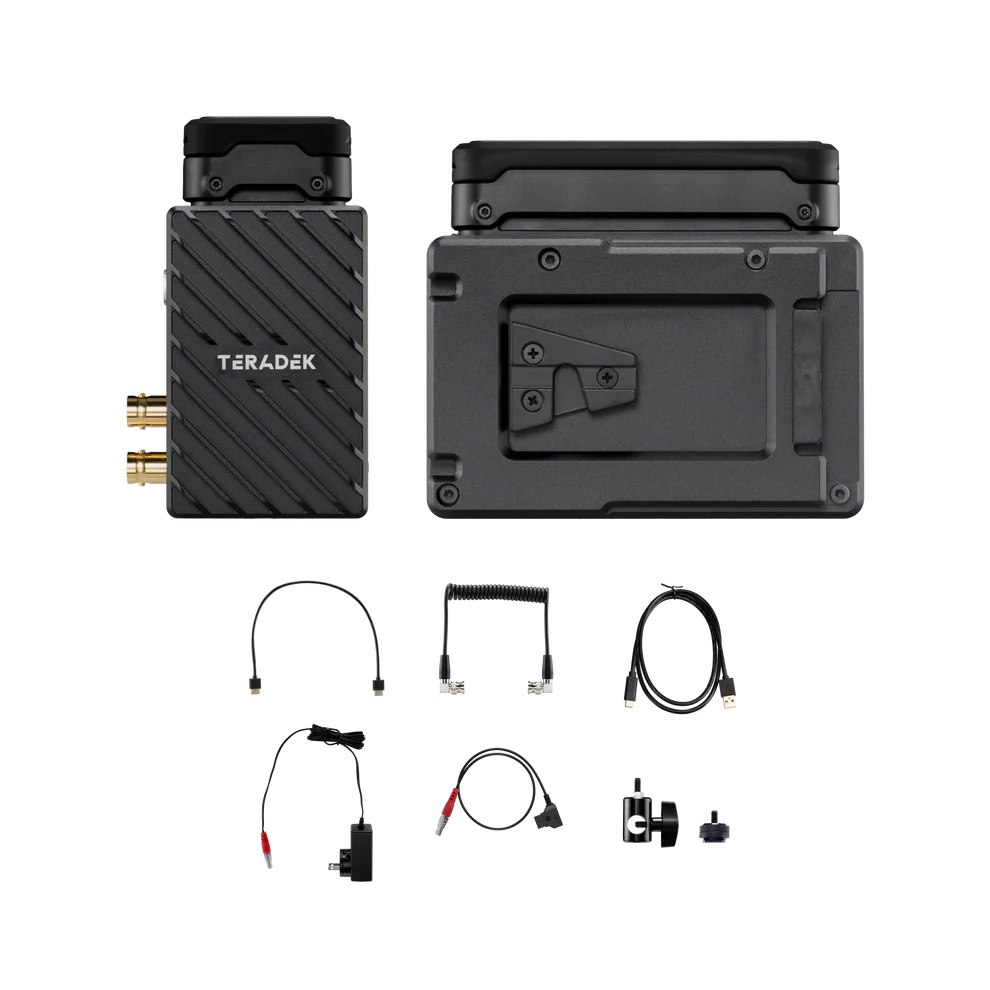

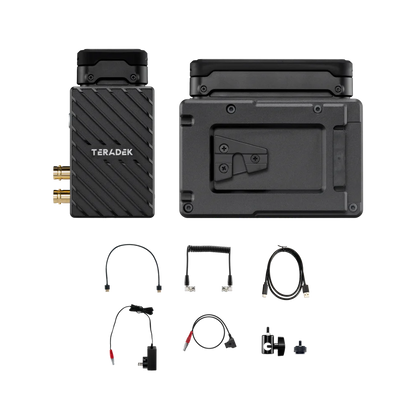

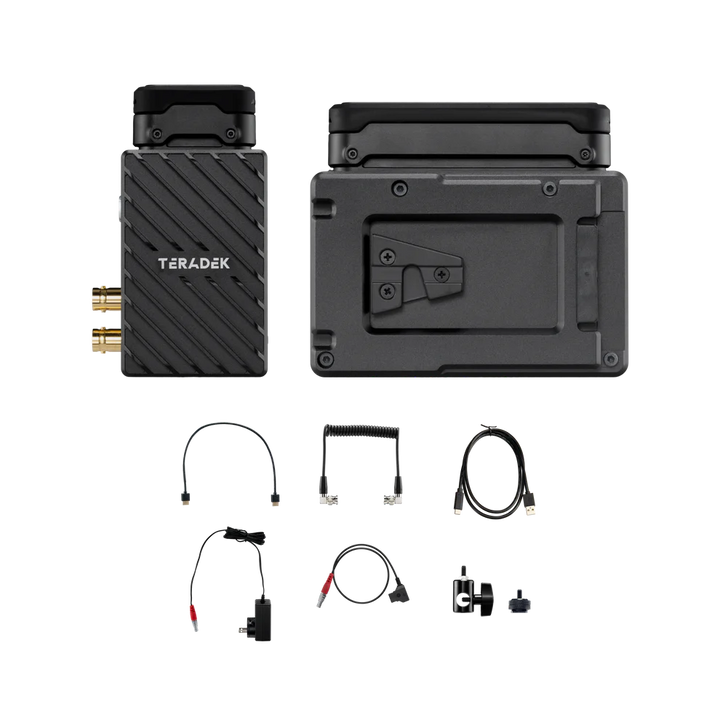

• 1 x Bolt 6 LT 750 TX Internal Antenna
• 1 x Bolt 6 LT 750 RX Internal Antenna V-Mount
• 1 x 2pin to P-Tap Cable, 18in
• 1 x 2pin to AC Adapter 18W, 6ft
• 2 x Ultra Thin HDMI Male to Male Cable, 18in
• 2 x SDI Cable, 10in
• 1 x Lightstand Adapter 1/4-20in
• 1 x Hot Shoe Adaptor
• 1 x USB-C 2.0 Male to Male, 1m
