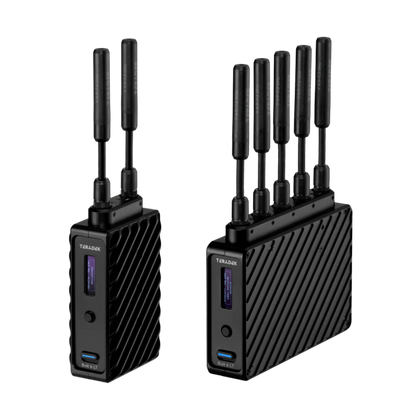

Name: Teradek Bolt 6 LT 750 TX/RX Deluxe Set V-Mount
Brand: TERADEK
SKU: TER102260V
Price: 2390.00 USD
Availability: InStock

Description

Teradek Bolt 6 LT 750 TX/RX Deluxe Set Features:

Up to 4K30 10-bit 422 HDR Video
Zero-Delay over 5GHz and 6GHz Frequencies
6GHz is available in the US, EU, Canada, Japan, and Australia/New Zealand

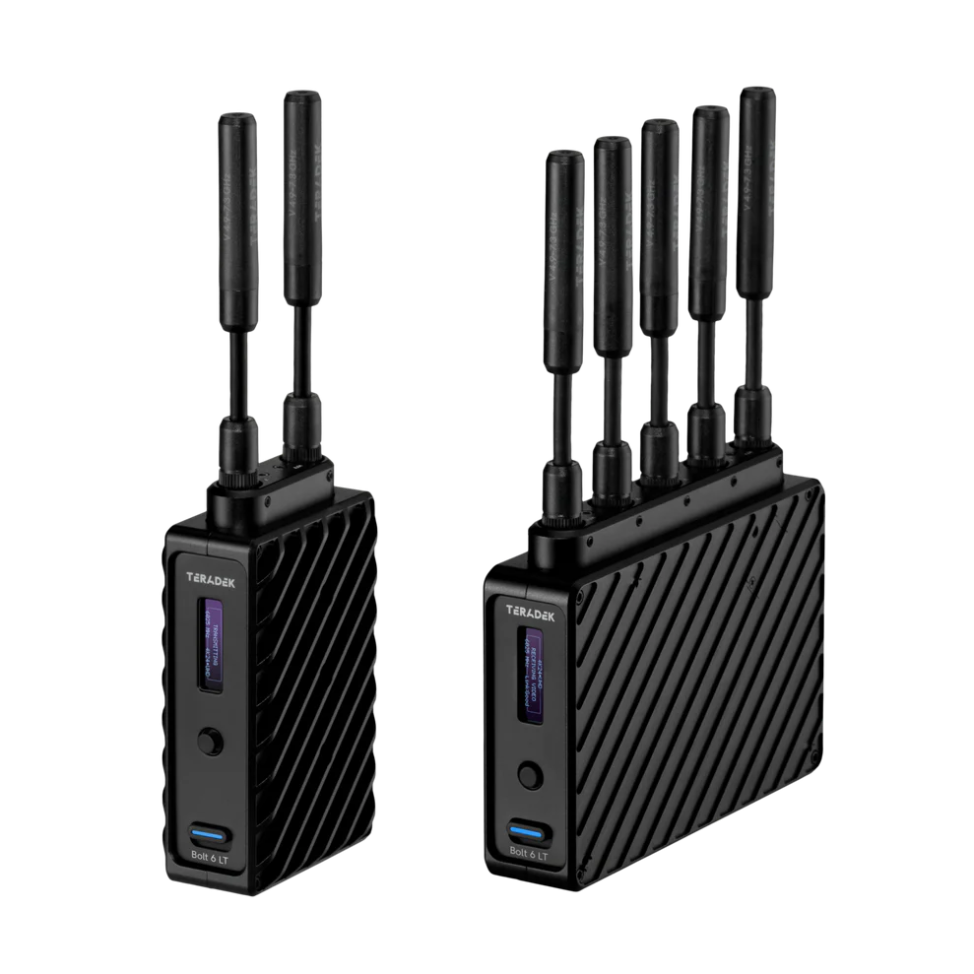

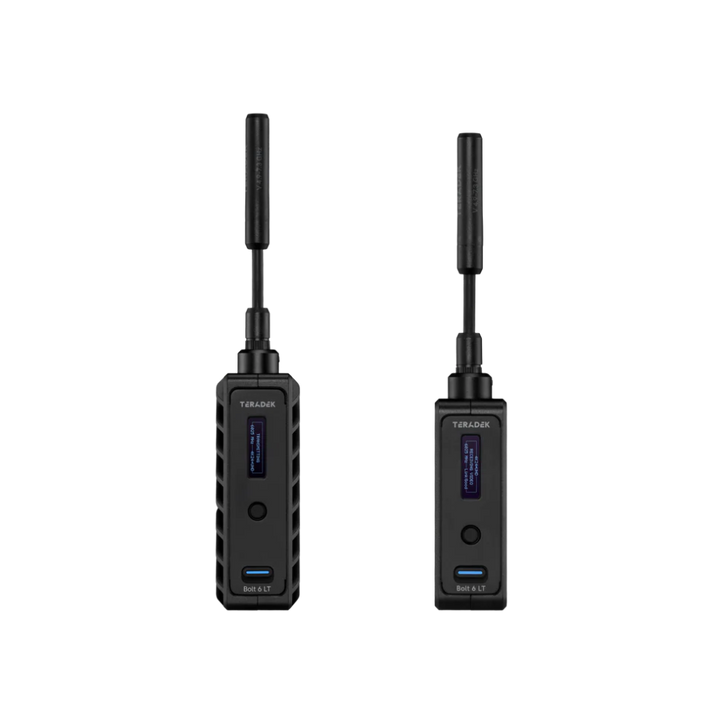

Teradek Bolt 6 LT 750 TX/RX Deluxe Set is a wireless video transmission system that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies. External Antenna models now ship with new flexible V-antennas.

Bolt 6 LT Sets offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter.

The 750 model includes V (vertical) antennas. 1500 and MAX models include both V antennas and H (horizontal) antennas. H antennas are designed to maximize signal robustness in the most challenging RF environments.

Optionally, the 750 model of Bolt 6 LT can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.

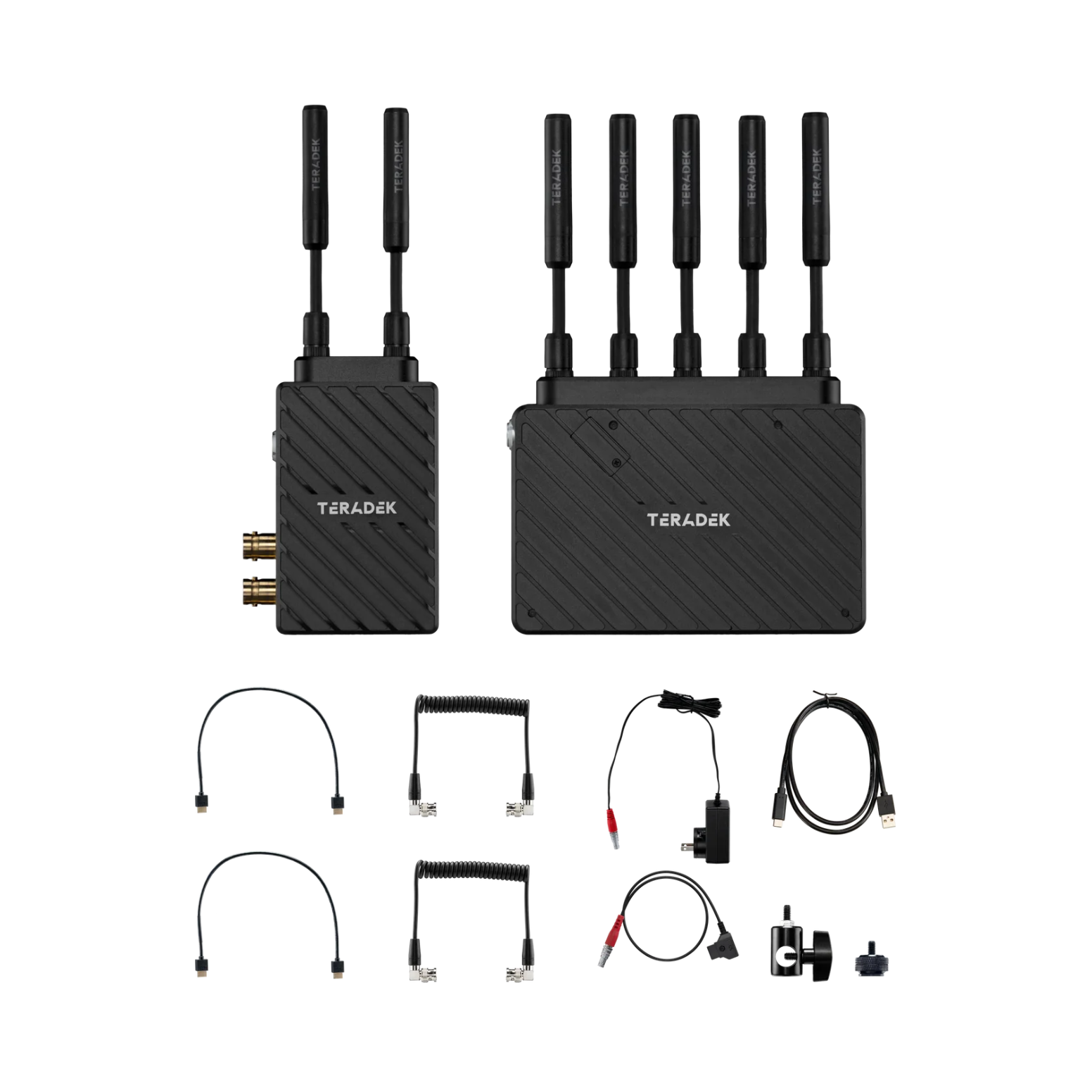

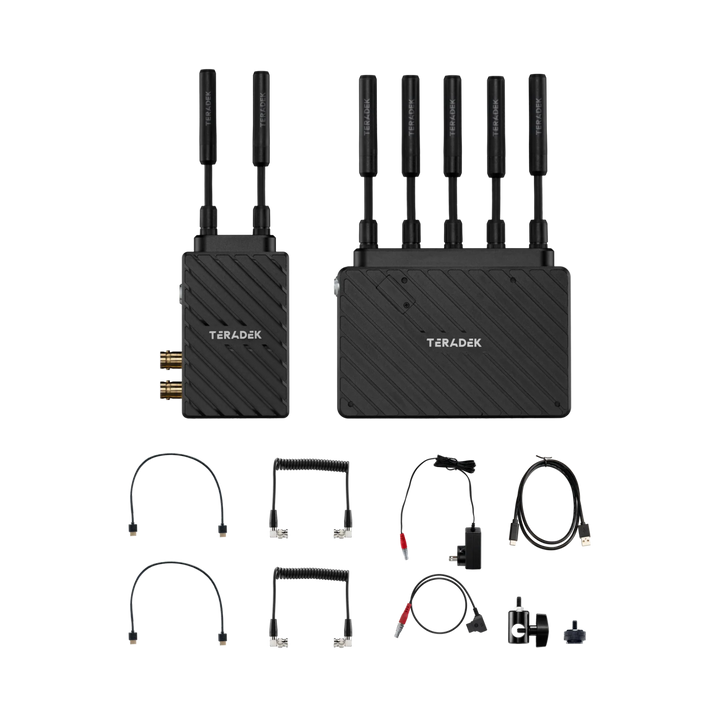

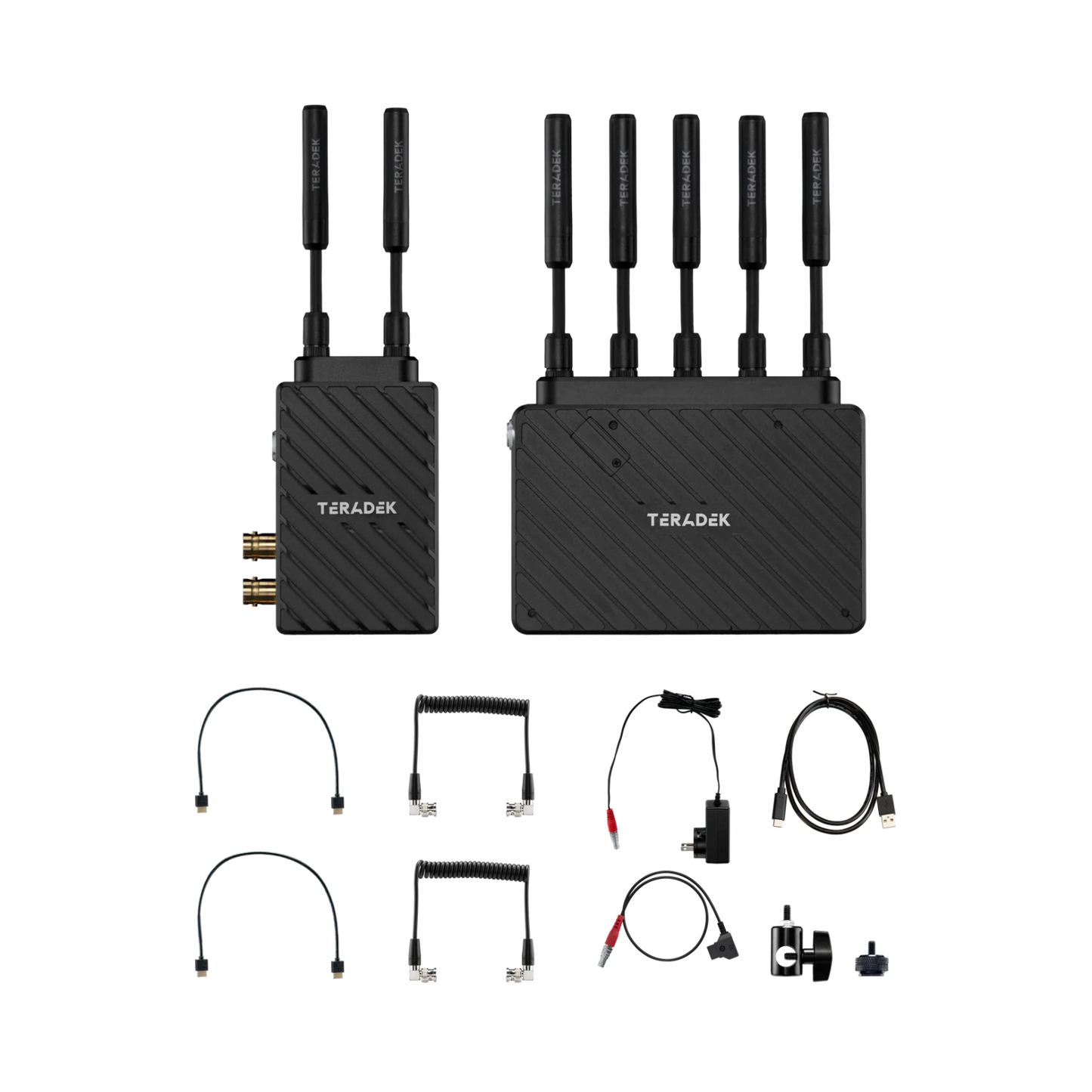

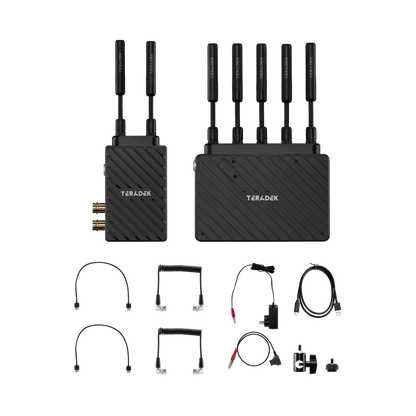

Kit options include the Transmitter and Receiver by themselves or within a Deluxe kit that also includes Gold or V-Mount Battery plates.

Specifications

Bolt 6 LT 750 TX

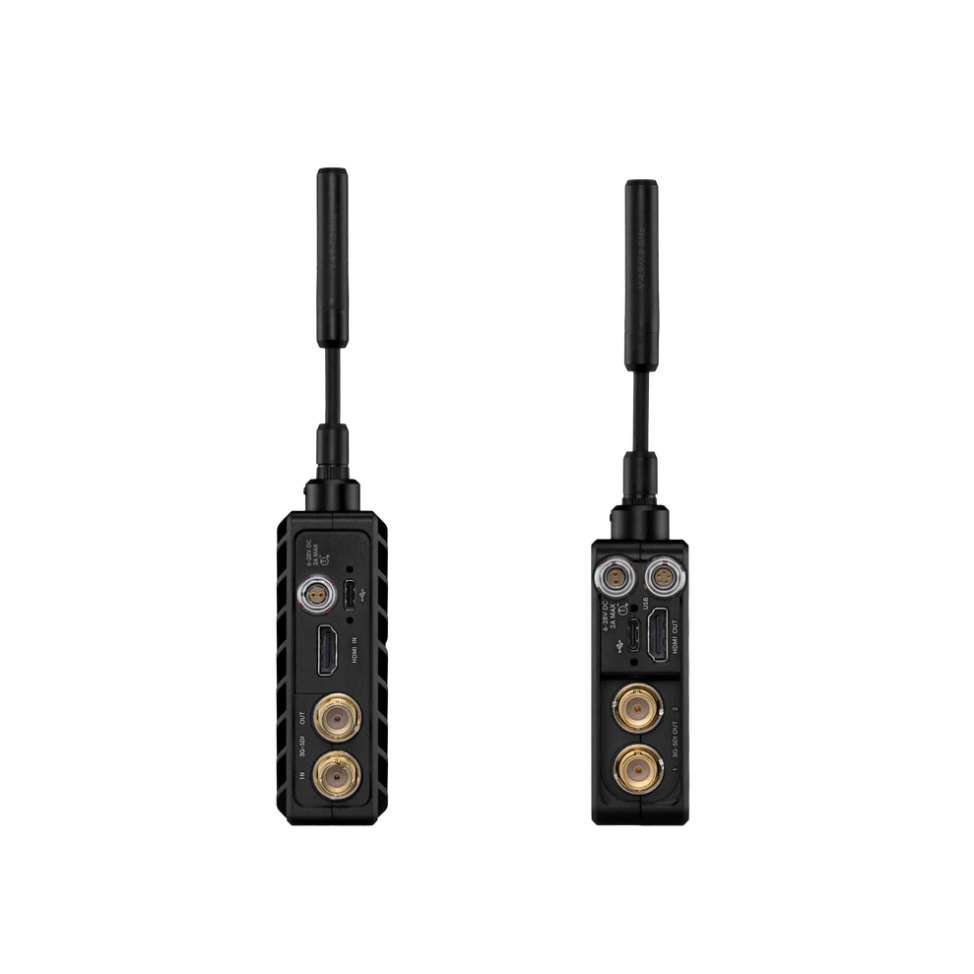

Video Inputs

3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle

Video Outputs

3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)

Sdi Ancillary Data Support

Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.

Color Sampling

SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit

Delay Tx To Rx

<0.001sec

Input Cross Conversion

Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout)

Supported Resolutions

4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30
1080i50/59.94/60 720p50/59.94/60

Video Compression

Visually Lossless

Color Correction

None

Audio Compression

48kHz 24-bit PCM

Dimensions

60mm x 103mm x 33mm

Weight

206g (7.3oz)

Construction

Milled Aluminum(Chassis) and regulation-compliant PCB

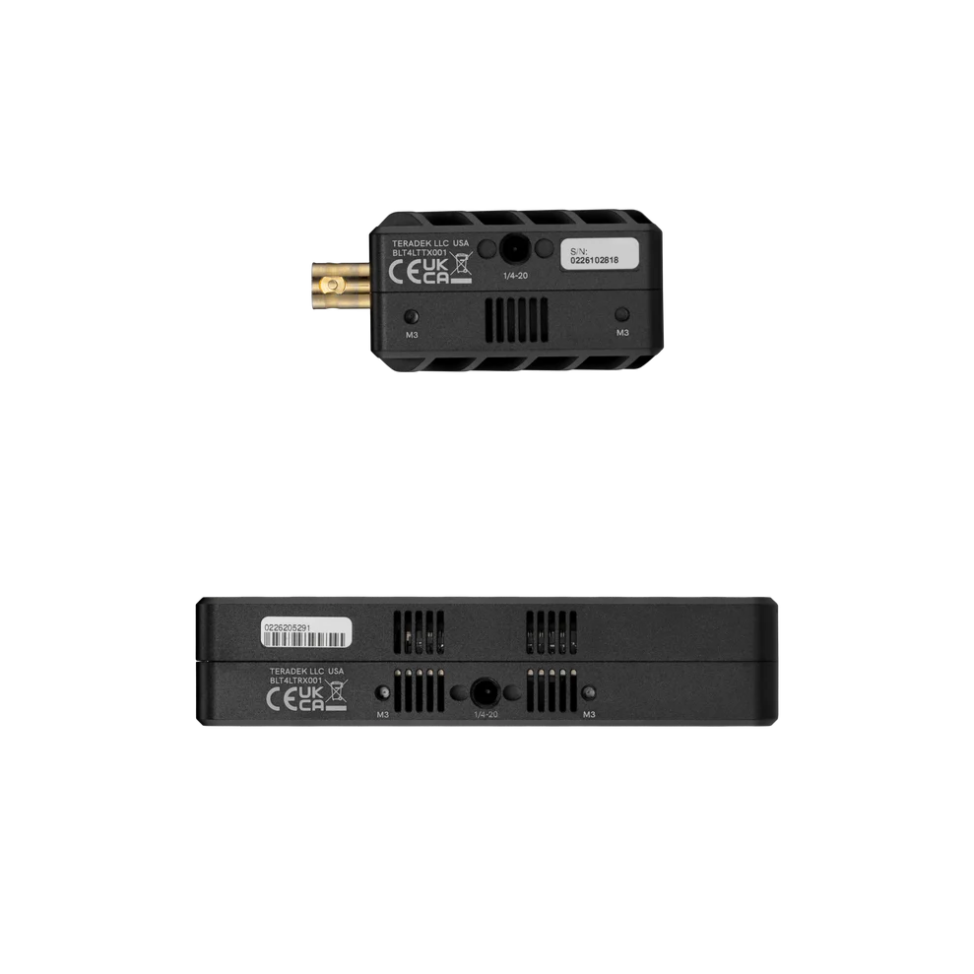

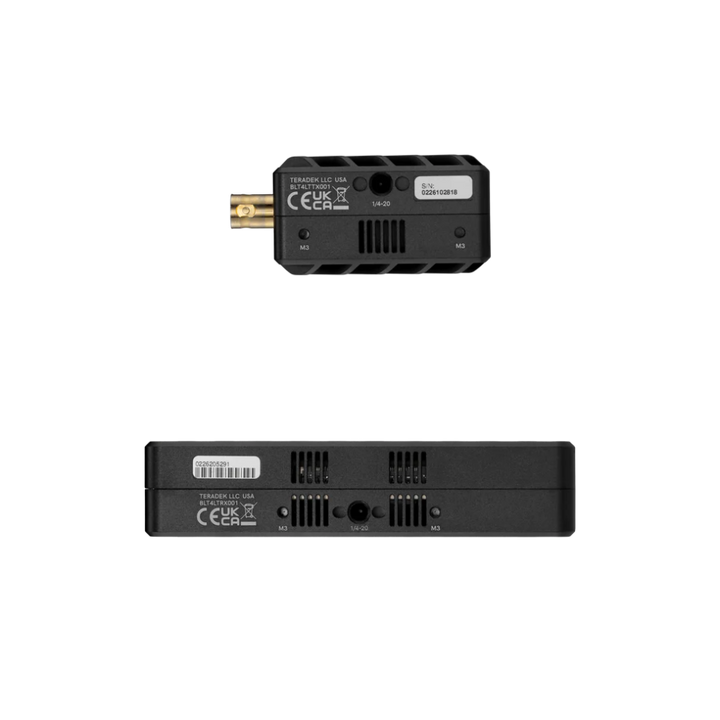

Mountability

Multiple mounting options with 1/4"x20 and M3 holes

Configuration Interfaces

OSD with Menu, Joystick Navigation

Switches

On/Off Switch

Mobile App

Bolt App

Desktop App

Bolt Manager application for OSX & Windows

Usb Interface Functionality

Upgrade via Micro-USB

Bluetooth

2.4 GHz

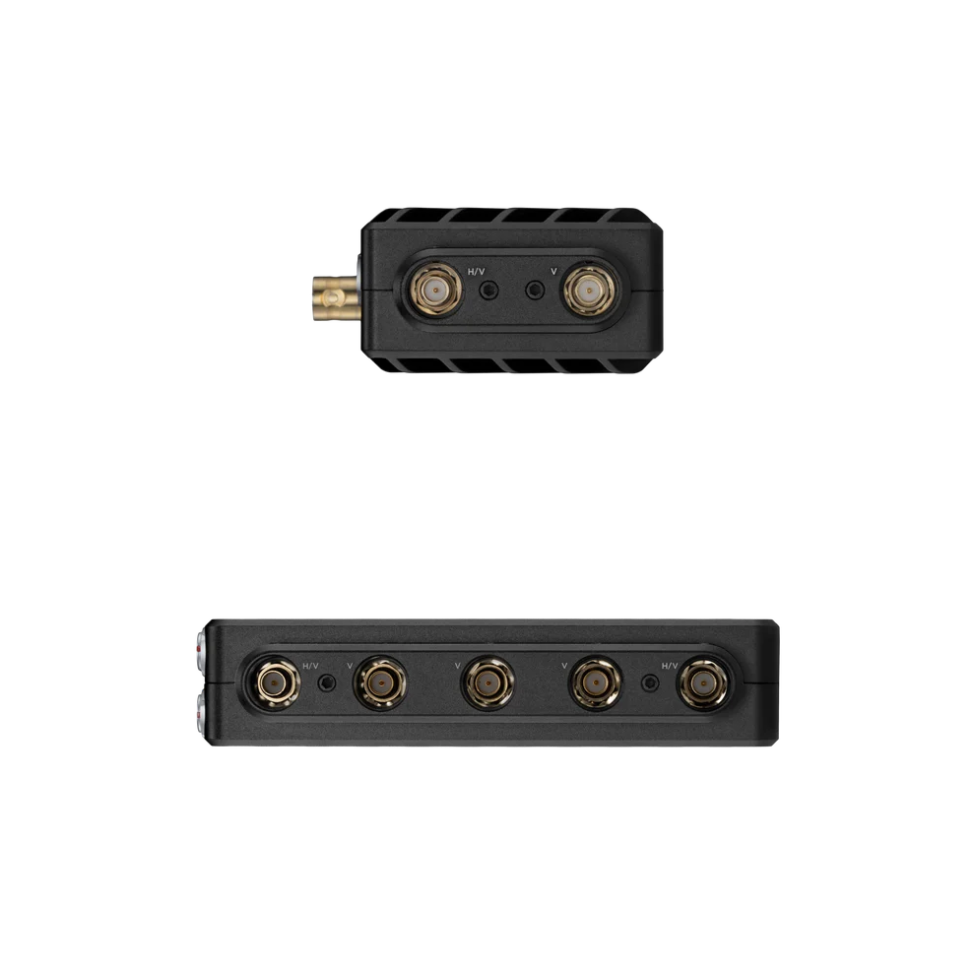

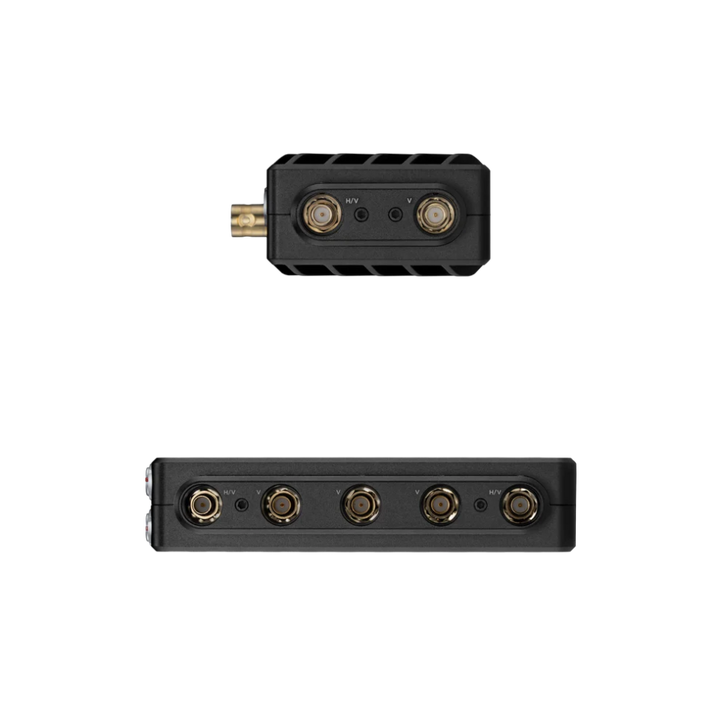

Antennas

2 External 2dBi antennas (included)

Wireless

Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz

Rf Channel Selection

Auto, Manual

Encryption

AES-256, RSA-1024 key exchange

Rf Power

23 dbm EIRP

Range

Up to 750 ft, line of sight

Unicast Multicast

Can connect one Transmitter to up to 6 Receivers

Noise Rejection

Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location

Interoperability Compatibility

Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device)

Power Input

2-Pin Circular locking Connector 6-28 VDC

Battery

None, optional Sony/Canon dual battery plate

Nominal Power Consumption

9 Watts

Operating Temperature

0-40℃

Audio Input

Embedded SDI/HDMI Audio Input (2 Channel)

Bolt 6 LT 750 RX
